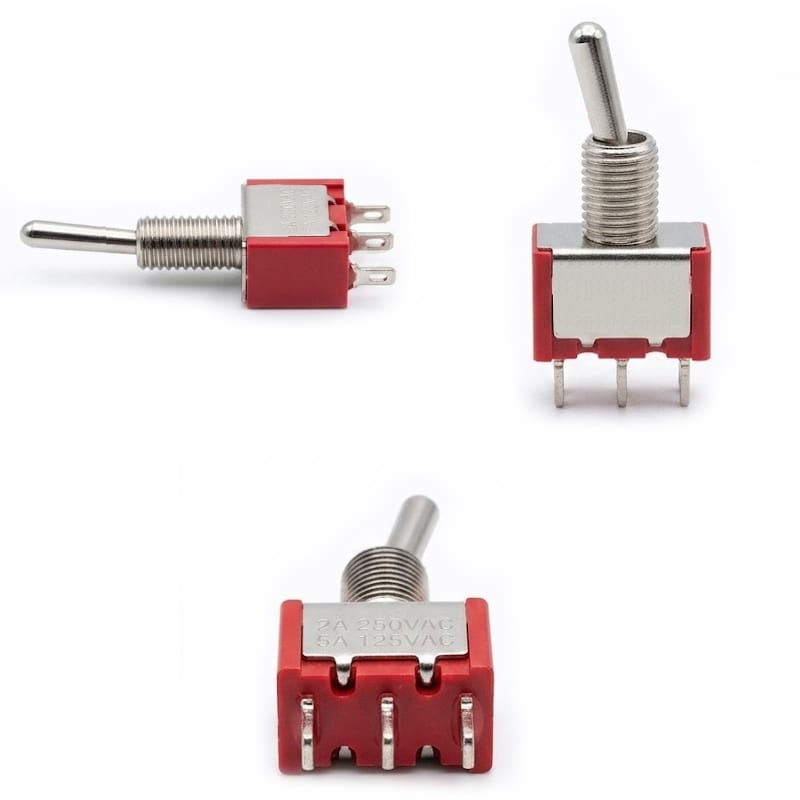

MTS-102 toggle switch ON-ON SPDT 3 pins red
Miniature MTS-102 toggle switch with two stable ON-ON positions. The SPDT configuration allows switching one circuit between two paths, and the maximum load current is 2 A.
Key features:
- Two stable positions: ON-ON.
- SPDT configuration – one switching circuit.
- Three pins for soldering wires.
- Maximum load current: 2 A.
- Red lever cap.
- Panel mounting in a hole with a diameter of 6 mm.
Operation
The middle pin is the common contact (COM), which connects to one of the two outer pins depending on the lever position. The switch does not have a middle OFF position.
Application
- switching between two signal or power sources,
- selecting operating modes for electronic devices,
- control panels in automation, modeling, and DIY devices,
- projects with Arduino, Raspberry Pi, and other microcontrollers.
Mounting tips
The washer with a tab prevents the switch from rotating in the panel. Due to the small spacing between pins, wires should be soldered efficiently using flux, without heating a single pin for longer than 2–3 seconds.
Technical specification
- Model: MTS-102
- Type: toggle switch
- Switching method: ON-ON
- Number of positions: 2
- Contact configuration: SPDT
- Number of pins: 3
- Maximum load current: 2 A
- Contact rating: 5 A at 125 V AC; 2 A at 250 V AC
- Terminal type: solder
- Mounting method: panel
- Mounting hole diameter: 6 mm
- Cap color: red

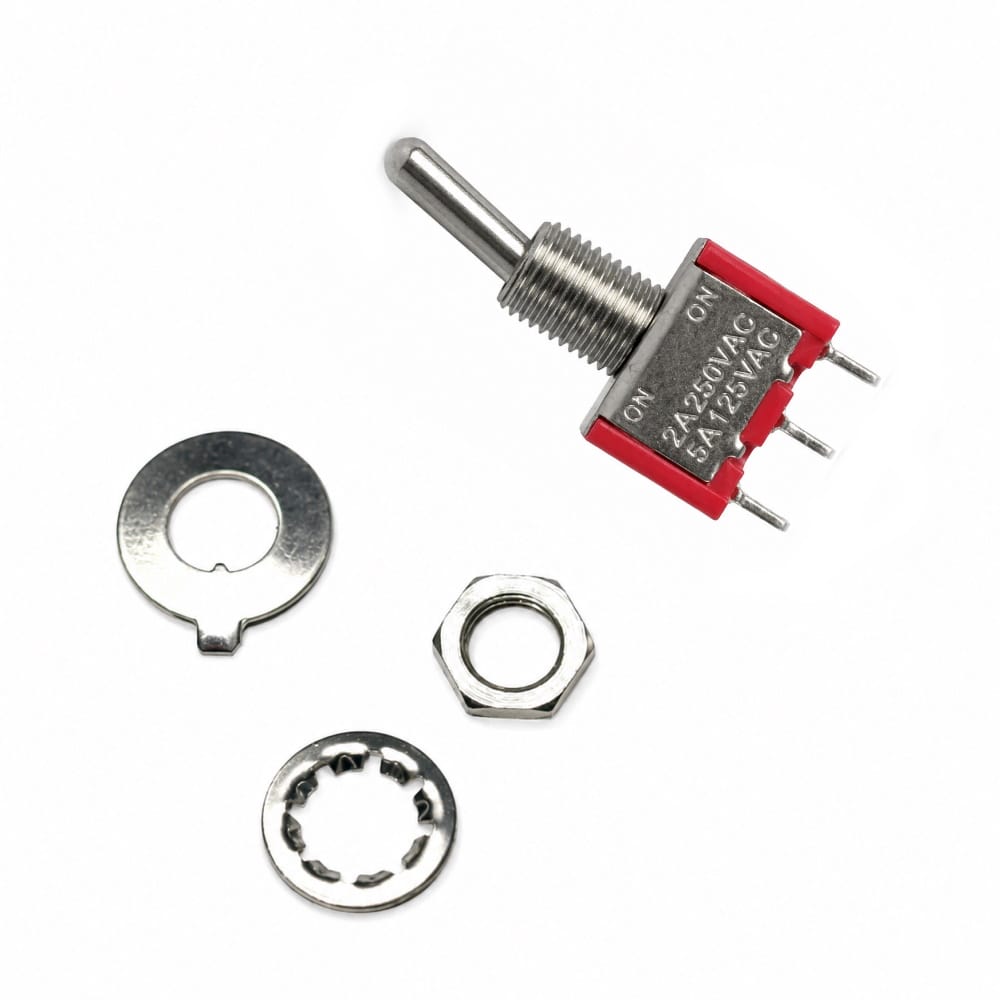

Kit contents
- MTS-102 toggle switch ON-ON – 1 piece.
- Mounting hardware – 1 set.
