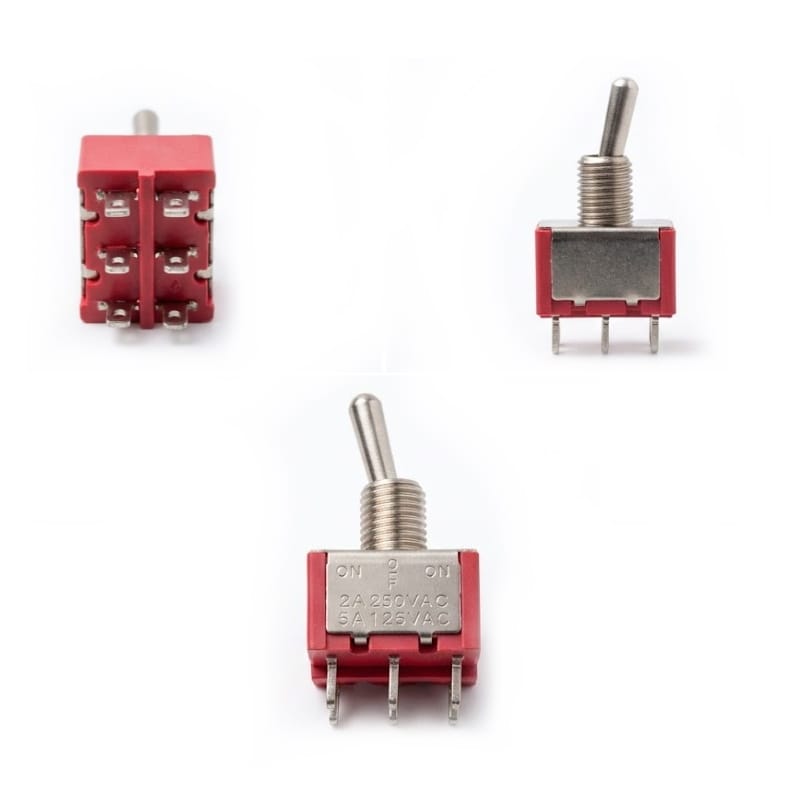

MTS-203 ON-OFF-ON DPDT toggle switch 6 pins red
Miniature MTS-203 toggle switch with three stable ON-OFF-ON positions. The DPDT configuration allows for simultaneous switching of two independent circuits, and the maximum load current is 2 A.
Key features:
- Three stable positions: ON-OFF-ON.
- DPDT configuration – two independent circuits.
- Six terminals for soldering wires.
- Maximum load current: 2 A.
- Red lever cap.
- Panel mounting in a hole with a diameter of 6 mm.
Operation
The middle pins are common COM contacts for both circuits. The extreme positions connect them to the pins on the corresponding side, while the middle position completely disconnects both circuits.
Application
- changing the rotation direction of DC motors with a stop in the middle position,
- switching signals and operating modes in audio devices,
- control panels in automation, modeling, and smart home systems,
- selecting power sources in Arduino, Raspberry Pi, and DIY projects.
Mounting tips
The washer with a tab prevents the switch from rotating in the panel. Due to the small spacing between the pins, wires should be soldered efficiently using flux and without heating a single terminal for longer than 2–3 seconds.
Technical specification
- Model: MTS-203
- Type: toggle switch
- Switching method: ON-OFF-ON
- Number of positions: 3
- Contact configuration: DPDT
- Number of terminals: 6
- Maximum load current: 2 A
- Contact rating: 5 A at 125 V AC; 2 A at 250 V AC
- Terminal type: solder
- Mounting method: panel
- Mounting hole diameter: 6 mm
- Cap color: red
Set contents
- MTS-203 ON-OFF-ON toggle switch – 1 piece.
- Mounting elements – 1 set.
