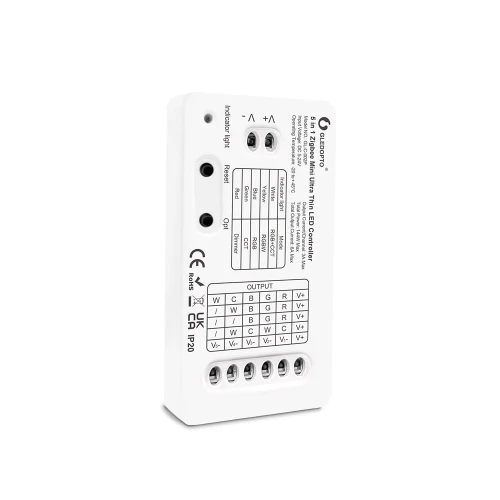

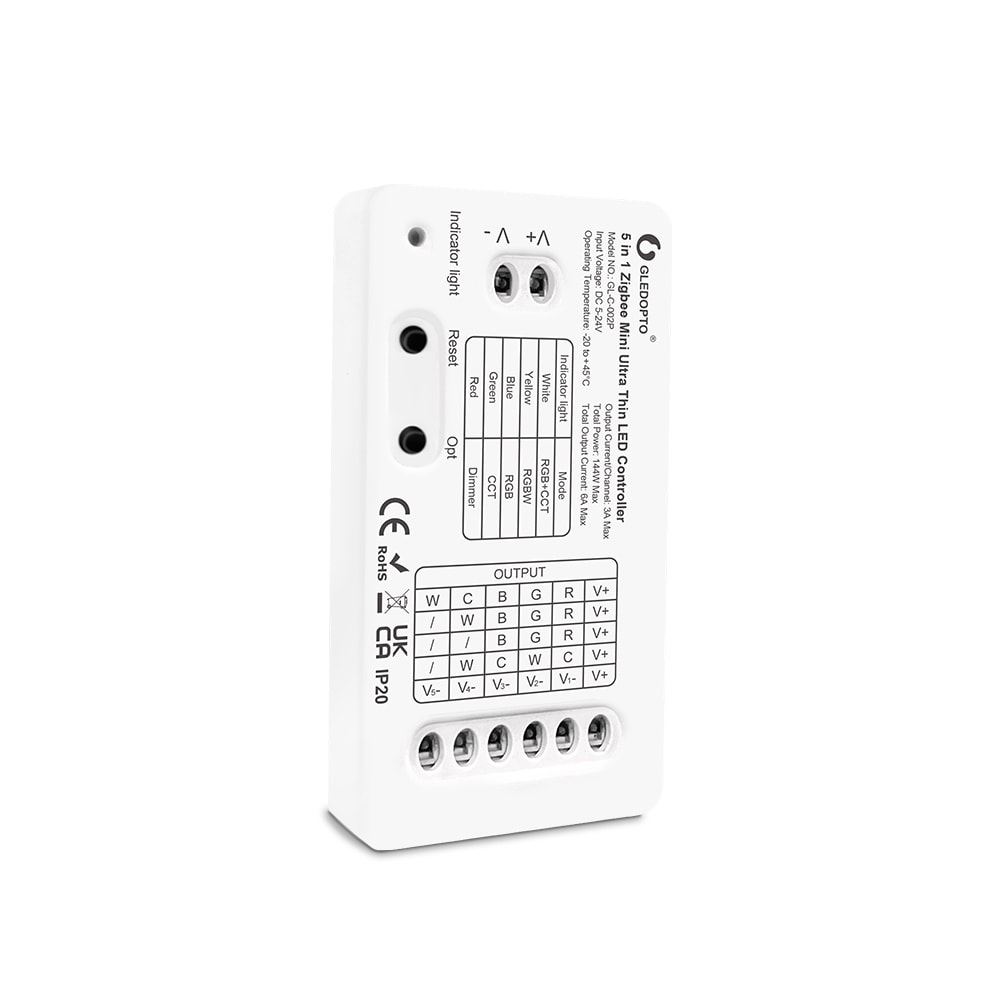

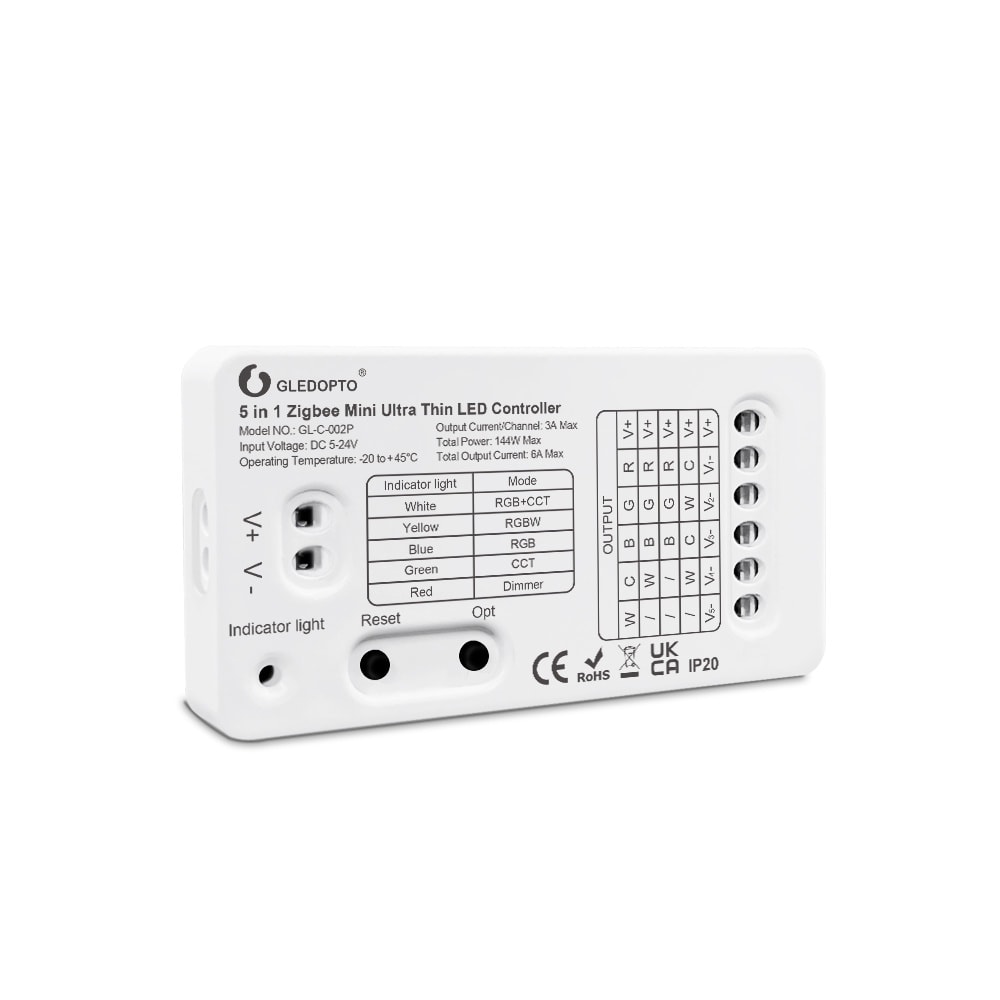

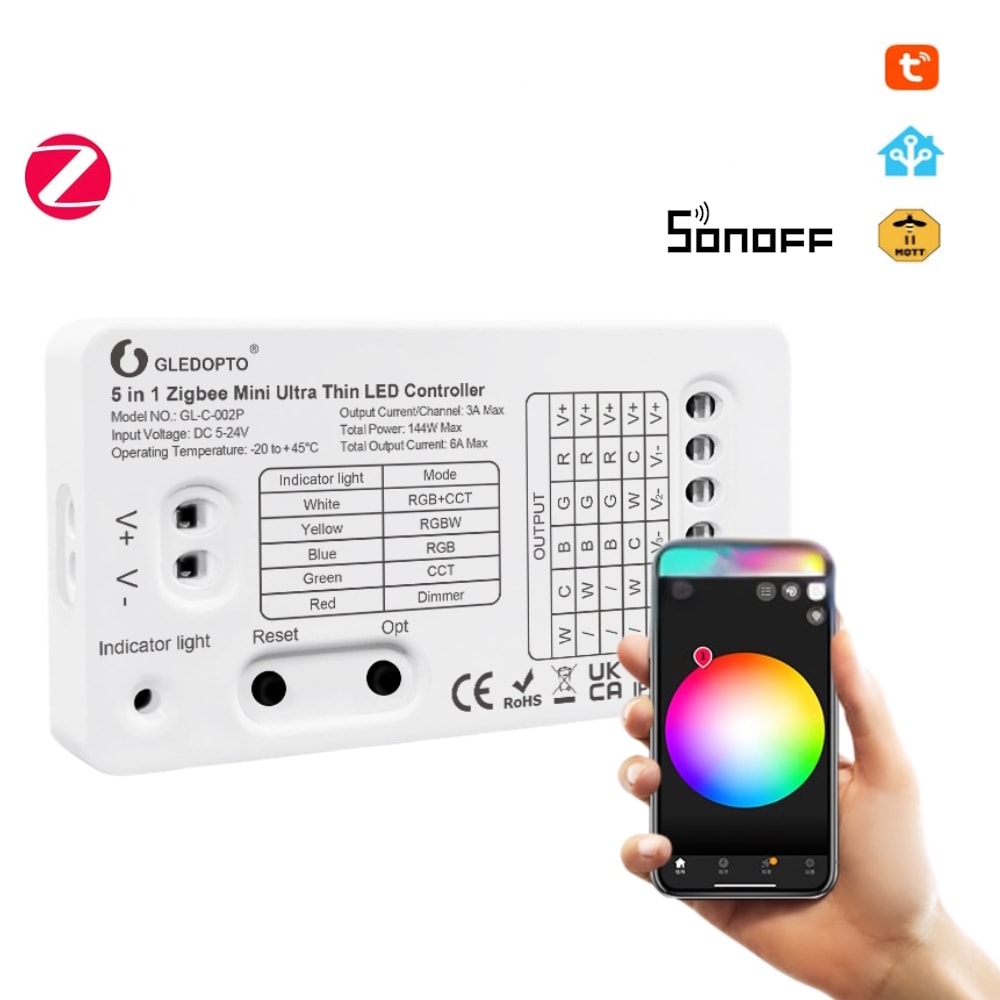

Mini smart LED strip controller 5w1 ZigBee 3.0 RF 5-24V 6A Gledopto
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable
Mini smart LED strip controller 5w1 Gledopto ZigBee 3.0 + RF
Gledopto Zigbee Pro 5 in 1 Mini (GL-C-002P) is an extremely compact and versatile controller for LED strips powered by voltage from 5 V to 24 V. Thanks to support for the ZigBee 3.0 protocol and RF 2.4 GHz connectivity, the device allows for flexible lighting management in five different modes: RGB+CCT, RGBW, RGB, CCT, and Dimmer. It works perfectly with the most popular smart home gateways, including Tuya, Sonoff, Philips Hue, SmartThings, or Home Assistant, providing a discreet solution even for the most limited installation spaces.
Key features:
- Communication: ZigBee 3.0 and RF 2.4 GHz (requires a compatible gateway or optional remote control).
- 5 operating modes: dedicated to RGB+CCT, RGBW, RGB, CCT, and single-color (DIMMER) strips.
- High efficiency: maximum output current up to 6 A in total (up to 144 W when powered by 24 V).
- Wide compatibility: works with ecosystems: Sonoff, Tuya, Philips Hue, SmartThings, ZHA, and Zigbee2MQTT.
- Ultra-thin housing: 70 × 36 × 10 mm allow for hidden installation.
- PWM frequency adjustment (600–8000 Hz) to eliminate flickering and power supply noise.
- ZigBee Mesh function Router: strengthens and extends the range of the home network.
- Soft start and settings memory retained after power loss.
Dimensions and compact installation
The relay has been designed for installations where standard controllers are often too large. The compact housing allows for trouble-free installation in limited spaces — behind furniture, inside LED profiles, or in drywall structures.
Operating principle and 5 lighting modes
The device must be connected to a DC 5–24 V installation, making it a universal choice for most popular LED strips on the market. Before pairing with a ZigBee gateway, simply use the OPT button on the housing to select one of the five modes compatible with the physically connected strip. In Dimmer mode, it is possible to connect up to five separate single-color strips simultaneously, which will be controlled as one synchronized lighting zone.
Integration with Smart Home systems

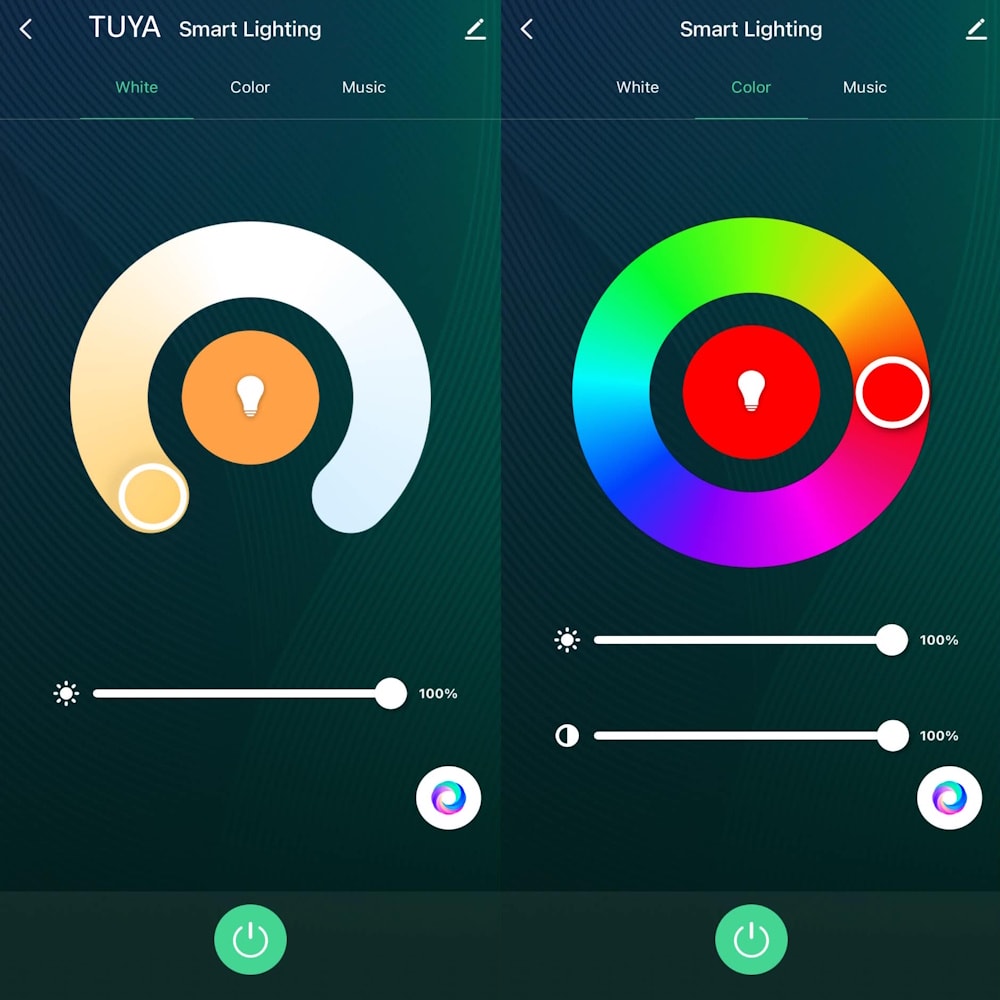

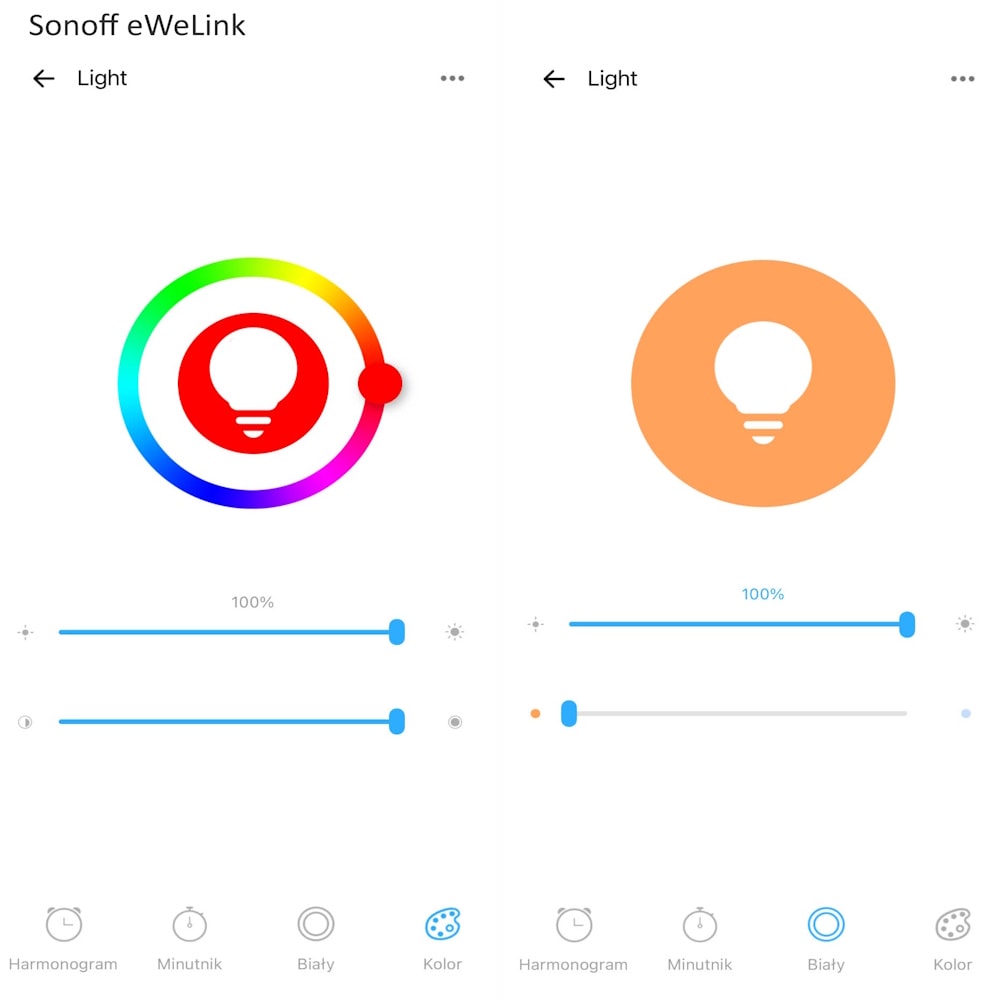

Based on the universal ZigBee 3.0 standard, the controller offers advanced integration capabilities. From applications such as eWelink, Tuya, or Smart Life, the user can build smart scenes, schedules, and automations. The device also allows for voice control via Google Home and Amazon Alexa assistants, provided the gateway used supports such a connection.
Technical specification
- Manufacturer: GLEDOPTO
- Model: GL-C-002P (Mini Ultra Thin)
- Device type: Smart LED controller 5w1
- Communication: ZigBee 3.0 + RF 2.4 GHz
- Supply voltage: DC 5 V – 24 V
- Maximum total current: 6 A
- Maximum power: up to 144 W (at 24 V DC)
- PWM adjustment: 600 / 800 / 1000 / 2000 / 4000 / 8000 Hz
- Supported modes: RGB+CCT, RGBW, RGB, CCT, DIMMER
- Compatibility: Sonoff, Tuya, Smart Life, Philips Hue, Home Assistant
- Required gateway: Yes (ZigBee 3.0)
- Additional functions: Mesh Router, soft start, schedules
- Housing material: Flame-retardant plastic V-0
- Operating temperature: from -20°C to +45°C
- Dimensions: 70 × 36 × 10 mm
Package contents
- Mini LED controller 5w1 Gledopto GL-C-002P
- Double-sided mounting tape
- User manual
Note: A compatible ZigBee 3.0 gateway, a suitable DC power supply, and an LED strip are required for proper operation. These items, as well as the optional RF remote control, are not included in the set.
