Moduł z czujnikiem wilgotności DHT22 (AM2302)
Price:
€9.98
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
・Kup teraz i zapłać za 30 dni
product unavailable
Availability:
brak towaru
Overview

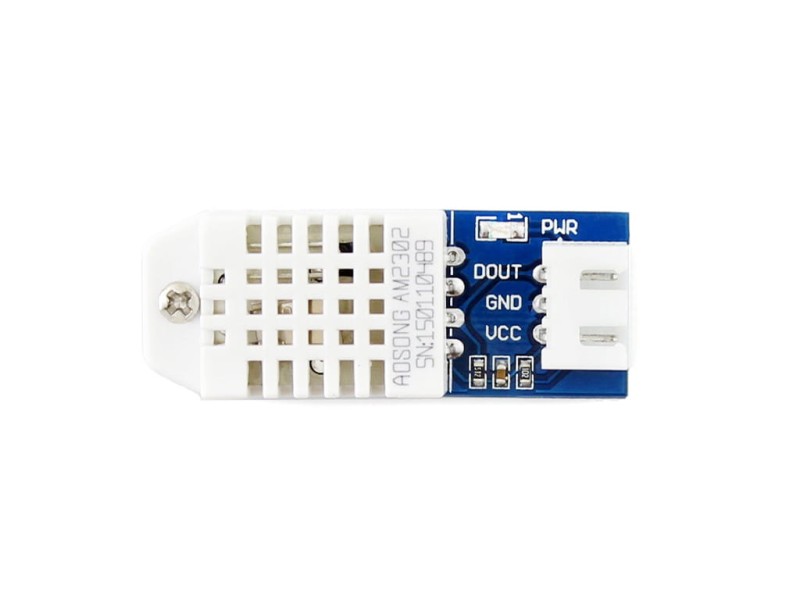

This is a calibrated digital temperature and humidity module with onboard sensor DHT22 (AM2302), which features higher accuracy and wider measuring range than DHT11.
It can be used for detecting ambient temperature and humidity, through the standard single-wire interface.
Specifications
- Temperature
- Resolution : 0.1°C
- Accuracy : ±0.5℃
- Measuring range : -40°C ~ 80°C
- Humidity
- Resolution : 0.1%RH
- Accuracy : ±2%RH (25°C)
- Measuring range : 0%RH ~ 99.9%RH
- Operating voltage : 3.3V ~ 5.5 V
- Recommended storage condition
- Temperature : 10°C ~40°C
- Humidity : 60%RH or below
Applications
- Weather station
- Humidity controller
- Test & detection device
How to Use

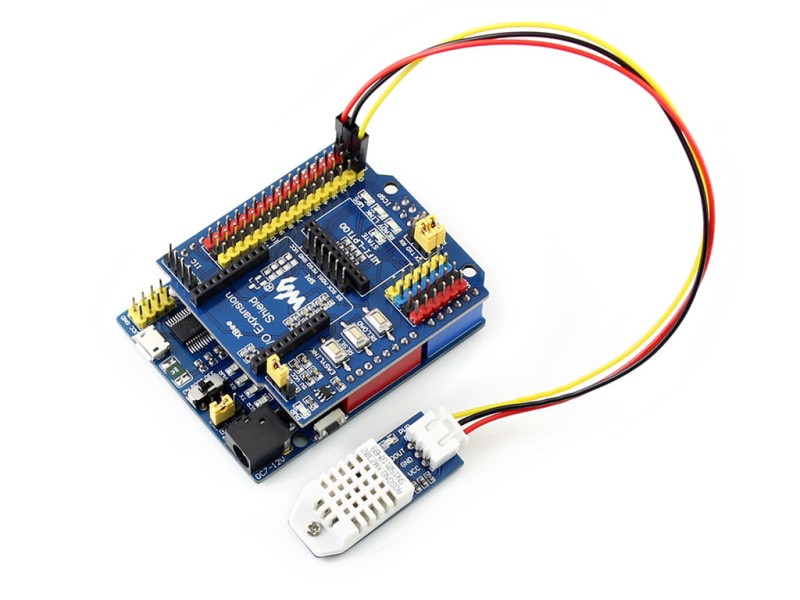

In the case of working with a MCU:
- VCC ↔ 3.3V ~ 5.5V
- GND ↔ GND
- DOUT ↔ MCU.IO
Dimension
Development Resources
Wiki : www.waveshare.com/wiki/DHT22_Temperature-Humidity_Sensor
Package Contains
- DHT22 Temperature-Humidity Sensor × 1
- XH2.54 3-pin wire × 1
