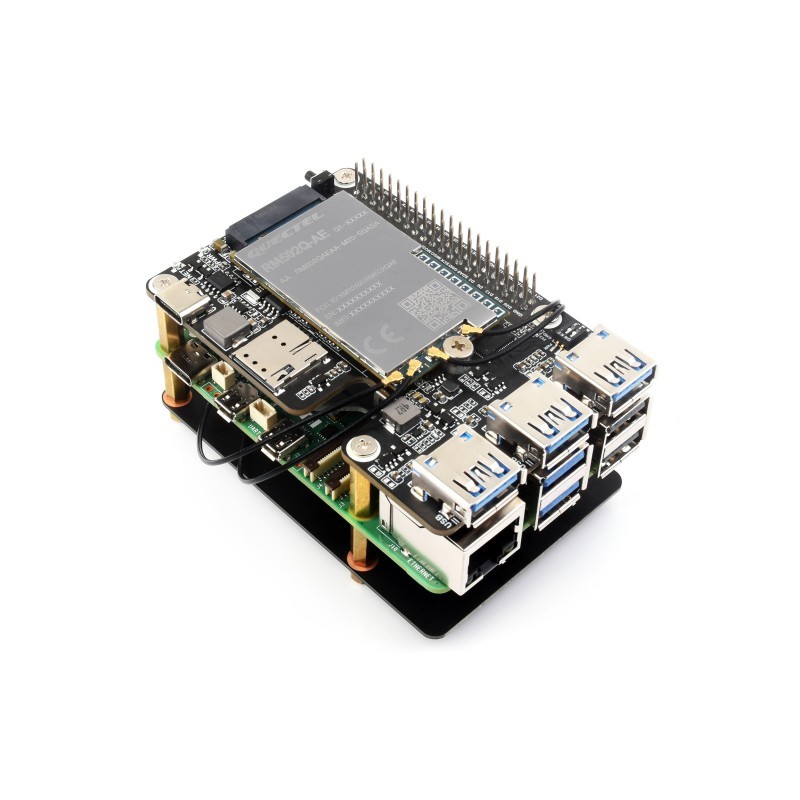

PCIe to M.2 4G/5G and USB 3.2 HAT+ Adapter for Raspberry Pi 5
A HAT+ expansion module for Raspberry Pi 5 that adds support for 4G/5G modems in the M.2 standard and expands the number of USB ports with 3 high-speed USB 3.2 Gen1 connectors. Equipped with a NANO-SIM card slot, a power monitoring chip, and a dedicated antenna, it is a comprehensive solution for building projects requiring fast cellular connectivity.
Key Features:
- Designed for Raspberry Pi 5, HAT+ standard with built-in I2C EEPROM.
- Expands with 3 high-speed USB 3.2 Gen1 ports for connecting additional peripherals.
- Built-in M.2 (NGFF) Key B socket, supports 4G/5G modules from the SIM7600XX-M.2, SIM82XX, and RM5XX series (compatible with 3042/3052 form factors).
- USB-C port for connecting to a PC for 4G/5G networking, debugging and firmware updates, or as an external power input.
- Built-in power monitoring chip for real-time measurement of voltage, current, and power.
- NANO-SIM card slot.
- Reset button, power and network indicators for easy debugging and monitoring of operating status.
- Comes with a dedicated 5G-4IN1-PCB antenna, with the option for top or bottom mounting.
- Retained ventilation and mounting holes for a fan, ensuring better heat dissipation.
Designed for Raspberry Pi 5 in HAT+ Standard
Built-in PCIe interface for direct connection to Raspberry Pi 5 using a 16PIN cable.
More USB Capabilities for Raspberry Pi 5
Expands the PCIe interface with 3 high-speed USB 3.2 Gen1 ports, allowing connection of more peripherals.
Compatibility with SIMCom/Quectel 4G/5G Modules
Built-in M.2 (NGFF) Key B socket, tested with modules from the SIM7600XX-M.2, SIM82XX, and RM5XX series, compatible with 3042/3052 form factors.
Support for Multiple Operating Systems
Supports systems such as Raspberry Pi OS, Ubuntu, OpenWRT, etc.
Includes 5G-4IN1-PCB Antenna
Supports top and bottom mounting, easy to install, ensures good communication effect.
Bottom Mounting
Top Mounting
Built-in Power Monitoring Chip and EEPROM
Allows real-time monitoring of module voltage, current, and power via I2C.
Supports writing HAT+ ID and product information, compliant with HAT+ standard.
Ventilation Holes for Cooling
Increased airflow for the Pi5, faster cooling effect, more stable operation.
Board Description
- VL805
PCIe to USB 3.2 Gen1 Hub Chip - EEPROM
For writing HAT ID and product information - INA219
Power Monitoring Chip - PCIe 16PIN Interface
For connecting to the Raspberry Pi 5 PCIe interface - M.2(NGFF) Key B Socket
Compatible with 4G/5G M.2 modules in 3042/3052 form factors - Raspberry Pi GPIO Header
For connecting Raspberry Pi 5 - Expanded USB 3.2 Gen1 Ports
USB1~USB3
- Nano SIM Card Slot
For installing a Nano-SIM card - Type-C Interface
For 4G/5G networking via Raspberry Pi or PC using a USB cable, firmware updates, or external power input - DIP Switch
For switching the control of module power on/off and reset using GPIO pins - Reset Button
Press to reset the module - PWR Indicator
Power indicator - NET Indicator
Module network status indicator
Pinout
Dimensions
Technical Specifications:
- PCIe Interface: Connection to Raspberry Pi 5 (16PIN cable)
- USB Ports: 3 × USB 3.2 Gen1
- M.2 Socket: Key B, compatible with 3042/3052 form factors
- Supported Modules: SIMCom/Quectel Series (e.g., SIM7600, SIM82XX, RM5XX)
- SIM Card: NANO-SIM Slot
- Power Monitoring: INA219 Chip (I2C)
- Power Supply: Via Raspberry Pi GPIO or external via USB-C port
- Compatibility: Raspberry Pi 5
- Supported Systems: Raspberry Pi OS, Ubuntu, OpenWRT
Package Contents
- PCIe TO 4G/5G M.2 USB3.2 HAT+ ×1
- 5G-4IN1-PCB Antenna ×1
- 16P-Cable-40mm ×1
- IPEX1 to IPEX4 Cable (~13cm) 4pcs. ×1
- Screw set
Note: The 4G/5G Module is NOT included, it must be purchased separately according to your needs.
The Raspberry Pi shown in the pictures in the description is not included in the set.
