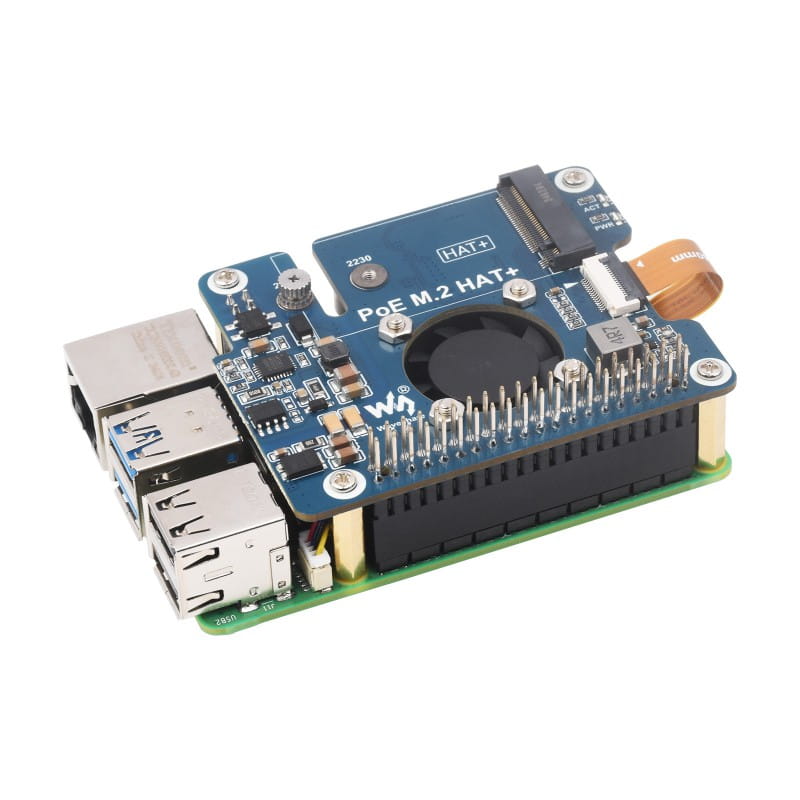

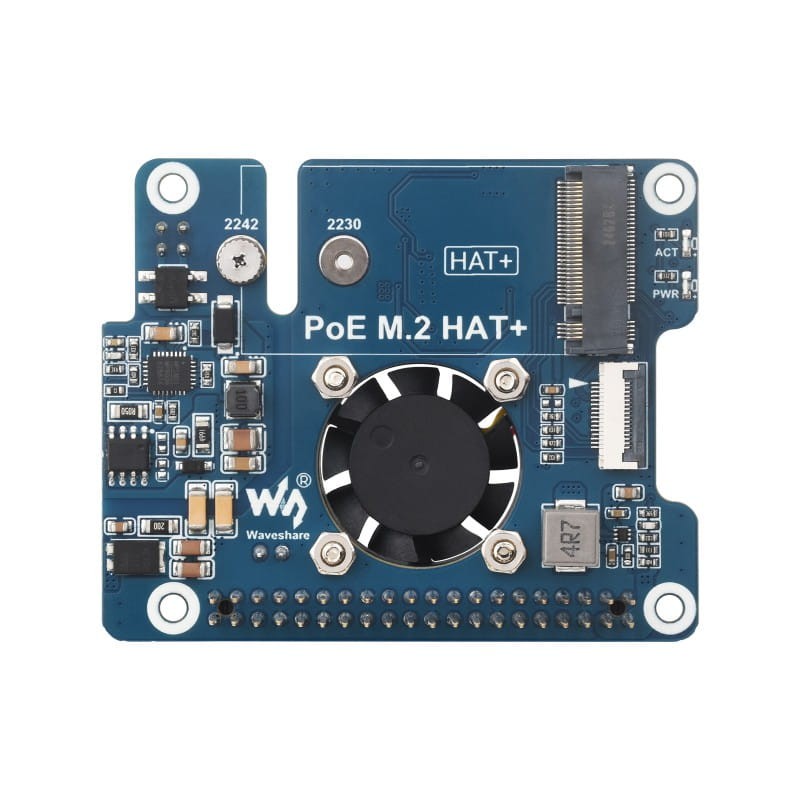

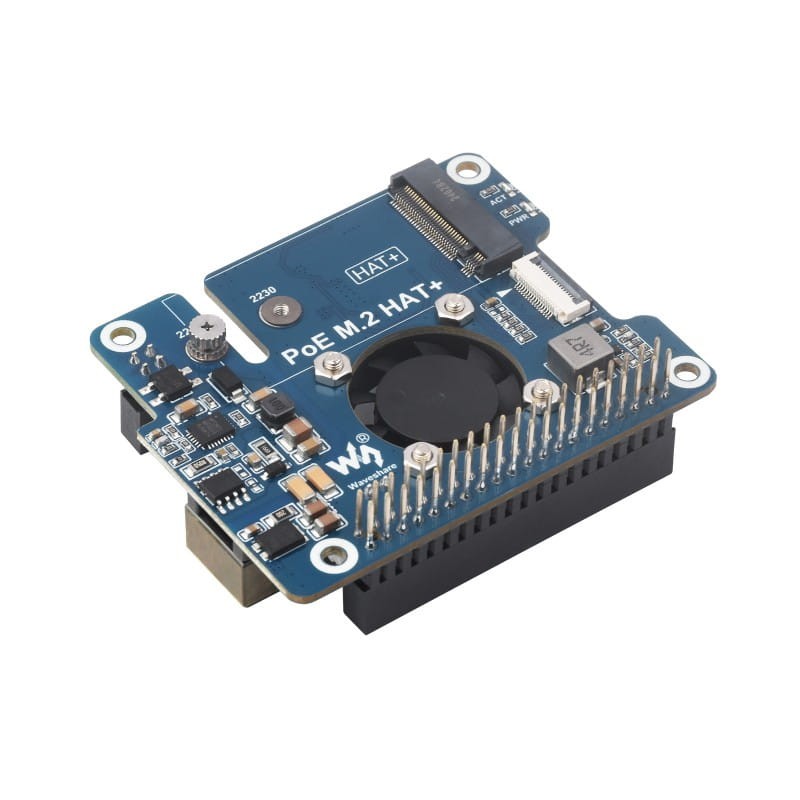

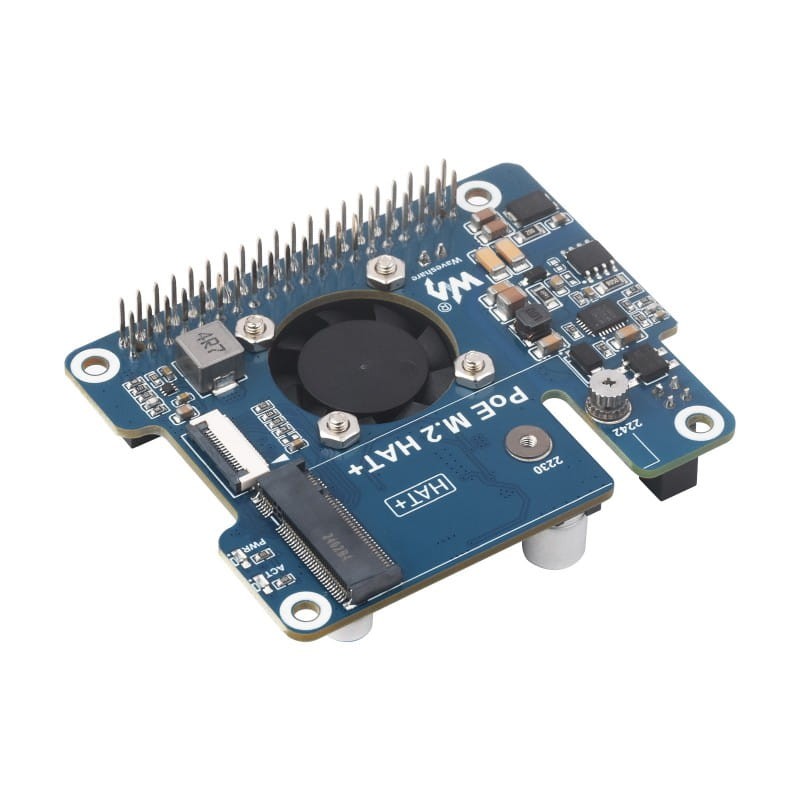

PCIe To M.2 Adapter with PoE Function for Raspberry Pi 5 - NVMe SSD Support, Power over Ethernet
Professional PCIe adapter for M.2 NVMe drives with PoE (Power over Ethernet) function, designed specifically for Raspberry Pi 5. Enables you to connect M.2 SSDs (2230/2242) and power Raspberry Pi via Ethernet at the same time. Ideal for compact and reliable network, server or NAS projects.
Key features:
- Connectivity to Raspberry Pi 5 via 16-pin PCIe connector
- NVMe SSD support in M.2 2230/2242 format - Gen2 and Gen3 modes
- Ability to boot Raspberry Pi 5 from an SSD
- PoE power supply - IEEE 802.3af/at compliant (37V ~ 57V DC)
- Power output: 5V 4.5A (GPIO), 12V 2A (2P header)
- 5V and 12V outputs for additional devices - up to 25W total

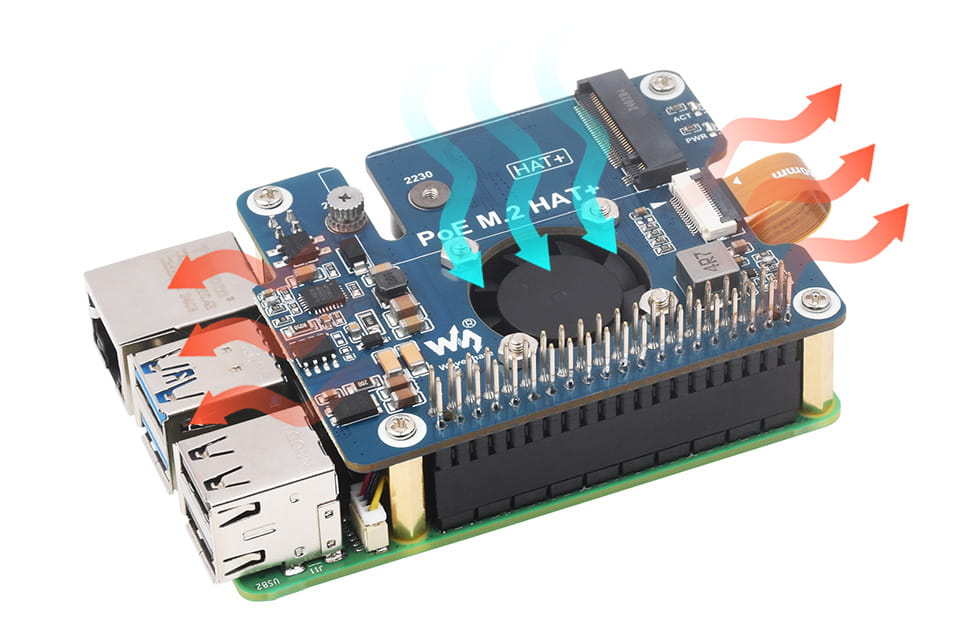

- Built-in active fan
- Standard 40-pin GPIO - allows overlay of other HATs

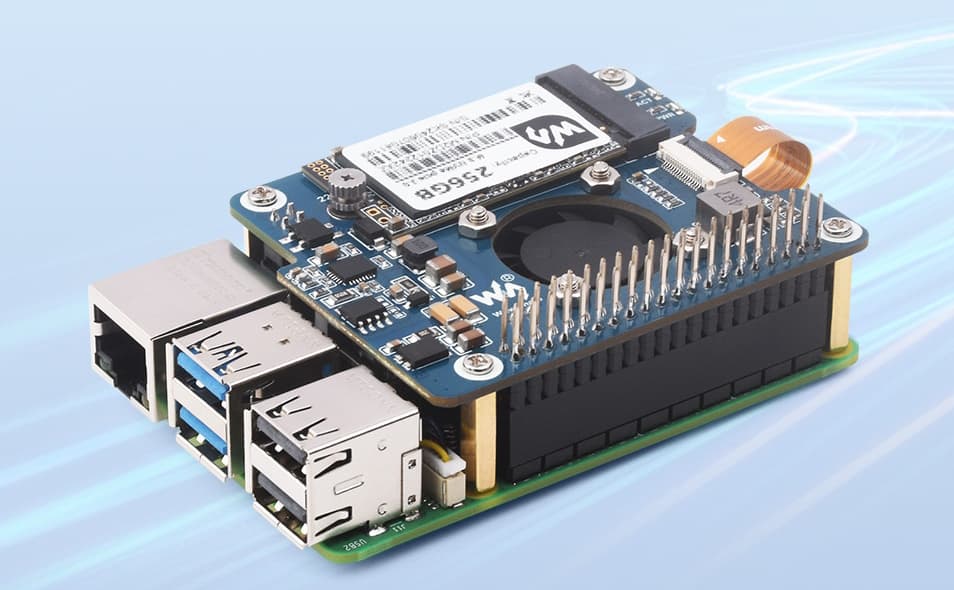

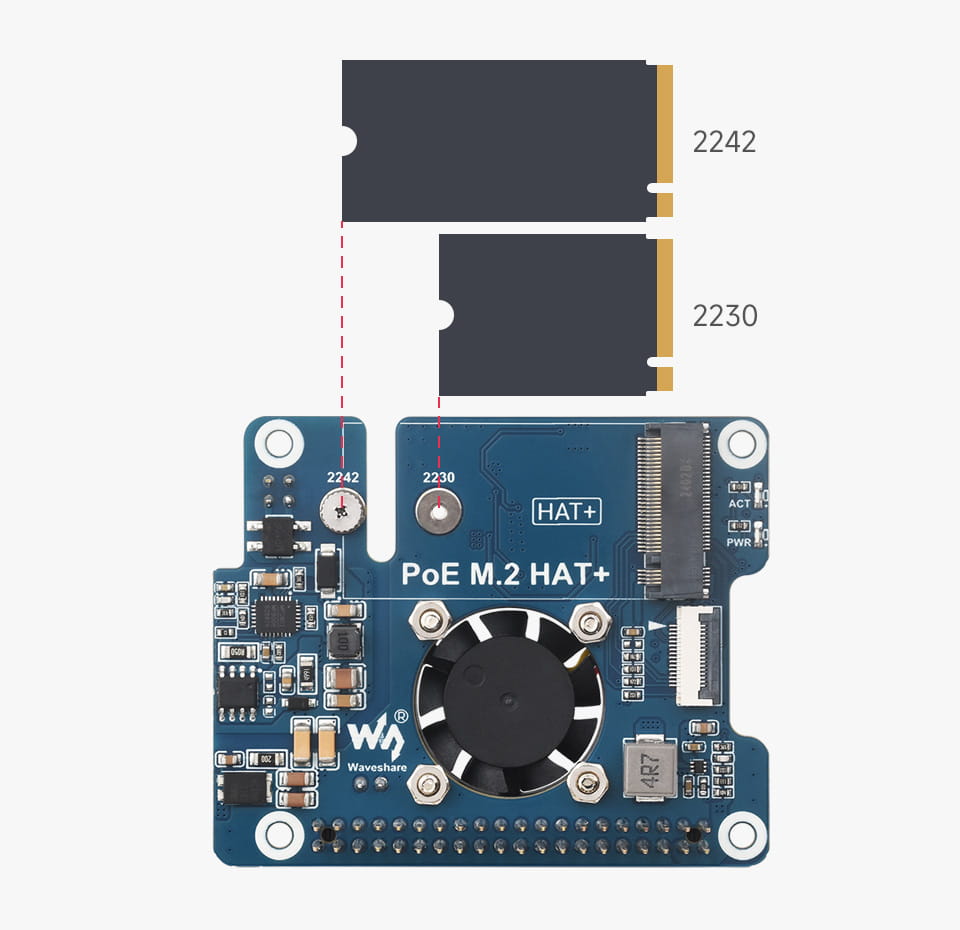

NVMe SSD support with Boot
Compatible with M.2 2230 / 2242 drives. Support for Gen2 and Gen3 mode and the ability to boot Raspberry Pi 5 directly from the drive.

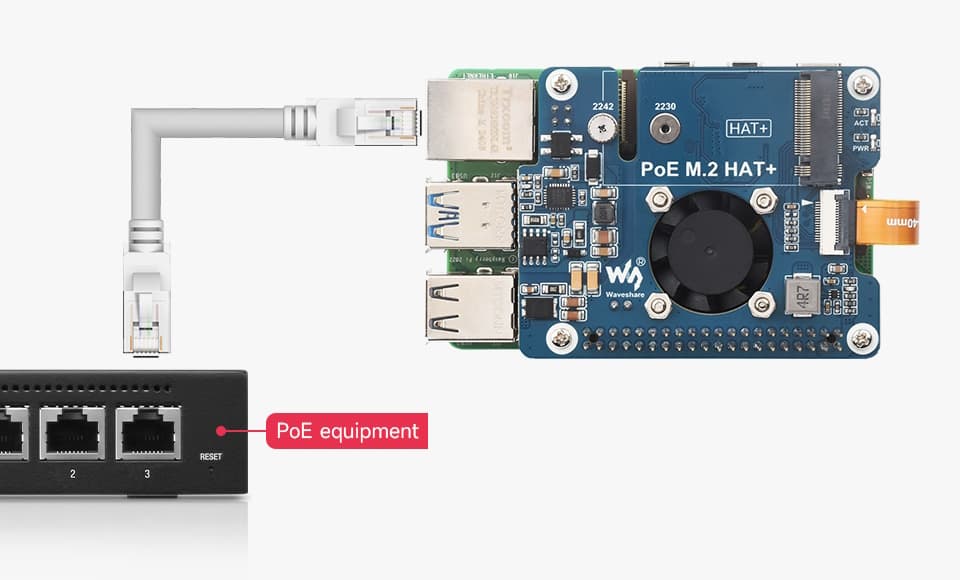

Connection and power supply via a single cable
Compliant with the IEEE 802.3af/at standard - power and network in a single Ethernet cable.

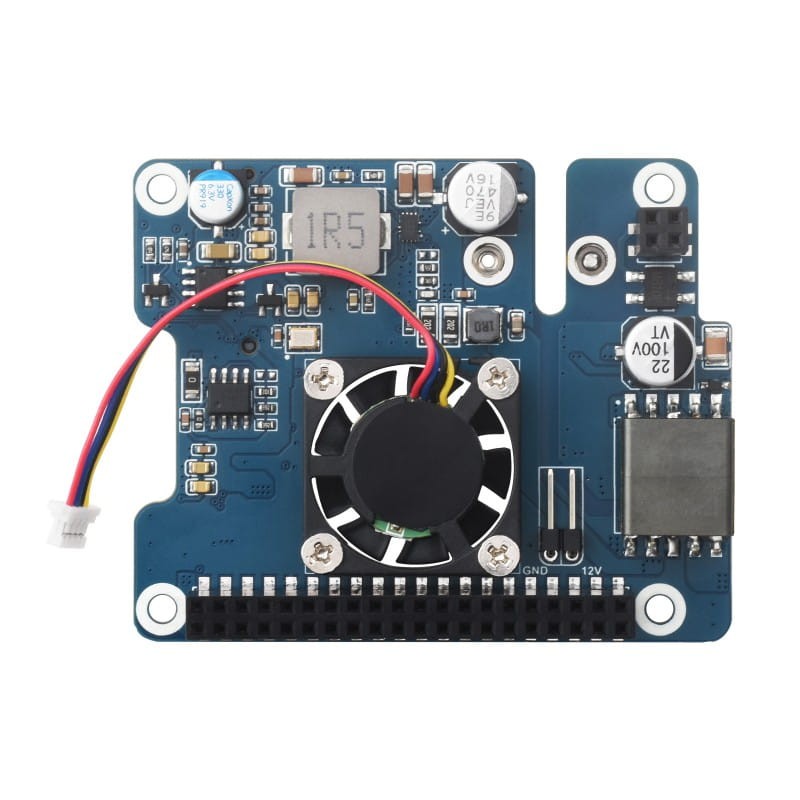

5V and 12V output connectors
Allows power to be supplied to additional modules - ideal for extended applications.

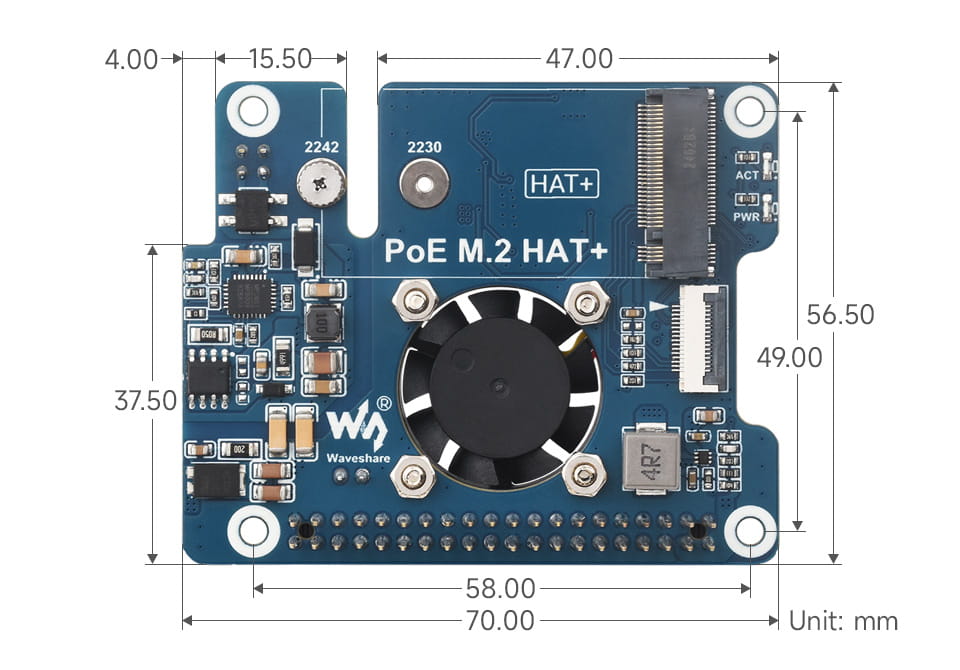

Dimensions
Technical specifications:
- PoE power supply: 37V ~ 57V DC
- Output power supply: 5V 4.5A (GPIO), 12V 2A (2P header)
- Network standard: IEEE 802.3af/at
- SSD support: M.2 NVMe 2230/2242
- Interface: PCIe (16PIN)
- SSD boot support: yes
- Fan: active cooling
- Auxiliary outputs: 5V and 12V
- LEDs: operation and power status
- Dimensions: 56.5 × 70.0 mm
- Weight: 0.07 kg

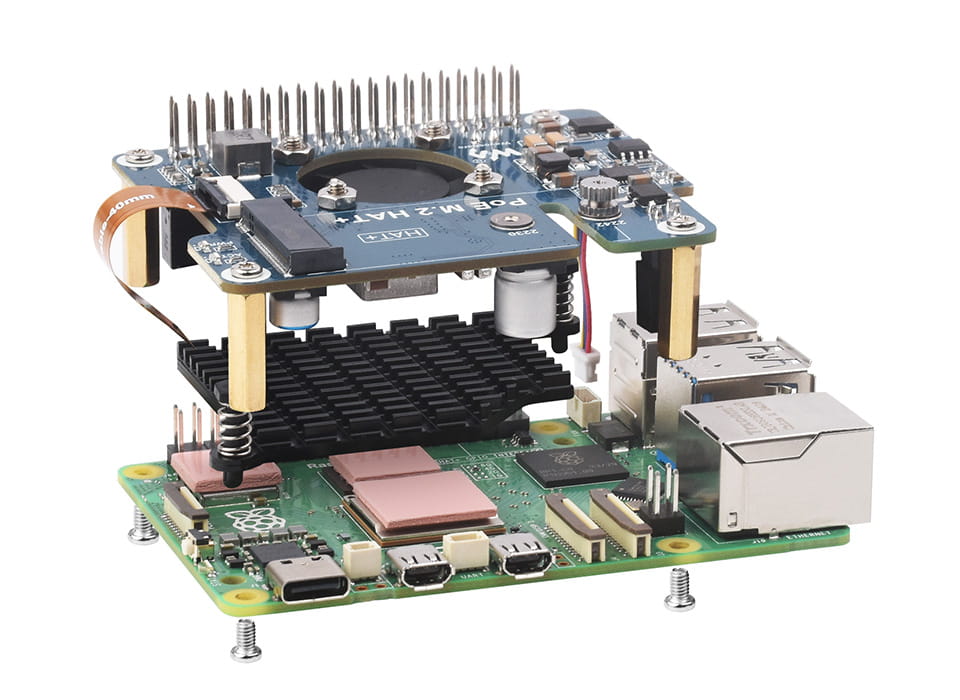

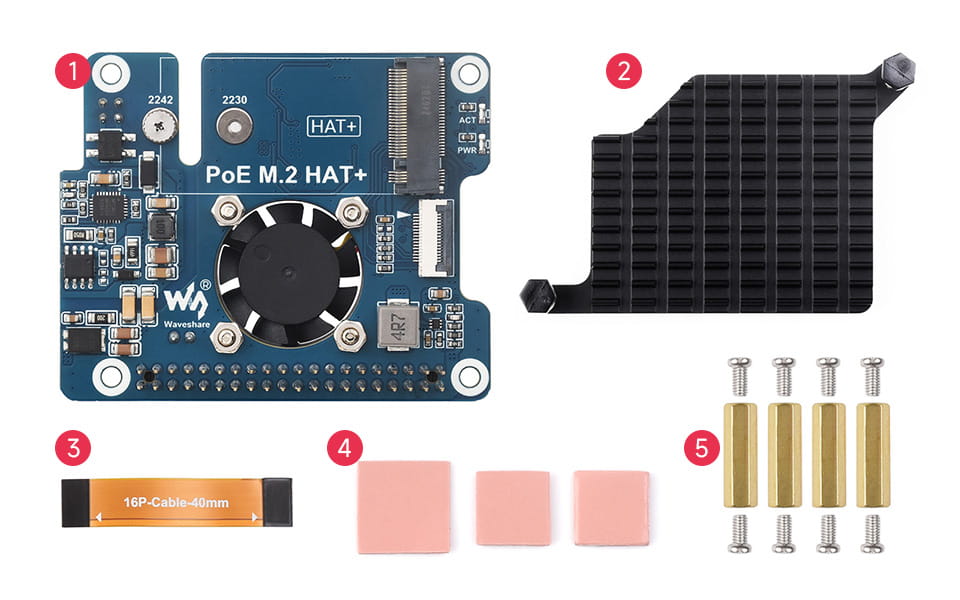

Kit contents
- PoE M.2 HAT+ ×1
- Metal heat sink ×1
- 16PIN ~40mm cable ×1
- Thermal tapes (3 pcs.)
- Set of screws
