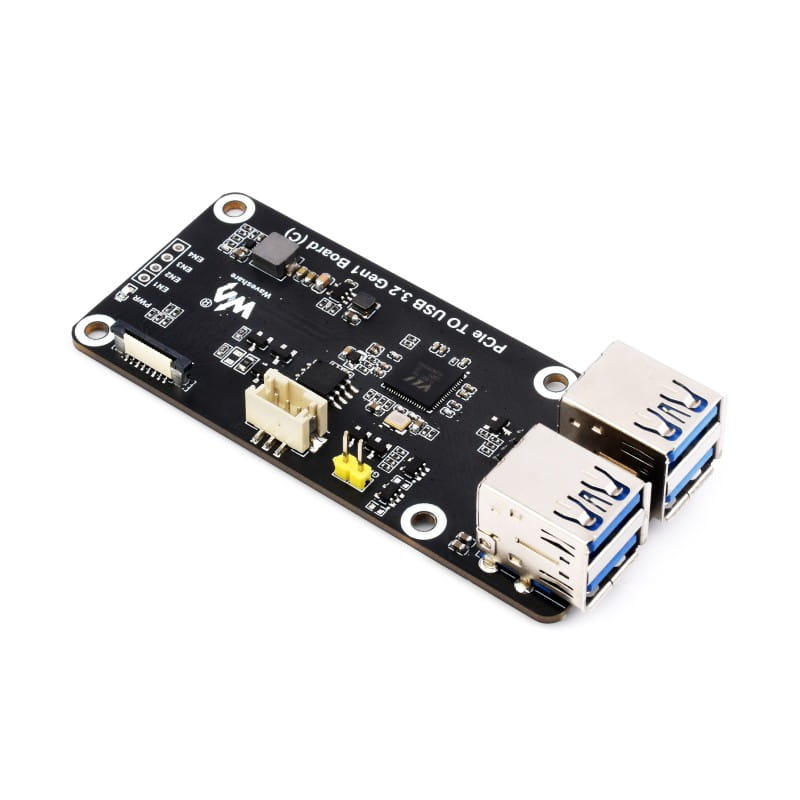

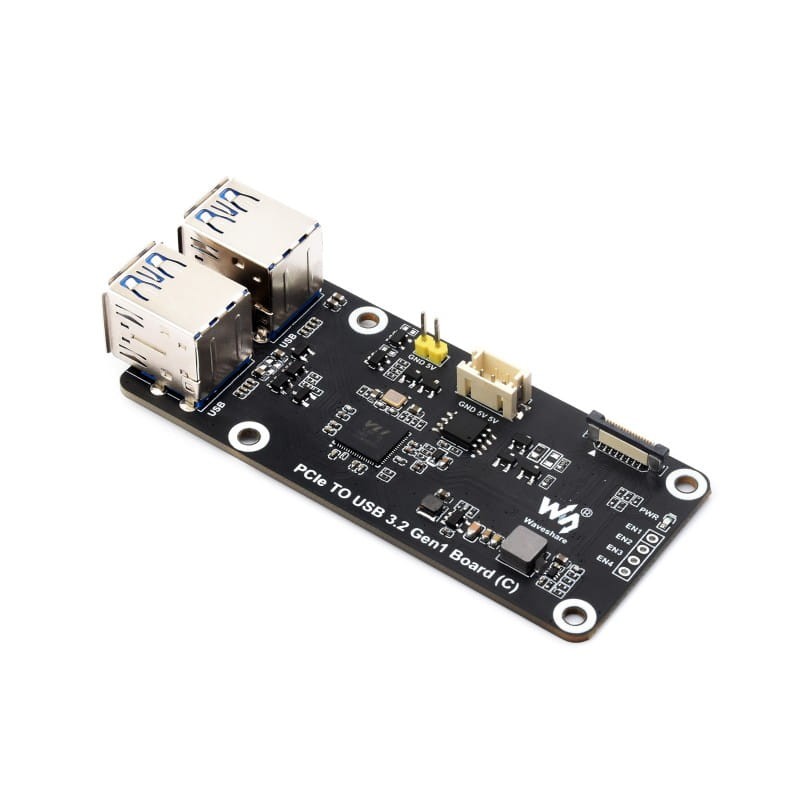

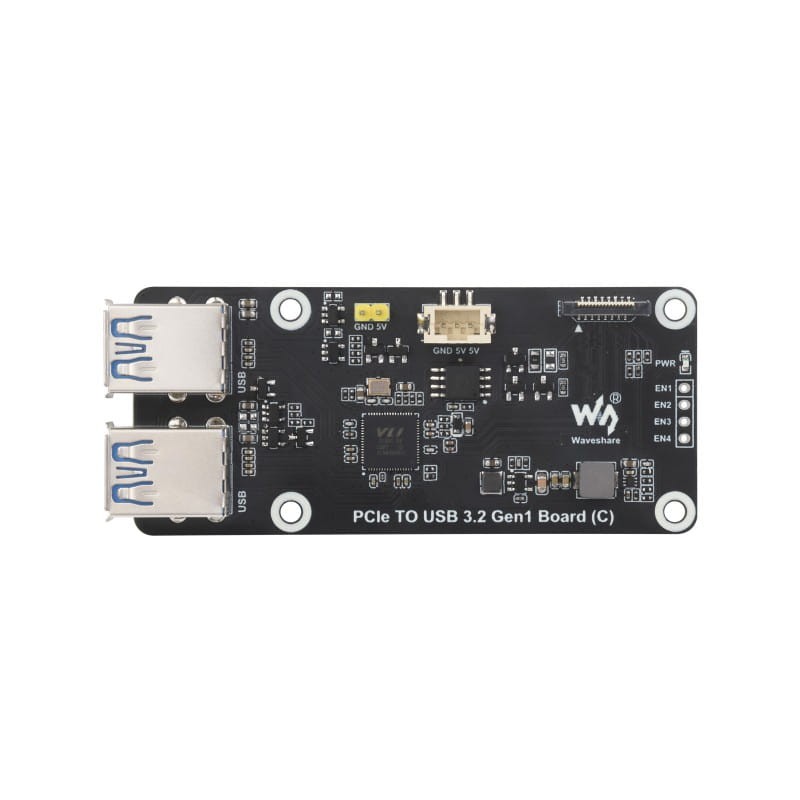

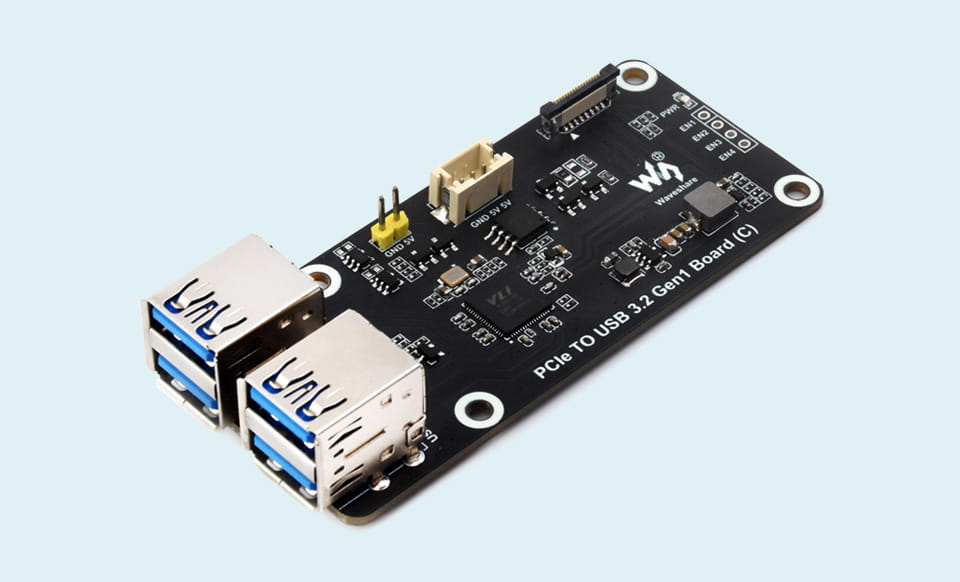

PCIe to 4-Channel USB 3.2 Gen1 Board (C) for Raspberry Pi 5 – Up to 5Gbps, Plug & Play
USB 3.2 Gen1 expansion for Raspberry Pi 5 – featuring 4 high-speed USB ports, a VL805 controller, per-channel power control, and side mounting with a transparent acrylic plate. Driver-free, Plug & Play, it's ideal for increasing the number of USB ports while maintaining high transmission bandwidth.
Key Features:
- Designed exclusively for Raspberry Pi 5
- Compatible with PCIe ×1 Gen2 – connects via 16PIN connector
- VL805 controller – original, high-performance chip
- Supports USB 3.2 Gen1 speeds – up to 5Gbps (500 MB/s)

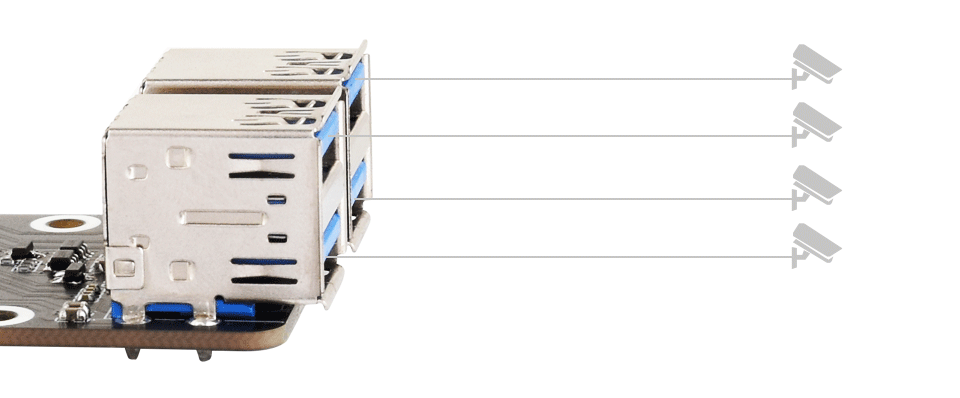

- 4 USB-A ports – each with independent power control
- Supports power supply via 2PIN or 3PIN
- Side mounting with transparent acrylic plate – space-saving design

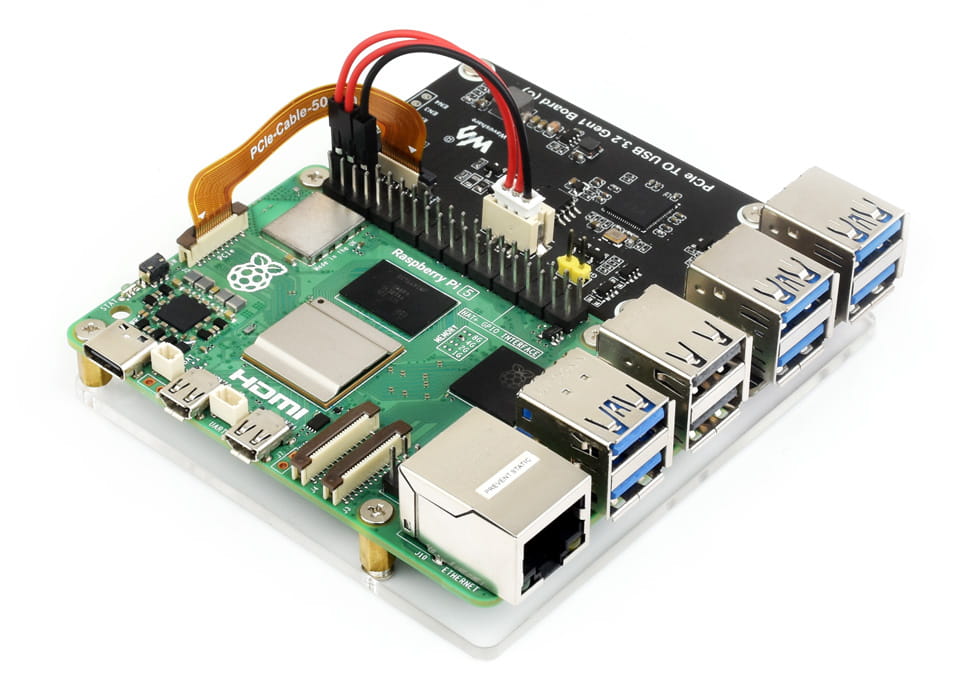

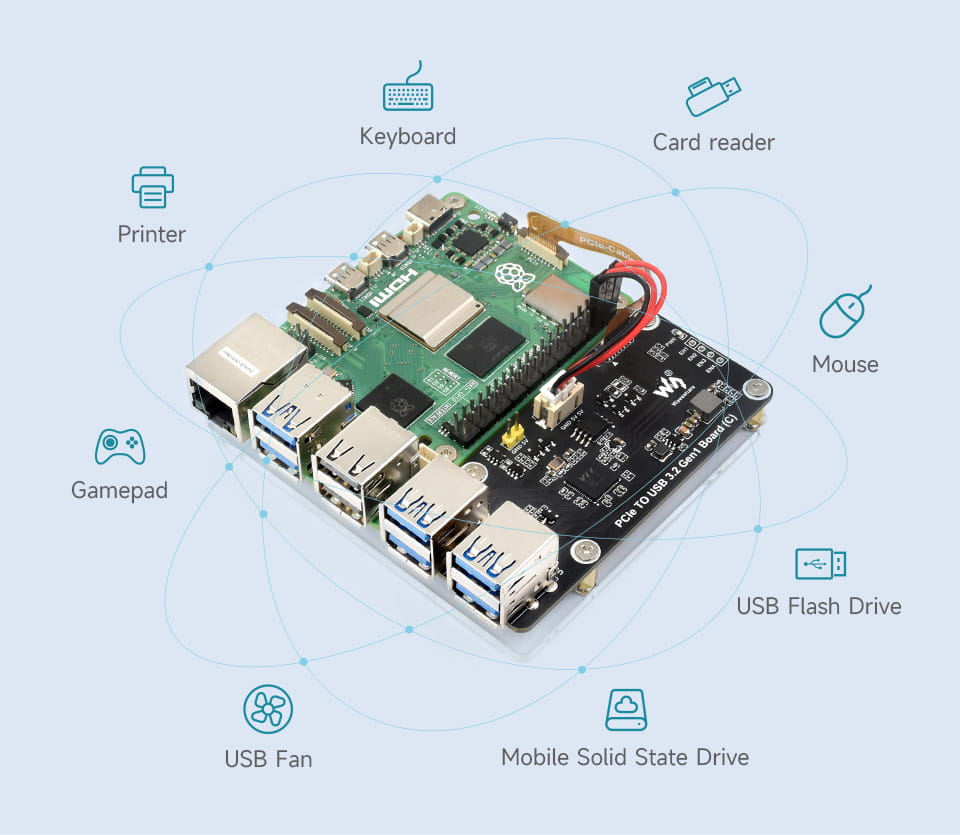

- Expands the number of Pi5 USB ports to up to 8!
- No driver installation required – Plug and Play

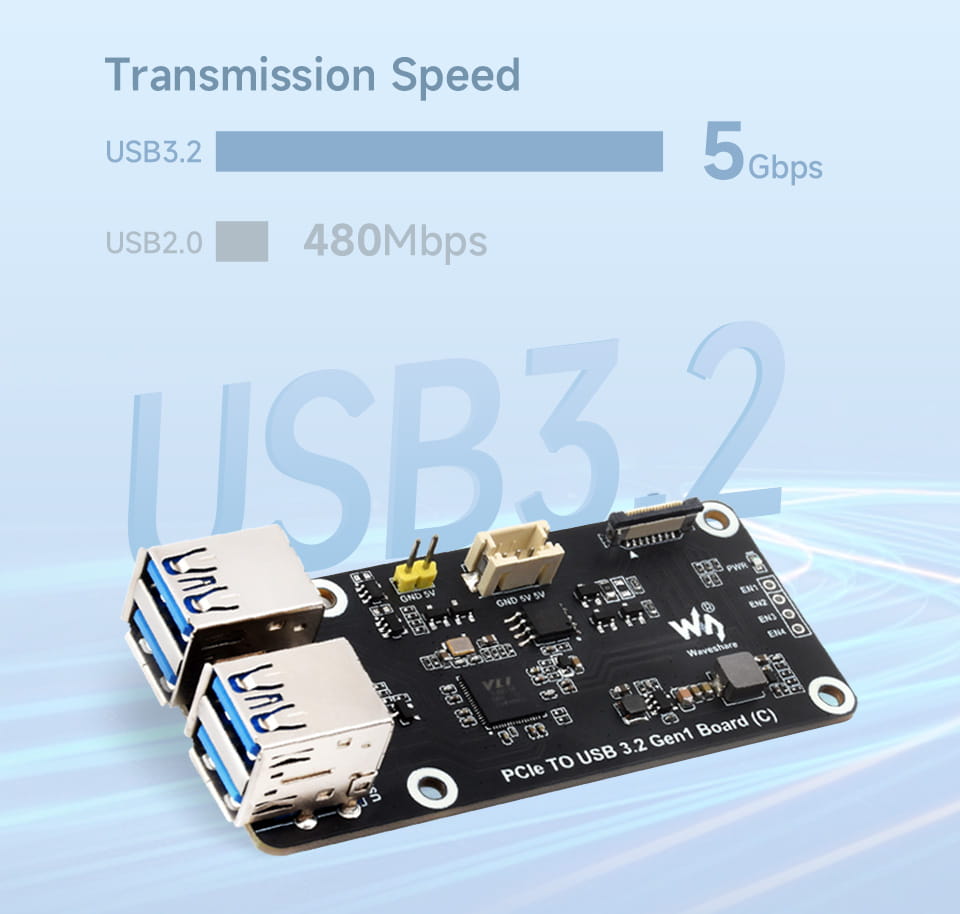

Ultra-Fast Data Transmission
Theoretical throughput of up to 5Gbps – enables stable and fast file transfers and communication with peripherals.
Per-Port Power Control
Each of the four USB ports can be independently turned on/off via software commands.

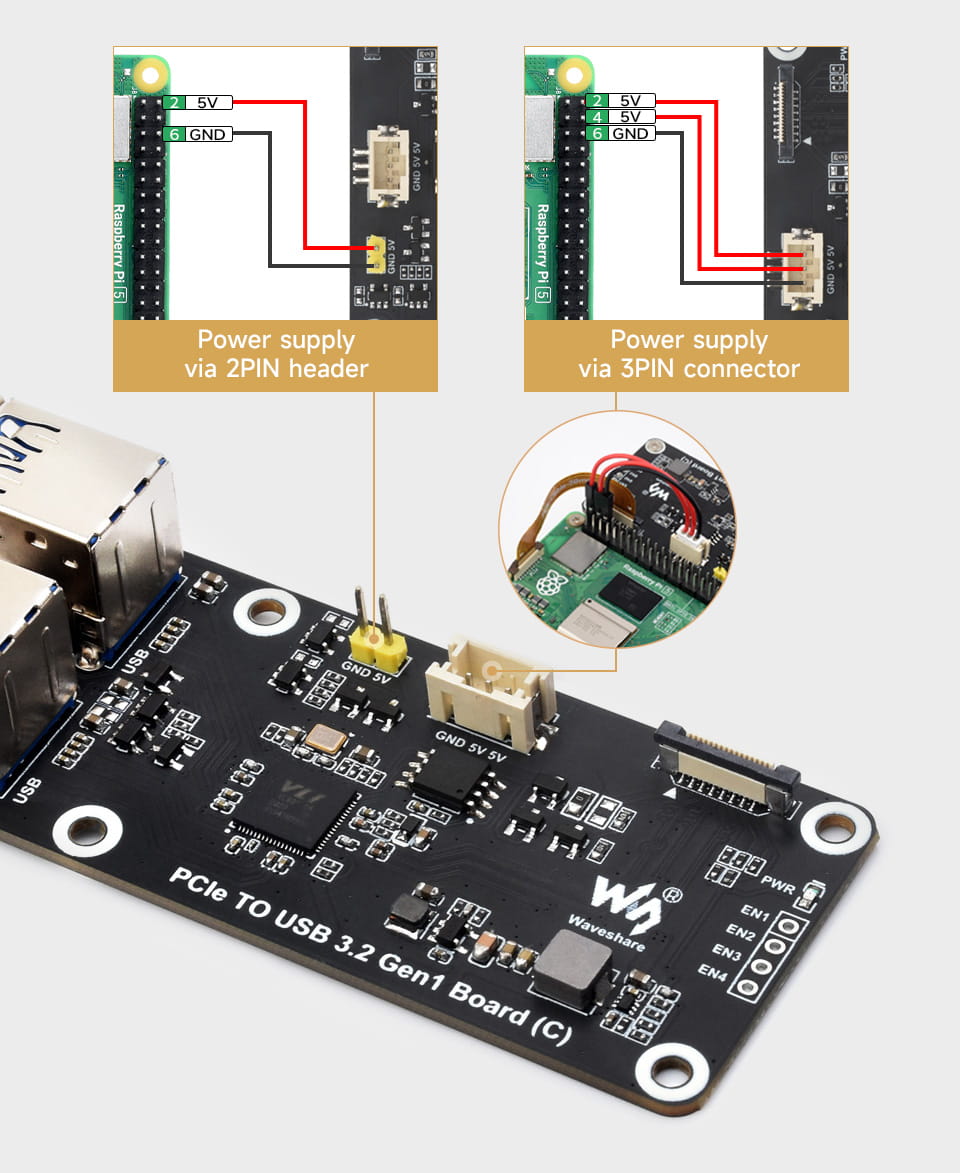

Dual Power Modes
The module can be powered via a 2PIN or 3PIN connector – offering flexibility for integration with other modules.

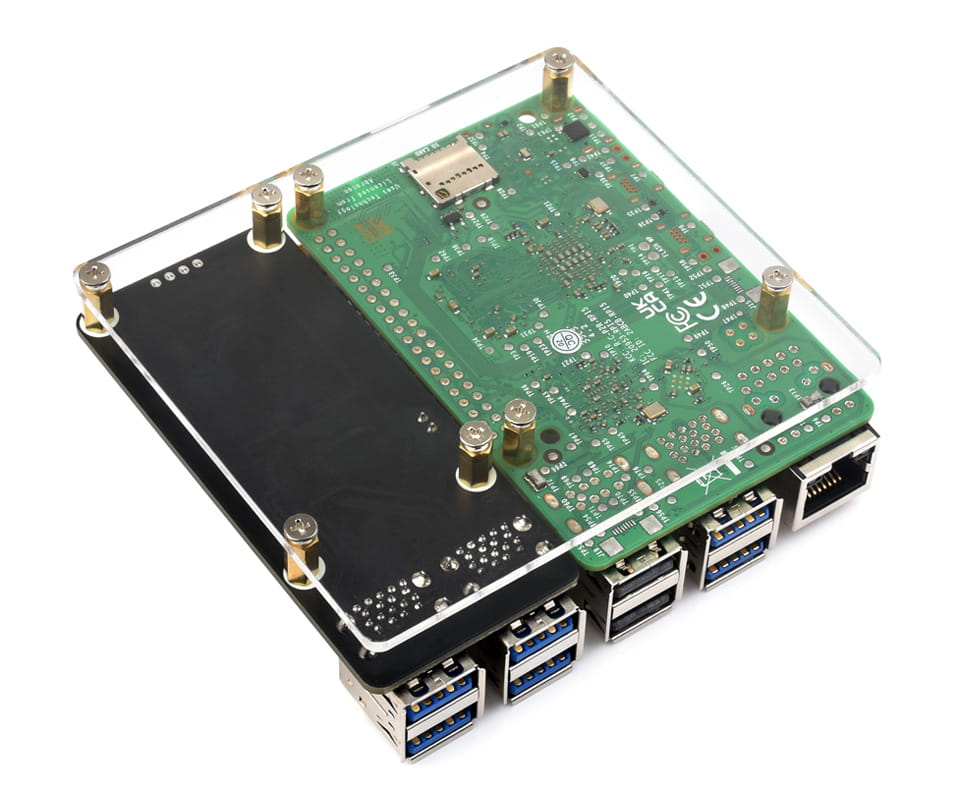

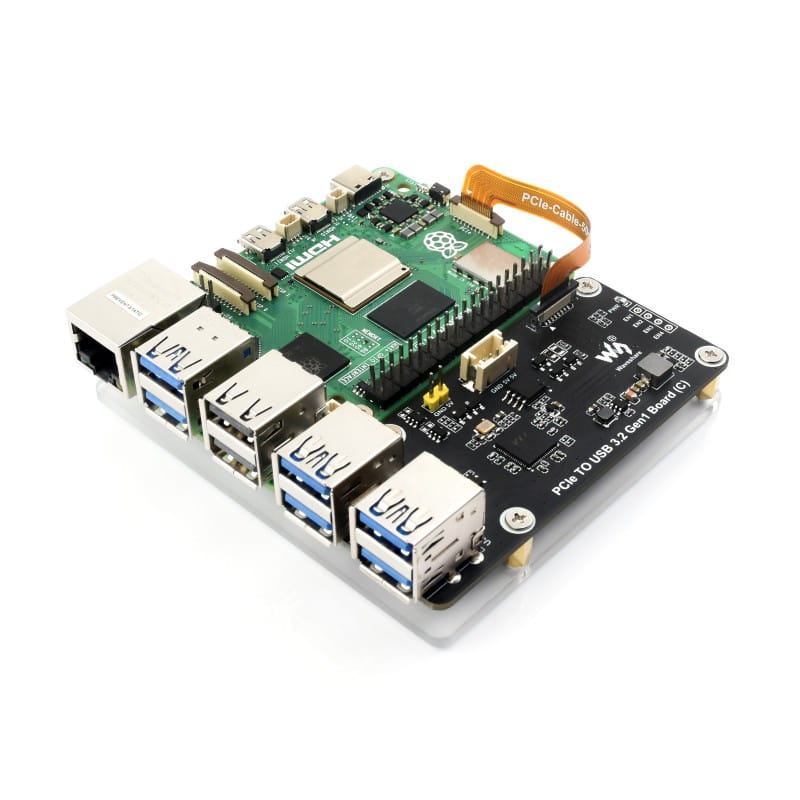

Stable Side Mounting
Includes a transparent acrylic plate and standoffs – convenient mounting without occupying space above the Raspberry Pi.
Technical Specifications:
- Interface: PCIe ×1 Gen2 (16PIN)
- USB Ports: 4 × USB 3.2 Gen1 (USB-A)
- Transmission Speed: 5Gbps (total)
- USB Power: 5V @ max 2A / port
- Board Power: via 2PIN / 3PIN connector
- Operating Temperature: 0°C ~ 75°C
- Dimensions: 56.5 × 70.0 mm
- Weight: 0.065 kg

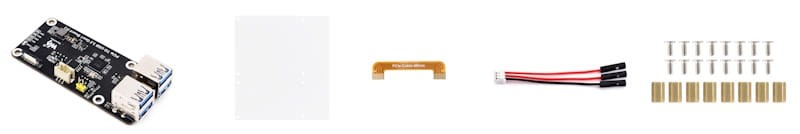

Package Contents
- PCIe to USB 3.2 Gen1 Board (C) ×1
- Transparent Acrylic Plate ×1
- PCIe 16PIN Cable ×1
- PH2.0 3PIN Cable ×1
- Standoffs and Screws Set
