PCIe to 4-channel Gigabit Ethernet (B) for Raspberry Pi 5
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable

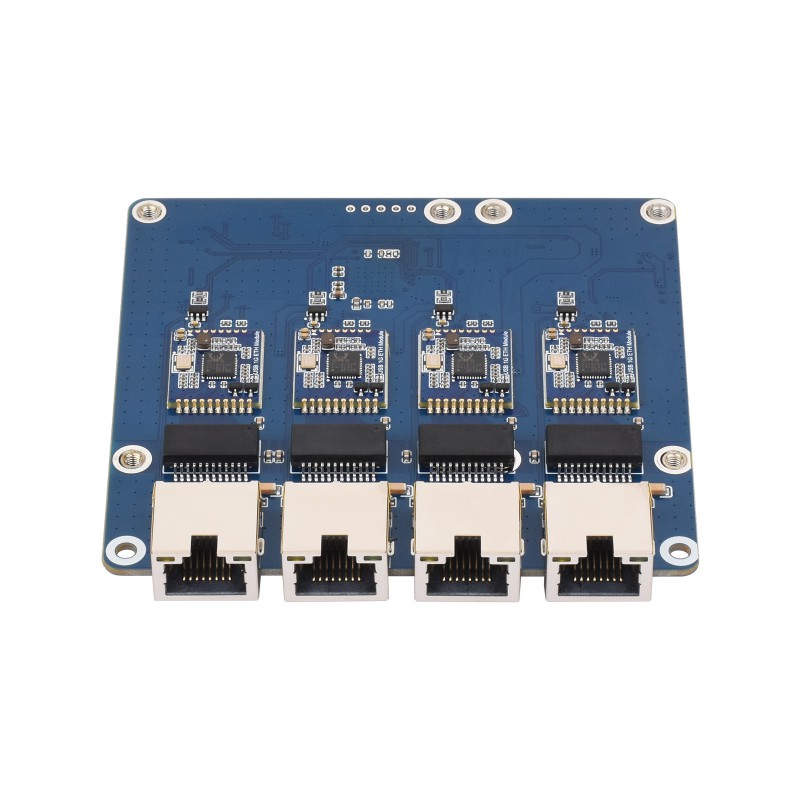

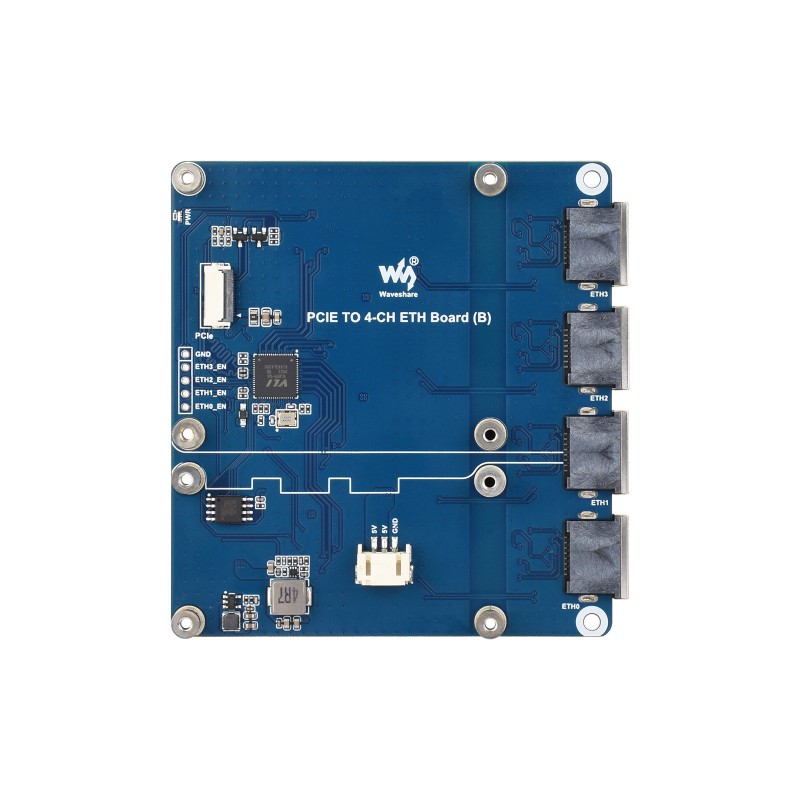

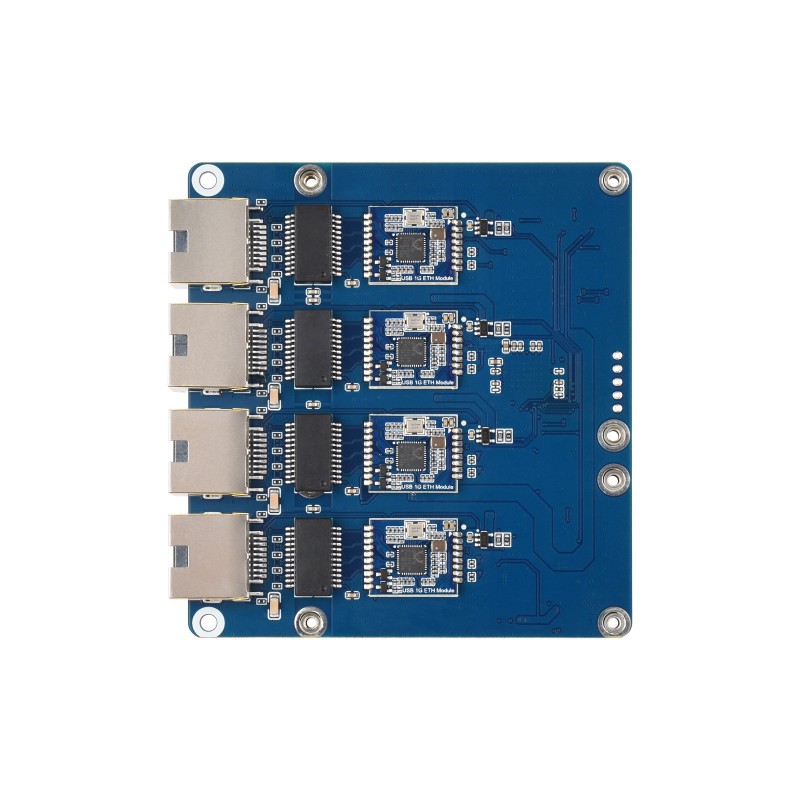

PCIe expansion board for 4-channel Gigabit Ethernet (B) for Raspberry Pi 5
High-quality expansion board adding four Gigabit Ethernet ports to the Raspberry Pi 5 minicomputer via the PCIe connector. The module does not require additional drivers in the Raspberry Pi OS (plug-and-play) and allows for convenient mounting above or below the main board. An ideal solution for building advanced network devices, routers, or multi-port IoT gateways.
Key features:
- Designed specifically for the Raspberry Pi 5 minicomputer (supports PCIe ×1 Gen2 mode).
- No driver installation required in Raspberry Pi OS – full plug-and-play.
- Equipped with an efficient, original Realtek RTL8153 controller and a VL805 expansion chip.
- Four RJ45 ports operating at 10/100/1000 Mbps speeds.
- Status indicators for each port: green LED (power and connection status) and yellow LED (flashing during data transmission).
- 5V standard power supply, provided by default directly via the PCIe cable.
Connection and mounting method
The module connects to the Raspberry Pi 5 PCIe connector using a dedicated 16-pin FPC ribbon cable. The thoughtful design allows for stable and secure mounting without blocking the minicomputer's other interfaces.
Module dimensions
Important configuration note
For the module to function correctly, a modification of the system file is required config.txt. A detailed description of the required changes and configuration can be found on the manufacturer's wiki page.
Technical specification
- Controller chip: RTL8153
- Expansion chip: VL805
- Connection interface: 16-pin PCIe (compatible with Raspberry Pi 5)
- Connectors: 4x RJ45 Ethernet
- Network standards: 10 / 100 / 1000 Mbps
- Power supply: 5V (via standard PCIe connector)
Kit contents
- PCIE TO 4-CH Gigabit ETH Board (B) x1
- 16-pin FPC ribbon cable (length 40 mm) x1
- Set of screws and mounting hardware x1
Note: The Raspberry Pi 5 minicomputer and the additional PCIe adapter shown in the illustrative photos are for demonstration purposes only and are not included in the kit.
