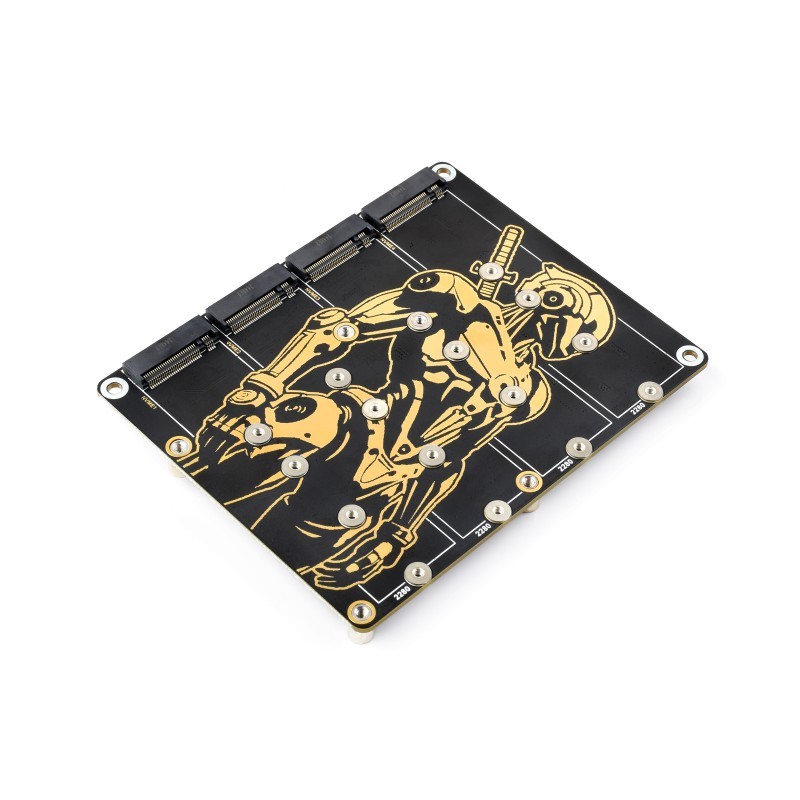

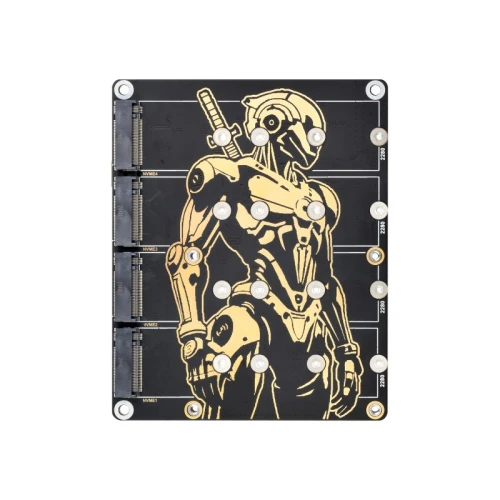

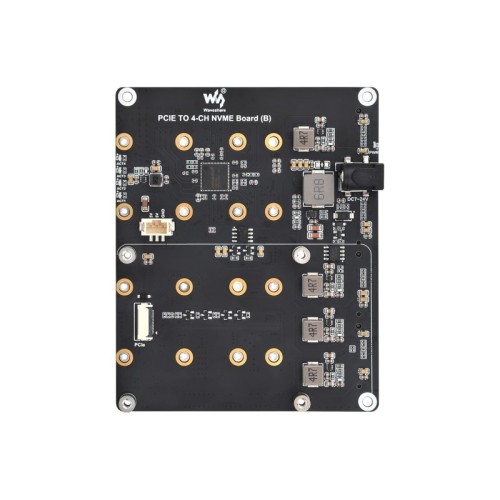

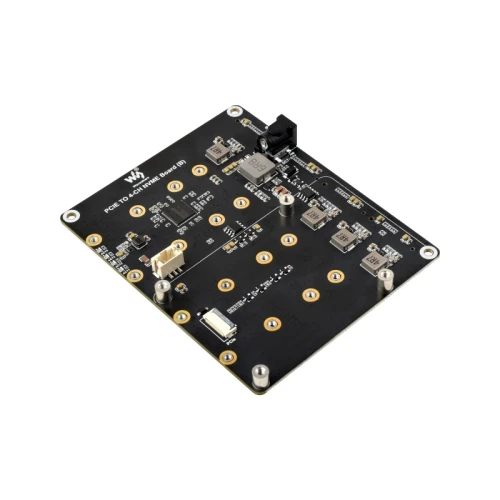

PCIe to 4x M.2 NVMe Adapter for Raspberry Pi 5
An expansion for Raspberry Pi 5 that allows connecting up to four NVMe M.2 SSDs. The adapter communicates via the PCIe interface, offering high read and write speeds, which significantly improves performance. The board also has the option to power the Raspberry Pi 5.
Key Features:
- Designed specifically for Raspberry Pi 5
- Supports 4 NVMe M.2 SSDs (M KEY standard)
- Compatibility with drive sizes: 2280, 2260, 2242, 2230
- PCIe x1 Gen2 interface for fast data transfer
- Ability to boot the system from the SSD
- Wide input voltage range (7V-24V) to power the module and Raspberry Pi
- Can power Raspberry Pi 5 with up to 5V 5A
- Built-in LED indicators for monitoring drive status

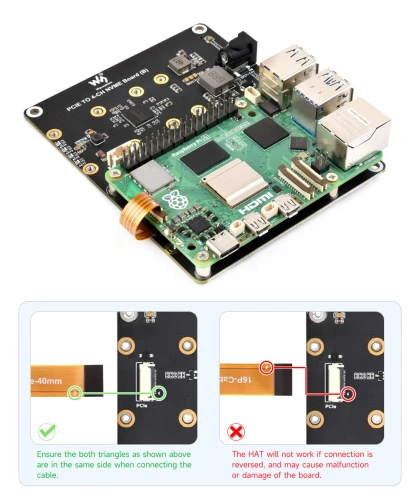

Connection to Raspberry Pi 5 via 16PIN connector
The adapter uses the dedicated 16PIN PCIe connector on the Raspberry Pi 5, ensuring a stable and fast connection.
Supports four NVMe SSDs

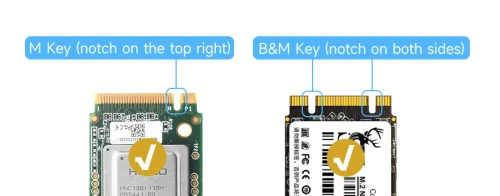

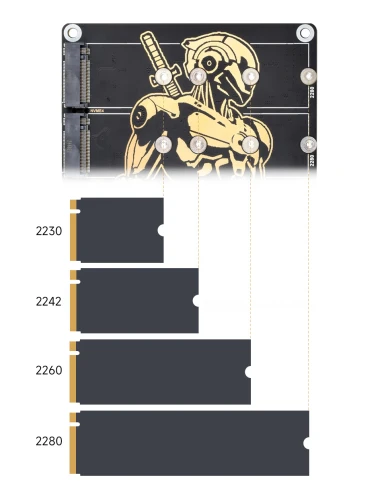

Compatibility with M.2 drives in sizes 2280 / 2260 / 2242 / 2230. Note: only NVMe protocol drives are supported.
Improved Read/Write Speed
Using NVMe drives significantly speeds up system operation and file operations compared to a standard microSD card. The adapter supports booting the system from the SSD.
Powering Raspberry Pi 5
The built-in DC jack (7V~24V) allows powering both the adapter and the Raspberry Pi 5 itself (up to 5V 5A) using the included 3PIN cable. The board can also be powered from the Raspberry Pi 5.

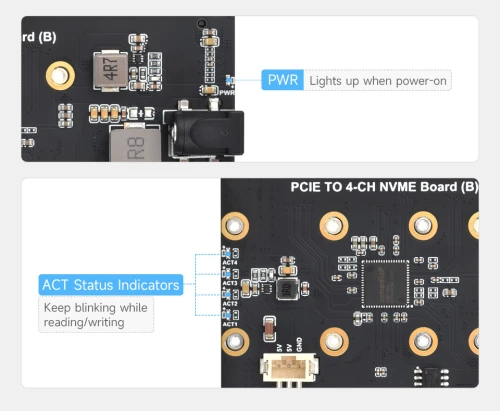

Built-in LED Indicators
LEDs make it easy to monitor the operating status of each connected drive.

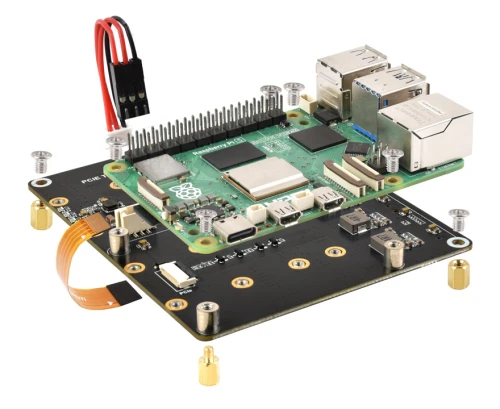

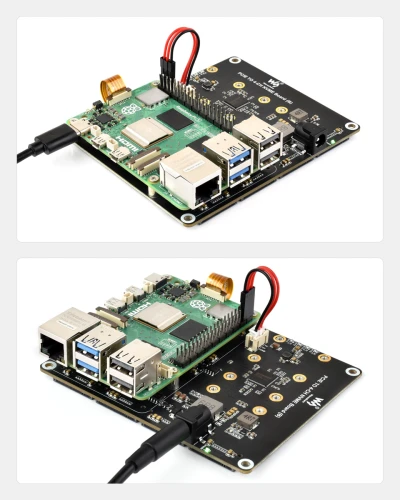

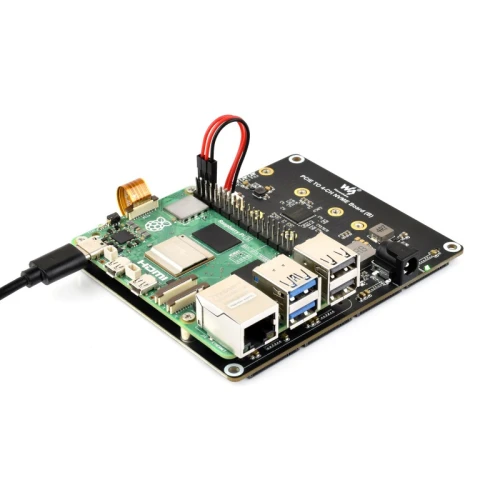

Installation
Technical Specifications:
- Interface: PCIe x1 Gen2
- Compatibility: Raspberry Pi 5
- Drive Support: 4x NVMe M.2 (M KEY)
- Drive Sizes: 2280 / 2260 / 2242 / 2230
- Input Voltage: 7V ~ 24V (DC connector)
- Output Voltage: up to 5V 5A (for RPi5)
- Indicators: Operating status LEDs

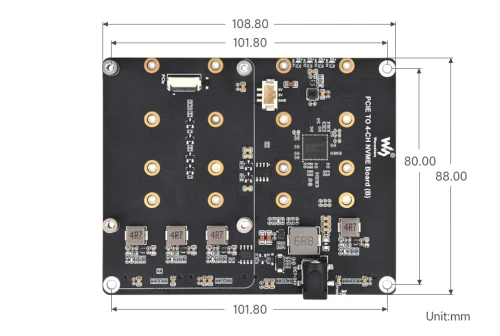

Dimensions

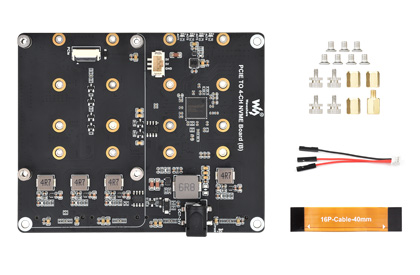

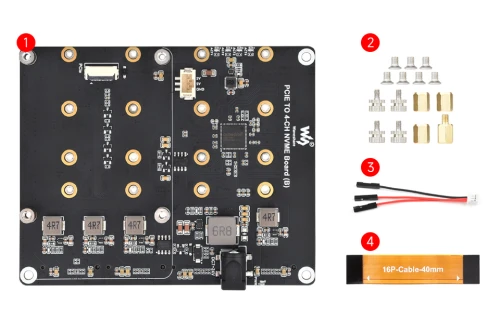

Package Contents
- PCIE TO 4-CH NVME Board (B) ×1
- Screw set ×1
- PH2.0 3PIN cable ×1
- 16PIN cable ~40mm ×1
The set does not include the Raspberry Pi board shown in the pictures in the description.
