PCIe to Gigabit Ethernet and USB 3.2 Gen1 HAT for Raspberry Pi 5 – 3x USB 1x Ethernet Plug & Play
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable
PCIe to Gigabit Ethernet and USB 3.2 Gen1 HAT for Raspberry Pi 5 – 3x USB, 1x Ethernet, Plug & Play
An expansion for Raspberry Pi 5 adding a Gigabit Ethernet port and 3 USB 3.2 Gen1 ports. The module is based on the PCIe ×1 Gen2 connector, featuring dedicated VL805 and RTL8153B controller chips. Standard HAT+, driver-free, Plug & Play – ideal for expanding Raspberry Pi 5 with fast networking and additional USB ports.
Key Features:
- Operates in PCIe ×1 Gen2 mode
- Designed exclusively for Raspberry Pi 5
- VL805 controller – original, high-performance USB HUB chip
- Equipped with 3 USB 3.2 Gen1 ports
- Gigabit Ethernet port – with RTL8153B chip
- RTL8153B chip – high-performance Ethernet controller, recessed network connector
- Built-in power monitoring circuit (INA219) and EEPROM memory
- Allows monitoring power status and programmatic control of USB port power
- HAT+ standard – compatible with Raspberry Pi 5
- No driver installation required – Plug and Play

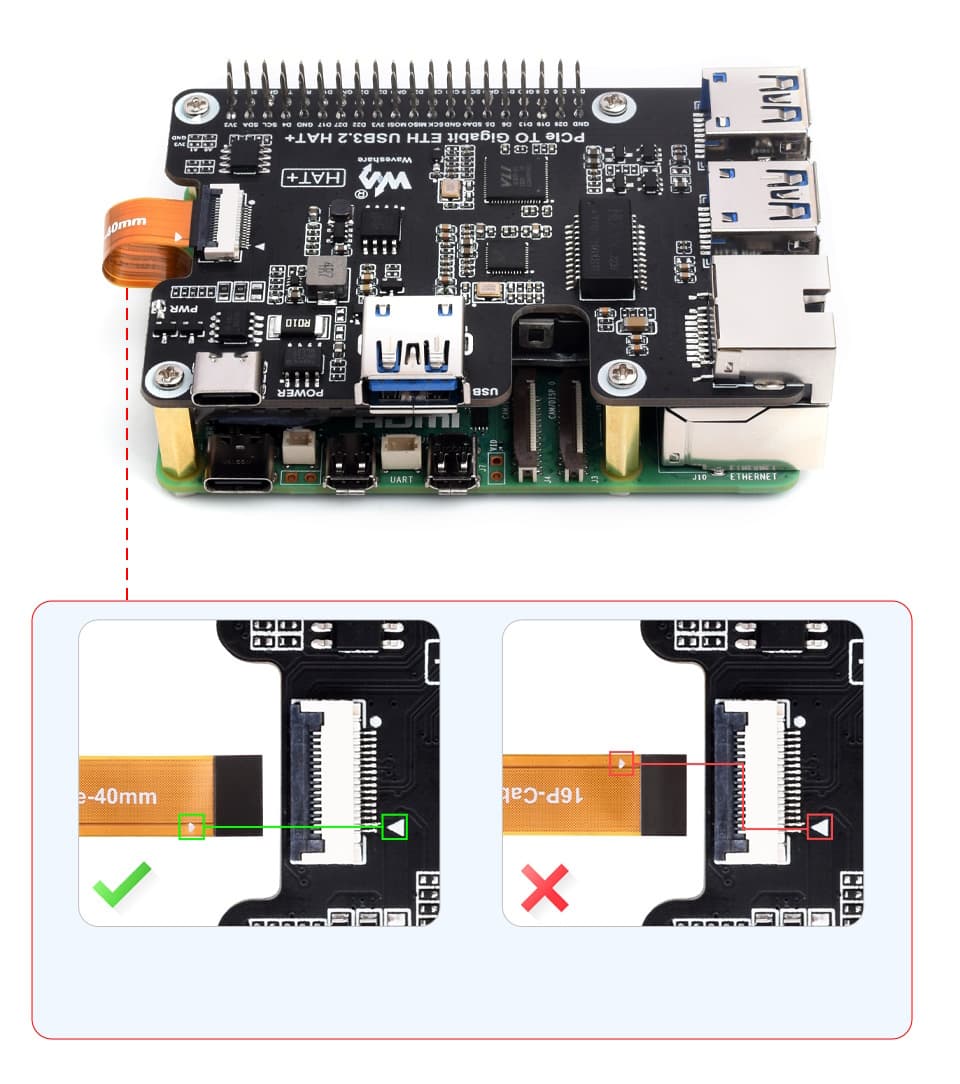

Connection with Raspberry Pi 5
Easy connection to Raspberry Pi 5 via the standard 16PIN PCIe connector.

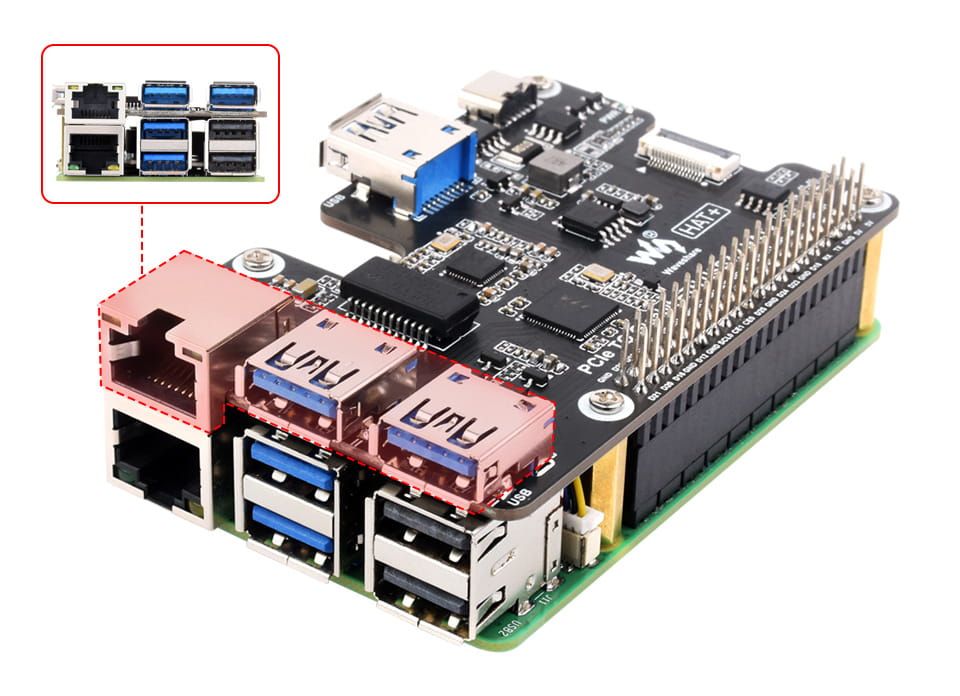

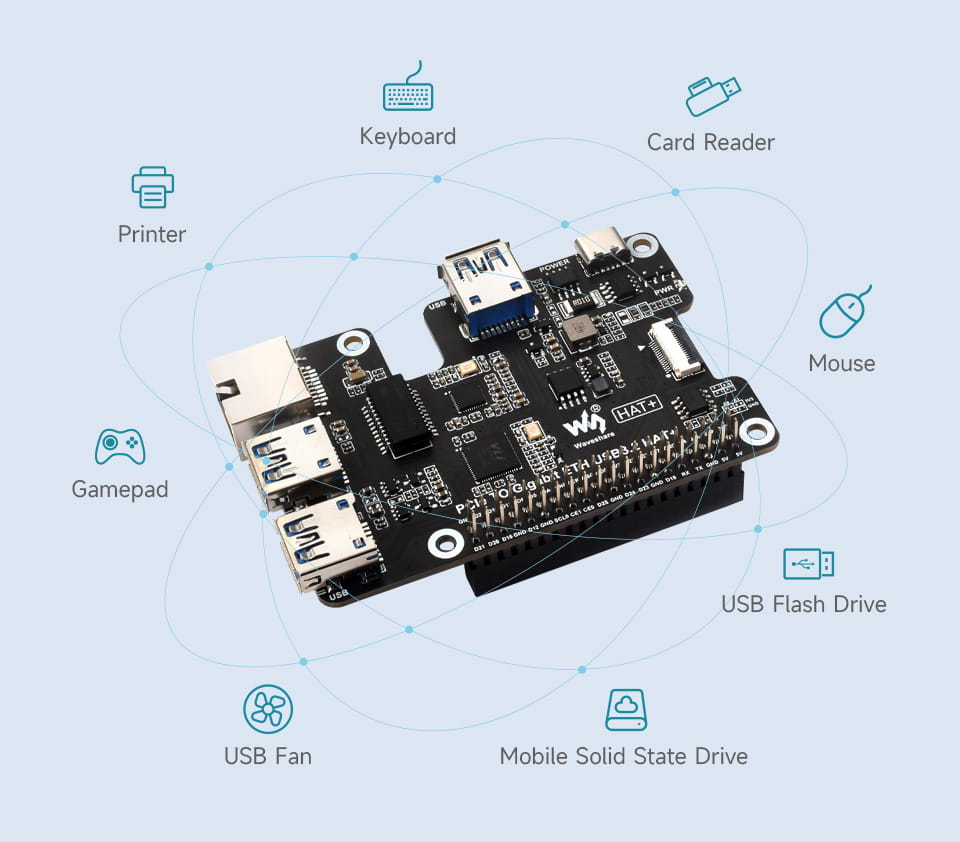

More USB 3.2 Gen1 Ports
Expands Raspberry Pi 5 with 3 high-speed USB 3.2 Gen1 ports, allowing connection of more peripheral devices.
Gigabit Ethernet Port
Adds a Gigabit Ethernet port with the high-performance RTL8153B chip. The recessed network connector ensures aesthetics and space-saving.

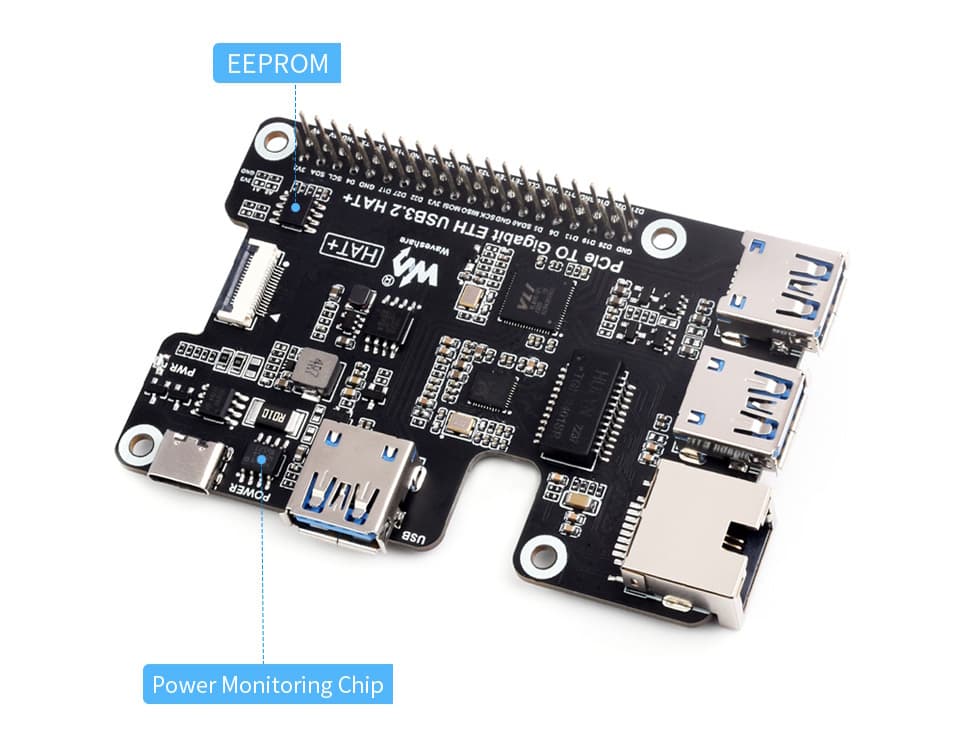

Power Monitoring and EEPROM Memory
Built-in INA219 chip allows real-time power status monitoring and programmatic control of USB port power. EEPROM memory stores module information.

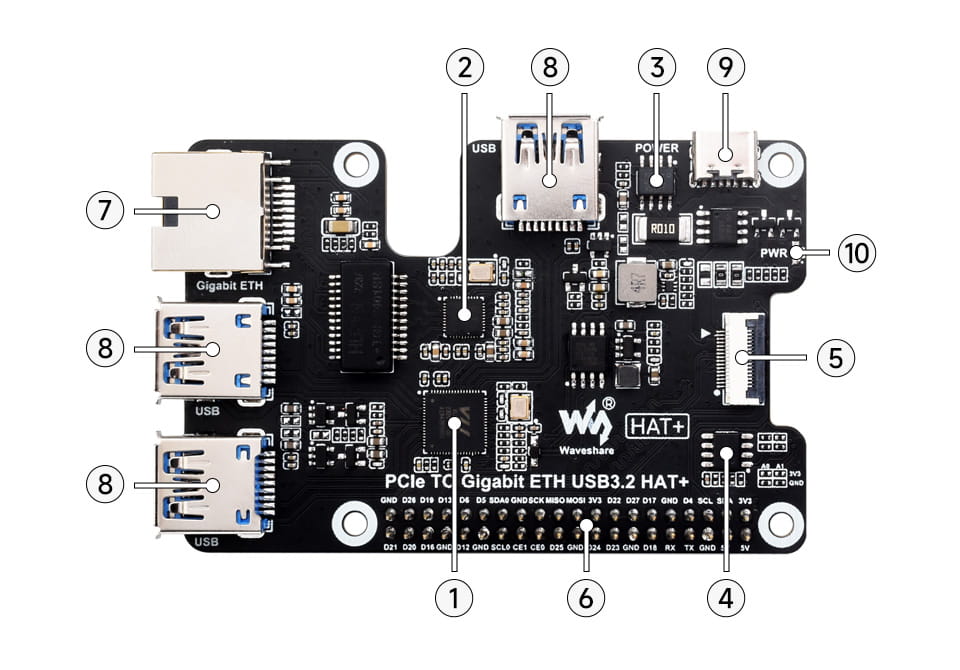

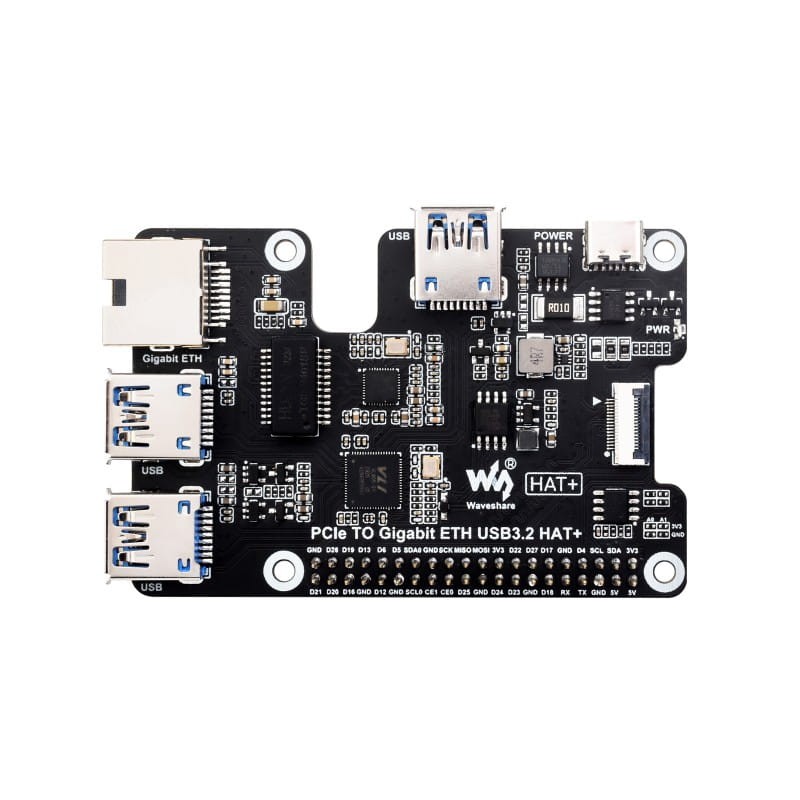

Board Components
- VL805
PCIe to USB 3.2 Gen1 HUB chip - RTL8153B
USB to Gigabit Ethernet chip - INA219
Power monitoring chip - EEPROM
EEPROM memory - 16PIN PCIe interface
Connector to Raspberry Pi 5
- Raspberry Pi GPIO header
40PIN GPIO connector (HAT+ standard) - Gigabit Ethernet port
Ethernet port - USB 3.2 Gen1 expanded ports
Expanded USB 3.2 Gen1 ports (USB1~USB3) - Power port
Power port (external 5V DC Type-C) - PWR LED
Power indicator LED

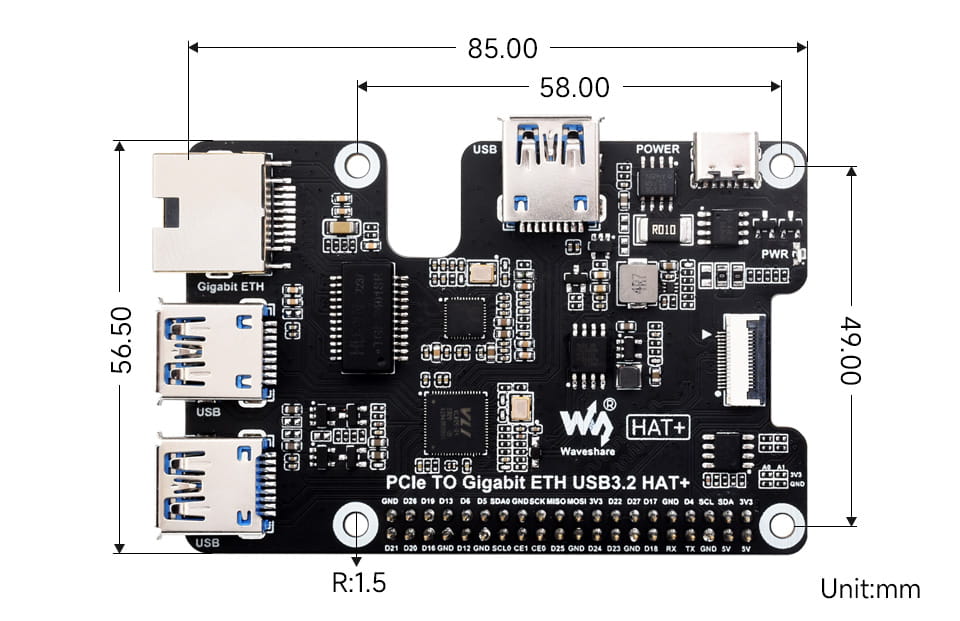

Dimensions
Technical Specification:
- Interface: PCIe ×1 Gen2 (16PIN)
- USB Controller: VL805
- Ethernet Controller: RTL8153B
- USB Ports: 3 × USB 3.2 Gen1 (USB-A)
- Ethernet Ports: 1 × Gigabit Ethernet (RJ45)
- Ethernet Speed: up to 1000Mbps
- Power Supply: From Raspberry Pi or external 5V DC (Type-C)
- Compatibility: Raspberry Pi 5
- Dimensions: (see diagram above)
- Weight: 0.091 kg
Kit Contents

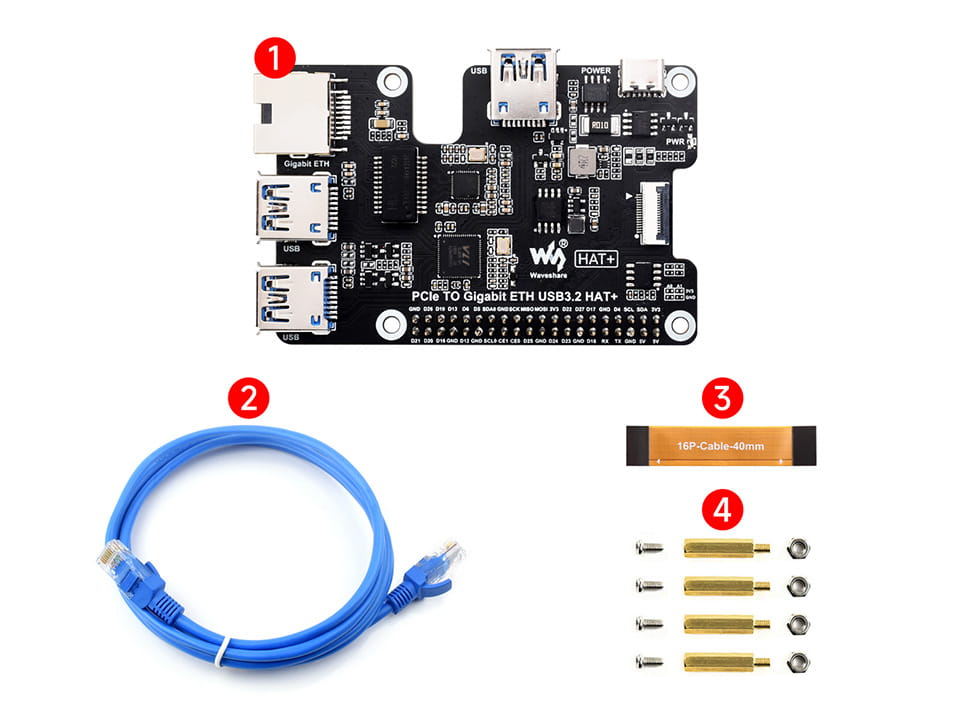

- PCIe TO Gigabit ETH USB3.2 HAT+ ×1
- Network cable ~1.5m ×1
- 16PIN cable ~40mm ×1
- Spacers and screws kit ×1
