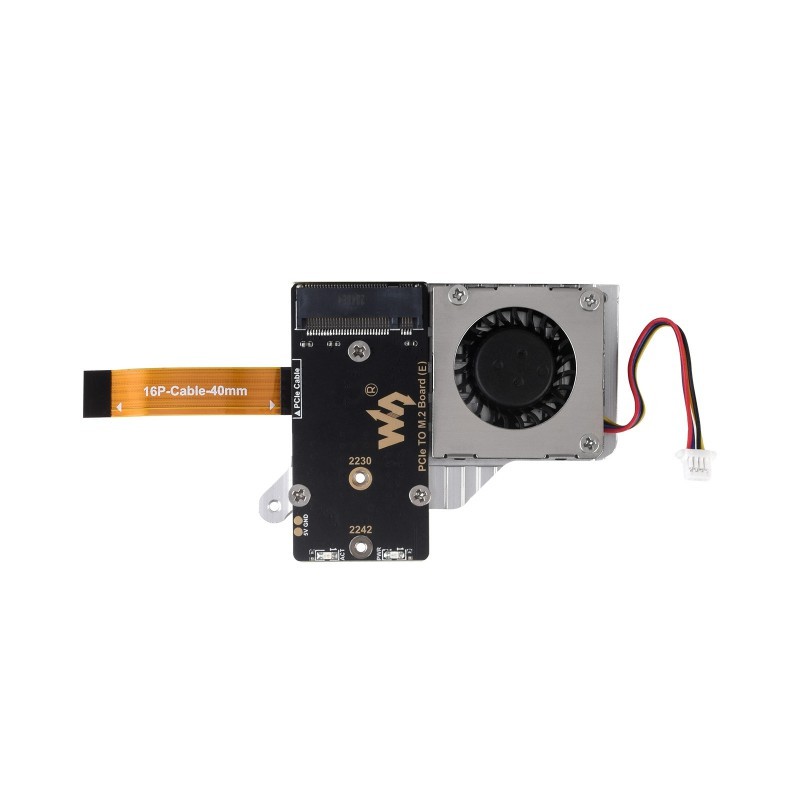

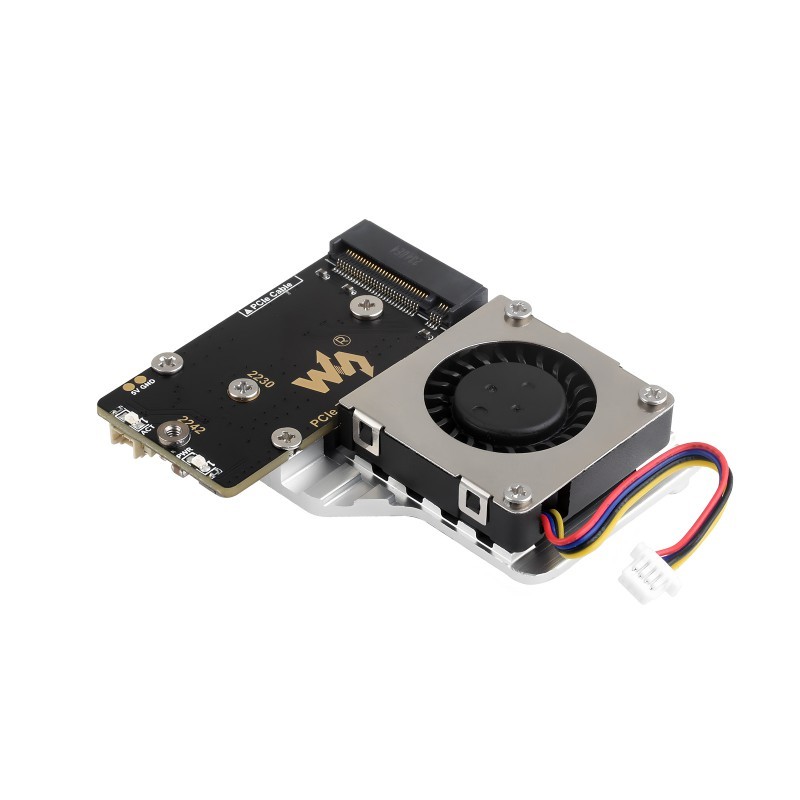

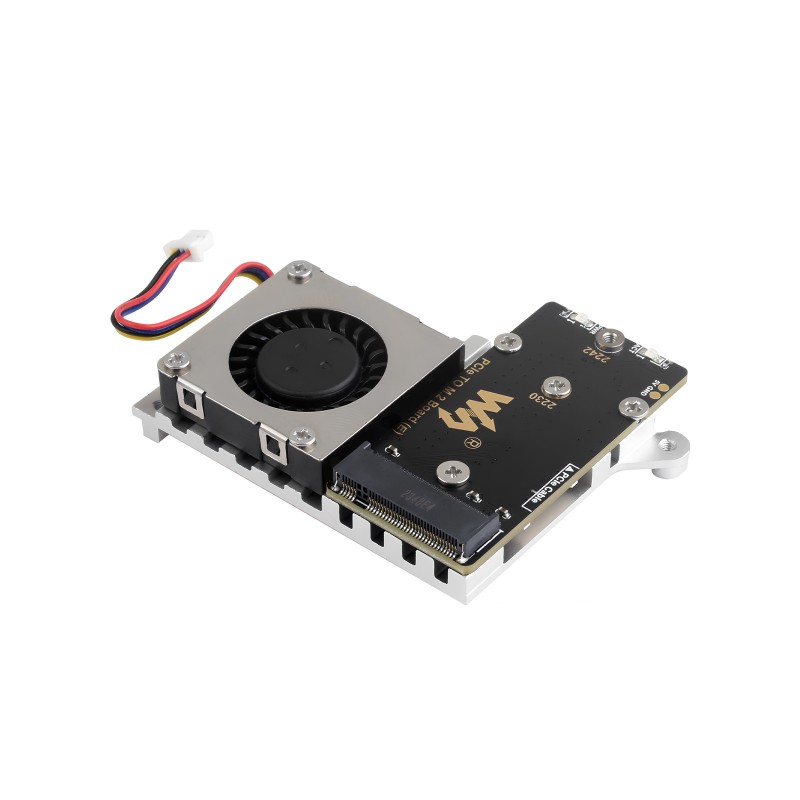

PCIe to M.2 Adapter (E) for Raspberry Pi 5 with Fan
A compact all-in-one adapter for the Raspberry Pi 5, allowing you to connect M.2 NVMe protocol SSDs. Thanks to an integrated fan with an aluminum heatsink, it provides not only ultra-fast data transfer but also effective cooling, which significantly improves the performance and stability of the minicomputer. Ideal for building high-performance file servers, multimedia centers, or for speeding up overall system performance.
Key features:
- Designed specifically for Raspberry Pi 5
- Supports M.2 NVMe drives in 2230 / 2242 sizes
- Support for PCIe Gen2 and Gen3 modes, ensuring high read/write speeds
- Ability to boot the Raspberry Pi 5 system directly from the SSD
- Integrated cooling fan with aluminum heatsink, controlled by PWM
- Connection to Raspberry Pi 5 via a dedicated 16PIN PCIe cable
- Matching dimensions and mounting holes that perfectly fit the Raspberry Pi 5
- Built-in dual LED indicators to monitor power and disk activity status
- Compact "All-in-One" design

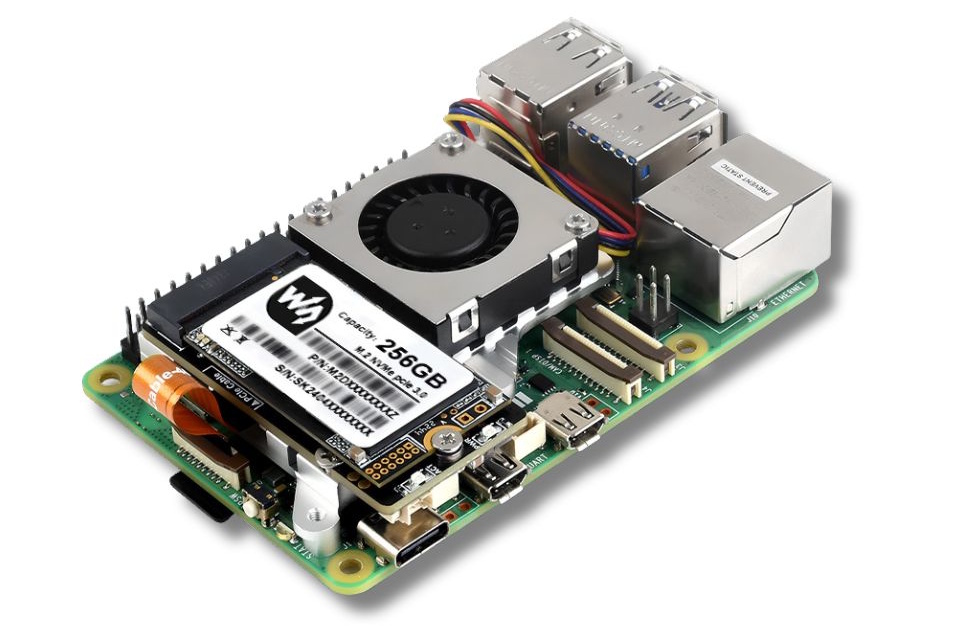

Designed for Raspberry Pi 5

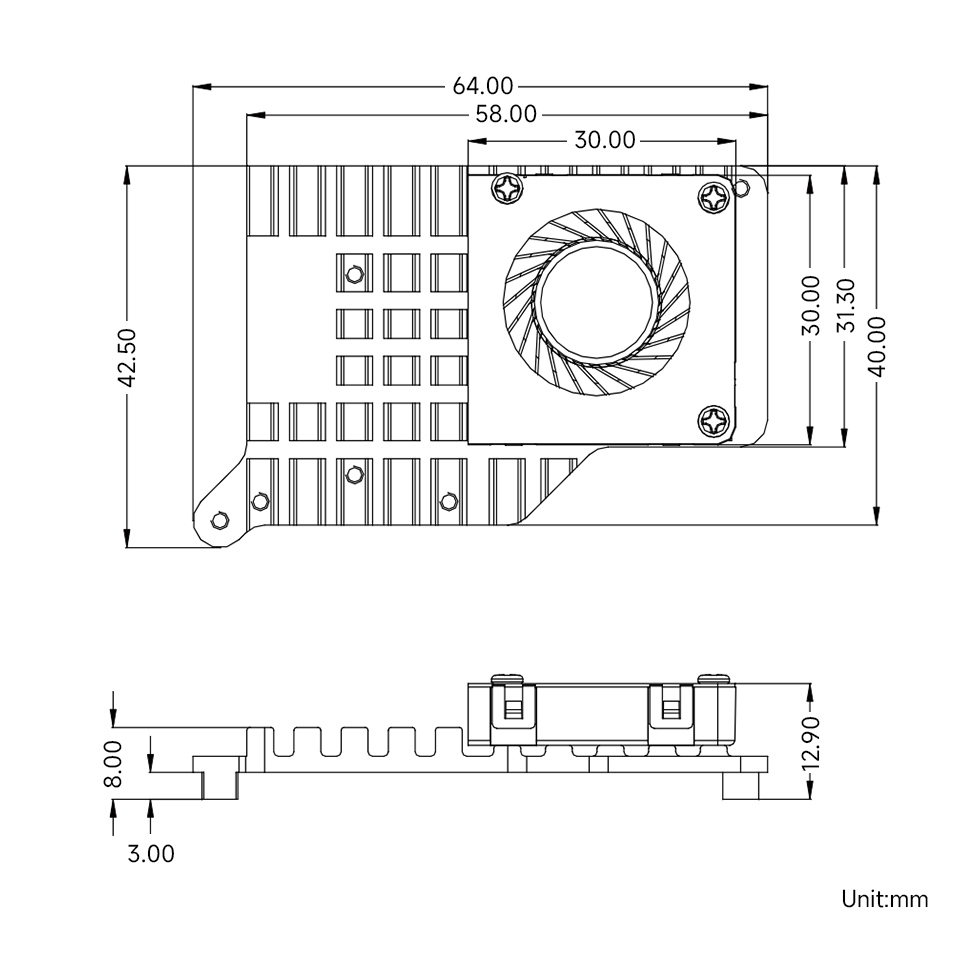

The adapter's size and mounting holes perfectly match the Raspberry Pi 5.

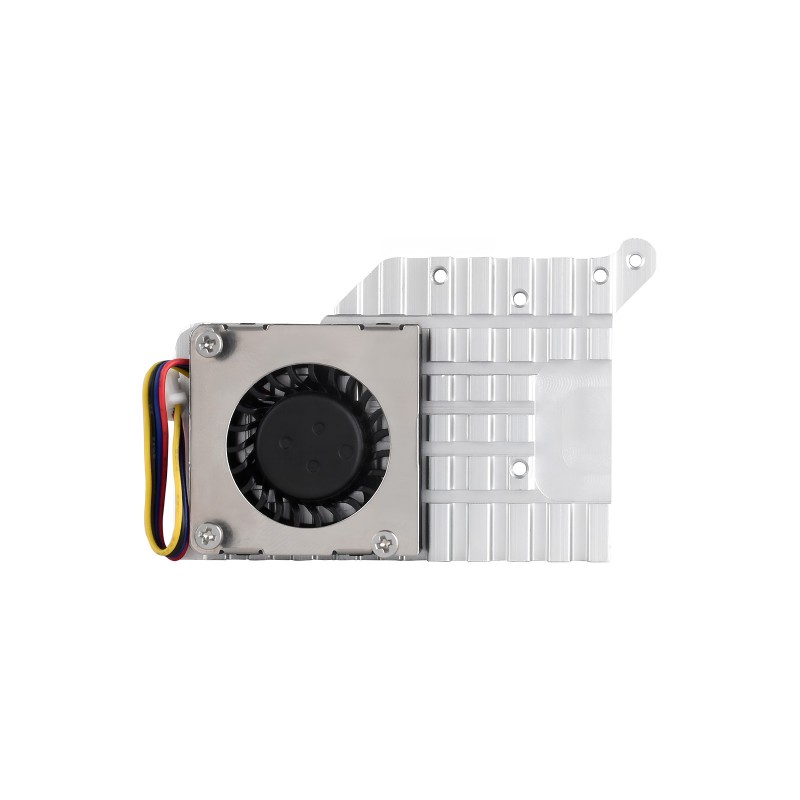

The combination of an integrated fan with an aluminum heatsink significantly accelerates heat dissipation.

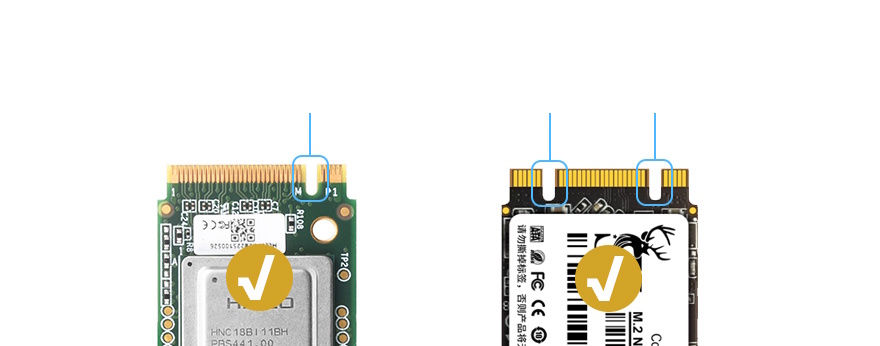

NVMe SSD Support
Compatible with M.2 drives in 2230 / 2242 sizes. It supports Gen2 and Gen3 modes and allows booting the Raspberry Pi 5 system directly from an SSD for maximum performance.
Application Examples

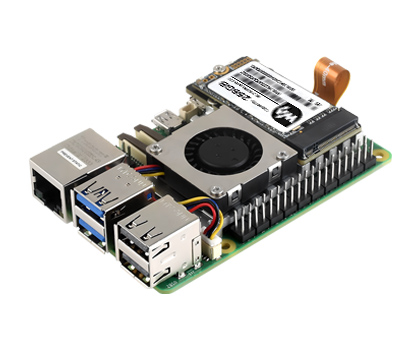

Connecting an NVMe drive

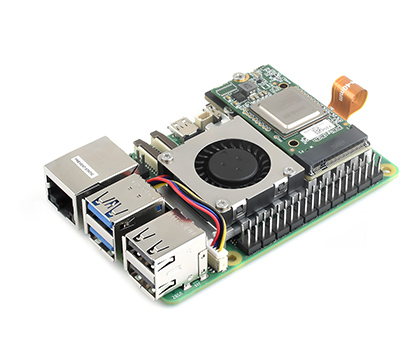

Connecting a Hailo-8 AI accelerator
* for reference only, the detailed list of package contents can be found in the Package Contents section.
Onboard LED Indicators
Easy monitoring of the working status thanks to the built-in power (PWR) and disk activity (ACT) indicators.

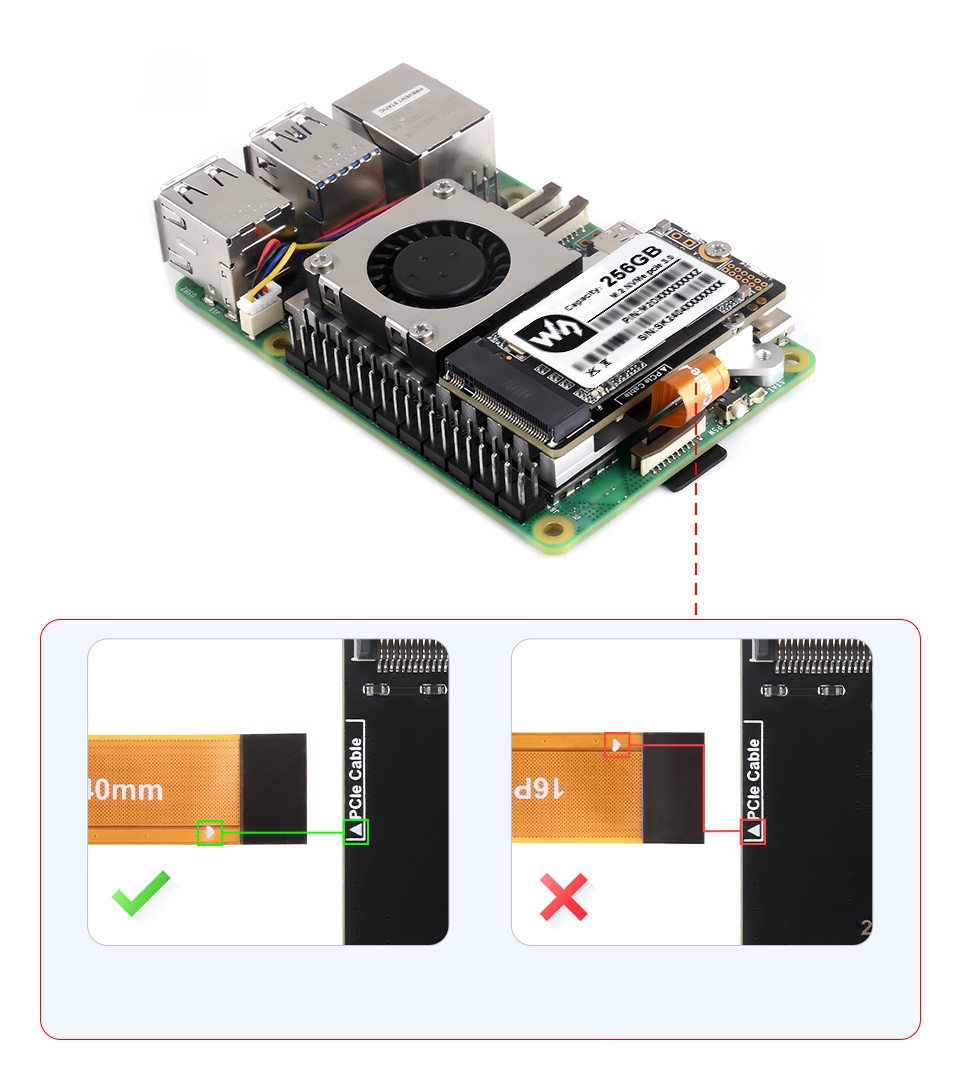

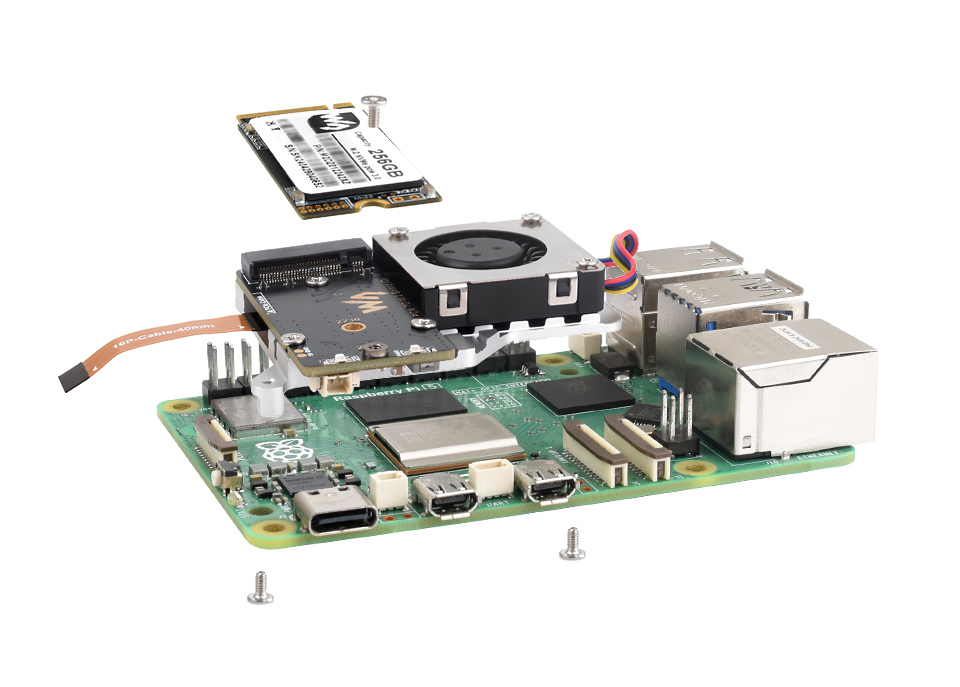

Installation Method
Technical Specification:
- M.2 Interface: Supports NVMe drives (PCIe Gen2/3)
- Supported Drive Sizes: 2242, 2230
- Fan Power Supply: 5V DC (from the 4-pin connector on Raspberry Pi 5)
- Fan Control: PWM with tachometer
- Fan Speed: 8000±10% RPM
- Maximum Airflow: 1.39 CFM
- Material: Anodized aluminum

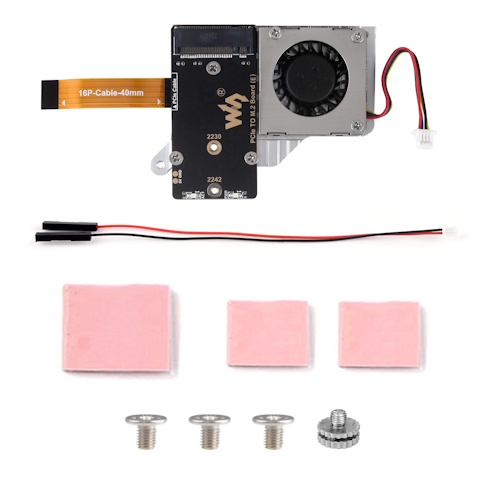

Package Contents
- PCIe TO M.2 Board (E) x1
- MX1.25 2PIN cable x1
- Thermal tape (3 pcs) x1
- Screw pack x1
