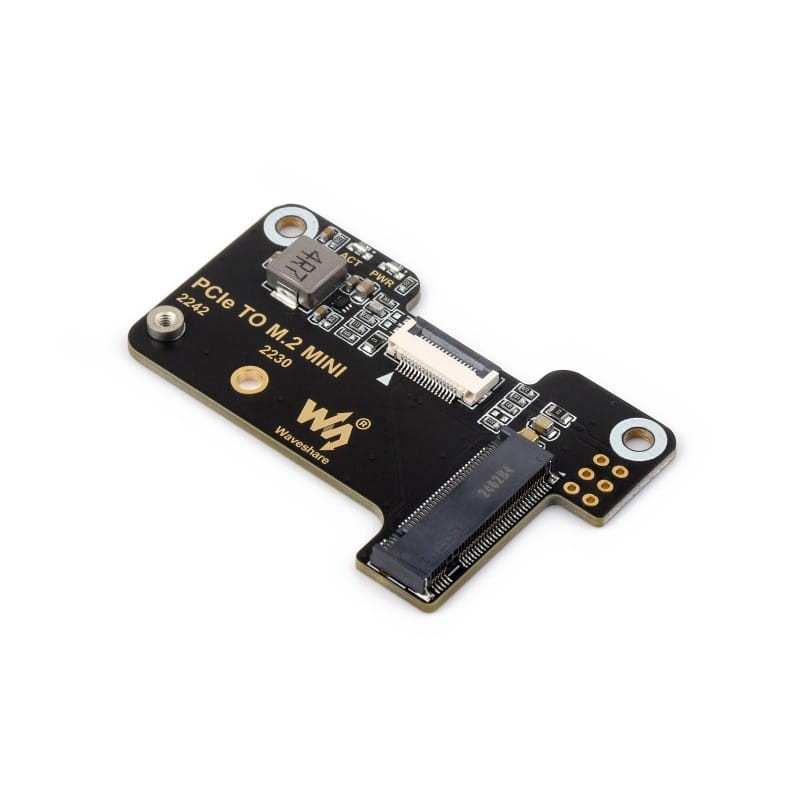

PCIe to M.2 Mini Adapter for Raspberry Pi 5 – NVMe SSD Support, High-Speed Read/Write
Mini PCIe to M.2 adapter for Raspberry Pi 5, supporting NVMe protocol and M.2 SSDs with high-speed read/write capabilities. It's compatible with M.2 SSDs in 2230/2242 sizes, supports Gen2 and Gen3 modes, and enables booting your Raspberry Pi 5 directly from an SSD.
Key Features:
- Supports NVMe protocol and M.2 SSDs for high operational efficiency
- Compatible with PCI-E ×1 Gen2 and Gen3 modes
- Designed exclusively for Raspberry Pi 5
- Supports 2230/2242 size M.2 SSDs
- Built-in LED indicators for status (PWR – power, ACT – read/write)
- Enables booting Raspberry Pi 5 from an SSD (requires config.txt modification)

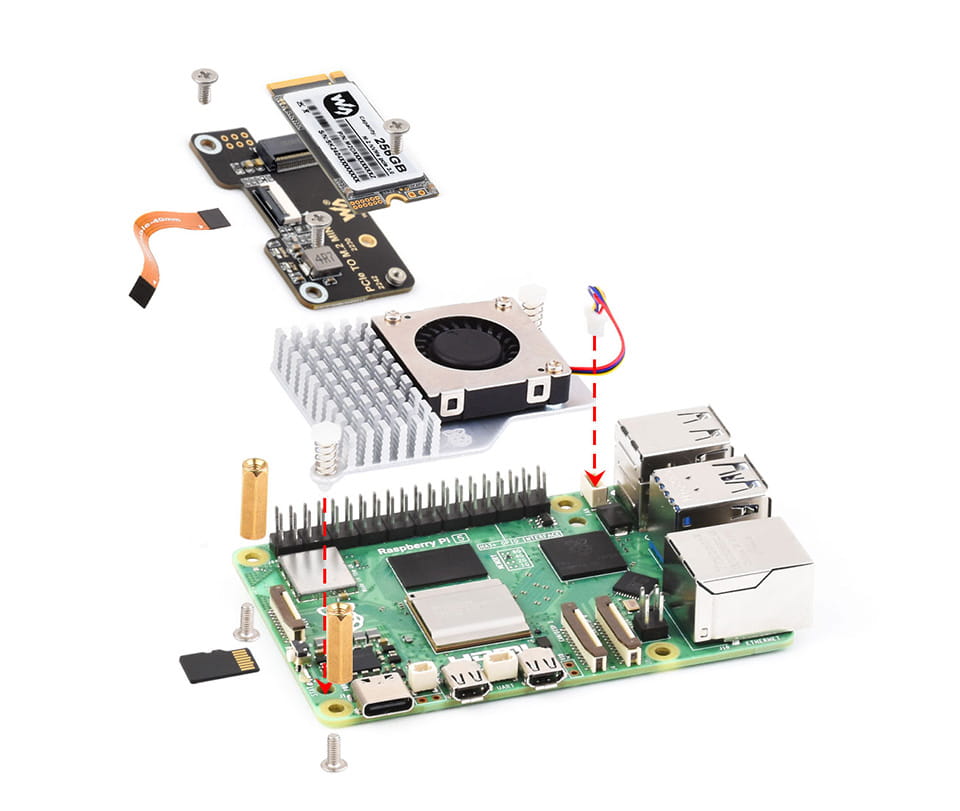

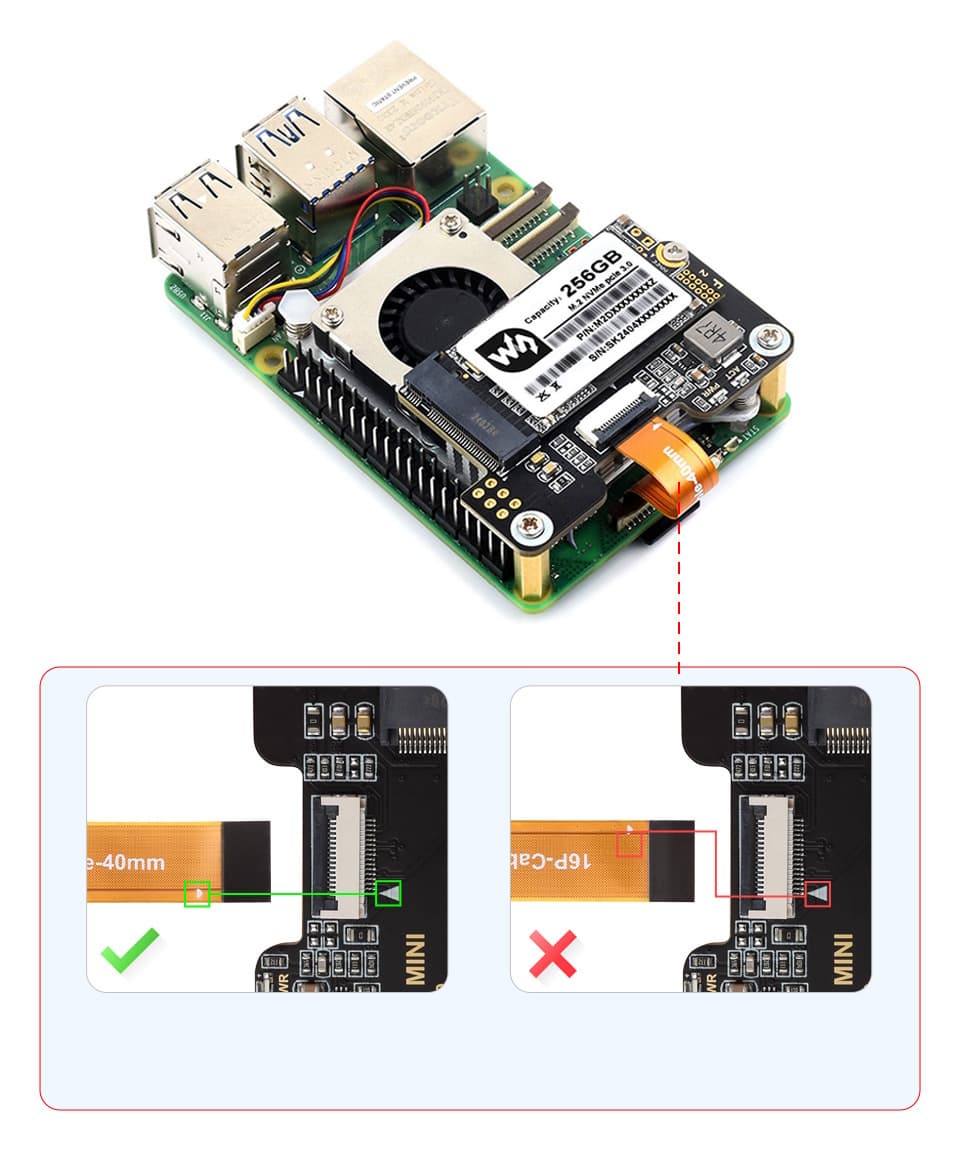

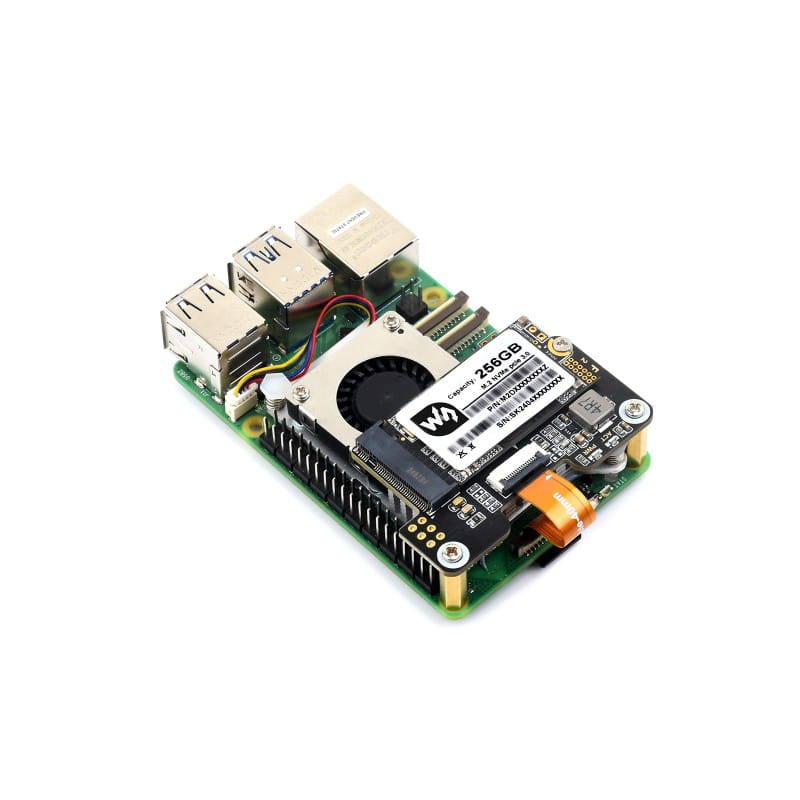

Connecting to Raspberry Pi 5 via 16PIN Cable
Based on the 16-pin PCIe interface of the Raspberry Pi 5.

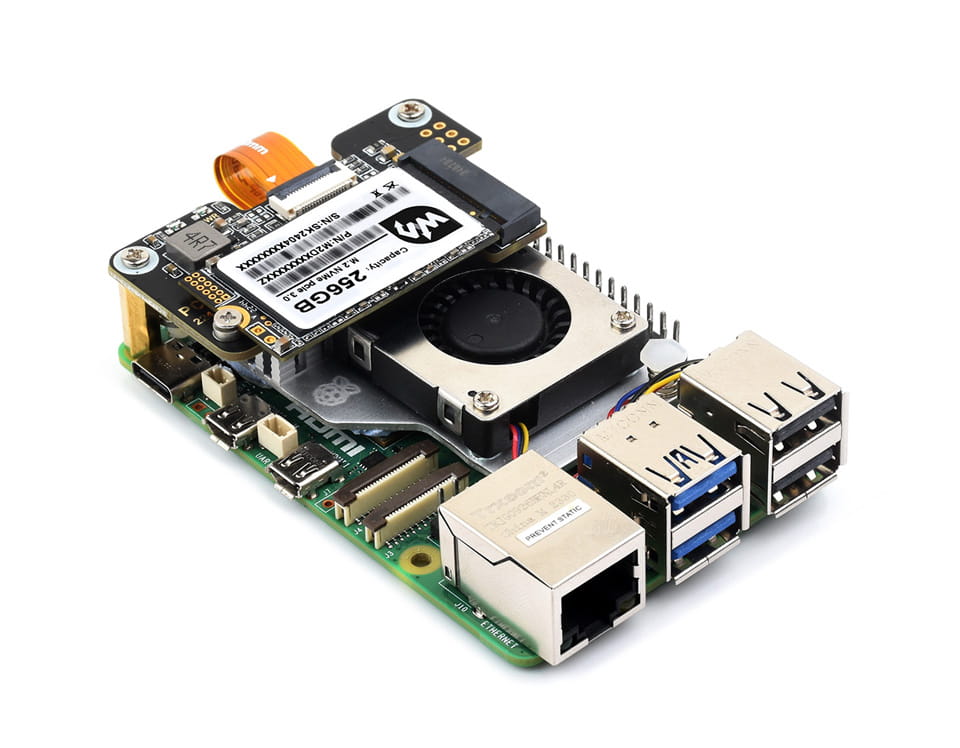

Compact Design
Practical and compact size, easy to integrate into your projects.

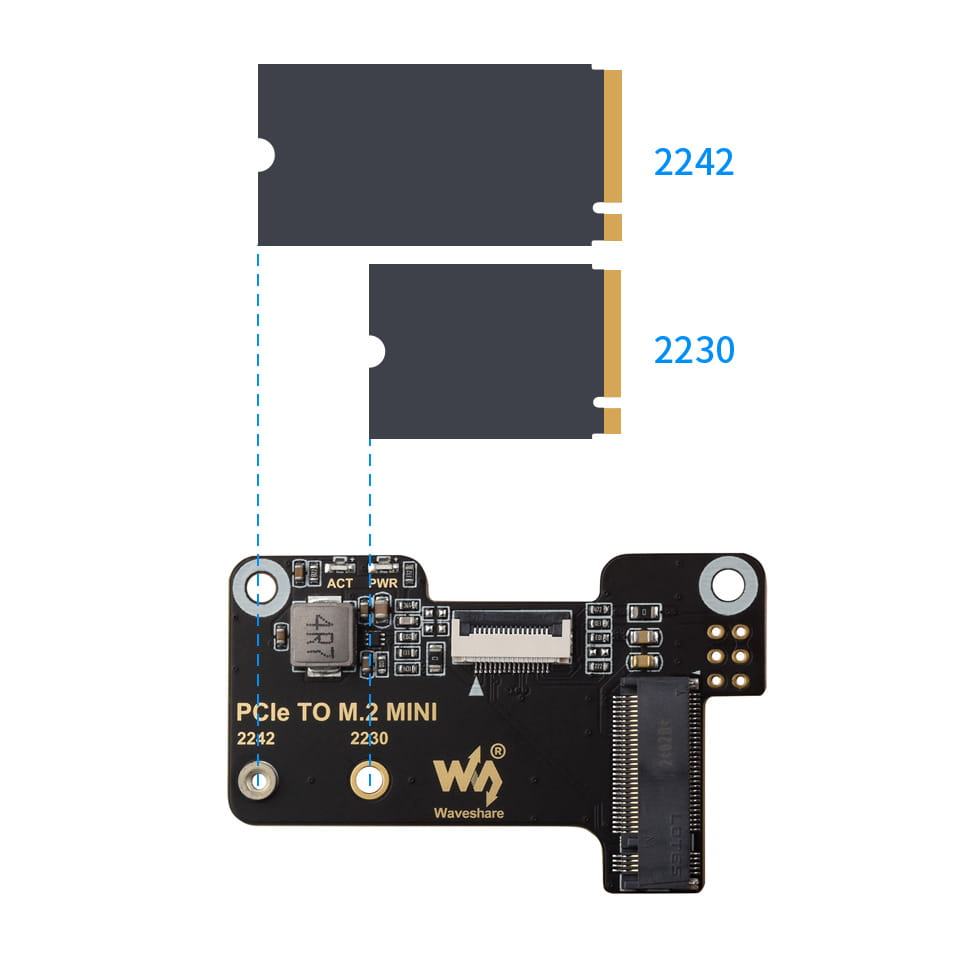

NVMe Drive Protocol Support
Compatible with 2230/2242 size M.2 SSDs. Supports Gen2 and Gen3 modes, enabling Raspberry Pi 5 to boot from an SSD.

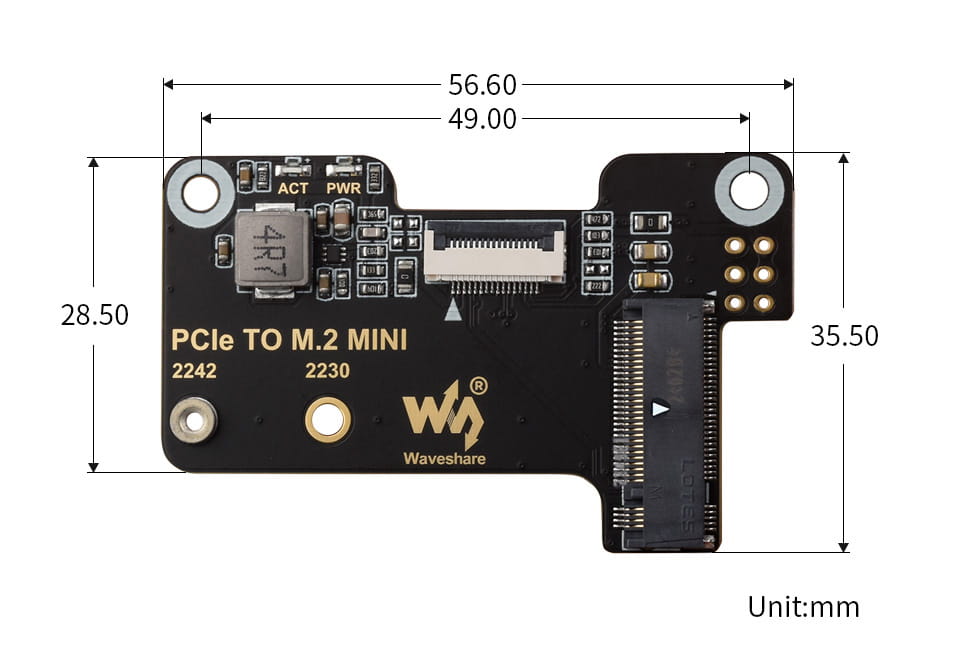

Dimensions
Technical Specifications:
- Interface: PCIe ×1 Gen2 / Gen3
- Supported Drives: M.2 NVMe SSD 2230 / 2242
- Compatibility: Raspberry Pi 5
- LED Indicators: PWR (power), ACT (read/write)
- Weight: 0.082 kg

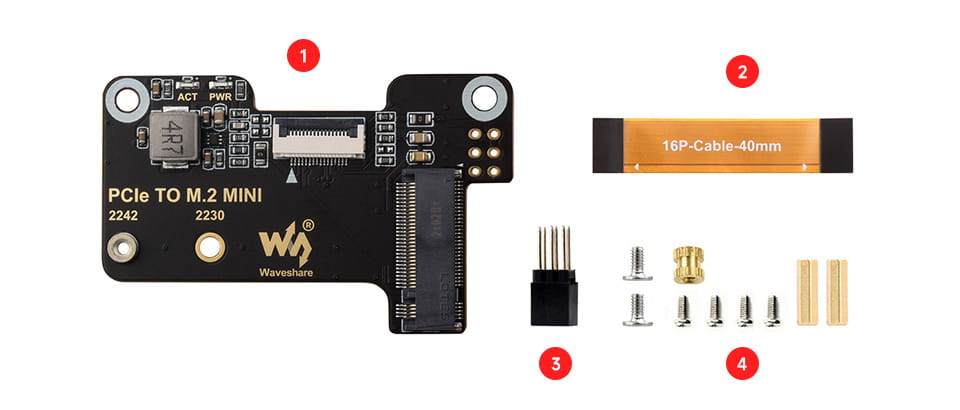

Package Content
- PCIe TO M.2 MINI ×1
- 16P-40mm Cable ×1
- 2x3 Pin header ×1
- Screws pack ×1
