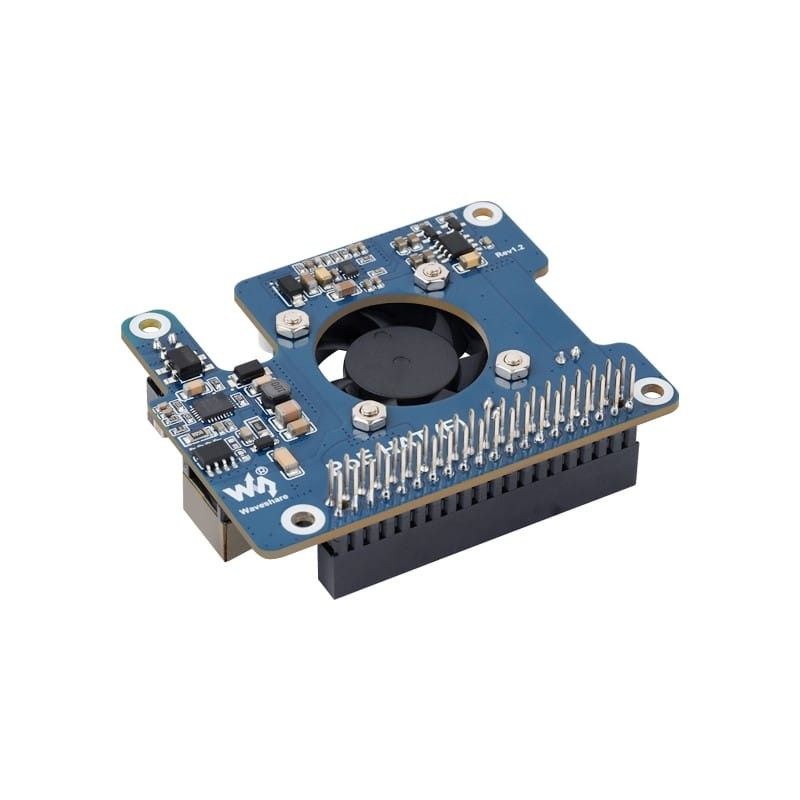

PoE HAT (F) for Raspberry Pi 5 / CM5 – Power Over Ethernet 802.3af/at Active Cooling

The PoE HAT (F) is a power supply module compliant with the 802.3af/at (PoE+) standard, dedicated to Raspberry Pi 5 and Compute Module 5. It enables simultaneous transmission of network data and power via a single Ethernet cable. With its built-in fan, metal heatsink, and additional 12V and 5V power outputs, it ensures stable operation of the minicomputer and connected peripherals even under heavy load.

Key Features:

• Compatibility with Raspberry Pi 5 and CM5 (standard 40PIN GPIO connector)
• Supports PoE / PoE+ standards (IEEE 802.3af/at)
• Fully isolated switched-mode power supply (SMPS)
• Built-in high-speed active cooling fan and metal heatsink for effective heat dissipation
• Additional power outputs: 12V (2A) and 5V (4.5A) to power peripherals
• High current efficiency and operational stability

Dedicated to Raspberry Pi 5 / CM5

The standard 40PIN GPIO stackable header allows mounting the HAT and connecting additional modules on top.

PoE / PoE+ Support

Provides both network connection and power for your Raspberry Pi using just one Ethernet cable.

5V and 12V Power Outputs

The module provides power connectors for additional devices. The 5V output offers up to 4.5A, and the 12V output up to 2A (maximum total output power for 12V+5V is 25W). This allows powering extra accessories while maintaining stable power for the Raspberry Pi.

Active Cooling System

The use of a fan and metal heatsink significantly accelerates heat dissipation, guaranteeing more stable system performance.

Efficient Voltage Converter

The module uses an original buck converter chip, providing up to 5A under sufficient cooling conditions.

Installation

First, apply the thermal tapes, then install the metal heatsink, and finally attach the PoE HAT.

Dimensions

Technical Specification:

• PoE Power Input: 38V ~ 57V DC
• Power Output (GPIO): 5V 4.5A (MAX)
• Power Output (2P connector): 12V 2A (MAX)
• Network Standard: IEEE 802.3af/at PoE / PoE+
• Dimensions: 56.5 × 70.0 mm

Package Contents
