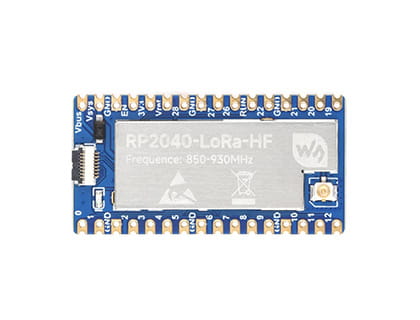

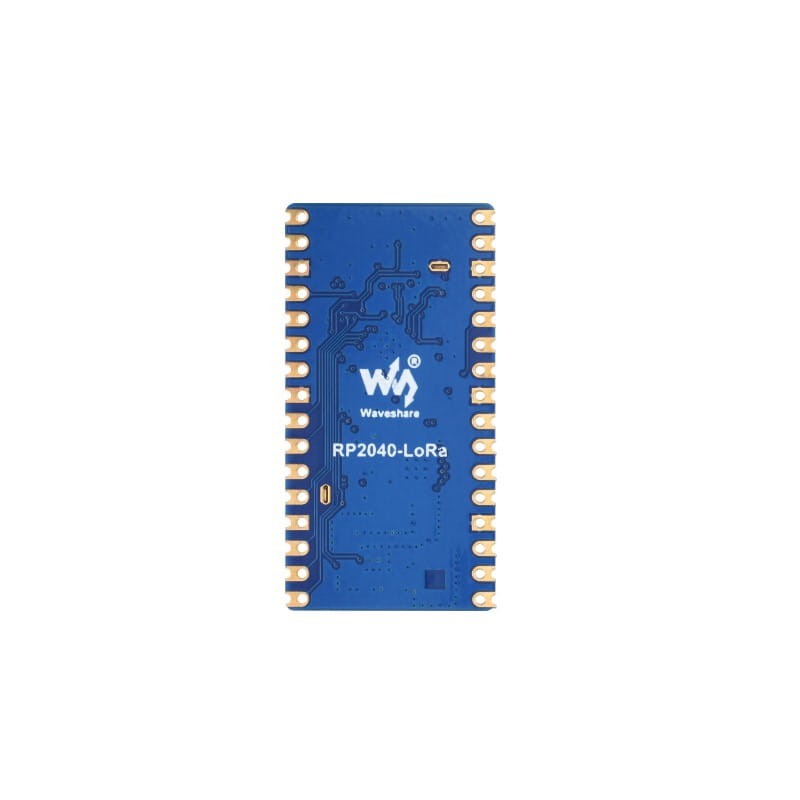

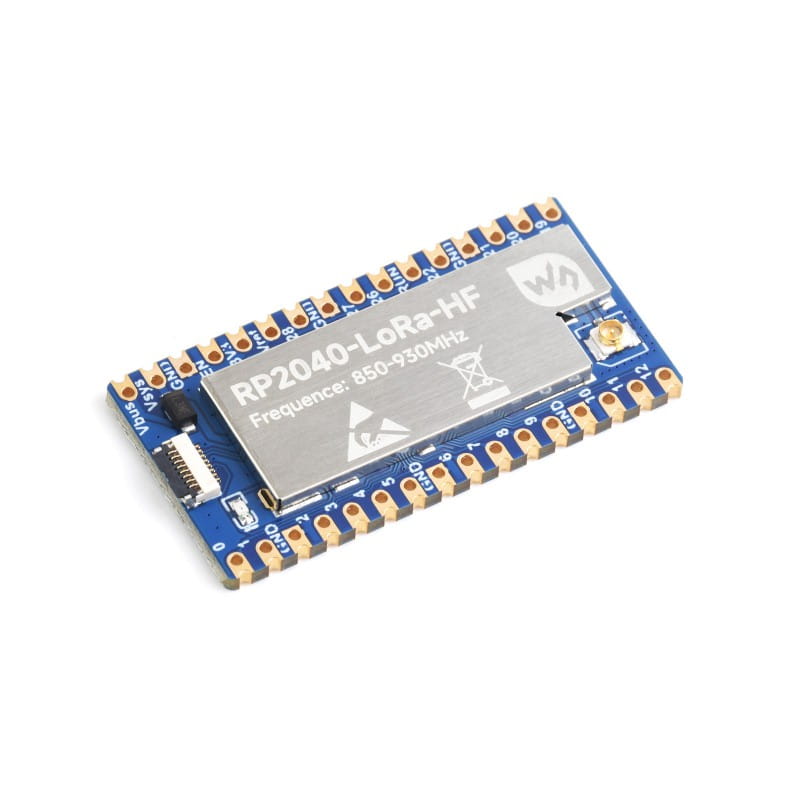

RP2040-LoRa HF Development Board with Corex M0+ Processor
The RP2040-LoRa HF Development Board is an innovative tool designed for creating advanced IoT applications utilizing LoRa technology for long-range communication. Powered by the Raspberry Pi RP2040 microcontroller, it features an efficient dual-core Arm Cortex M0+ processor with a maximum frequency of 133 MHz. This board offers 264KB SRAM and 2MB Flash memory, providing ample space for applications and data. The uniqueness of the RP2040-LoRa HF lies in its ability to operate in the HF band (850 ~ 930MHz), enabling projects requiring high throughput and long-range transmission. Utilizing the new generation SX1262 RF chip, the RP2040-LoRa HF distinguishes itself with lower power consumption, improved range, and energy efficiency compared to previous solutions.
With LoRa modulation technology, the board enables the creation of interference-resistant systems capable of operating in challenging environmental conditions. Integrated USB 1.1 support with host and device functions, low power consumption in sleep modes, and ease of programming with "drag and drop" via USB, supported by up to 20 multifunctional GPIO pins, make it an ideal choice for IoT system designers.
Specifications:
- Microcontroller: RP2040, designed by Raspberry Pi.
- Processor: Dual-core Arm Cortex M0+, clock up to 133 MHz.
- Memory: 264KB SRAM, 2MB Flash.
- Connector: FPC 8PIN, USB Type-C adapter.
- Module: Soldering pads for carrier boards.
- USB: Version 1.1, device and host support.
- Power Modes: Low power consumption in sleep and deep sleep modes.
- Programming: "Drag and drop" method via USB, up to 20 GPIO pins.
- Modulation: LoRa, FSK, GFSK.
- Receive Sensitivity: -148dBm, emission power up to 22dBm.
- Preamble and CRC: Support for data packets up to 256 bytes.
- Operating Temperature: 0 ~ 60℃.
- Dimensions: 21.00 × 41.00mm.
Product Features:
- Advanced RF Technology: Utilizing the SX1262 chip for improved range and lower energy consumption.
- Frequency Versatility: Operating in the HF band (850 ~ 930MHz) for applications requiring long-range communication.
- Flexible Programming: Easy programming and debugging via USB Type-C and multifunctional GPIO pins.
- Low Power Consumption: Efficient power management ensures long-lasting battery operation.
- Interference Resistance: LoRa modulation ensures communication in challenging environmental conditions.
- Wide Compatibility: Connectivity with LoRa gateways and cloud servers for rapid project verification.
- Development Support: Rich online resources and C examples facilitate the implementation of advanced features.

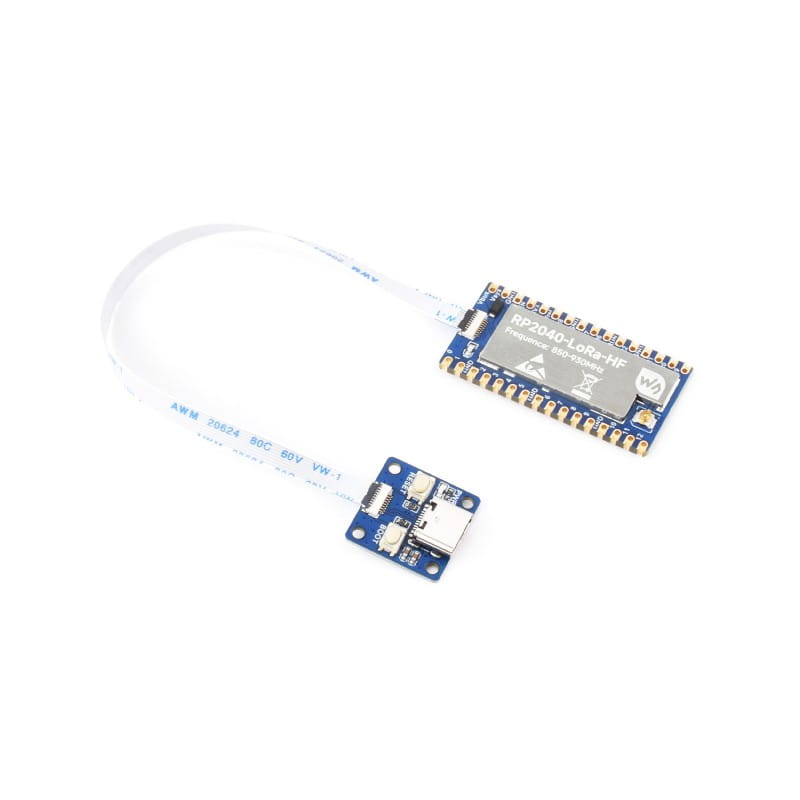

Compact Size and Separate Adapter:

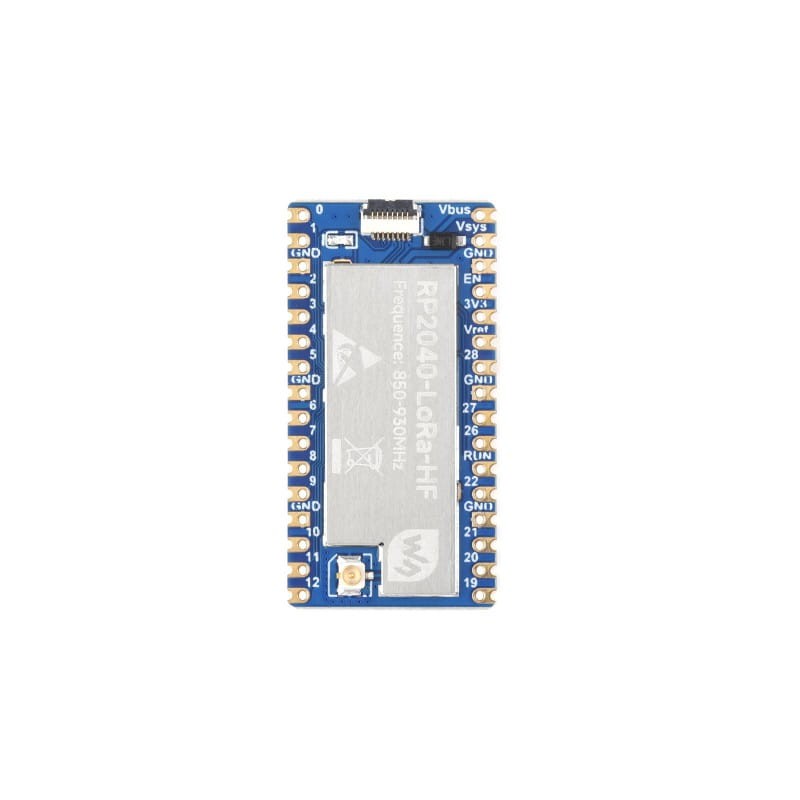

Pin Definition:

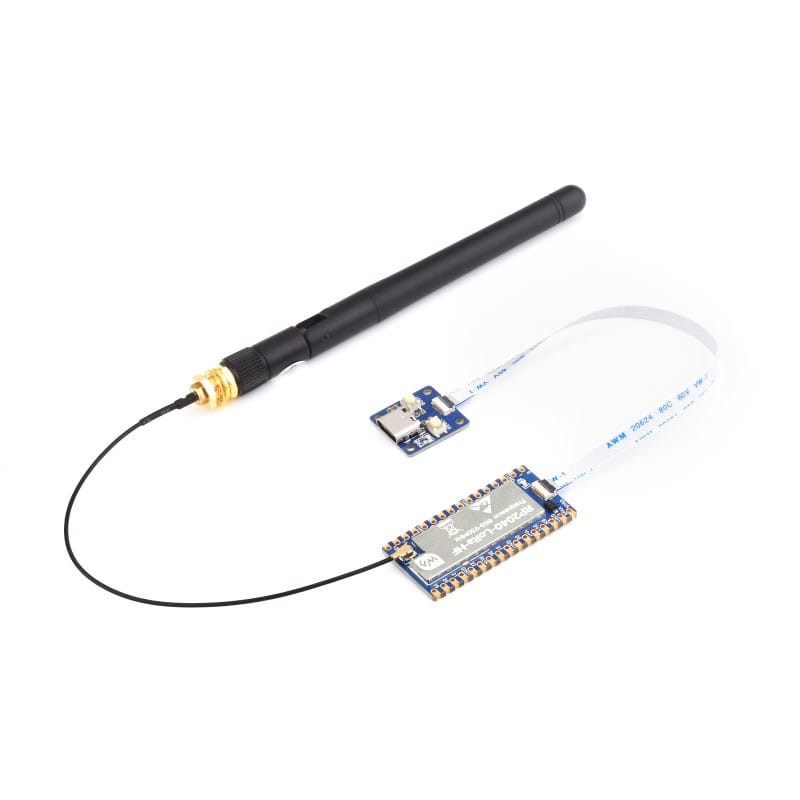

Included IPEX Antenna:
Dimensions:
Package Includes:
- RP2040-LoRa-HF x1
- 2DB Antenna 850~930MHz ~11cm x1
- IPEX to SMA Jumper Cable ~17cm x1
- USB Type-C Breakout Board x1
- 8PIN FPC Cable ~15cm x1
Wiki: RP2040-LoRa
