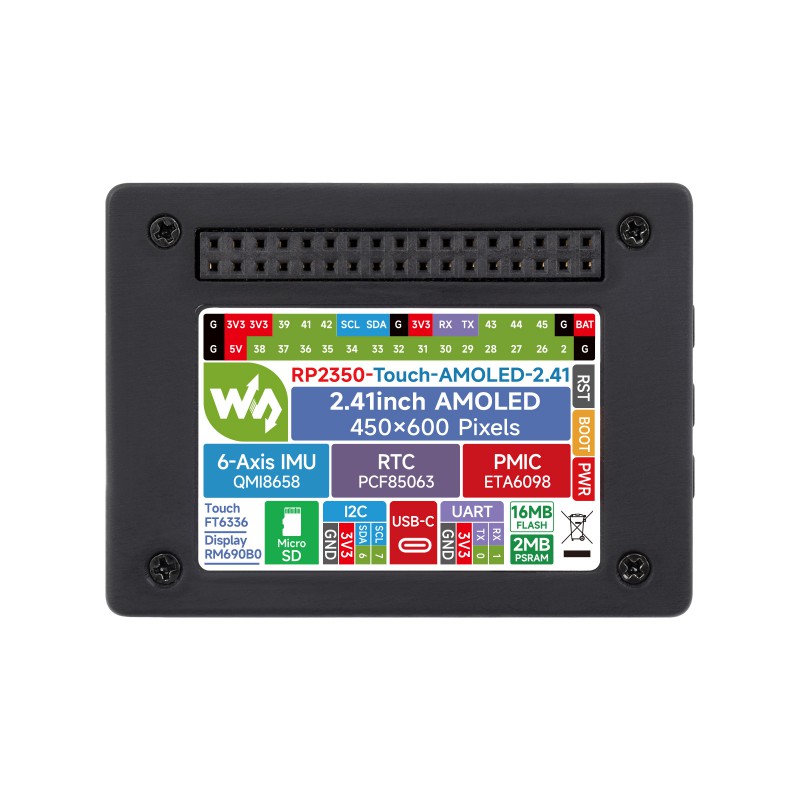

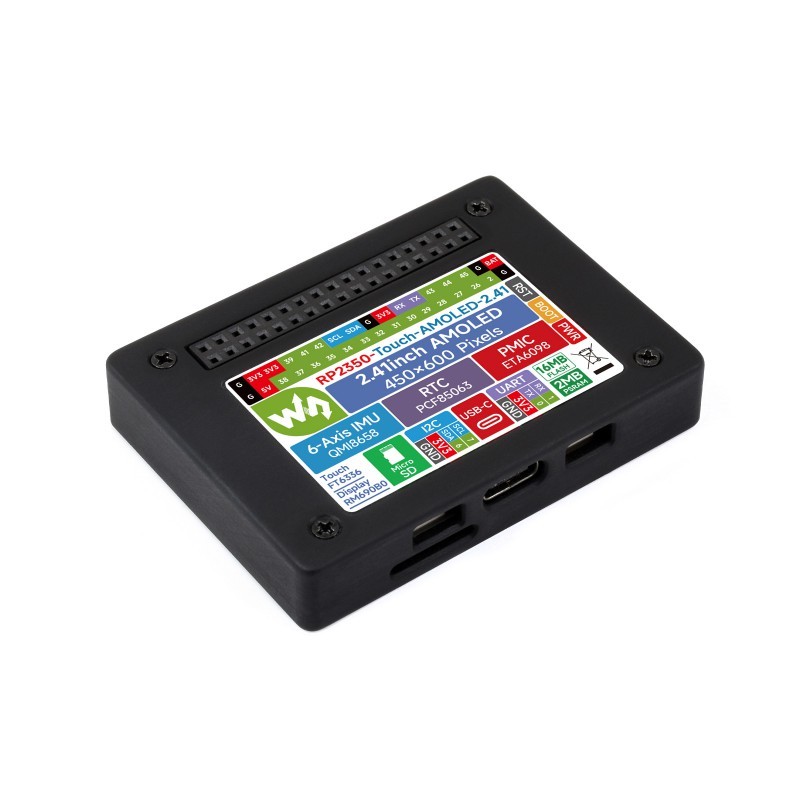

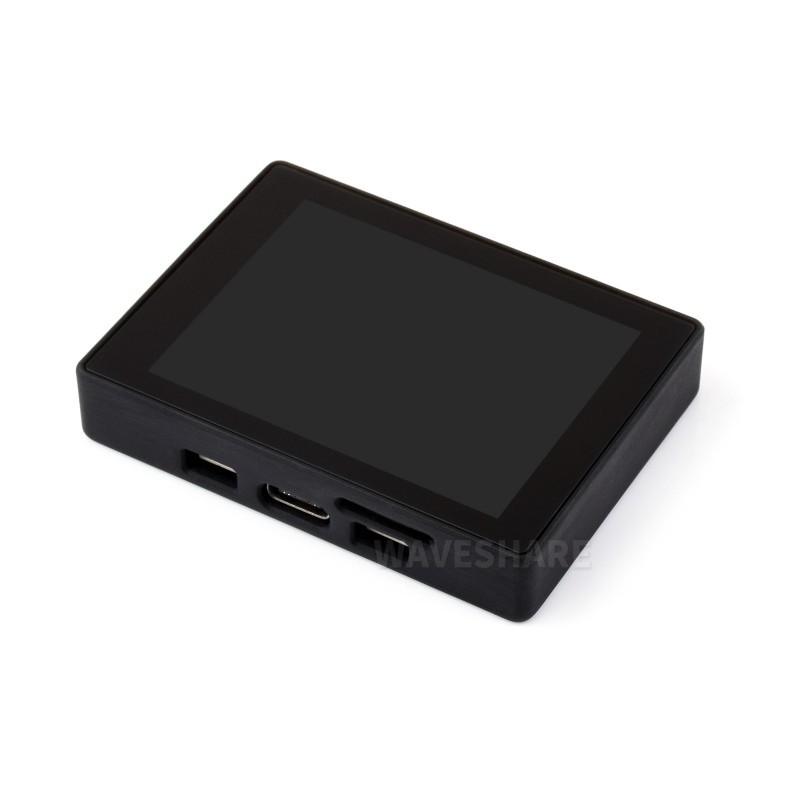

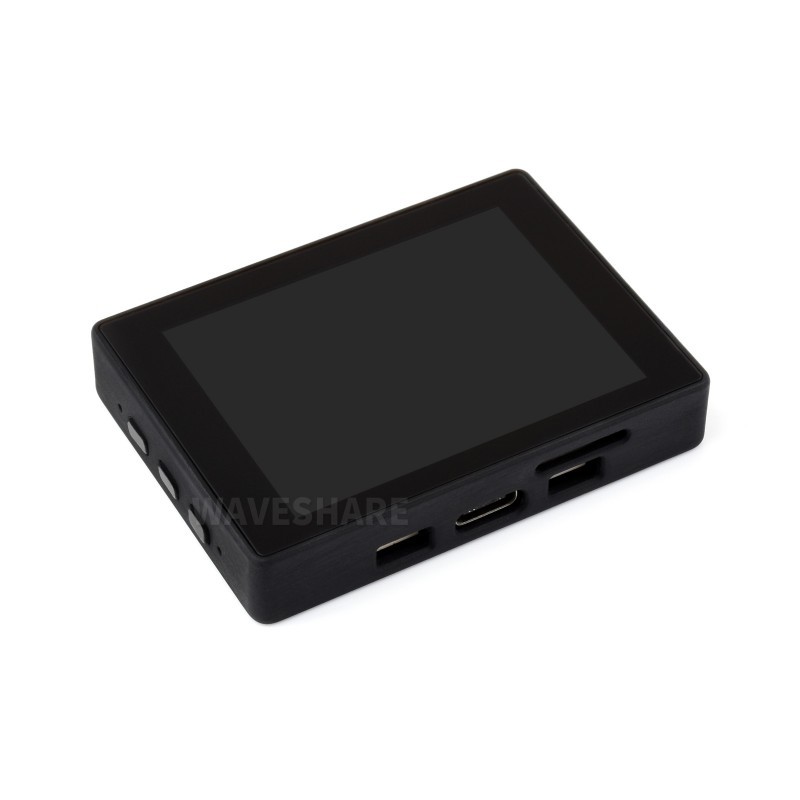

RP2350 Module with 2.41" 450×600 AMOLED Touchscreen 6-Axis Sensor

RP2350 Module with 2.41" 450×600 AMOLED Touchscreen & 6-Axis Sensor

The RP2350-Touch-AMOLED-2.41 features a built-in 2.41-inch capacitive AMOLED touchscreen, RTC chip, 6-axis sensor (accelerometer and gyroscope), and a TF card slot. This makes it ideal for rapid prototyping and integration into final products, especially in mobile applications.

Key Features:

• RP2350B microcontroller designed by Raspberry Pi
• Unique architecture: dual ARM Cortex-M33 cores or dual Hazard3 RISC-V processors, clocking up to 150 MHz
• Memory: 520KB SRAM, 16MB onboard Flash, and 2MB PSRAM
• Onboard 2.41" AMOLED touchscreen with 450 × 600 resolution and 16.7M colors
• Drivers: RM690B0 (display) and FT6336 (touch), using QSPI and I2C communication respectively
• USB-C connector for ease of use
• Lithium battery charge/discharge header
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• 21 multi-function GPIO pins broken out
• Interfaces: 2 × I2C, 2 × UART, 6 × 12-bit ADC, 15 × PWM
• On-chip accurate clock, timer, and temperature sensor
• On-chip accelerated floating-point libraries
• 12 × Programmable I/O (PIO) state machines

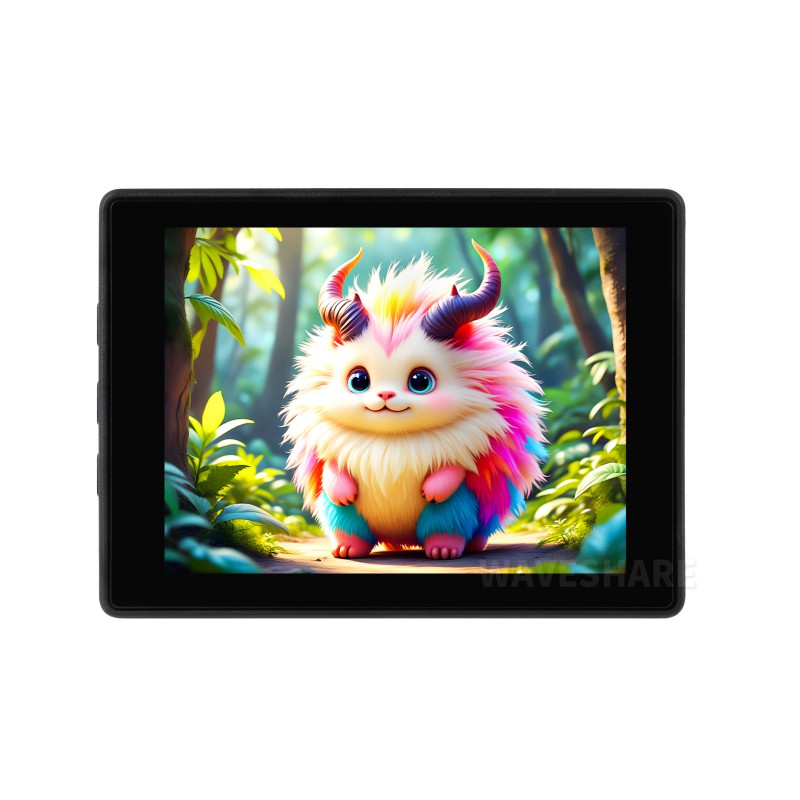

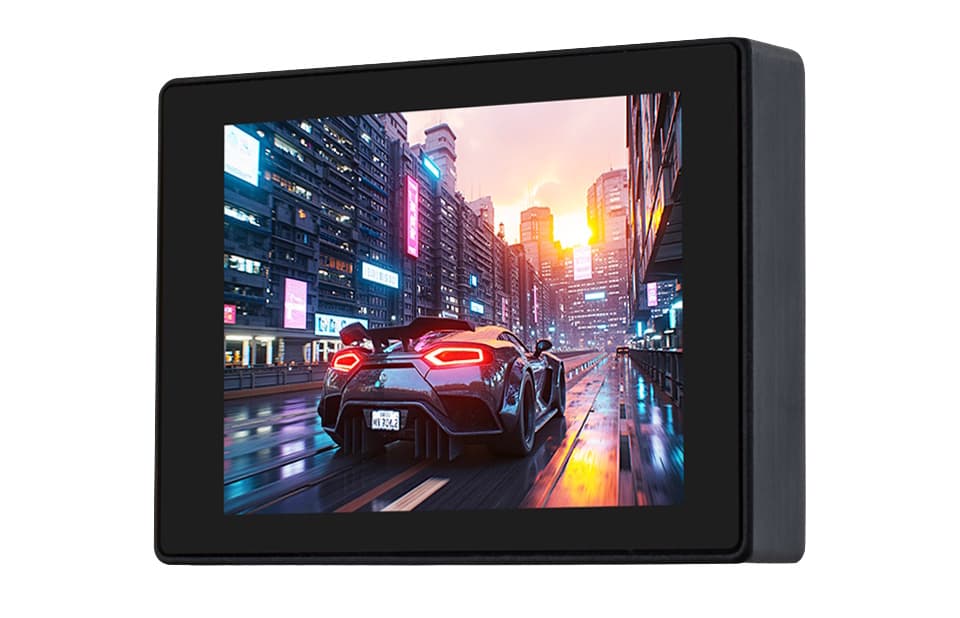

AMOLED Display Technology

Compared to traditional LCD displays, the AMOLED screen features precise light control, resulting in more detailed colors, more image details, and a more vivid picture.

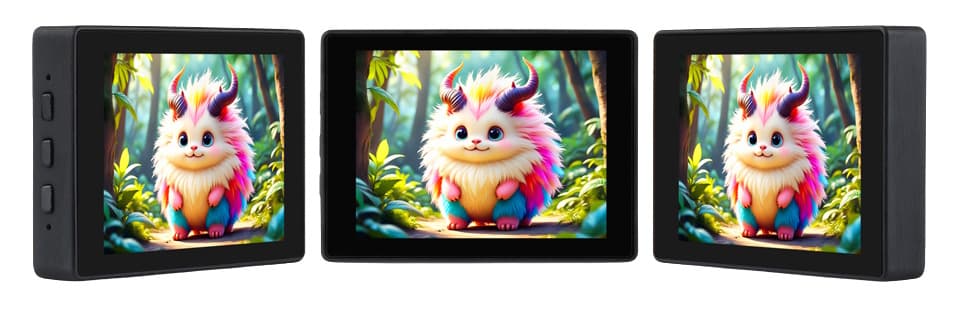

178° Wide Viewing Angle

Excellent image quality, 16.7M colors, and wide viewing angles.

AMOLED Display Parameters:

Support for C/C++, MicroPython, Arduino IDE

Comprehensive SDK, development resources, and tutorials to help you get started easily.

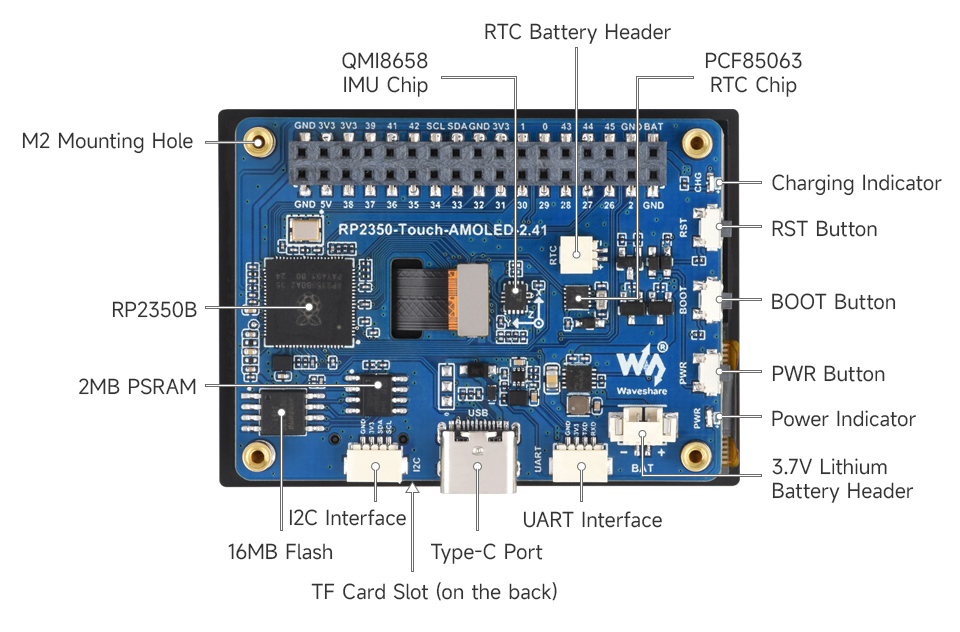

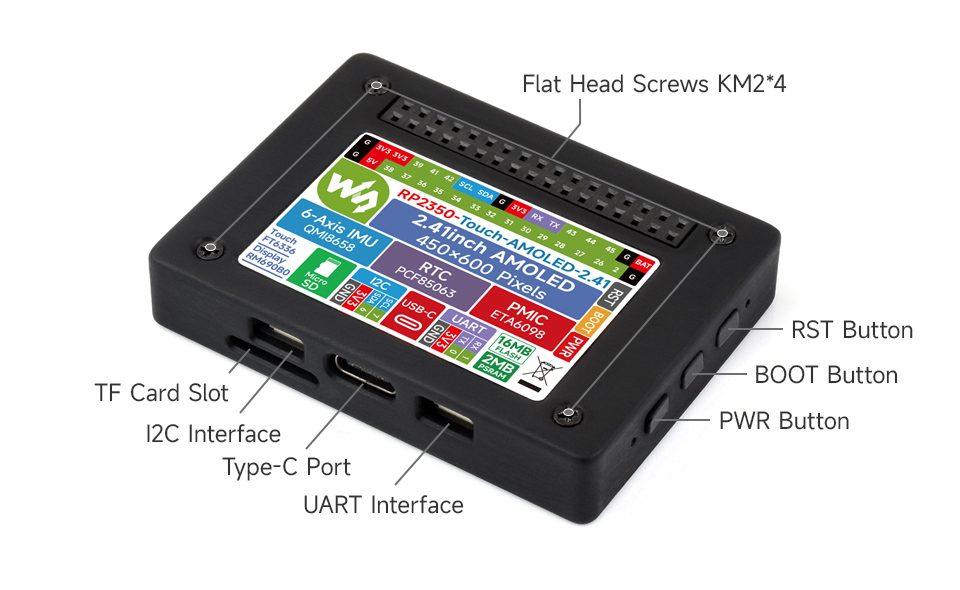

Board Description

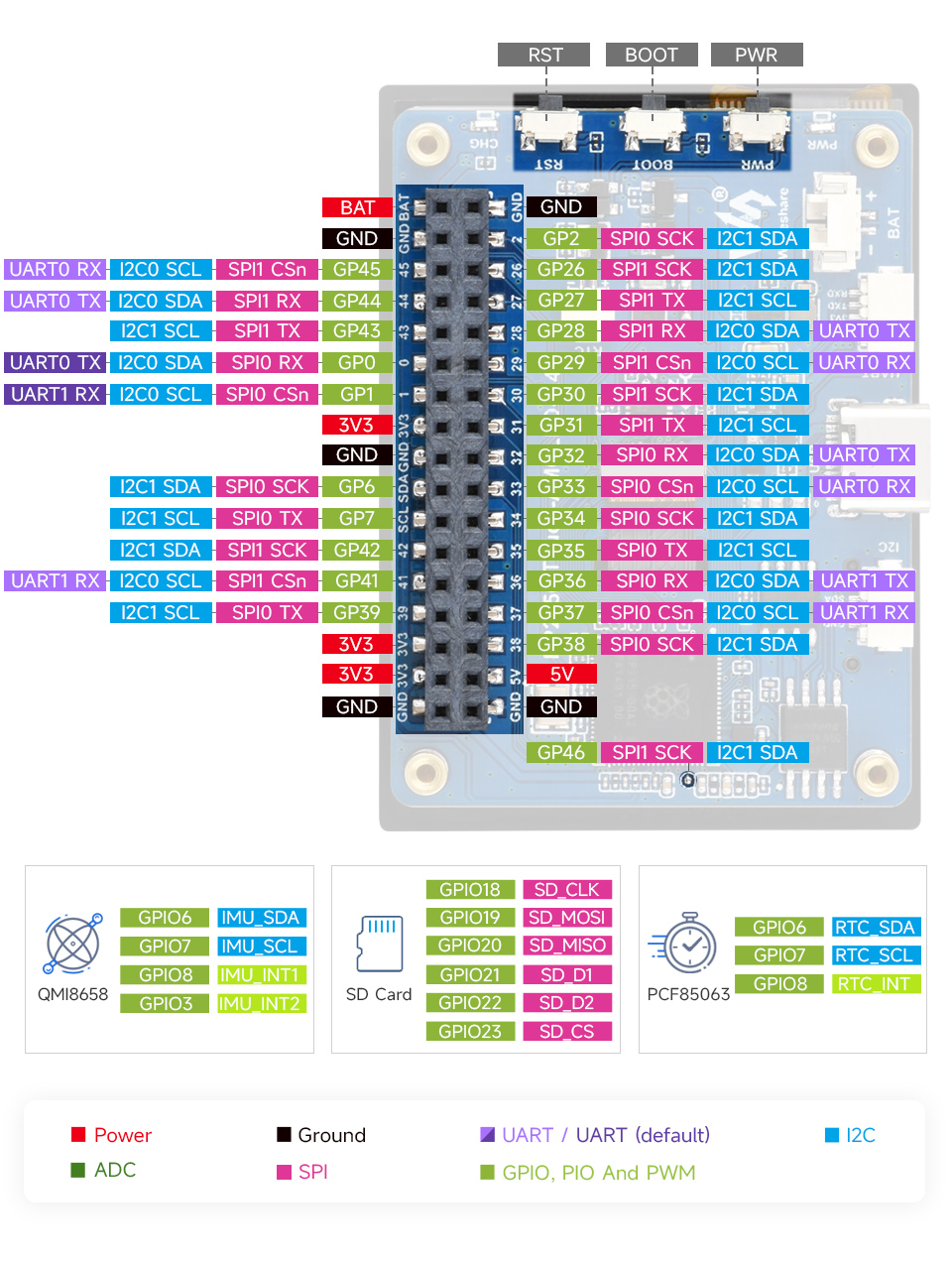

GPIO Pinout

Numerous GPIO interfaces are broken out to facilitate development and provide great flexibility.

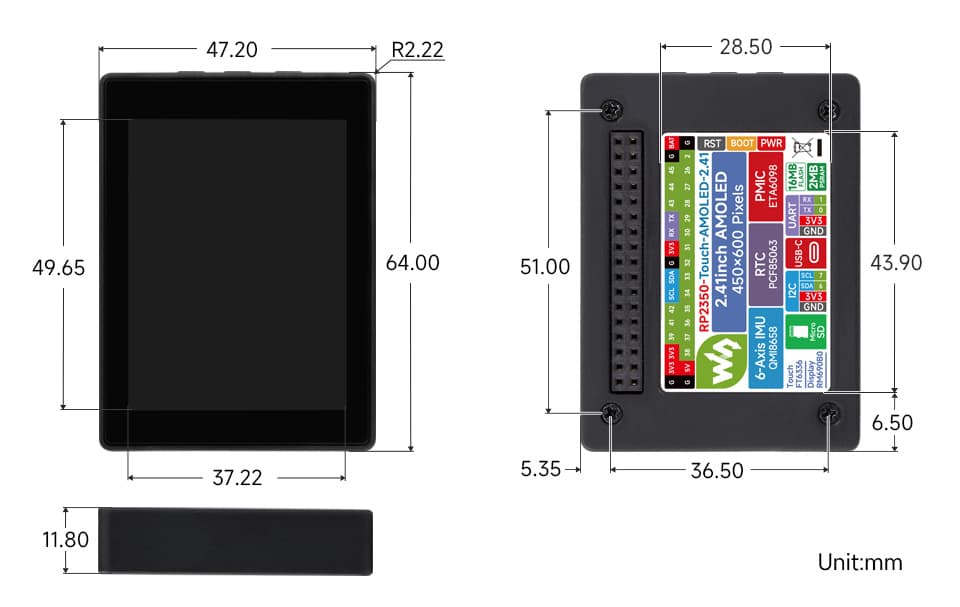

Dimensions

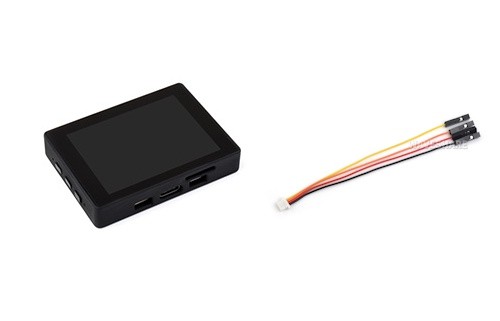

What's in the Box

Wiki: https://www.waveshare.com/wiki/RP2350-Touch-AMOLED-2.41
