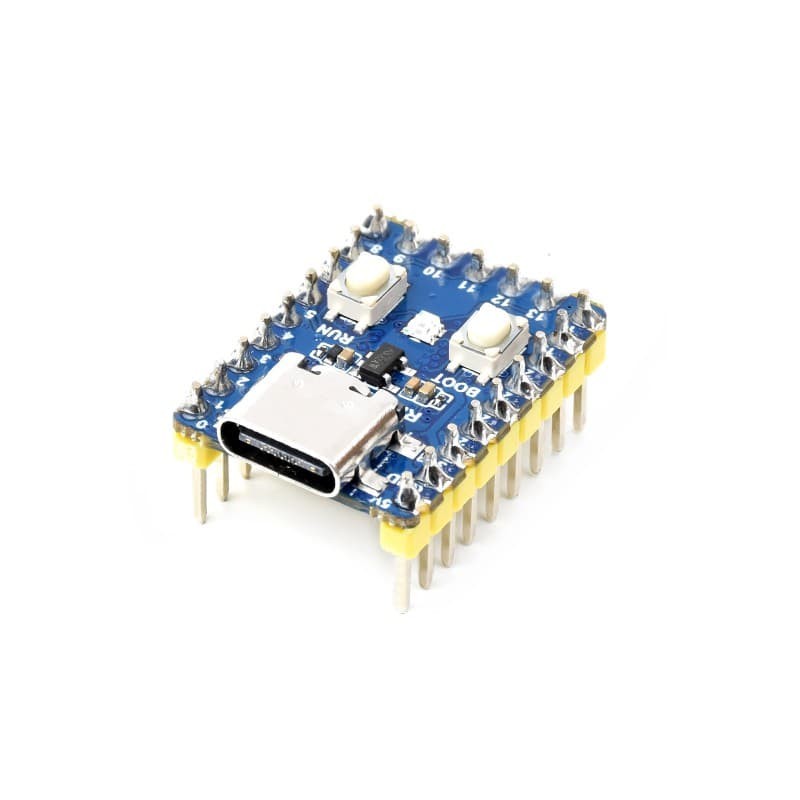

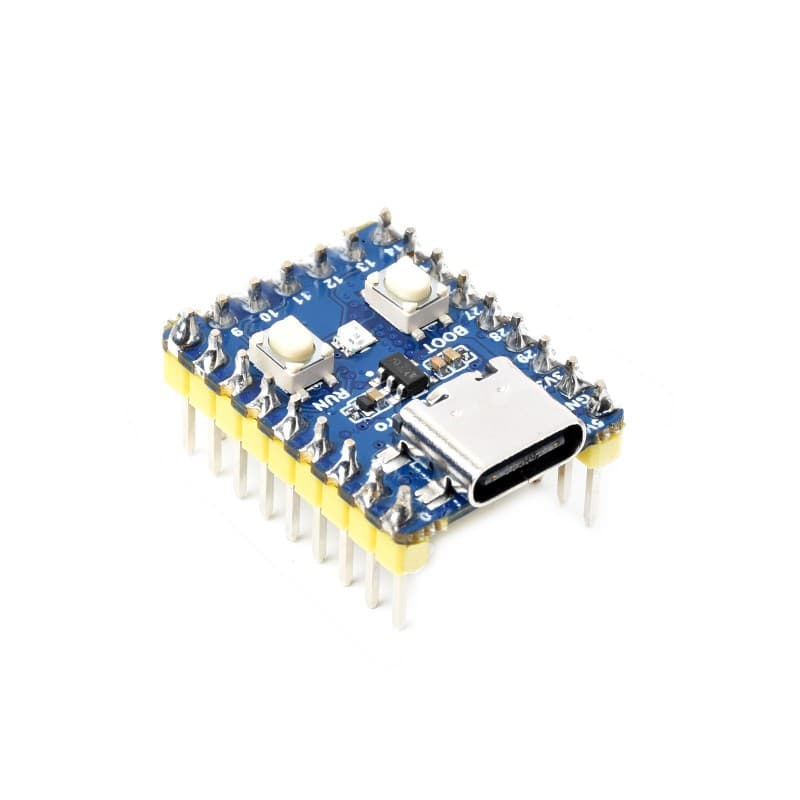

RP2350-Zero-M Mini development board with RP2350A, goldpins soldered on
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable

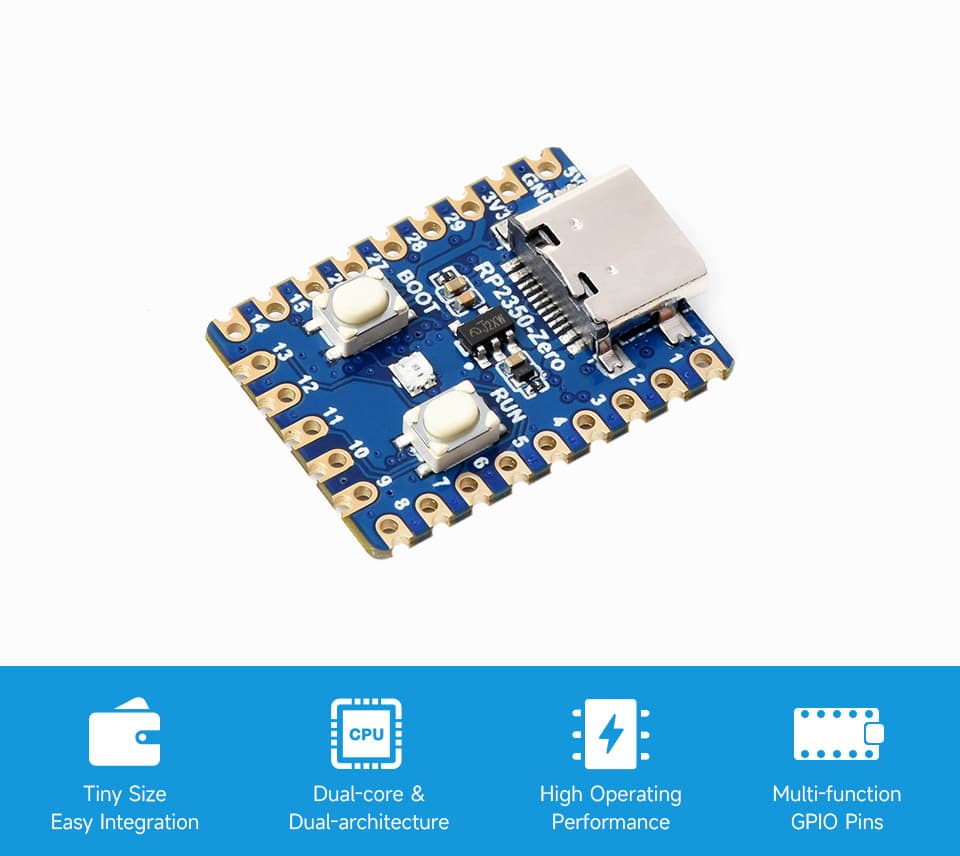

Waveshare RP2350-Zero Mini Development Board
Waveshare RP2350-Zero-M compact development board with the RP2350A microcontroller at its heart, With its innovative dual-core design (ARM Cortex-M33 and Hazard3 RISC-V) and clocking up to 150 MHz, it is ideal for applications requiring high performance and flexibility.
Key features of the RP2350-Zero-M:
- RP2350A microcontroller: Dual-core architecture (ARM Cortex-M33 + Hazard3 RISC-V)
- Memory: 520 KB SRAM and 4 MB Flash
- USB Type-C interface:
- Low power support
- Drag-and-Drop: Programming is done via a simpledrag-and-drop function, visible in the system as storage.
- Rich GPIO set: 29 GPIO pins (20 accessible via connectors, the rest derived by soldering) for versatile applications.
- Diverse peripherals:
- 2 × SPI
- 2 × I2C
- 2 × UART
- 4 × 12-bit ADC
- 16 × PWM channels
- 12 × PIO (Programmable I/O) for creating your own customised peripherals
- Additional features: built-in clock and timers, temperature sensor and accelerated floating-point computing support libraries.

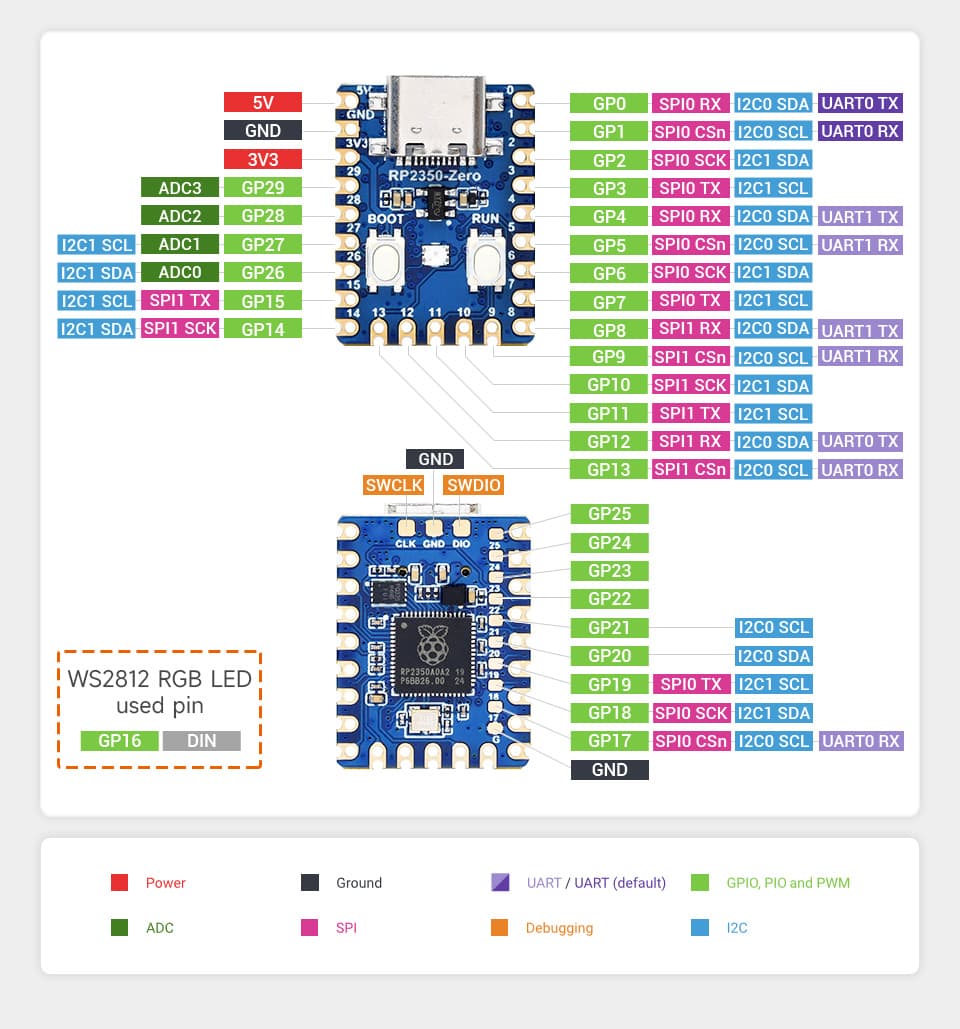

29 × multifunction GPIO pins
Configurable pin functions provide flexible development and integration, and 20 of these are routed out to standard connectors.

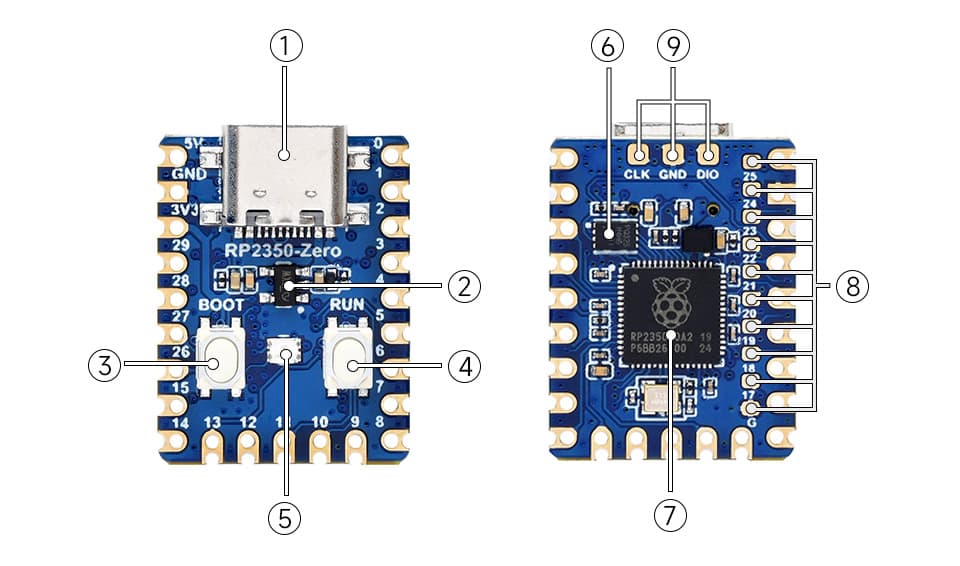

What's on the board
- USB Type-C connector
for programming, supports USB1.1 hosts and slaves - ME6217C33M5G
Voltage regulator, maximum output 800 mA - BOOT button
Press it during reset to enter programming mode - RUN reset button
- WS2812 RGB diode
- P25Q32SH-UXH-IR
4 MB NOR-Flash memory - RP2350A
Dual-core, dual-architecture design, operating frequency up to 150 MHz - RP2350A pins
10 solder points, 9 of which are GPIO pins - Debug pins

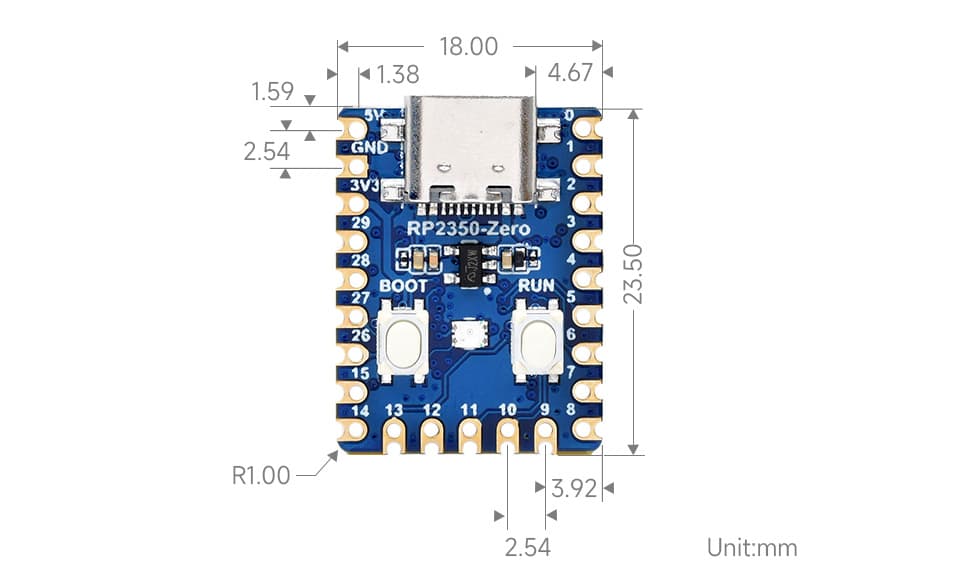

Dimensions
RP2350-Zero-M kit contents:
- 1x RP2350-Zero-M Waveshare 29361- board with soldered goldpins
