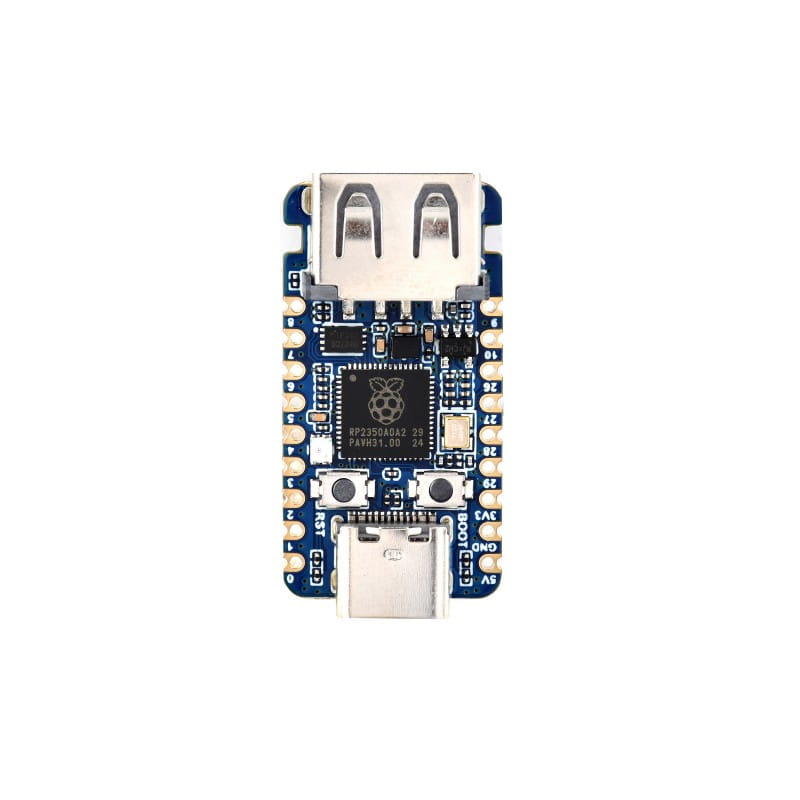

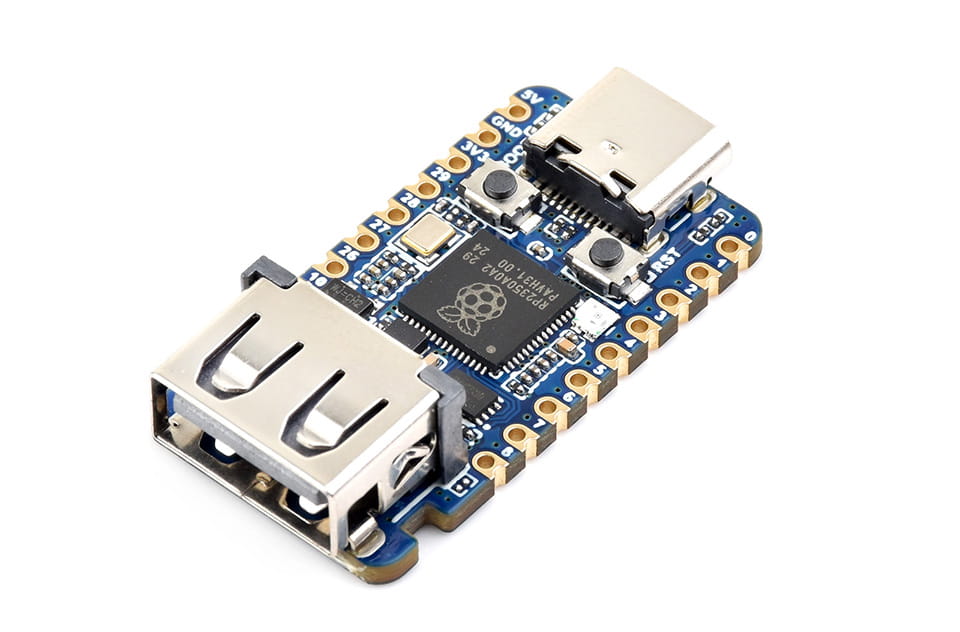

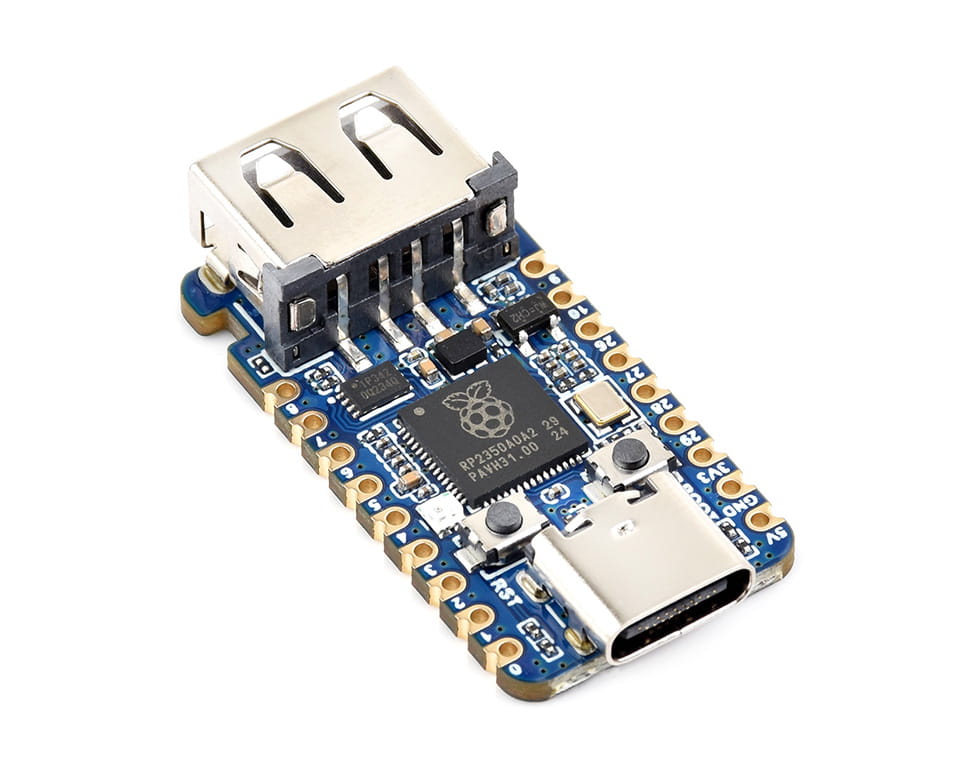

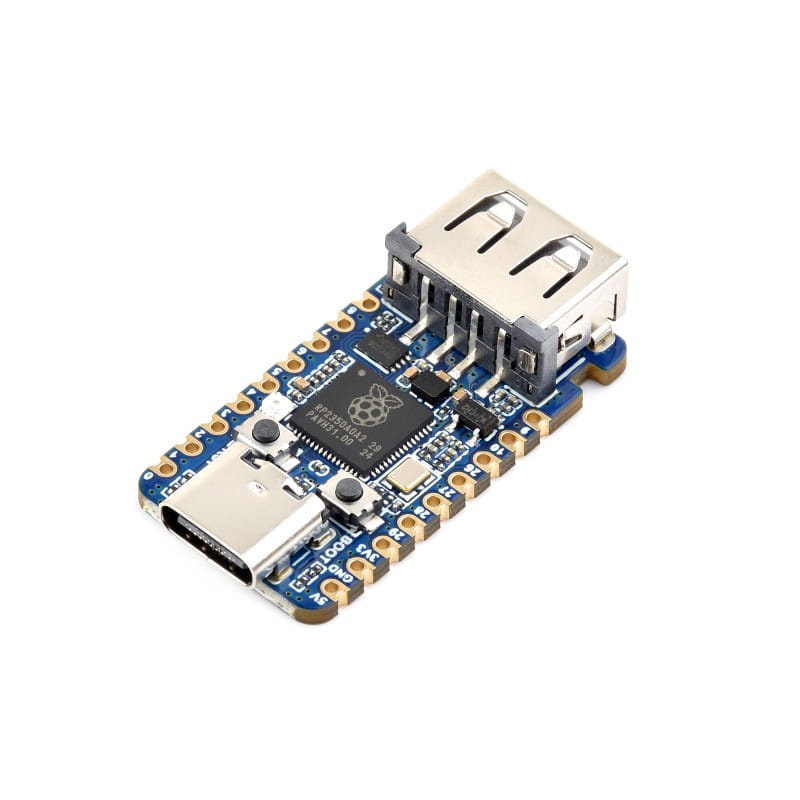

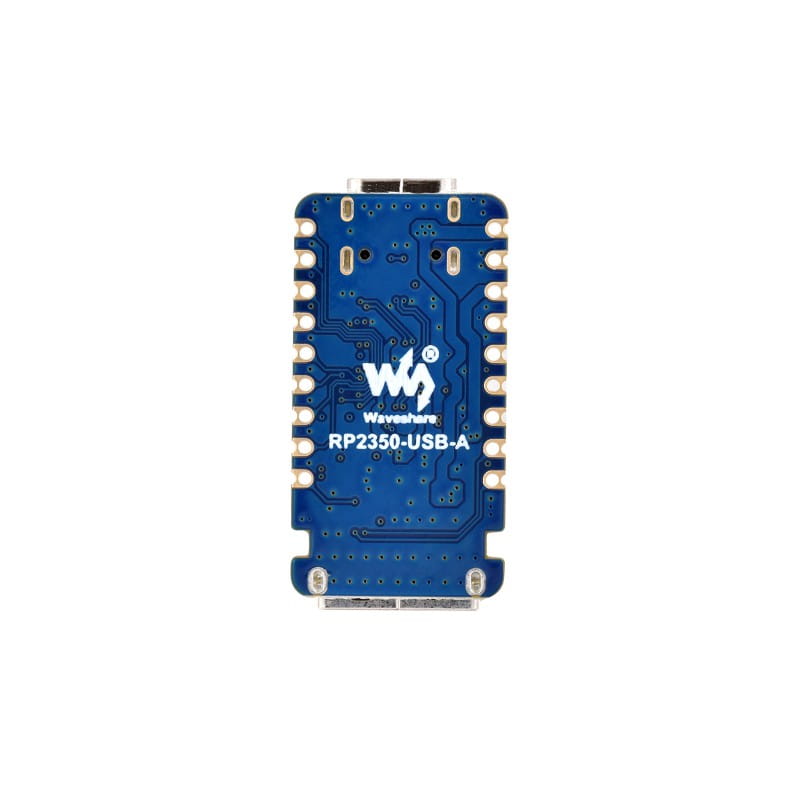

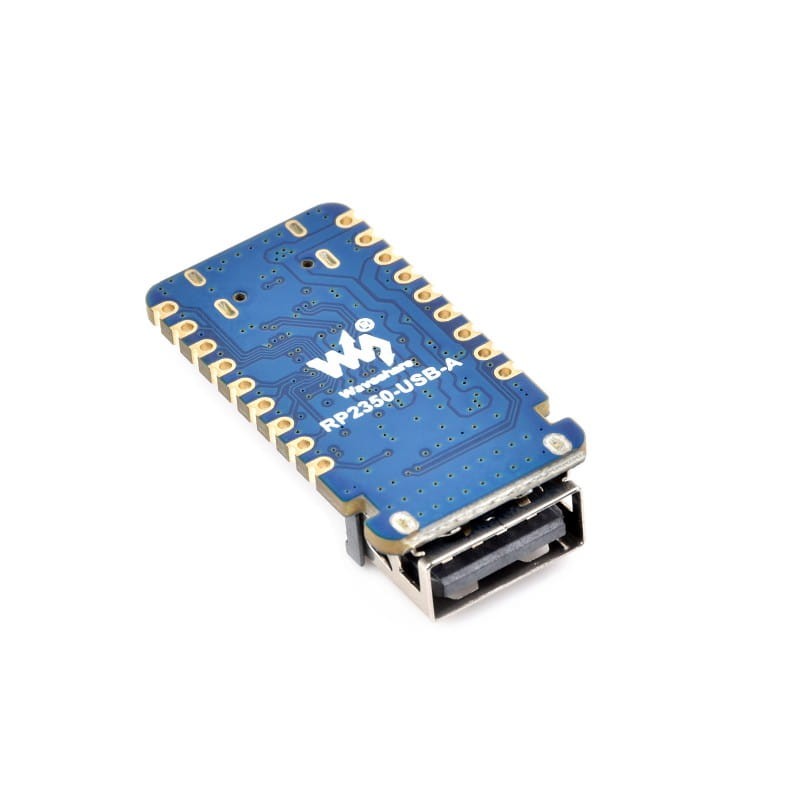

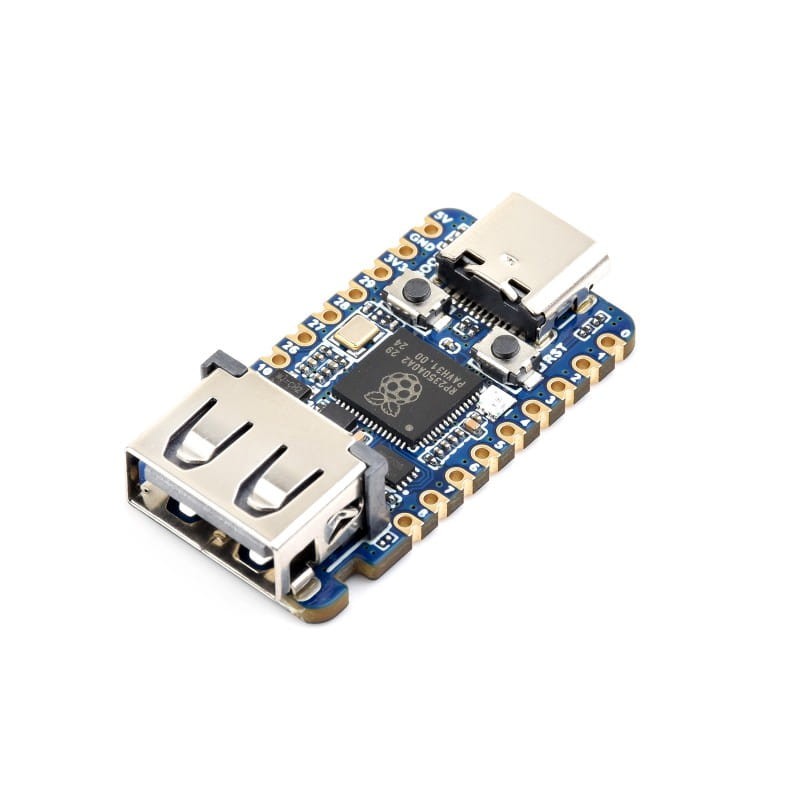

RP2350A USB Mini - Development board with HOST USB Type A socket.
A miniature and powerful Waveshare RP2350-USB-A development board based on the RP2350A microcontroller. Its dual architecture design and USB Host/Device support makes it ideal for prototyping, learning and IoT projects.
Key features:
- RP2350A microcontroller - 2× ARM Cortex-M33 + 2× Hazard3 RISC-V
- Clocking up to 150 MHz, 520KB SRAM, 2MB Flash (W25Q16JVUXIQ)
- USB programming (drag-and-drop), USB Host and Device support
- USB Type A (extension via PIO), USB Type C connector
- 12× PIO (Programmable Input/Output), 14× PWM, 4× ADC 12-bit
- Interfaces: 2× SPI, 2× I2C, 2× UART

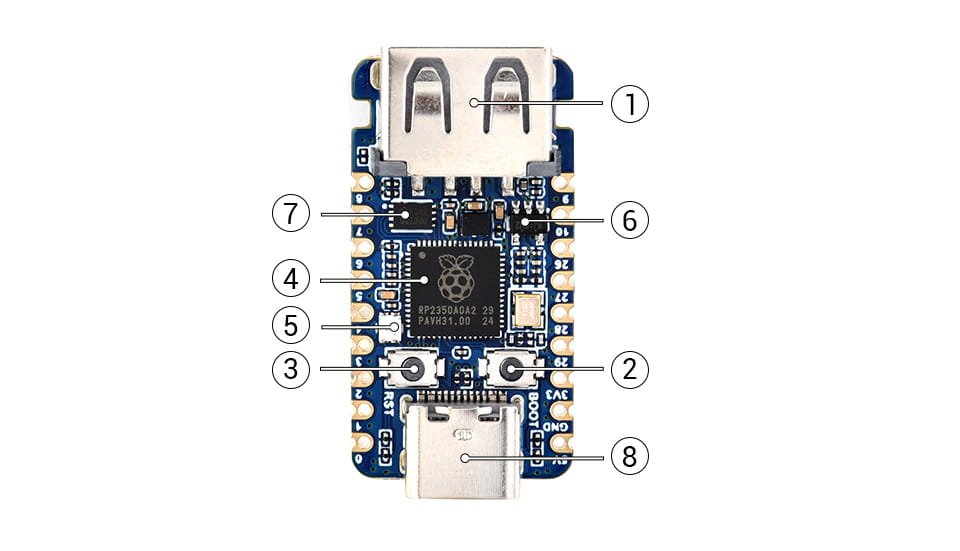

PCB component description
- USB 2.0 Type A
Supports USB Host/Device via PIO - BOOT button
Pressed on reset, starts programming mode - RESET
- RP2350A
Dual-core MCU, ARM + RISC-V, 150 MHz
- WS2812
RGB LEDs - RT9013-33GB
LDO 500mA, low noise, fast response - W25Q16JVUXIQ
2MB NOR-Flash memory - USB Type C connector
Programming and power supply, USB 1.1
Technical specifications
- Microcontroller: RP2350A
- Flash memory: 2MB NOR-Flash
- SRAM: 520 KB
- USB connectors: Type A (PIO), Type C (programming)

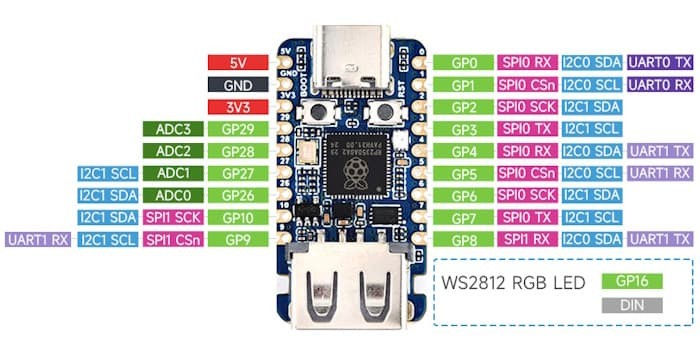

- GPIOS: 15 × multifunctional
- Programmable PIO: 12 channels
- PWM: 14 channels
- ADC: 4 × 12-bit
- Interfaces: 2× SPI, 2× I2C, 2× UART
- Clock frequency: up to 150 MHz
- Power supply: via USB-C
- Sleep mode support: yes

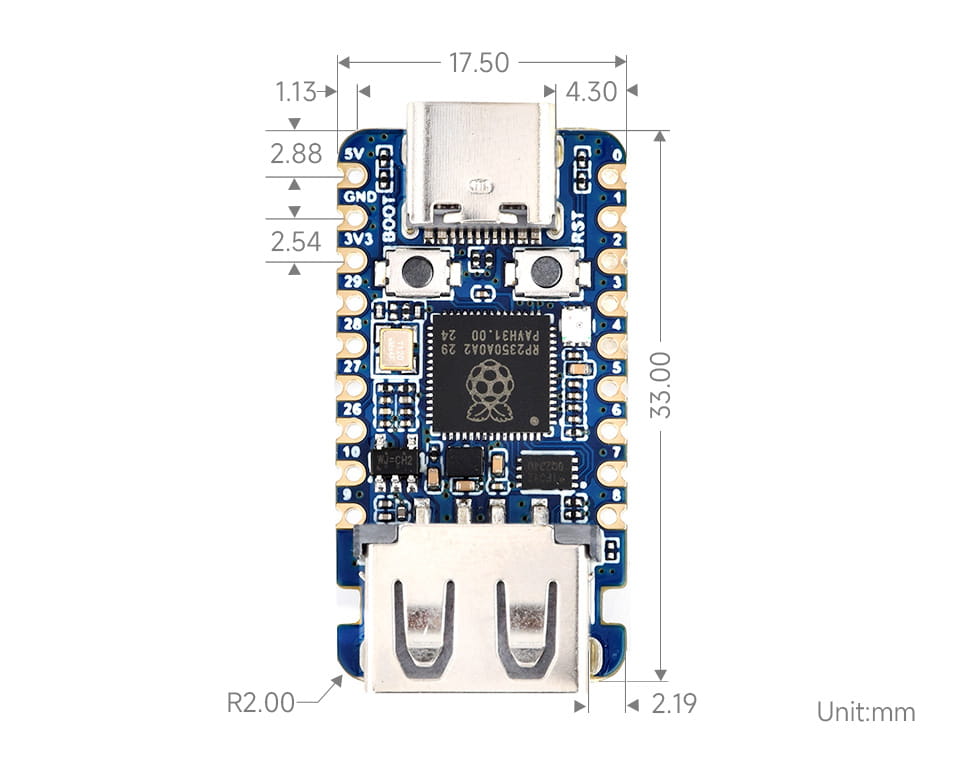

- Dimensions: miniature castellated module
- Weight: 0.0086 kg
Kit contents
- RP2350-USB-A ×1
Wiki: https://www.waveshare.com/wiki/RP2350-USB-A
