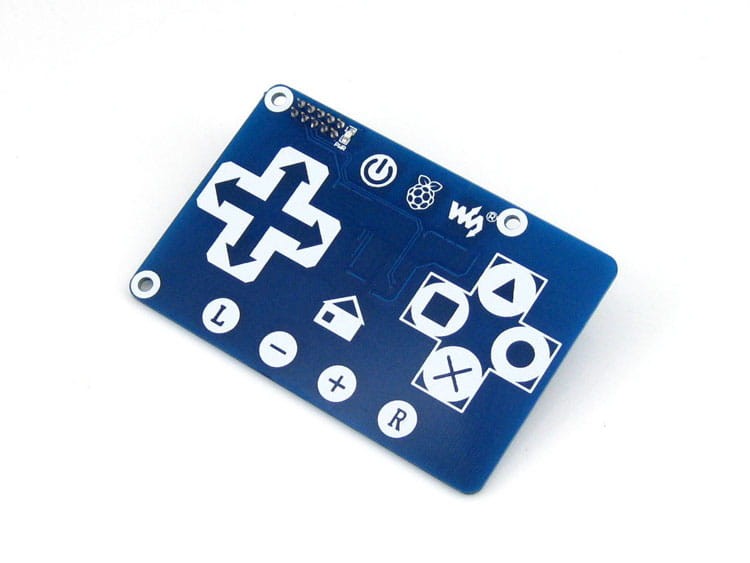

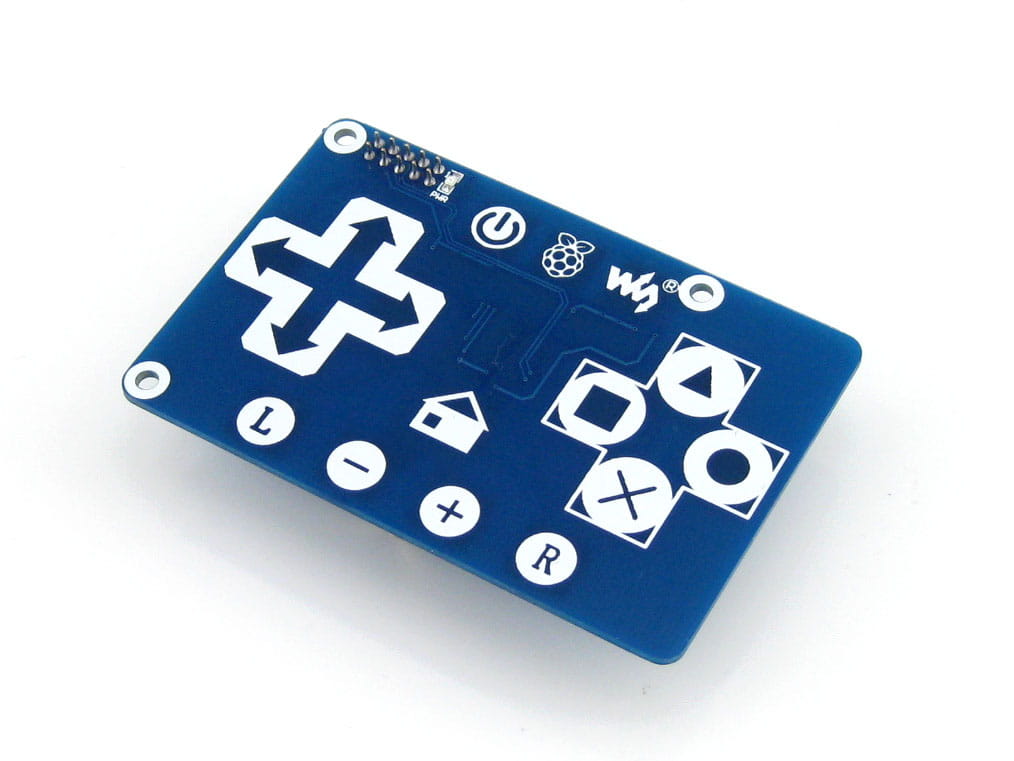

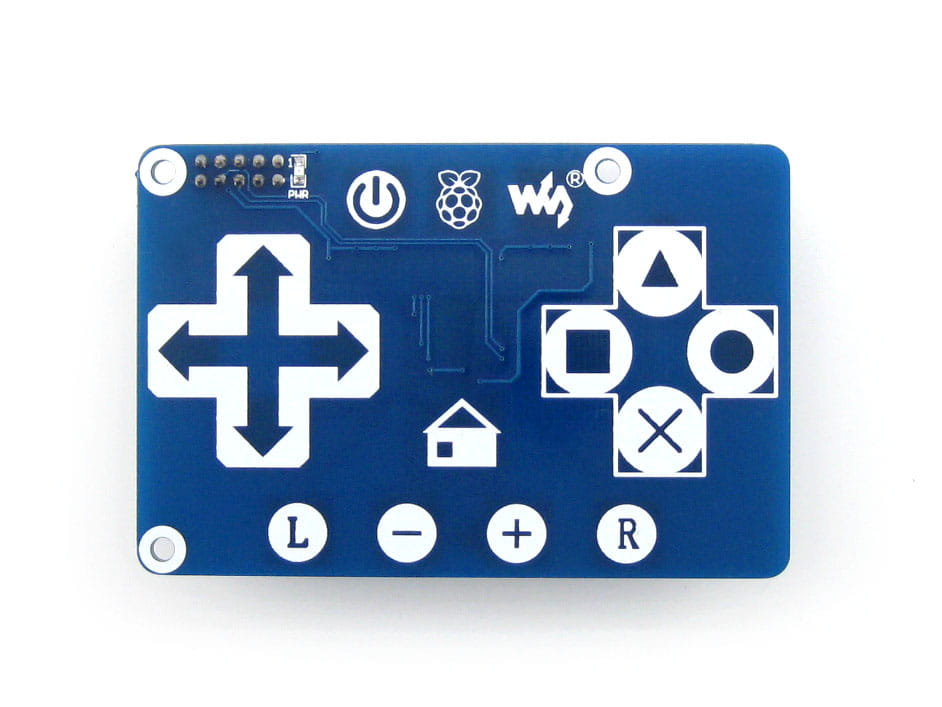

RPi Touch Keypad
Price:
€6.55
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
・Kup teraz i zapłać za 30 dni
product unavailable
Availability:
brak towaru
Vendor:
![WaveShare]()
ELTY - Official Waveshare Distributor
Product code:
RPi Touch Keypad Waveshare 10232
Moduł klawiatury dotykowej - pojemnościowej dla Raspberry Pi.
Features

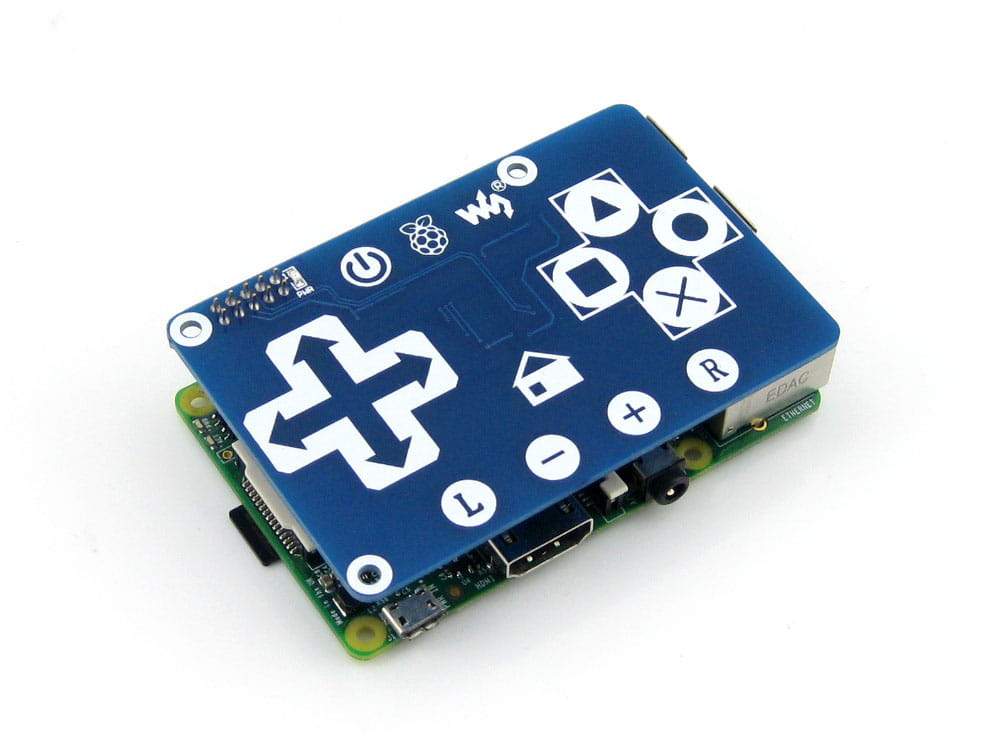

- Designed for Raspberry Pi Model B/B+, provides your Pi with 16 touch keys

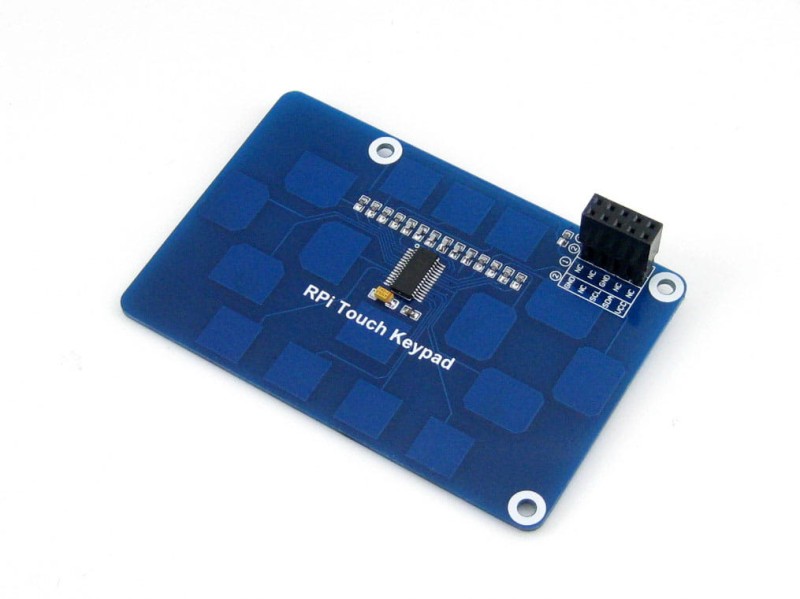

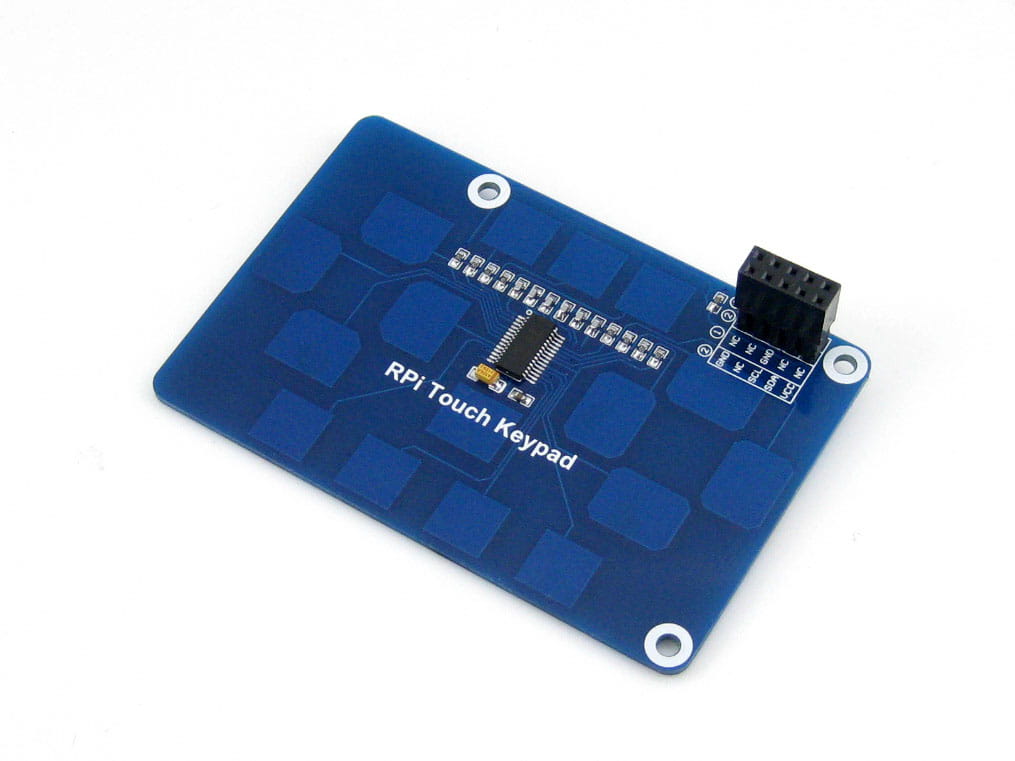

- Features TONTEK TonTouch touch pad detector IC TTP229-LSF, supports up to 16 keys with adjustable sensitivity and built-in LDO
- The system re-calibrates automatically when all keys are not detected touch more than about 4 seconds
Specifications
- Interface : I2C
- Keys : 16
- Sampling rate : 8Hz
- Human Body Mode : 6KV
- Operating voltage : 2.4V-5.5V
- Operating temperature : -40℃ to +85℃
- Storage temperature : -50℃ to +125℃
- Dimensions : 8.5CM × 5.6CM
How to Use
- After power-on have about 0.5sec stable-time. During the time do not touch the key pad, and all functions are disabled
Pinouts
- VCC : Power supply (2.4V-5.5V)
- GND : Ground
- SDA : I2C SDA
- SCL : I2C SCL
Dimensions
Package Contains
- RPi Touch Keypad × 1
- RPi screws pack (2pcs) x 1
Downloads
Development resources: demo codes, schematic, datasheets, etc.
Click here to download
