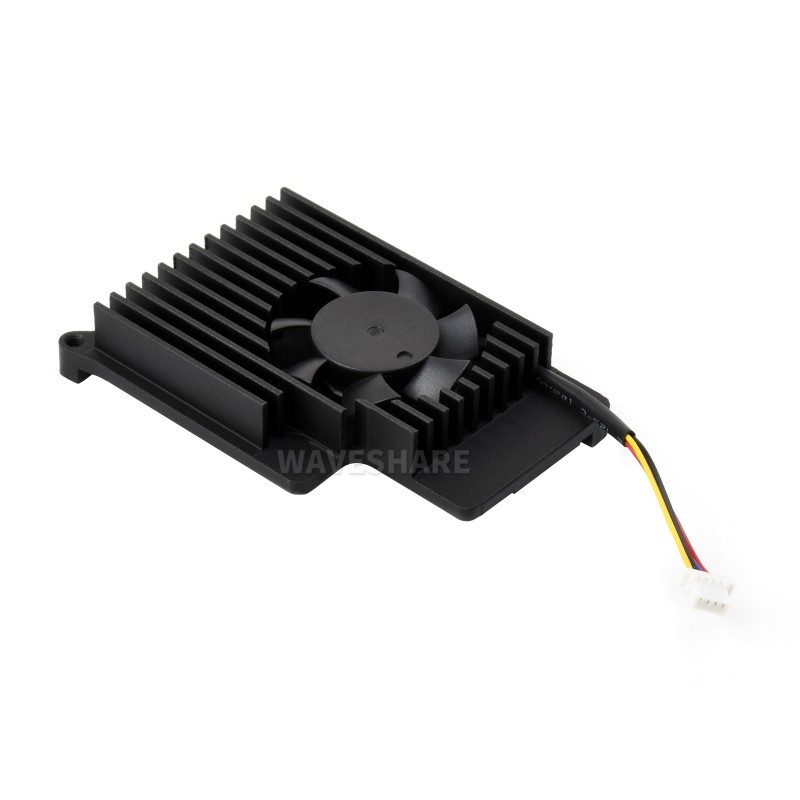

Raspberry Pi 5 Active Cooler (Heatsink with Fan) – Aluminum PWM Control
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable
Active Cooler (Heatsink with Fan) for Raspberry Pi 5 – Aluminum, High-Performance
A high-quality active cooling system dedicated to the Raspberry Pi 5. It combines a large, anodized aluminum heatsink with an efficient PWM-controlled fan, allowing for effective heat dissipation and maintaining maximum Pi5 processor performance even under heavy load. The set includes thermal pads and mounting screws.
Key Features:
- Dedicated for Raspberry Pi 5
- Construction: aluminum heatsink + fan
- Fan Control: PWM (Pulse Width Modulation)
- Maximum Airflow: 2.35 CFM
- Maximum Fan Speed: 8000 ±10% RPM
- Power Supply: 5V DC (via the 4-pin fan header on Pi5)
- Mounting: using M2.5 nylon screws (included)
- Perfectly matched to the size and mounting holes of the Raspberry Pi 5
Compatible with Raspberry Pi 5
Thanks to the perfect fit of size and mounting holes, the cooler effectively accelerates heat dissipation from the Pi5 processor.
Installation Method
Simply connect the 4-pin cable to the fan connector on the Raspberry Pi 5 and secure the Active Cooler using the included M2.5 nylon screws.
Comparison of Cooling Solutions for Raspberry Pi 5
Outline Dimensions
Technical Specifications:
- Input Voltage: 5V DC (via 4-pin fan header)
- Speed Control: PWM
- Maximum Airflow: 2.35 CFM
- Maximum Fan Speed: 8000 ±10% RPM
- Heatsink Material: Anodized aluminum
- Weight: 0.033 kg
Package Content
- Pi5-Active-Cooler-A x1
- Thermal Pad (3 pcs) x1
- Nylon Screws (2 pcs) x1
Note: Raspberry Pi 5 and TF card are NOT included.
