Relay 230V 2x5A 1x10A MY2NJ OMRON with DIN base PYF08A
Price:
€4.70
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
・Kup teraz i zapłać za 30 dni
product unavailable
Availability:
brak towaru
OMRON MY2NJ 8-pin relay with 230V coil and 2 pairs of NO/NC contacts with 10A load capacity

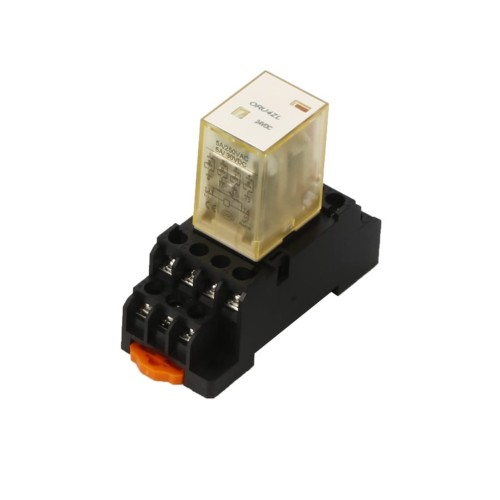

The MY2NJ 230V AC relay comes with a DIN rail mounting base. The device is equipped with two independent contact pairs that can carry a maximum load of 5A each, offering NO/NC outputs. When the contacts are connected in parallel, the load capacity of the relay increases to 10A. The coil is suitable for 220-250VAC, while the active operation of the relay is indicated by an LED.
Application of the relay:
- Such relays are useful when it is necessary to connect loads larger than those recommended by the manufacturer to IoT devices.
- In situations where galvanic separation of the control system from the receiving device is required. For example, to adapt smart home controllers to devices with a potential-free output, which is beneficial when controlling gates. It can also be helpful when the IoT controller provides 230V AC at the output, and you want to switch to a lower voltage, such as 12V DC.
Relay specifications
- Relay model: MY2NJ
- Fitting socket: PYF08A
- Coil supply voltage: 220-240V AC 50/60Hz
- Relay status indicator: yes, LED
- Relay with outputs: DPDT (2NO 2NC); 2x NONC
- Permissible contact loads: 2x5A or 1x10A at 240V AC
- DIN rail mounting: 35mm DIN Rail
- Screw mounting possible
- Relay dimensions: 26x20x34mm
- Base dimensions: 72 x 23 x 31mm
Description of the leads of the MY2NJ relay and the PYF08A socket

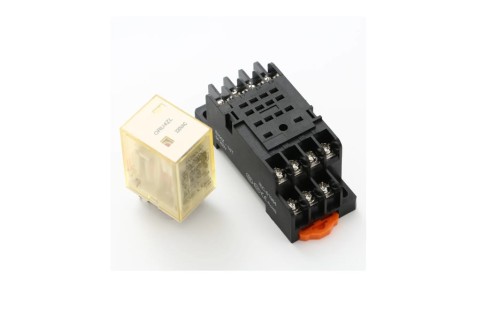

Kit includes:
- MY2NJ relay
- PYF08A socket
