Round IPS LCD Display 3.4" 800x800 Capacitive with Tempered Glass Panel for Raspberry Pi
product unavailable
Description
3.4" 800x800 Capacitive Round IPS LCD Display with Tempered Glass Panel for Raspberry Pi
The 3.4-inch round DSI touch screen is an advanced display module that boasts high resolution of 800x800 pixels. It utilizes the DSI interface, which is popular among mobile devices due to its performance and low power consumption. The display is an IPS type, ensuring excellent viewing angles reaching up to 170 degrees.
The display is compatible with Raspberry Pi, supports the Raspberry Pi operating system and requires a driver for full functionality. It supports Pi 4B/3B+/3A+ and CM3/3+/4 models, although some CM3/3+/4 baseboards may require an additional adapter.
Its applications are incredibly diverse, from smart homes, vehicle devices, consumer electronics, to industrial devices. This makes this display an extremely universal tool for anyone who needs an advanced touch screen display that supports up to 10 touch points.
Specification:
- Diagonal: 3.4"
- Resolution: 800x800
- Display Interface: DSI
- Display Panel: IPS
- Viewing Angle: 170°
- Touch Type: Capacitive
- Touch Points: 10-point
- Touch Interface: I2C
- Touch Panel: Tempered Glass
- Technology: Optical Bonding
Product Features:
- Compatible with Raspberry Pi
- Screen protection with tempered glass
- 10-point touch
- Adjustable brightness through software
- High-quality IPS panel
- Wide range of applications
Compatibility with Raspberry Pi:
Wide Viewing Angle:
Touch Panel:

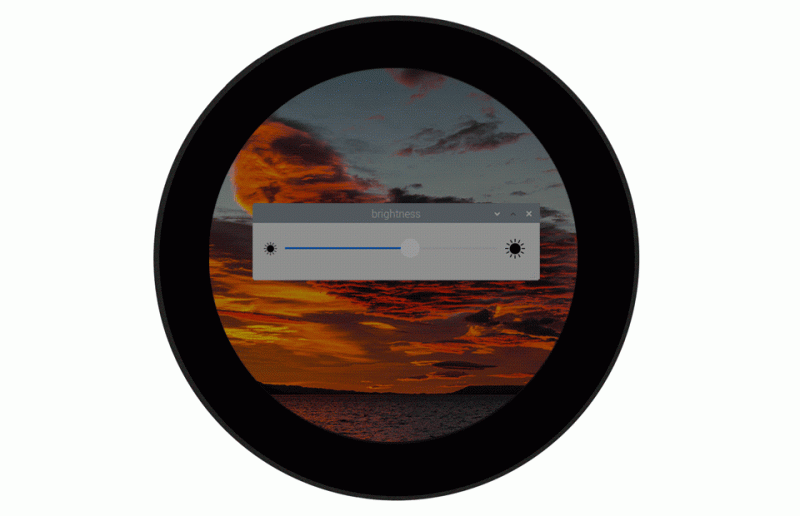

Adjustable Screen Brightness through Software:
Presentation:
Dimensions:
Package includes:
- Capacitive IPS LCD Display 3.4" 800x800 x1
- Cable x1
- Screw Set x1
Wiki: 3.4inch_DSI_LCD_(C)
