SeeedStudio BeagleBone Green Wireless
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable

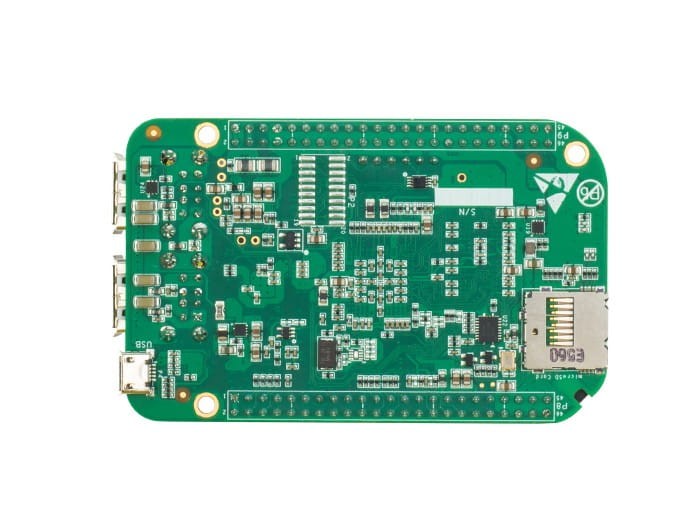

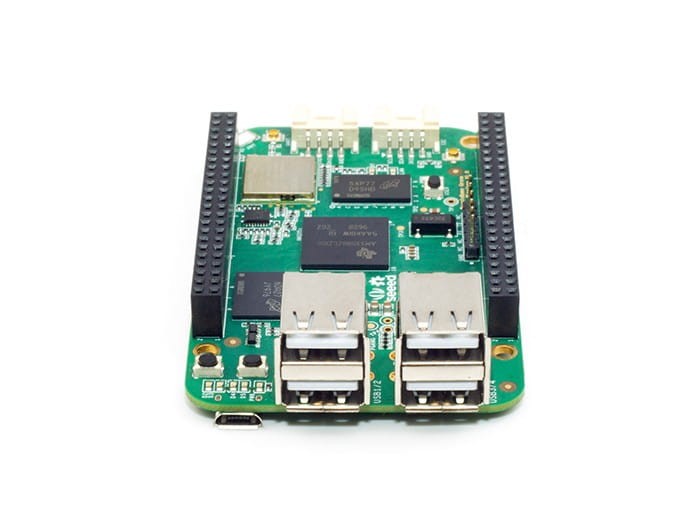

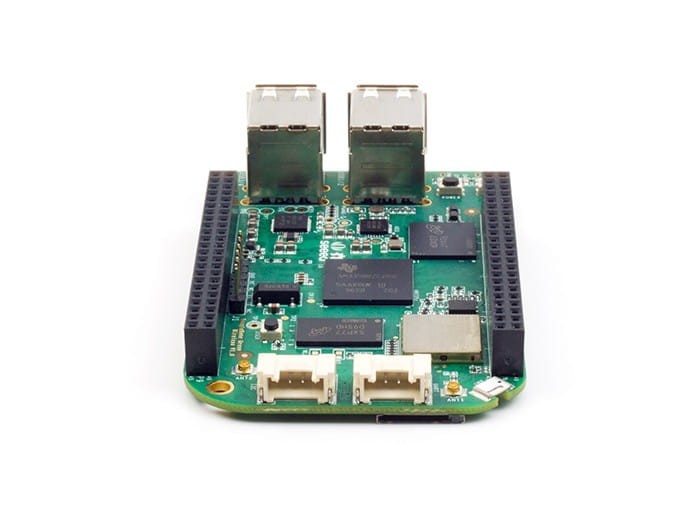

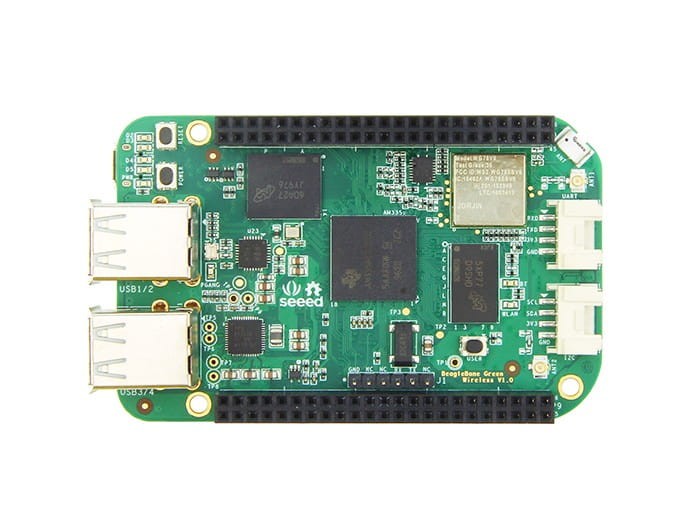

SeeedStudio BeagleBone Green Wireless is a joint effort by BeagleBoard.org and Seeed Studio. Based on the open-source hardware design of BeagleBone Black, the newest BBGW has added two Grove connectors, making it easier to connect to the large family of Grove sensors. It is the first Wi-Fi + Bluetooth Low Energy (BLE) board from BeagleBone community.
FEATURES
- The first Wi-Fi + Bluetooth Low Energy (BLE) board from BeagleBone community

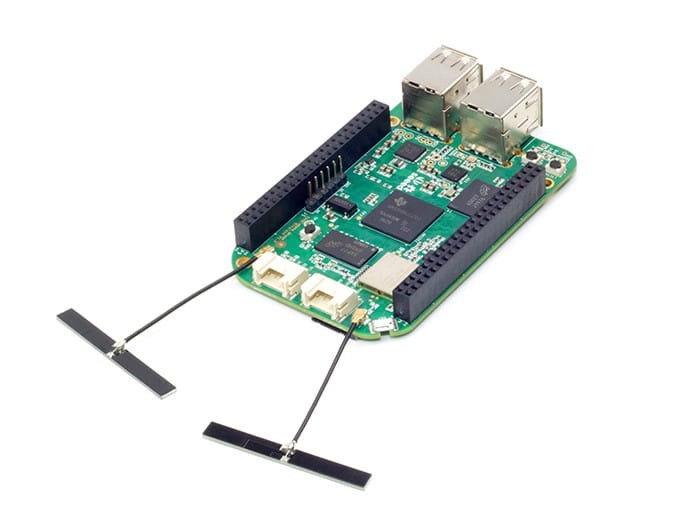

- Built-in 2.4 GHz TI WLinkTM8 Module with two antenna solution
- Onboard chip antenna
- IEEE 802.11b/g/n compliant
- FCC, CE, and TELEC certified
- Supports AP+STA mode of communication
- Comply with Bluetooth Advanced Audio Distribution Profile (A2DP)
- Supports MRAA library
- Fully Compatiable with BeagleBone Black
-
Processor: AM335x 1GHz ARM® Cortex-A8
- 512MB DDR3 RAM
- 4GB 8-bit eMMC on-board flash storage
- 3D graphics accelerator
- NEON floating-point accelerator
- 2x PRU 32-bit microcontrollers
-
Connectivity
- USB client for power & communications
- USB host with 4-port hub
- WiFi 802.11 b/g/n 2.4GHz
- Bluetooth 4.1 with BLE
- 2x 46 pin headers
- 2x Grove connectors (I2C and UART)
-
Software Compatibility
- Debian
- Android
- Ubuntu
- Cloud9 IDE on Node.js w/ BoneScript library
- plus much more
Specification
| Item | Value |
|---|---|
| Processor | AM335x 1GHz ARMR Cortex-A8 |
| RAM | 512MB DDR3 |
| on-board Flash Storage | 4GB eMMC |
| CPU Supports | NEON floating-point & 3D graphics accelerator |
| Micro USB Supports | powering & communications |
| USB | USB2.0 Host *4 |
| Grove Connectors | 2 (One I2C and One UART) |
| GPIO | 2 x 46 pin headers |
| Ethernet | Wi-Fi 802.11b/g/n 2.4GHz and Bluetooth 4.1 LE |
| Operating Temperature | 0 ~ 75 |

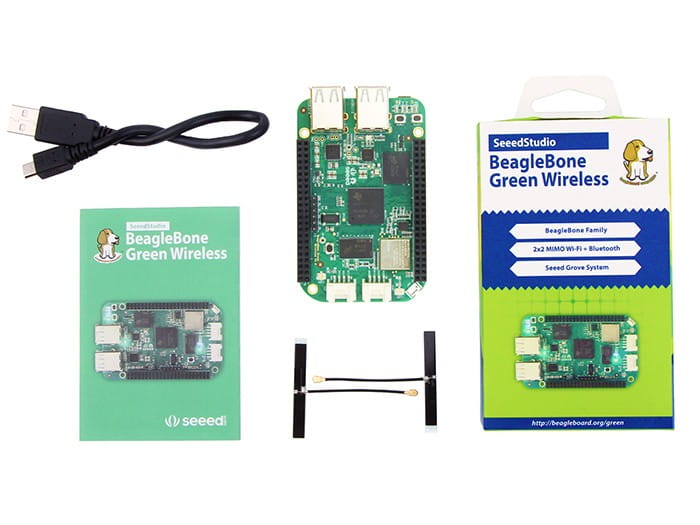

PART LIST
- • SeeedStudio BeagleBone Green Wireless x 1
- • USB Cable x 1
- • User Guide x 1
