Shield z wyświetlaczem TFT 2.4"
Price:
€6.58
incl. 23% TAX, excl. shipping costs
Regular price:
The lowest price during 30 days prior to the reduction:
・Kup teraz i zapłać za 30 dni
product unavailable
Availability:
brak towaru
Description

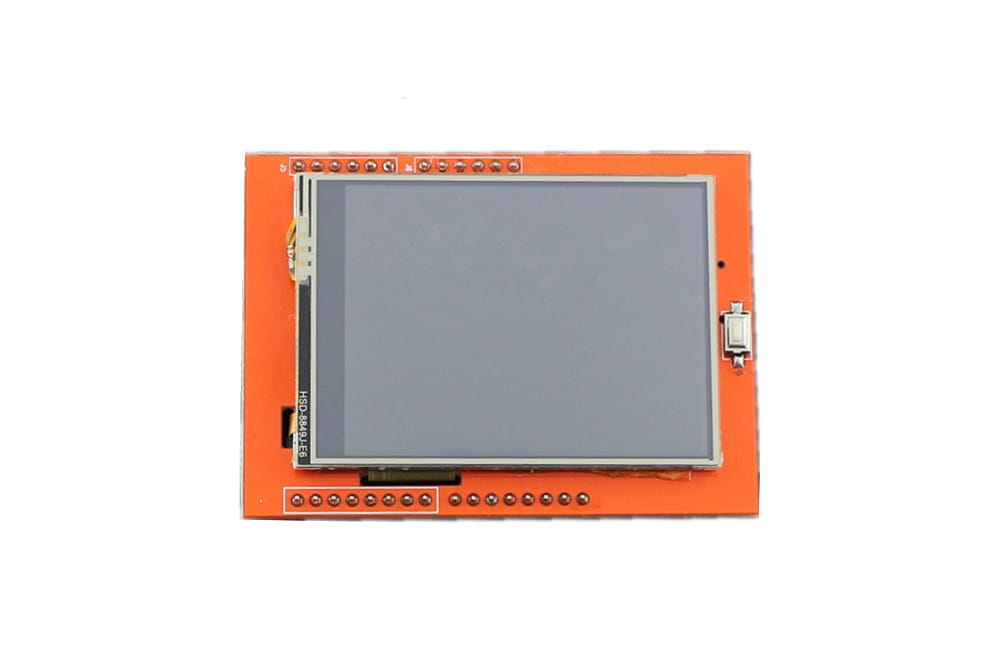

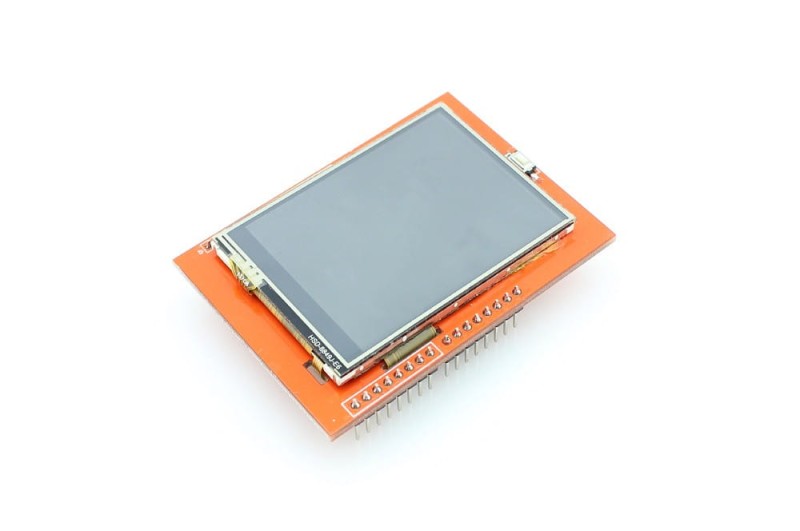

The 2.4 inch TFT Touch Screen Module with micro SD card slot is now available as a SHIELD for Arduino UNO. It has a four wire resistive touch screen, a micro SD card socket, a reset switch and a convenient Arduino Uno shield footprint.
Features
- Colorful, 18-bit 262,000 different shades
- Bright, 4 white LED backlight. On by default but you can connect the transistor to a digital pin for backlight control
- Works with any Arduino 328 or Mega (Leonardo not supported yet)
Specifications
- 2.4″ diagonal LCD TFT display
- 240×320 resolution
- 5V compatible! Use with 3.3V or 5V logic
- Onboard 3.3V 300mA LDO regulator
- 8 bit digital interface, plus 4 control lines
- 4-wire resistive touchscreen

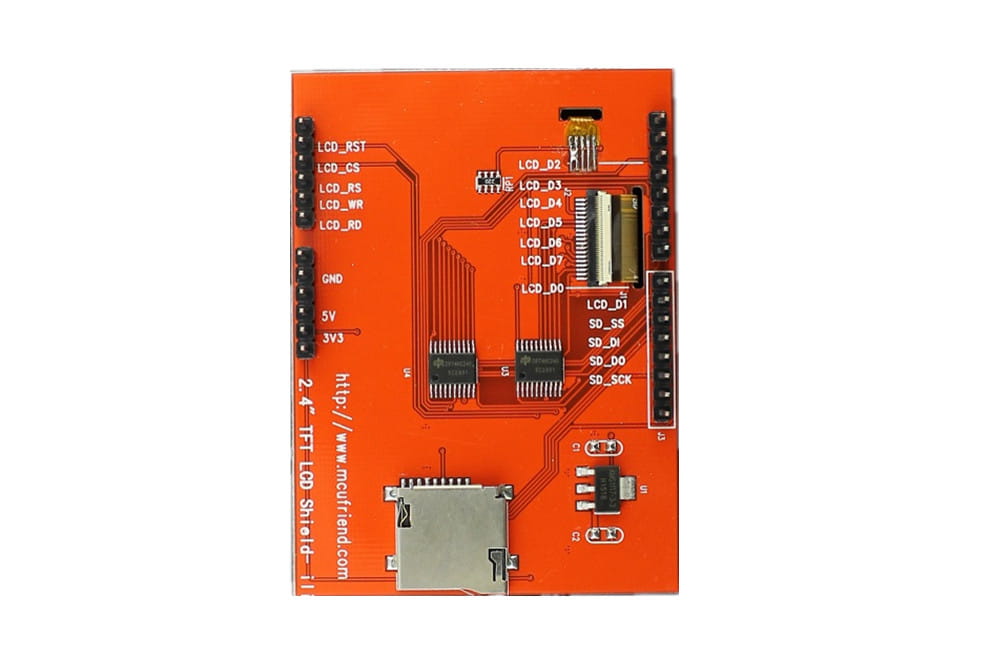

- Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3 and analog 4 and 5. Pin 12 is available if not using the microSD
Package list
- 2.4 inch TFT Touch Shield for Arduino x 1
Document
