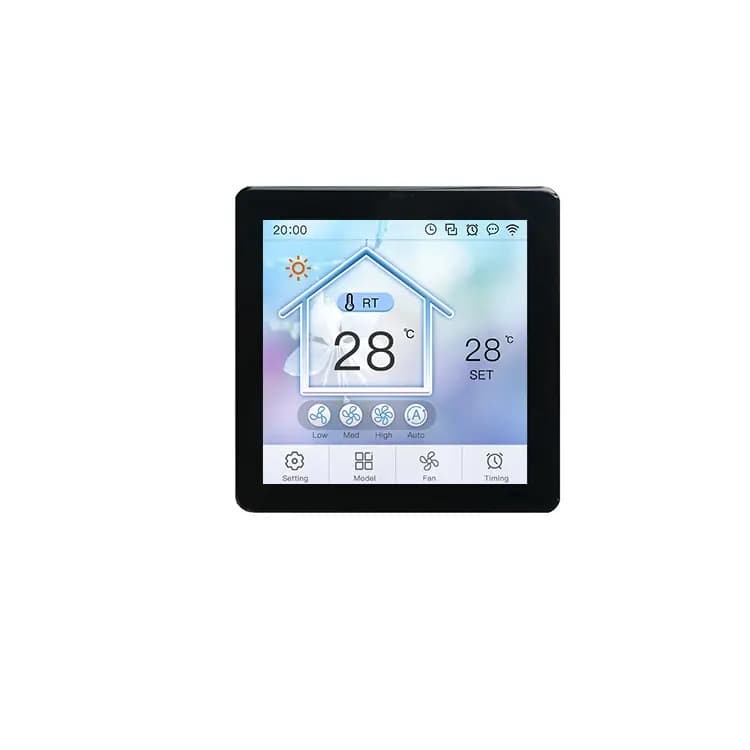

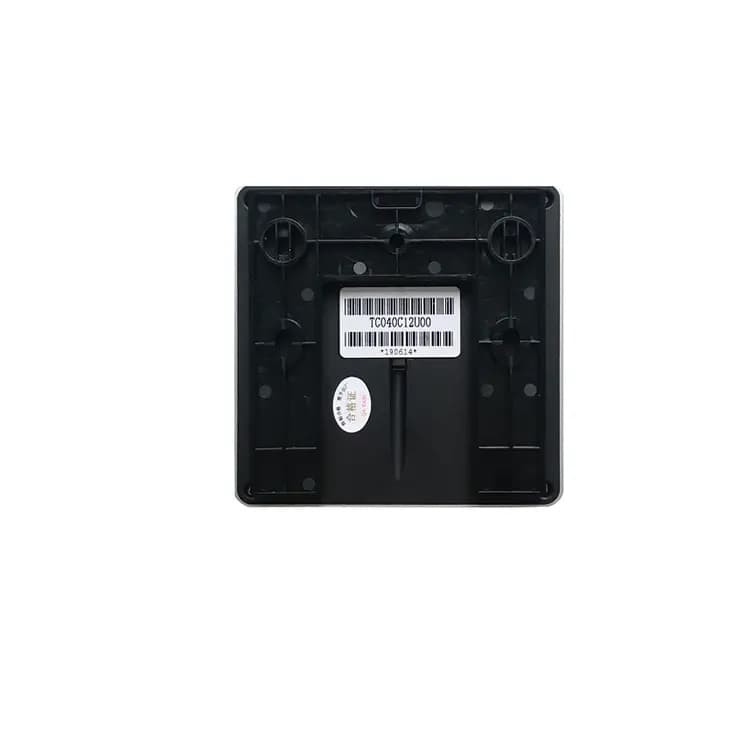

Smart Home IoT controller LCD 4" 480x480 RS485 housing Capacitive touch panel DWIN HMI
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable
Universal HMI module with 4" display and capacitive touch panel.
TC040C12 features:
- Based on T5L with DGUS II system
- 4" IPS-TFT-LCD,16.7M Colours,24-bit, 480×480 Pixel
- Active area vid. 71.86mm (W) * 67.96mm (H)
- Brightness: 250nit
- Viewing angles: 85°/85°/85°/85° (L/R/U/D)
- Capacitive touch
- Interface: RS485 (UART2&UART5 multiplexing)

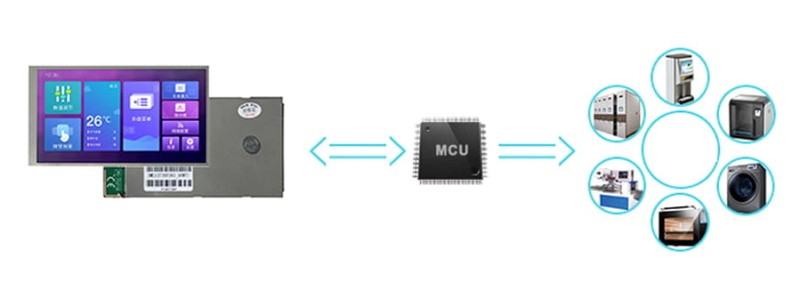

Operating principle of DWIN HMI displays

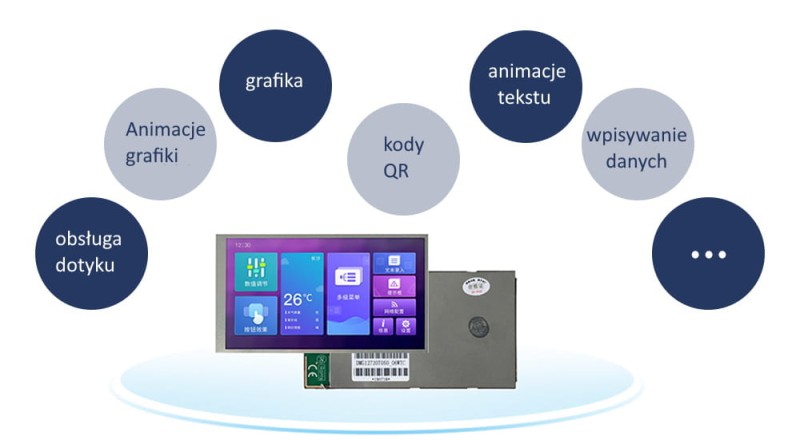

Designing the appearance of the user interface and its operating principle is done using the dedicated DGUS TOOL application. We have the option of loading ready-made graphics, creating buttons, charts, input fields, etc. then the compiled files are transferred to an SD memory card, from which they are copied to the display's memory.
.
TC040C12 specifications
Interface:
- Baudrate: 3150~3225600bps, Type. 115200bps
- RS485 (UART2&UART5 multiplexing)
Power supply:
- Supply voltage: 6-36V
- Current consumption with backlight on: VCC = +12V, 100mA
- Current consumption with backlight off: VCC = +12V, 40mA
Display:
- Number of colours: 16.7M（16777216）
- LCD Type: IPS-TFT-LCD
- Viewing angles: 85°/85°/85°/85° (L/R/U/D)
- Resolution: 480x480
- Active area: 71.86mm (W) * 67.96mm (H)
- LED backlight
- Brightness: 250nit
Touch panel:
- Type: CTP (capacitive touch panel)
- Structure: G+G structure with surface cover of Asahi tempered glass
- Touch Mode: Supports touch and swipe
- Surface hardness: 6H
- Light transmission: over 90%
Set includes:
- TC040C12 4" 480x480 capacitive touch panel DWIN HMI
