Sonoff 4CH Dry Contact WiFi controller + RF433MHz eWeLink power supply 7-32V USB
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable

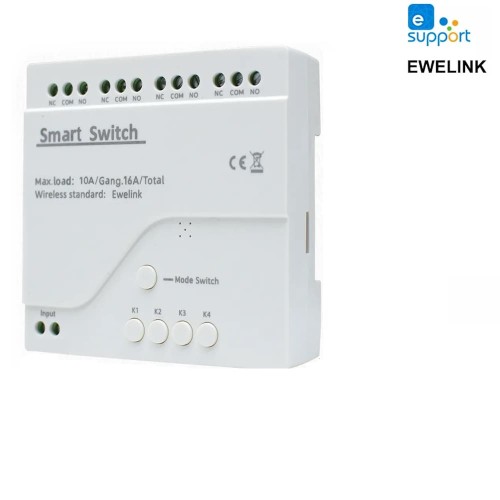

A 4-channel WiFi controller with dry contact outputs, compatible with the Sonoff eWeLink app and offering its full range of functions.
The 4-channel WiFi controller with dry contact outputs is the ideal solution for adding intelligence to the devices you already have. Its small footprint and wide range of power supply voltages (from 5 to 32V AC/DC) make it easy to install in a variety of devices such as garage doors, gate controllers, motors, heating cookers, roller shutters and more.
Key features include:
- Remote control: Ability to turn devices on and off from anywhere.
- Voice control: Ability to control by voice through assistants such as Amazon Alexa, Google Assistant, Siri.
- Schedules: Automatically manage devices according to preset times.
- Smart scenes: Create scenes linking Sonoff devices to automate daily tasks.
- Shared control: Ability to share control of devices with other users.
- IFTTT support: Integration with IFTTT-enabled services and devices.
- eWeLink-remote support.
The controller can operate in one of three modes
- Normal - i.e. each relay can be independently switched on and off
- Impulse - a function set separately for each relay - it is possible to set automatic switching off of a relay after a specific time, the so-called impulse control used in gate control
- Link (interlock) - this function causes only one of the four relays to be switched on at a time, switching on one relay automatically switches off the other, a function used in control of roller shutters and motors.

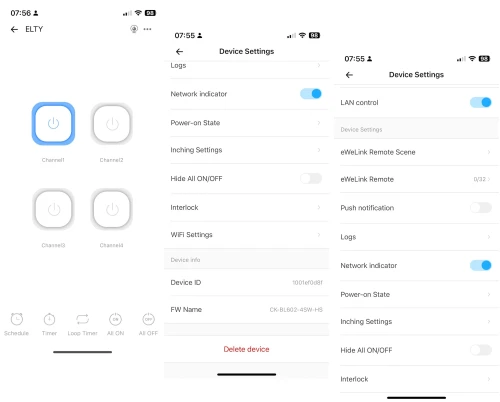

The relay mode is configured from the eWeLink application.
Technical parameters of the module:
- Supply voltage: 5V DC, 7-32V AC
- Permissible load: 2000W/10A per channel, 3500W/16A total
- Protection against reverse connection of power supply
- WiFi 2.4GHz communication
- Voltage-free outputs
- 4 relays with outputs: NC,NO,COM

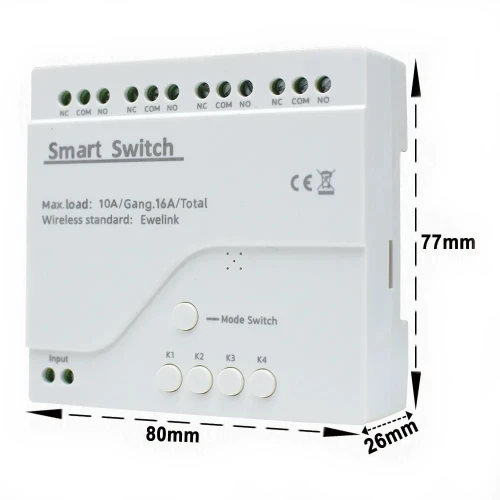

- Module dimensions: 80x77x26mm
- Housing with DIN rail mounting
- Wifi: 2.4GHz, does not work with 5GHz networks.
When buying you receive:
- 4 channel WiFi controller with non-voltage outputs
A 5VDC power supply unit with micro USB output, e.g. a phone charger or other unit with 7-32V is required for operation
The controller requires a connection to a 2.4GHz wifi network in order to operate, it does not work with 5GHz networks
Adding the module to the eWeLink application
To put the controller back into pairing mode, hold down the Reset button for about 10s until the LED starts flashing in the mode of 3 flashes, pause, 3 flashes pause....
