TB6600 1 axis Stepper Motor 2-phase Driver
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable

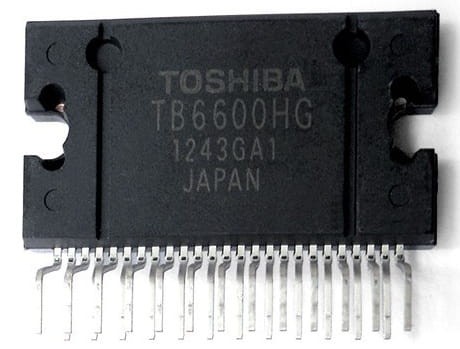

The TB6600HQ is a PWM chopper-type single-chip bipolar sinusoidal micro-step stepping motor driver.
Forward and reverse rotation control is available with 2-phase, 1-2-phase, W1-2-phase, 2W1-2-phase, and 4W1-2-phase excitation modes.
2-phase bipolar-type stepping motor can be driven by only clock signal with low vibration and high efficiency.
TB6600 Features
- Single-chip bipolar sinusoidal micro-step stepping motor driver
- BiCD 0.13 (50 V) process
- Ron (upper + lower) = 0.4 Ω (typ.)
- Forward and reverse rotation control available
- Selectable phase drive (1/1, 1/2, 1/4, 1/8, and 1/16 step)
- Output withstand voltage: VCC = 50 V
- Output current: IOUT = 5.0 A (absolute maximum ratings, peak, within 100ms) IOUT = 4.5 A (operating range, maximal value)
- Packages: HZIP25-1.00F
- Built-in input pull-down resistance: 100 kΩ (typ.)
- Output monitor pins (ALERT): Maximum of IALERT = 1 mA
- Output monitor pins (MO): Maximum of IMO = 1 mA
- Equipped with reset and enable pins
- Stand by function
- Single power supply
- Built-in thermal shutdown (TSD) circuit
- Built-in under voltage lock out (UVLO) circuit
- Built-in over-current detection (ISD) circuit
