Three-phase meter for energy consumption and energy input bidirectional for photovoltaics 80A Tuya WiFi

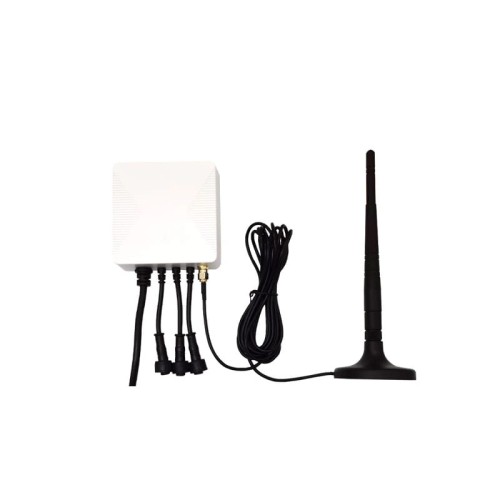

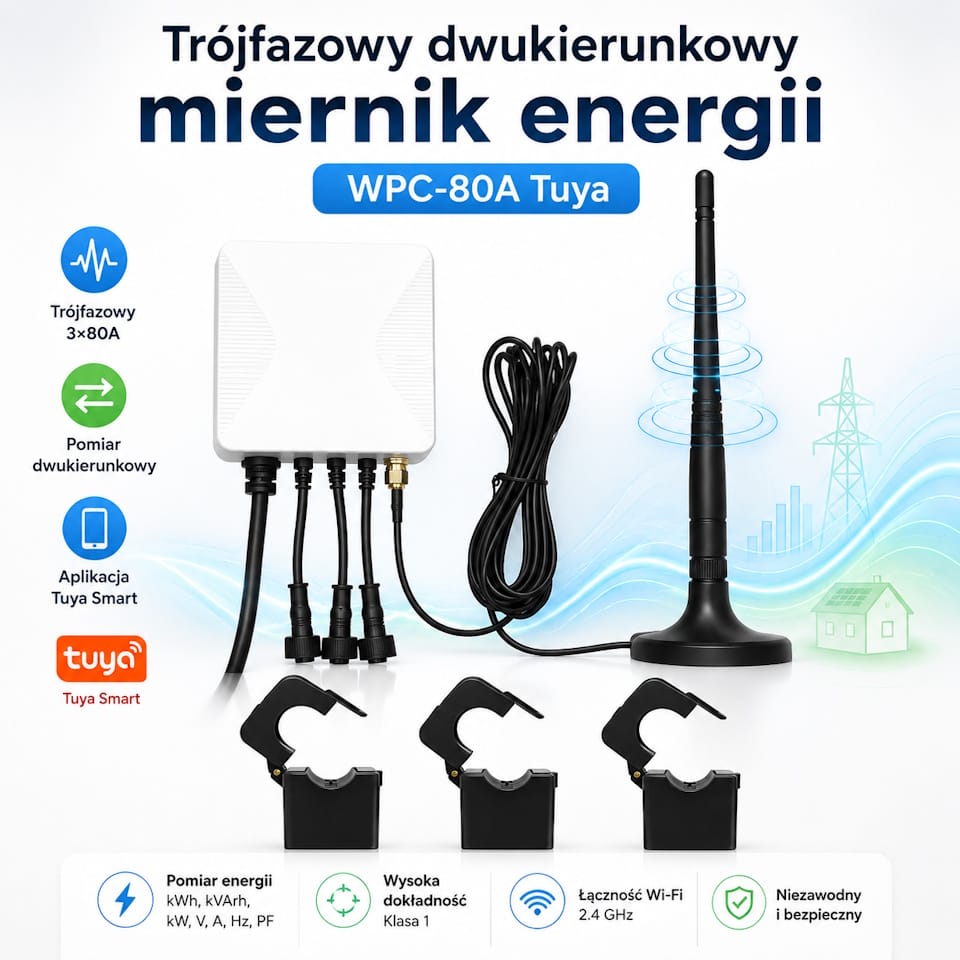

WPC-80A - three-phase meter for energy consumption and energy handed over that works with the Tuya application

The WPC-80A three-phase current meter represents a new generation of smart metering devices designed for modern electrical installations, including photovoltaic installations. Utilising advanced technology, this meter offers precise measurement of current in both directions: taken from and returned to the grid, which is crucial for users of renewable energy systems.

Key Features and Functions:

• Wireless Current Measurement: Through the use of current transformers, the WPC-80A enables safe current monitoring without the need to directly interfere with the electrical installation.

• Versatility of Application: The device is ideal for both three-phase and single-phase installations, allowing energy consumption to be measured for each phase or for three separate circuits.

• Measurement and Analysis: The WPC-80A meter offers a wide range of measurement functions, including voltage, current, current power consumed by loads, as well as counting the electricity consumed for each phase and overall.

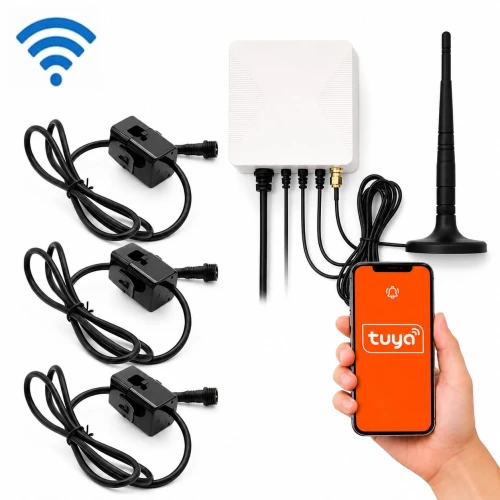

• Wi-Fi communication Integration with the Tuya App: By working with the Tuya app, the meter allows not only the current reading of data, but also the use of the collected information to create scenes and control other devices in the Tuya ecosystem, maximising the energy efficiency of the home.

• Measurement History: The device stores a measurement history of up to 365 days, allowing users to analyse consumption trends and optimise energy spending.

The following parameters can be used to create scenes:

• Voltage on each phase - set separately less.
• Current power consumed on each phase - set separately smaller, larger and equal
• Energy consumed on each phase - set separately lower and higher.
• Energy produced on each phase - set separately smaller and larger
• Power factor for each phase





Specifications

• Power supply: AC110-230V ±10%, 50/60Hz

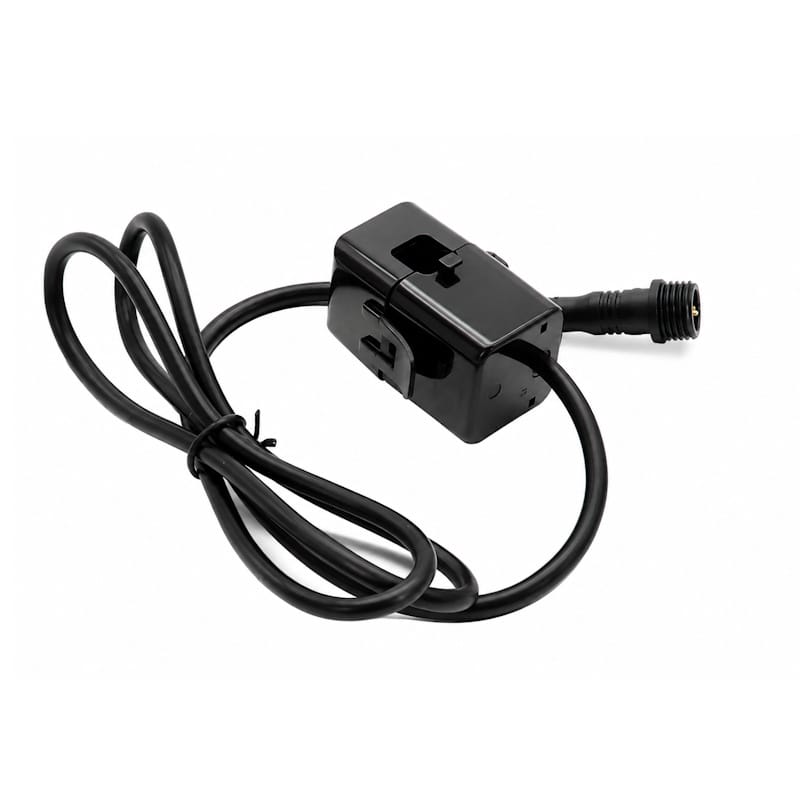

• Three 80A current transformers included (internal diameter of transformer: 10mm)
• Operating temperature: 0°C to + 40°C
• Power consumption of the device: < 1 W
• Intelligent on/off switching
• Local and remote control
• WiFi: 802.11 b/g/n 2.4GHz
• Radio signal power: 1mW
• External Wifi antenna provides coverage in hard-to-reach areas
• DIN rail mounting possible
• Size: 86mm x 86mm x 37mm
• Colour: White





Connection to 3-phase installation

Connection in 1-phase installation

OPERATING INSTRUCTIONS
