UART Debugger Module for Raspberry Pi 5
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable

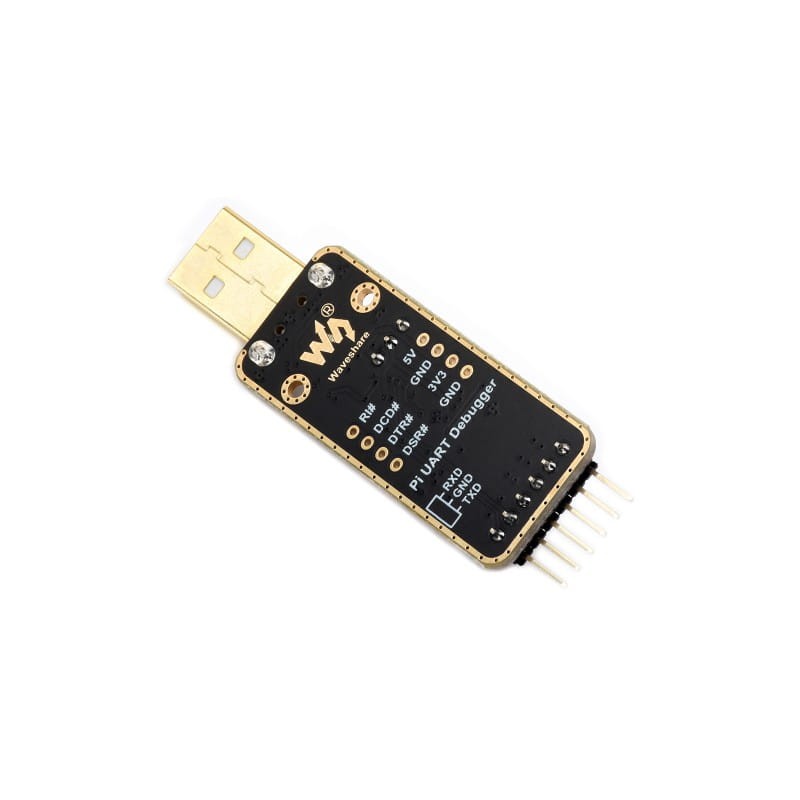

UART Debugger Module for Raspberry Pi 5
UART Debugger Module is an advanced tool designed specifically for Raspberry Pi 5 that enables stable and secure debugging of serial communication. This module supports multiple connection methods, allowing flexible adaptation to various user needs.

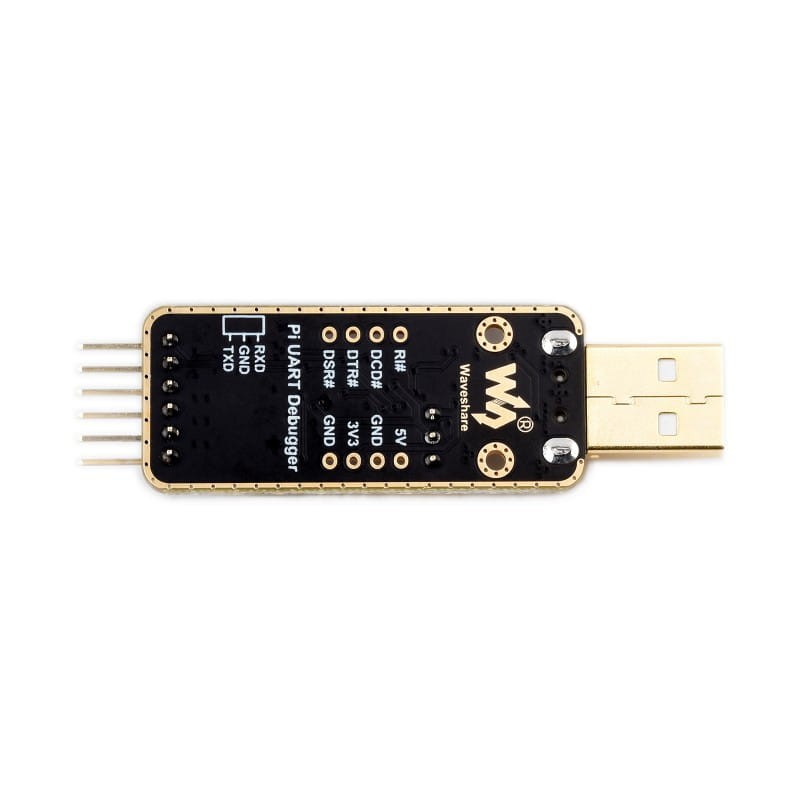

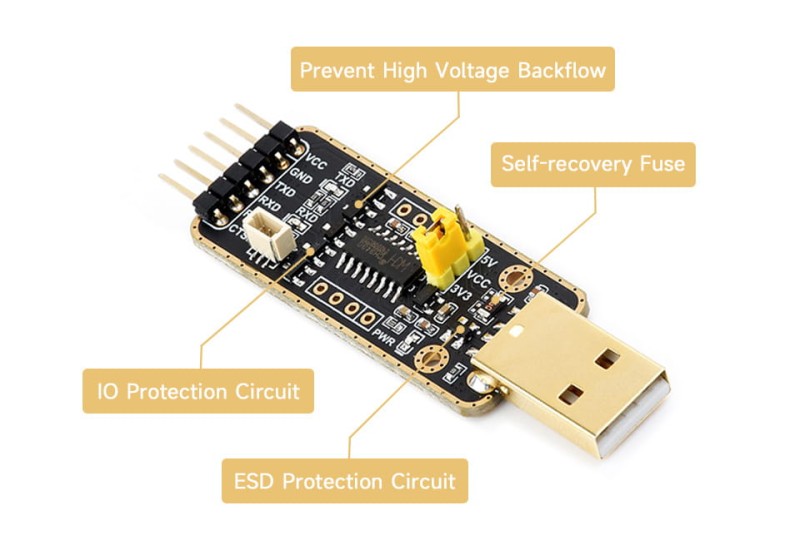

Thanks to its advanced protective features, such as overvoltage, surge, and electrostatic discharge protection, the module ensures reliable operation even in demanding conditions. Built-in protections, such as a self-repairing fuse and protective diodes, further enhance the reliability and safety of communication.
Additionally, this module is compatible with multiple operating systems, including Windows 7/8/8.1/10/11, Mac, Linux, and Android, making it a versatile tool for a wide range of users. The UART Debugger Module also offers various TTL communication levels (3.3V and 5V) that can be easily configured using switching pins. This allows users to adjust the voltage level to their specific needs. The durable design with double-layer gold plating ensures long-lasting durability and an aesthetic appearance.
Specifications:
- Host Interface: USB
- Device Interface: UART
- Communication Range: 50bps ~ 6Mbps
- USB Interface:
- Connector: USB Type-A
- Protection: Self-repairing fuse, ESD protection
- UART Interface:
- Connector: 6-pin angled connector, 3-pin connector
- Protection: IO protection diode
- UART TTL Level: 5V/3.3V (configurable via jumpers)
- Operating Systems: Windows 7/8/8.1/10/11, Mac OS, Linux, Android
- Power Supply: 5V via USB
- Protection: Overvoltage, surge, and electrostatic discharge protection
Product Features:
- Multi-system Compatibility: Works with Windows 7/8/8.1/10/11, Mac OS, Linux, and Android
- Protection and Stability: Protection against overvoltage, surge, electrostatic discharge, and overcurrent

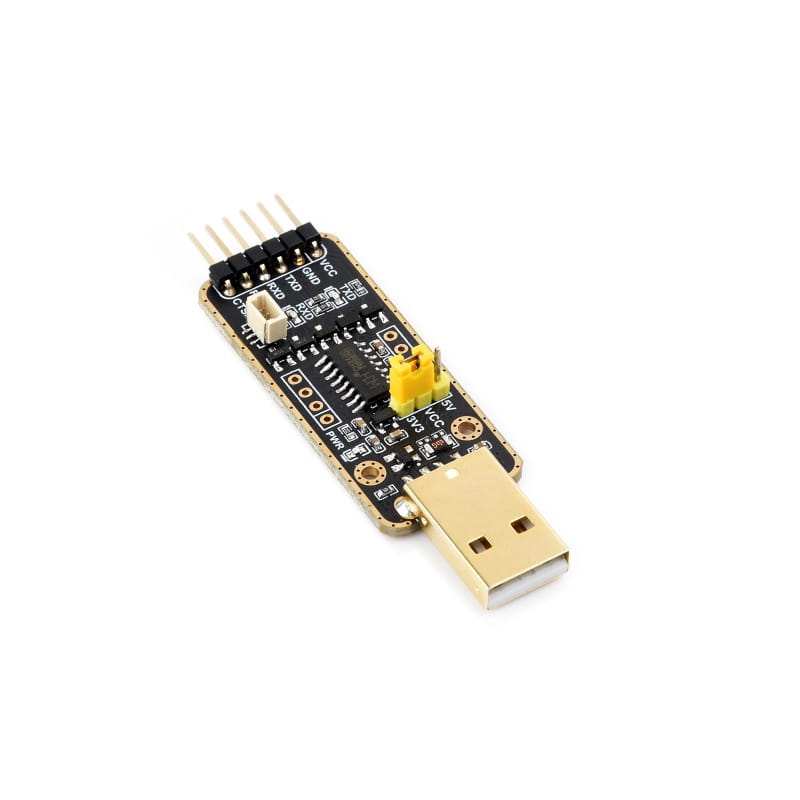

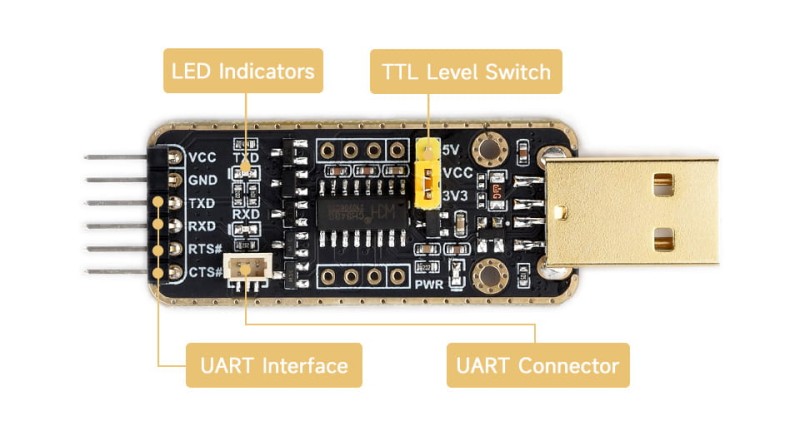

- Flexible TTL Levels: Choose the TTL communication level (3.3V/5V) via switching pins
- Durable Design: Double-layer gold plating for durability and aesthetic appearance
- Multiple Connection Methods: Connect via SH1.0 3PIN, 6PIN to GPIO UART, or directly to the UART debugging connector
UART Support:
Multiple Protection Circuits:
Interface:

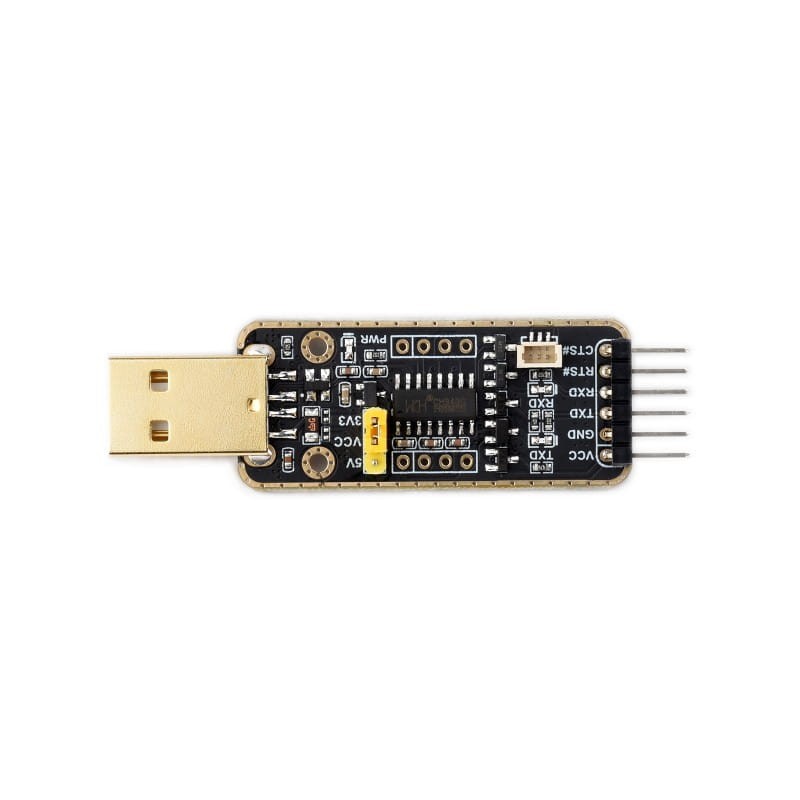

Pin Definition:
- VCC: 5V or 3.3V output for external device (configurable via jumpers)
- GND: Ground
- TXD: Connect to MCU.RXD
- RXD: Connect to MCU.TXD
- RTS#: Connect to MCU.CTS
- CTS#: Connect to MCU.RTS

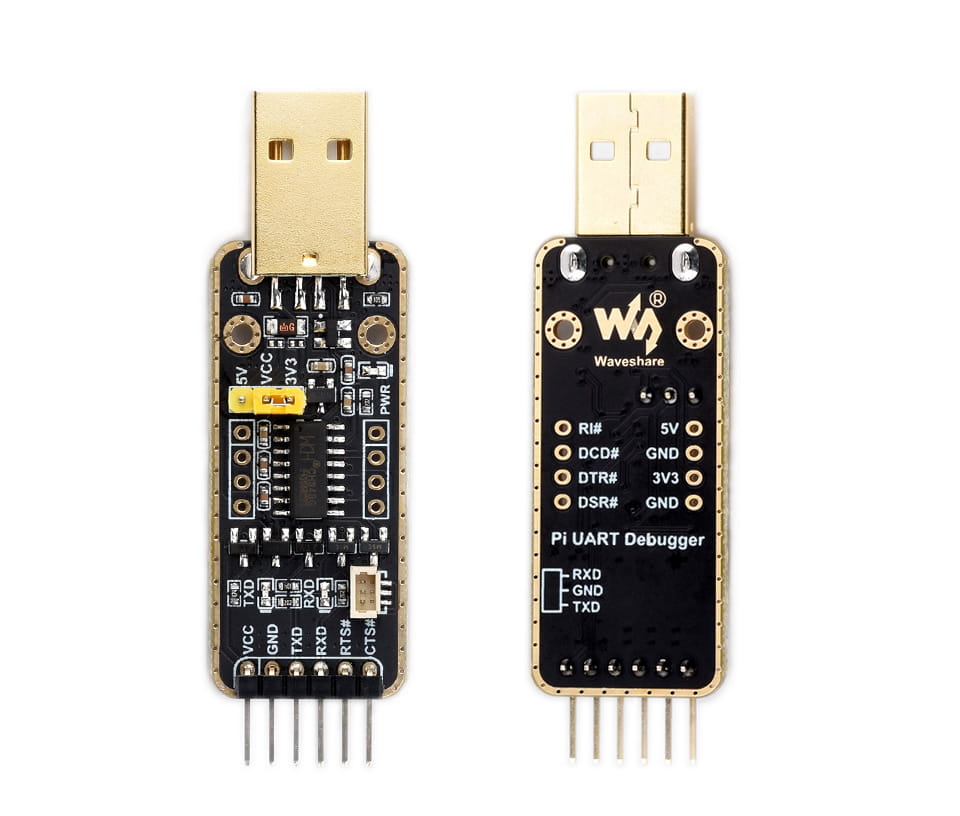

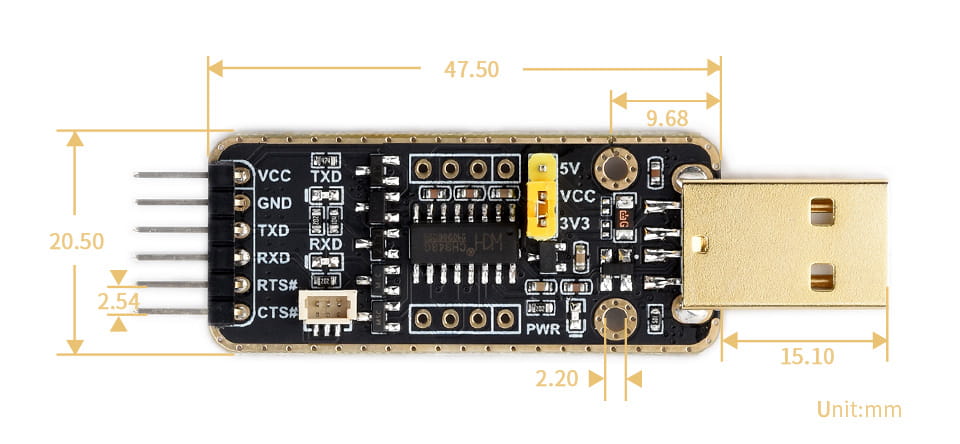

Dimensions:

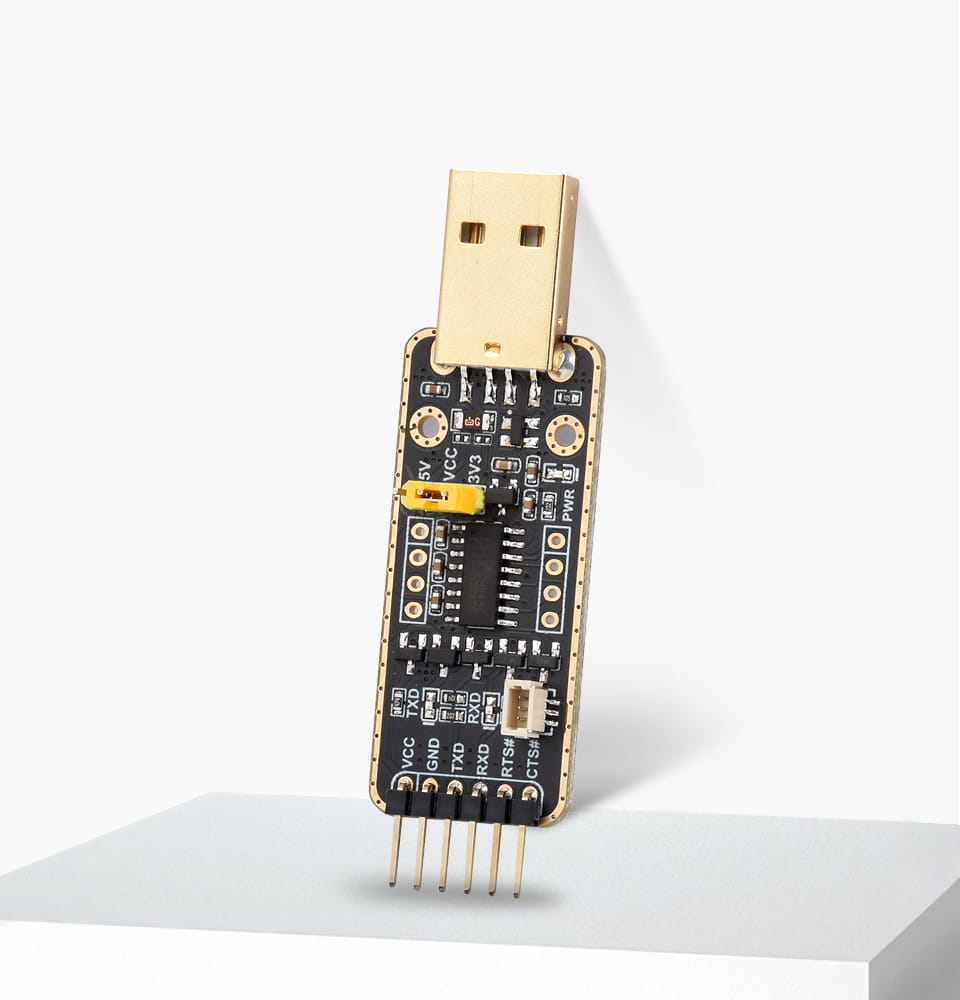

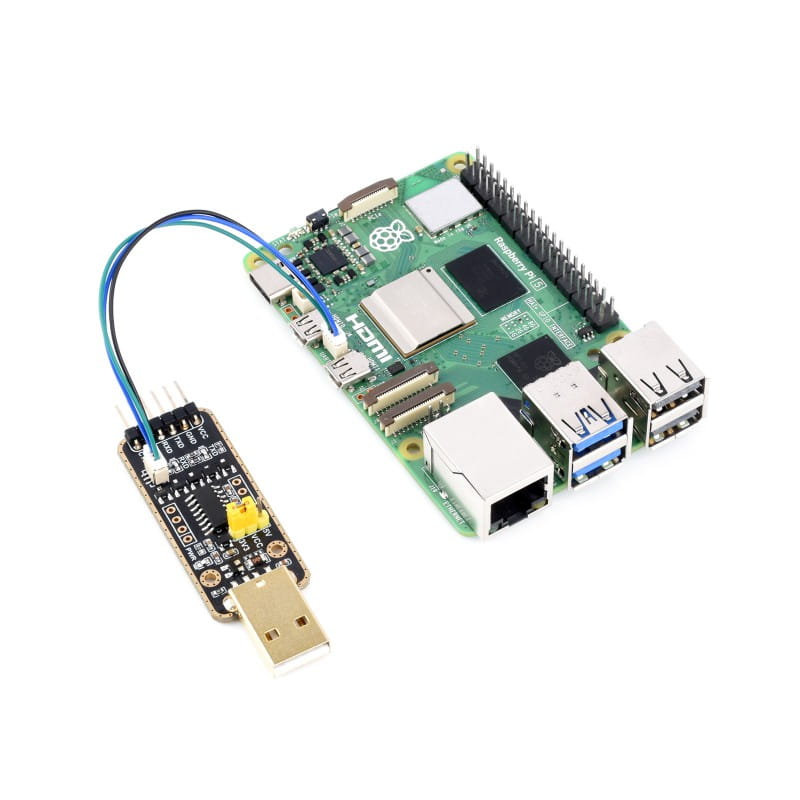

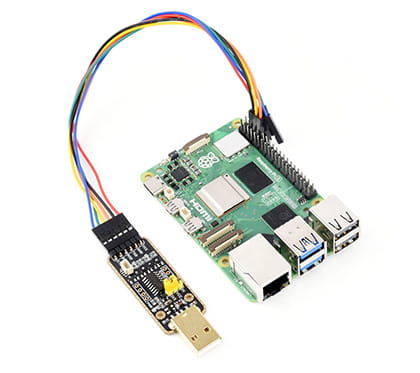

The Raspberry Pi shown in the photos is not included in the kit and must be purchased separately!
The kit includes:

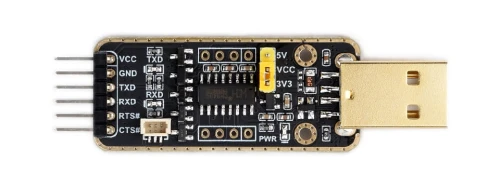

- Pi UART Debugger x1
- 6-pin cable x1

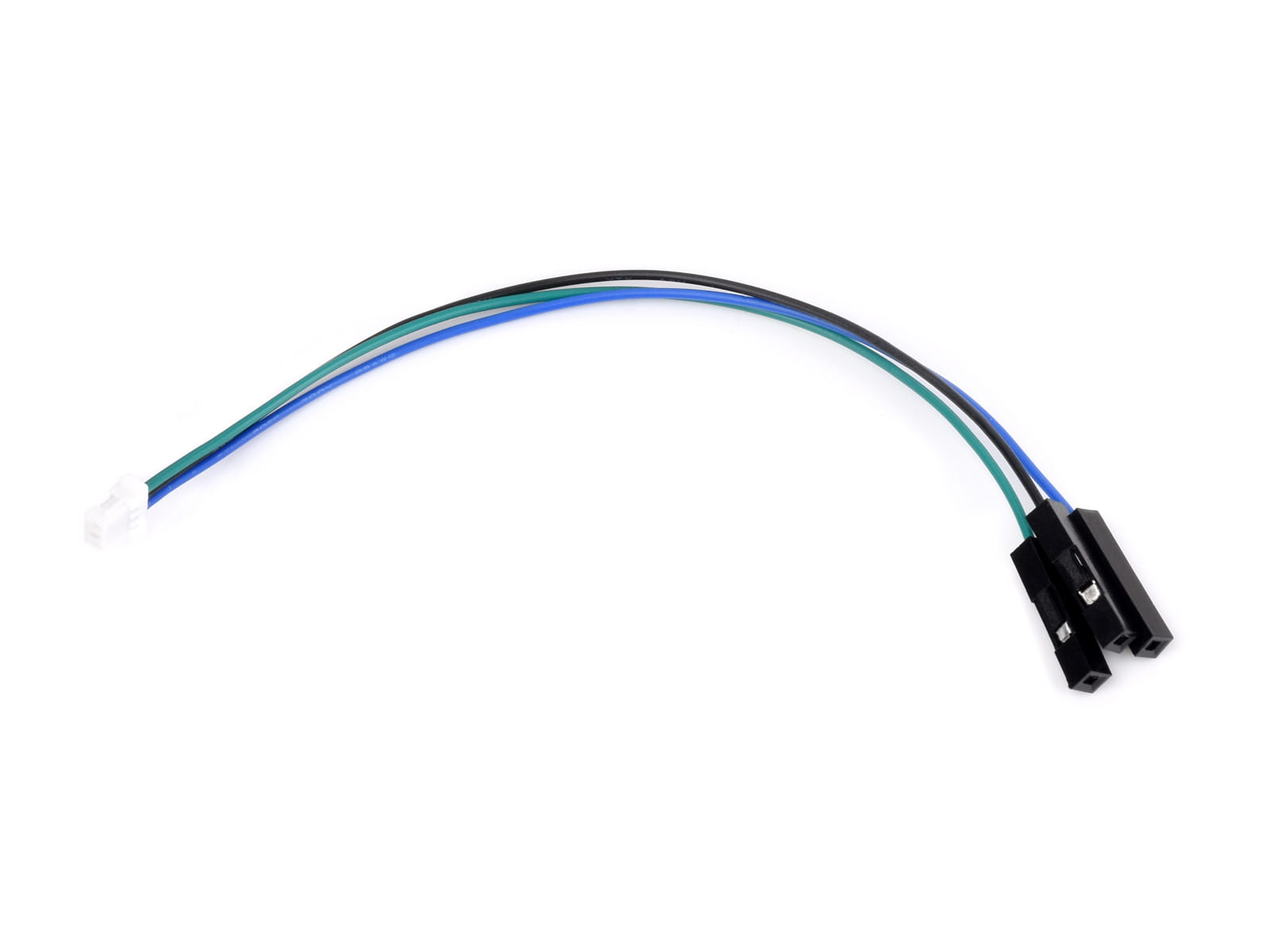

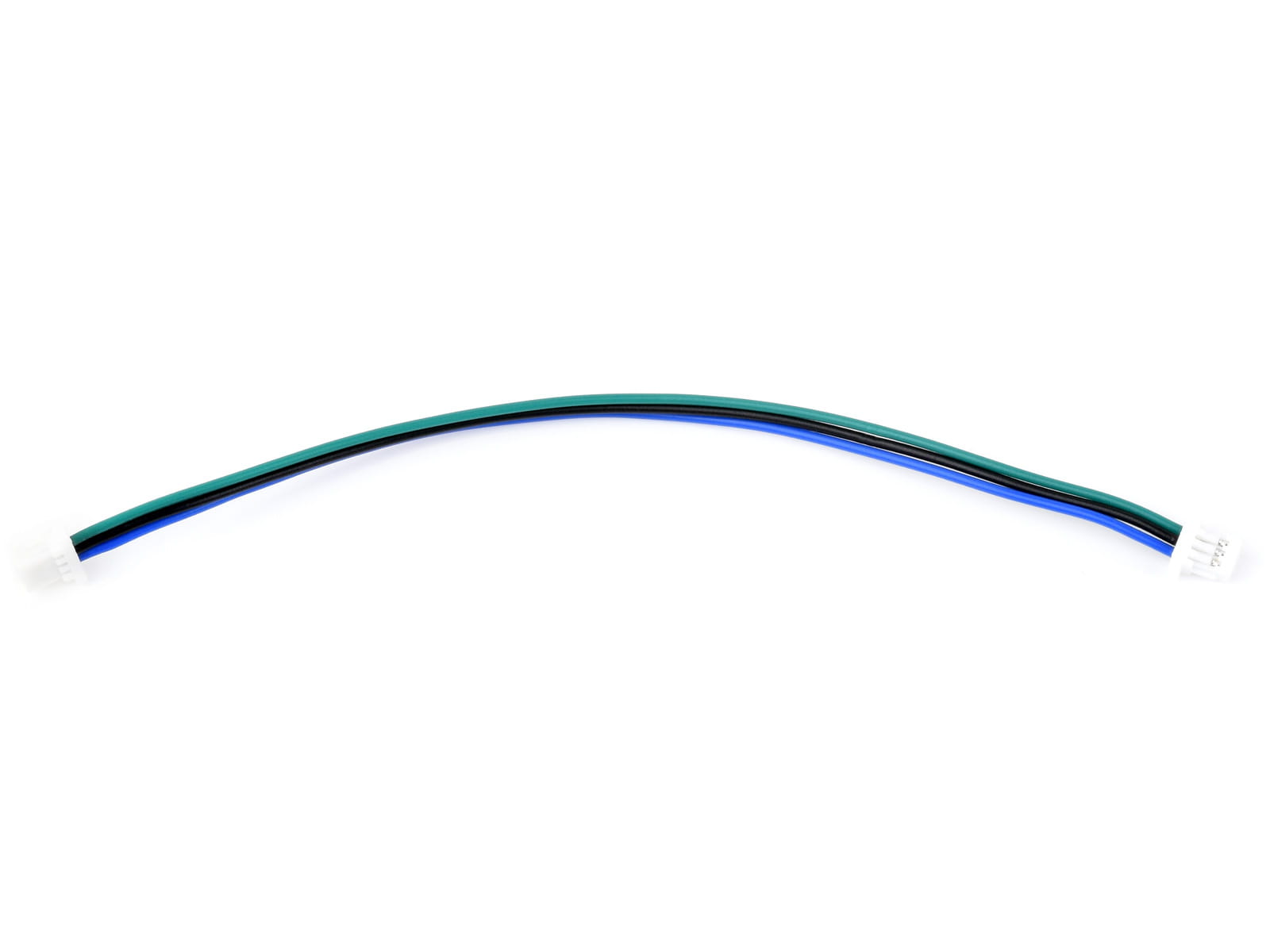

- SH1.0 to 3PIN connector ~100mm x1
- Dual SH1.0 3PIN connector ~100mm x1
Wiki: Pi_UART_Debugger
