FT232 USB UART Board (Type A)
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable
Overview

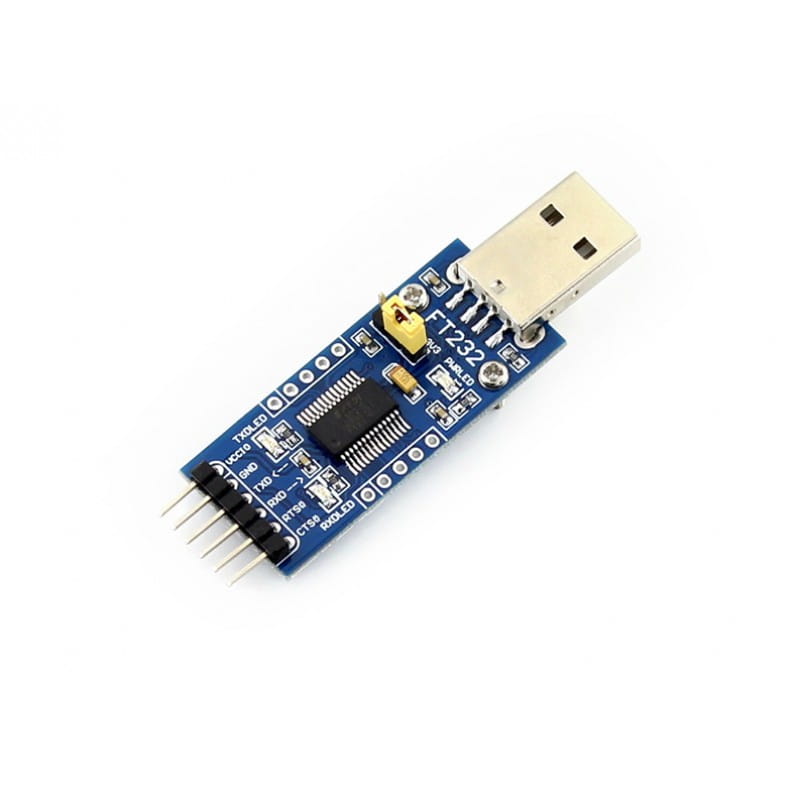

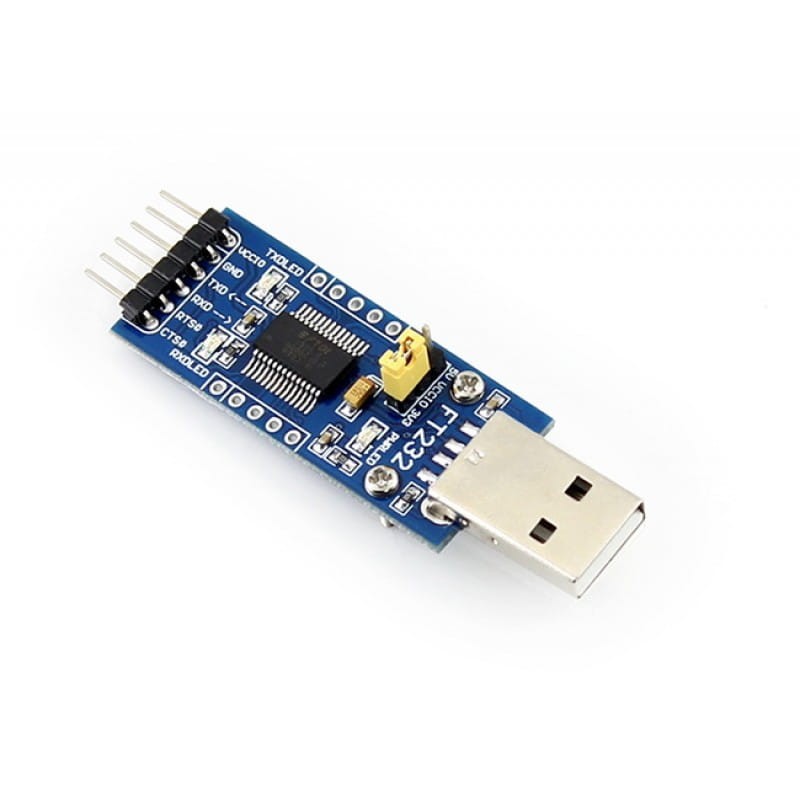

The FT232 USB UART Board (Type A) is an accessory board that features a USB-to-UART serial convertor FT232, USB Type A connector, and 3 LEDs: TXD LED, RXD LED, POWER LED.
There is also a jumper used for selecting VCC output level provided on the board:

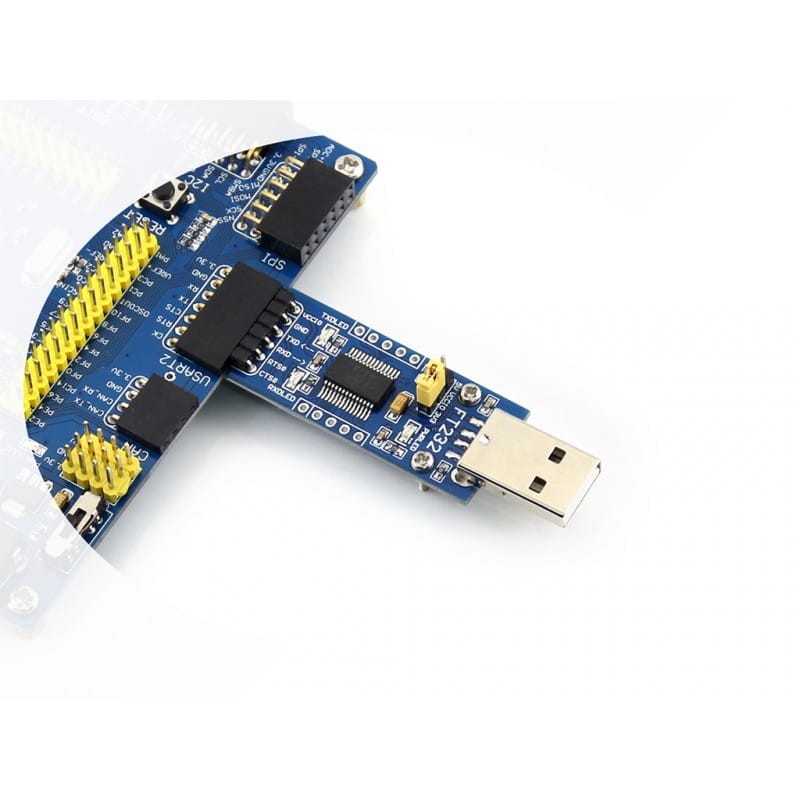

- Short the jumper to select output voltage level as 5V or 3.3V. In this case, the accessory board is powered from USB connection and provides power to the target application board
- If the jumper is open, the accessory board should be powered from the target application board (3.3V-5V)

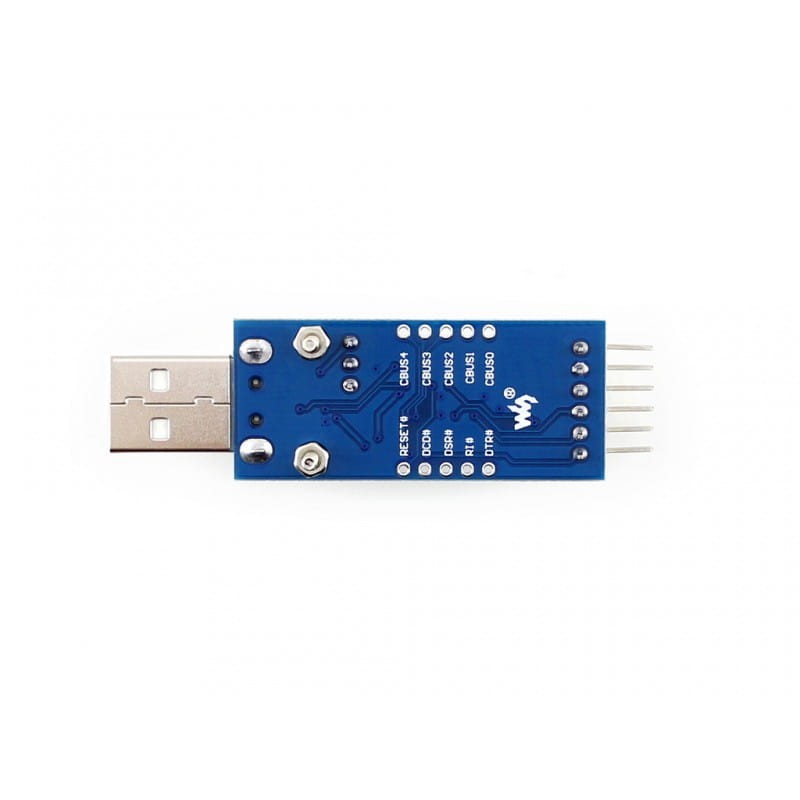

The TXD, RXD, RTS#, and CTS# are connected to the onboard soldered pinheaders, while the other pins are accessable on the drill holes, separate pinheaders (40-pin male & 40-pin female) are also provided.
Note: supports Windows 8.
Features
FT232, USB type A connector, UART interface, VCC output level selection jumper
Photos
Package Contains
- FT232 USB UART Board (Type A) × 1
- 40-pin male pinheader & 40-pin female pinheader × 1
Downloads
Development resources: demo codes, schematic, datasheets, etc.
Click here to download
