USB 3.2 to M.2 Adapter for 5G Modems SIMCom / Quectel / Fibocom
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable

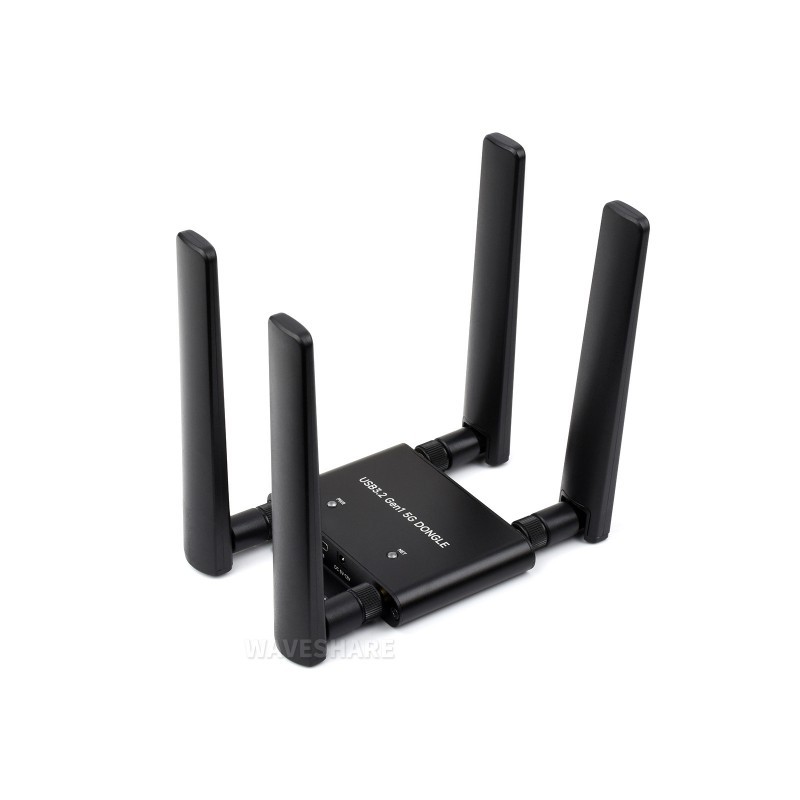

External USB 3.2 to M.2 Adapter for 5G Modems in Aluminum Enclosure
An adapter that allows connecting M.2 standard 5G modems to a PC, Raspberry Pi, or Jetson Nano via a high-speed USB 3.2 port. Enclosed in a solid aluminum casing, equipped with four SMA antenna connectors, and supporting SIM and eSIM cards, it is an ideal solution for building reliable and efficient 5G communication systems.
Key Features:
- Supports 5G modules with M.2 (NGFF) Key B interface, compatible with leading brands such as SIMCom, Quectel, and Fibocom.
- Compatible with modules in sizes 3042 / 3052 (e.g., SIM82XX, RM5XX, FM650XX series).
- Built-in USB 3.2 Type-C port for connection to Raspberry Pi/PC
- Integrated UART communication interface for data transmission.
- Four IPEX 4 to SMA antenna connectors enabling direct antenna mounting.
- Flexible power options: 5~12V DC (via 3.5mm jack) or 5V/2A (via USB port).
- Supports two types of cards: standard SIM slot and eSIM slot (QFN-8), switchable by AT command.
- LED indicators for power and network status to monitor operating condition.
- Aluminum alloy enclosure, CNC machined, with desktop or wall mounting capability.
Compatible 5G Modules
The adapter is compatible with a wide range of popular 5G modems, including SIM8202G-M2, SIM8262E-M2, SIM8262A-M2, RM520N-GL, RM530N-GL, among others.
Compatibility with Various Sizes
Supports modules in 3042 / 3052 standards.
Connection Examples
Connect to Windows computers, Raspberry Pi boards, and the Jetson Nano series via the USB port for high-speed 5G connectivity.
Connection to Raspberry Pi 5
Connection to Jetson Nano
Support for Multiple Systems and Ease of Use
Compatible with Windows and Linux systems. Simply connect the device to the USB port and perform a simple configuration to enjoy a fast 5G network connection.
Interface Description
5G Module Installation
Dimensions
Technical Specifications:
- Host Interface: USB 3.2 Gen1 Type-C
- Module Interface: M.2 (NGFF) Key B
- Supported Module Sizes: 3042 / 3052
- SIM Card Slots: 1x Standard SIM, 1x eSIM (QFN-8)
- Antenna Connectors: 4x SMA (Internal IPEX 4 connector)
- LED Indicators: Power, Network Status
- Power Supply:
- DC 3.5mm Jack: 5V ~ 12V
- USB-C Port: 5V / 2A
- Enclosure Material: Aluminum Alloy
- System Compatibility: Windows, Linux
- Dimensions: (Check Technical Drawing)
Package Contents
- USB 3.2 Gen1 5G DONGLE Adapter x1
- 5G Antenna x4
- USB 3.2 Type-A to Type-C Cable (~1m) x1
- USB Type-A to DC 3.5*1.35mm Power Cable (~1m) x1
- IPEX Adapter Cable (~6cm) 4pcs. x1
- IPEX Adapter Cable (~13cm) x1
- Thermal Pad x1
- SMA Protective Cover 4pcs. x1
Note: The 5G Module is NOT included in the set and must be purchased separately.
Wiki: www.waveshare.com/wiki/USB_3.2_Gen1_5G_DONGLE
