Waterproof smart ZigBee scene switch button 3.0 Tuya
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable

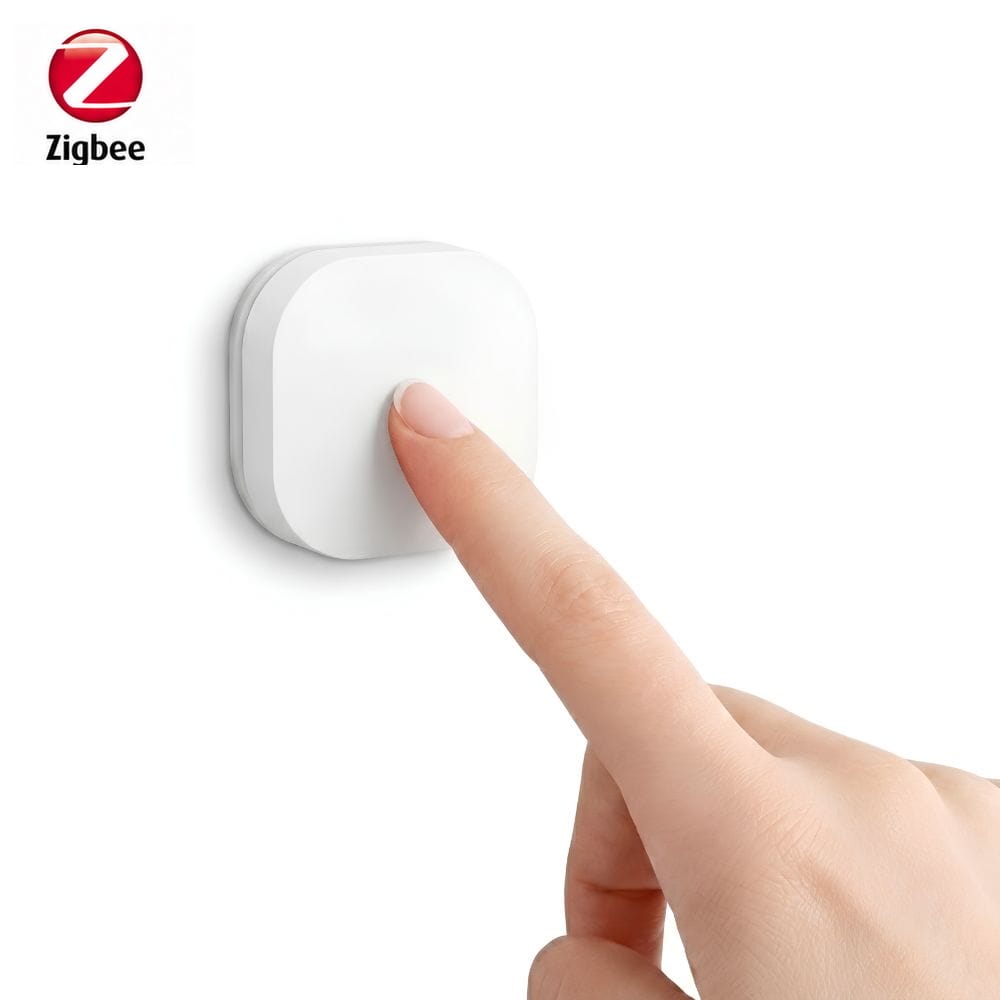

Waterproof ZigBee Tuya / Smart Life smart scene switch
A compact, waterproof (IP55) ZigBee 3.0 button designed for convenient device control and triggering scenarios in the Tuya and Smart Life ecosystem. Thanks to its battery power and magnetic mount, it can be freely moved or mounted anywhere, providing instant access to your favorite smart home functions.
Key features
- Communication via the fast and stable ZigBee 3.0 standard.
- Recognition of three actions: single click, double click, and long press.
- IP55-rated water resistance, allowing for installation in demanding locations.
- Long operating time (up to 2 years) on a single CR2032 battery.
- Magnetic mounting with a dedicated metal frame or using double-sided tape 3M.
- Full compatibility with Tuya gateways, the Smart Life app, and the zigbee2mqtt system.
Technical specification
- Communication protocol: ZigBee 3.0 (standard 802.15.4)
- Power supply: 1x CR2032 3V battery (not included)
- Detected actions: 3 (single, double, long click)
- Operating temperature: from -10°C to 45°C
- Operating humidity: < 90% RH
- Ingress protection rating: IP55
- Dimensions: 45 x 45 x 12.5 mm
Set contents
- Smart ZigBee scene switch button
- Metal case for magnetic mounting
- Double-sided sticker 3M
- User manual
The button requires a CR2032 battery to operate, which is not included in the set.
zigbee2mqtt compatibility page (ERS-10TZBVB-AA) →
Operation and operating modes
The button is powered by a common CR2032 3V battery (not included), which lasts for approximately 30 000 clicks under standard usage. Depending on the recognized press, you can assign different home automation scenarios for a single, double, or long press.
By default, the device operates in standard remote control mode. To switch it to scene switch mode (scene controller), press the button quickly 3 times. A Tuya-compatible ZigBee 3.0 gateway or another compatible coordinator is required for proper operation.
