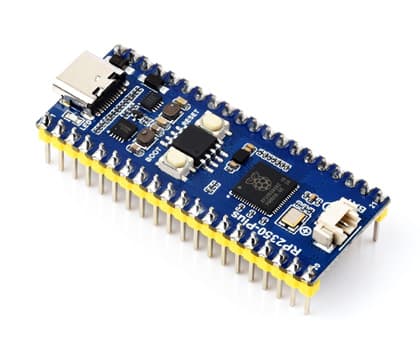

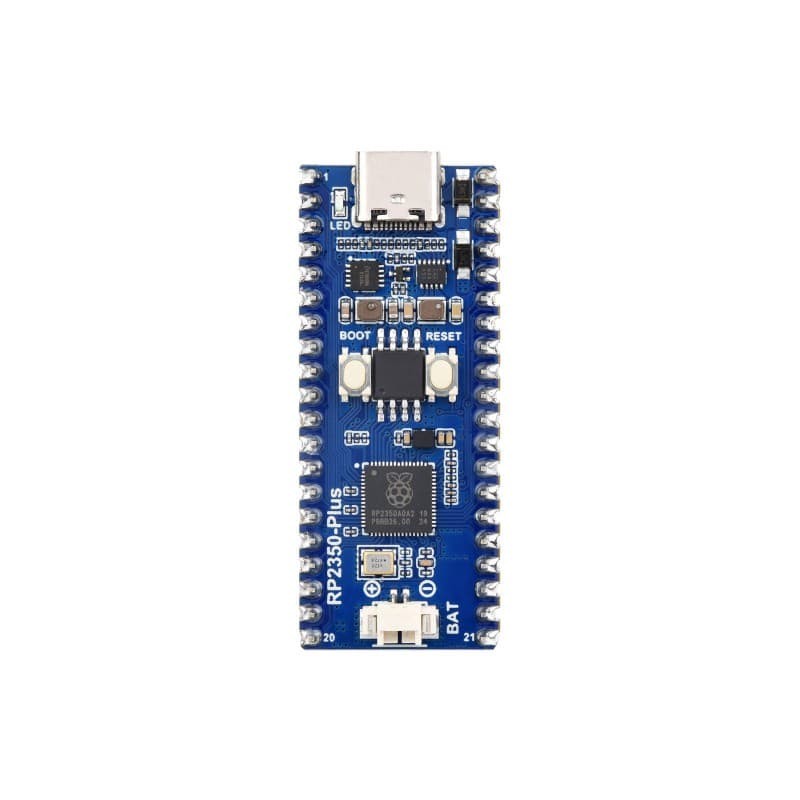

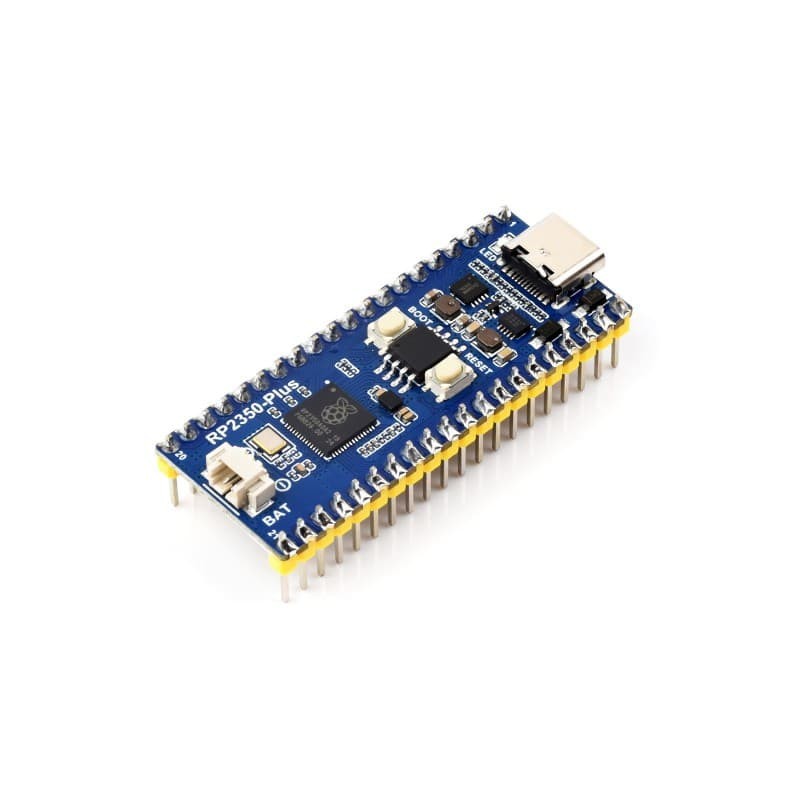

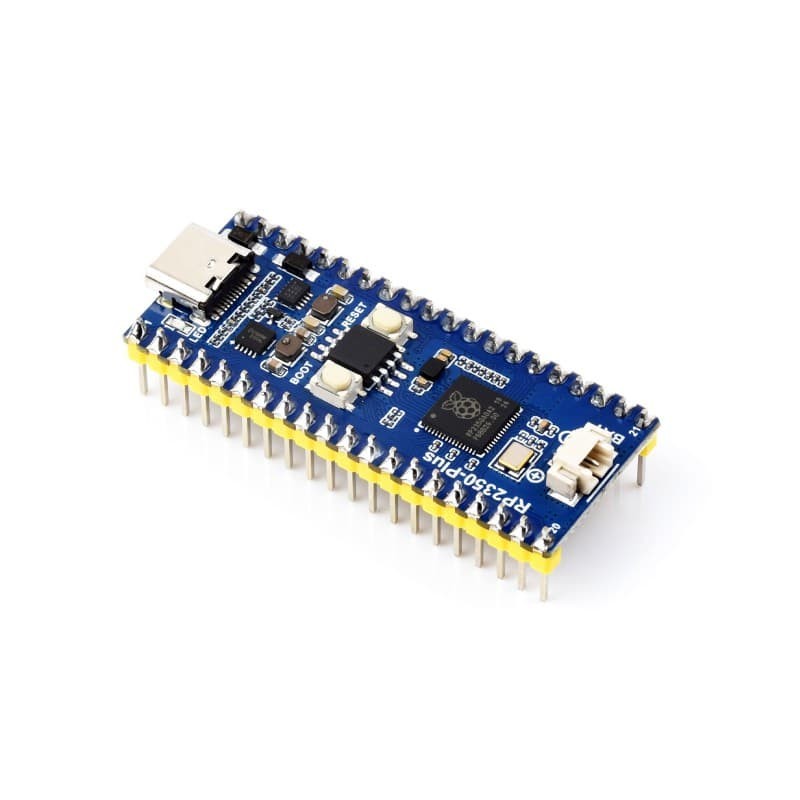

Waveshare RP2350-Plus-M - Raspberry Pi RP2350A Dual-Core Microcontroller Development Board, compatible with Raspberry Pi Pico 2
The Waveshare RP2350-Plus-M is an affordable and powerful development board inspired by the Raspberry Pi Pico platform, based on the innovative Raspberry Pi RP2350A dual-core and dual-architecture microcontroller. With a combination of Arm Cortex-M33 and Hazard 3 RISC-V cores, the board provides great flexibility and outstanding computing performance, proving suitable for a variety of electronics and automation projects.
Key features of the RP2350-Plus-M
-
RP2350A microcontroller Dual-core chip with two architectures (Arm Cortex-M33 and Hazard 3 RISC-V)
-
USB-C connector
- Easier and more convenient connection with computer and charger
- Supports USB 1.1 standard in device and host mode
-
Battery power capability
- Lithium battery charging and discharging connector, ideal for mobile projects
- Built-in high-efficiency DC-DC circuit (MP28164), maximum load current 2 A
-
Extensive programming and communication capabilities
- 26 multifunctional GPIO pins: configuration of the function of each pin allows flexible adaptation to the project
- 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 PWM channels
- Drag-and-drop support for programming via USB mass storage device
- 12 programmable I/O (PIO) blocks to create customised peripherals
26 multi-functional GPIO pins

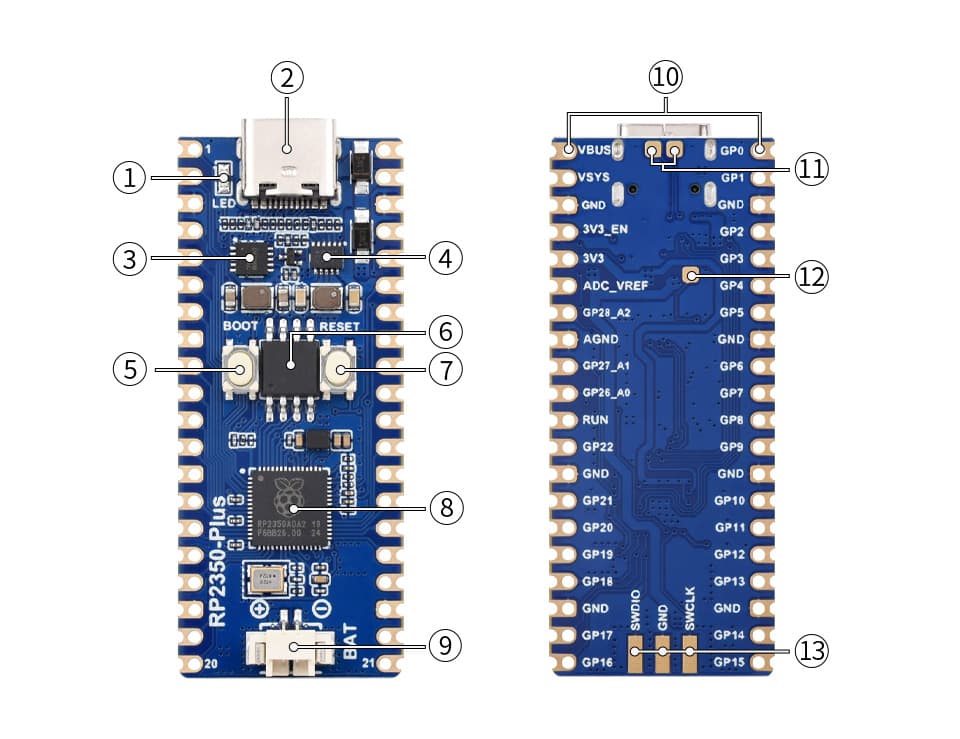

What's on the board
- LED
User LED (not power indicator) - USB Type-C connector
- ETA6096
High-efficiency lithium battery charge manager - MP28164
DC-DC buck-boost circuit with high efficiency - BOOT button
press it during reset to enter download mode - Built-in Flash memory: 4 MB (W25Q32JVSSIQ)
- RESET button
- RP2350A
Dual-core chip with two architectures, operating frequency up to 150 MHz - Battery connector

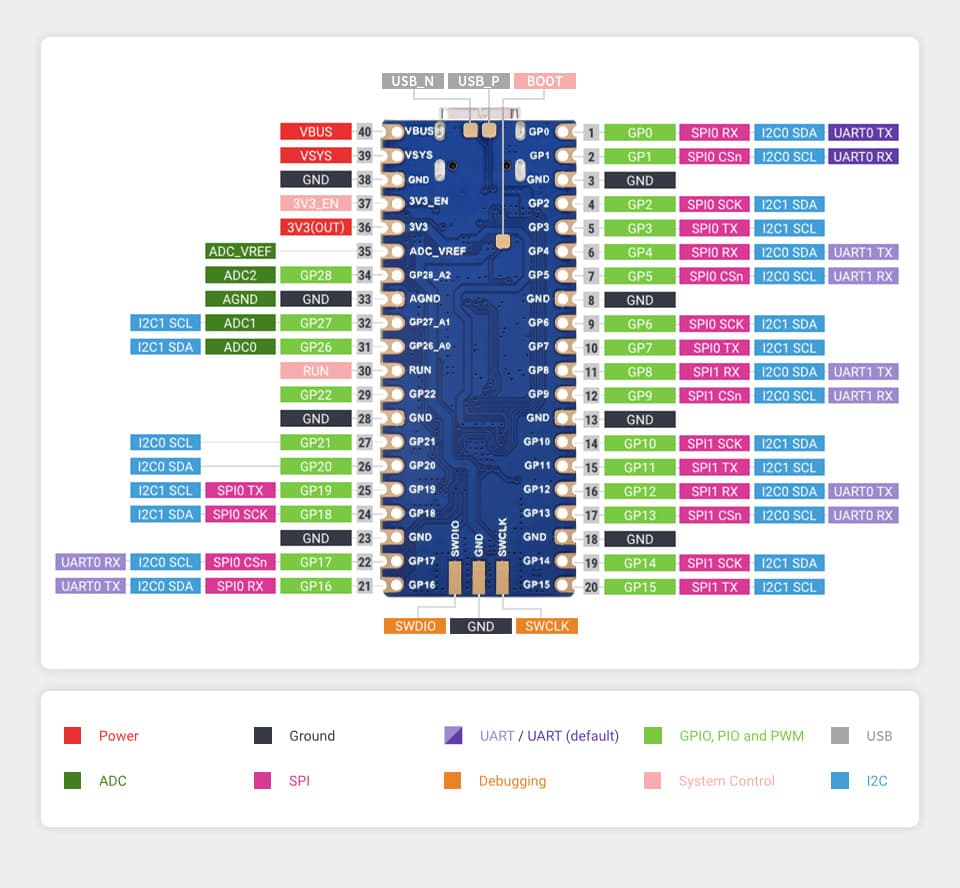

MX1.25 connector, for 3.7 V lithium battery, allows simultaneous battery charging and board power supply - Pinout
Compatible with Raspberry Pi Pico 2 - USB test points
- BOOT test point
- DEBUG points

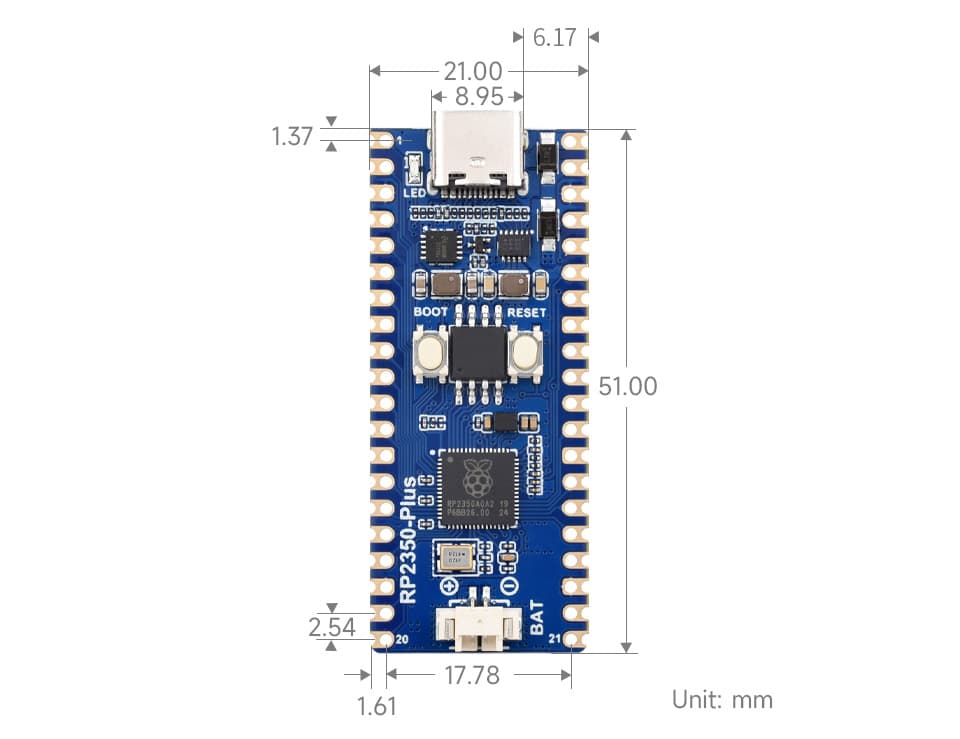

Dimensions
Contents of the RP2350-Zero-M kit:

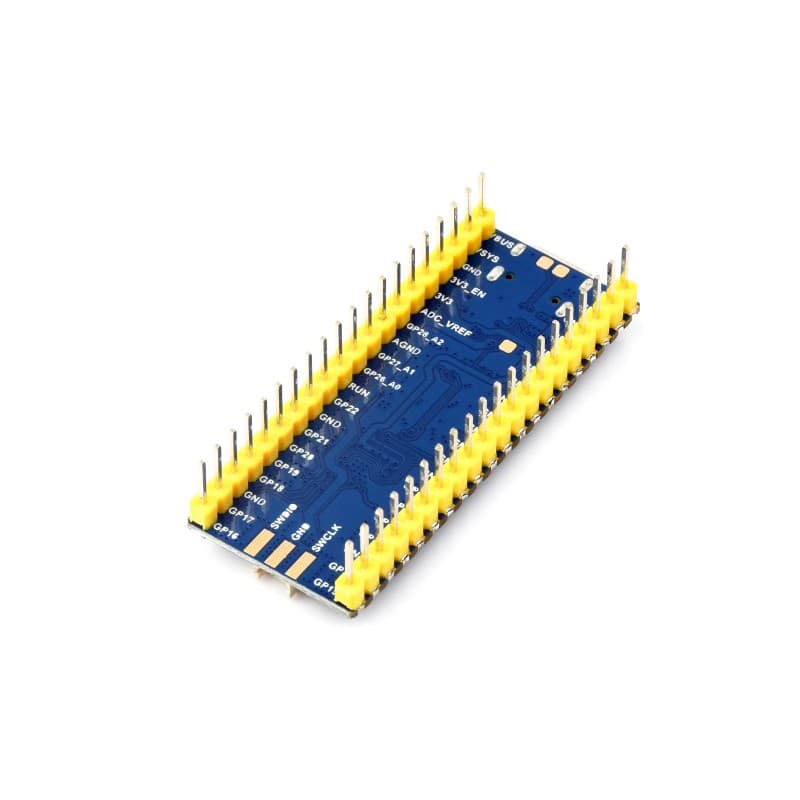

- 1x RP2350-Plus-M Waveshare 29371- board with soldered goldpins
Wiki: https://www.waveshare.com/wiki/RP2350-Plus
