WiFi+RF in-box relay with 433MHz radio remote control Tuya
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable
A state-of-the-art Wi-Fi controlled relay that provides convenient control via the Tuya app and a 433MHz radio remote control.
Thanks to this innovative technology, you can now control your appliance via the TUYA Smart app on Android or iOS devices. The app also offers advanced features such as programming weekly schedules and automatic control of your device.
The relay uses the cloud for control, which means you have full control of your device from anywhere. All you need is your phone to access the internet and the relay is connected to a Wi-Fi network.
The Tuya app also allows you to create scenarios and automatic control. For example, by adding a motion sensor, you can easily create a simple automation that turns on the lights when motion is detected in the room.

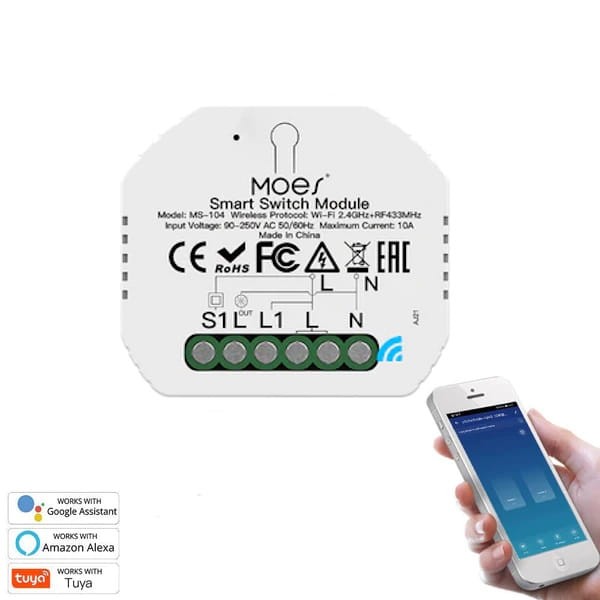

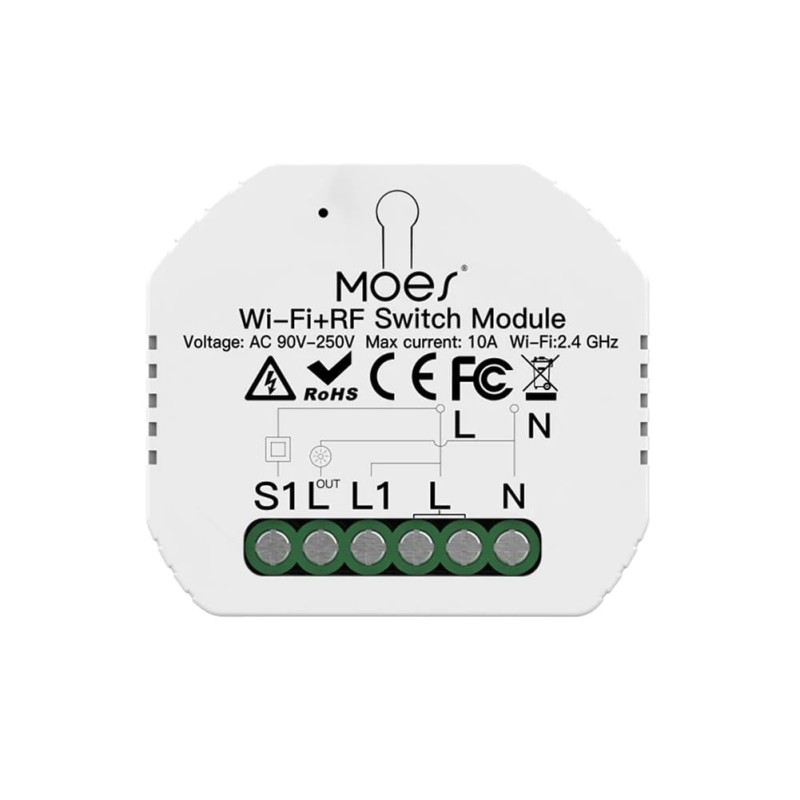

Specifications of the Moes MS-104 Wifi controlled relay:
- Works with light switches
- Works with mono and bistable key switches
- Supply voltage: 110-230V AC
- Maximum current drawn by the load: 150W for LED bulbs, 1500W for incandescent bulbs
- Control from anywhere in the world
- Creation of timetables and automatic control
- Communication: WiFi 2.4GHz, range 30 to 50m
- Radio communication: 433MHz - supported fixed-code remote controls
- Device dimensions: 47x52x18mm
- Operating temperature: 0 - 50°C
To use this module, it is necessary to connect the L and N supply lines. If there are only two wires in the current configuration of the two-button light switch, this means that there is no suitable installation to fit this relay.

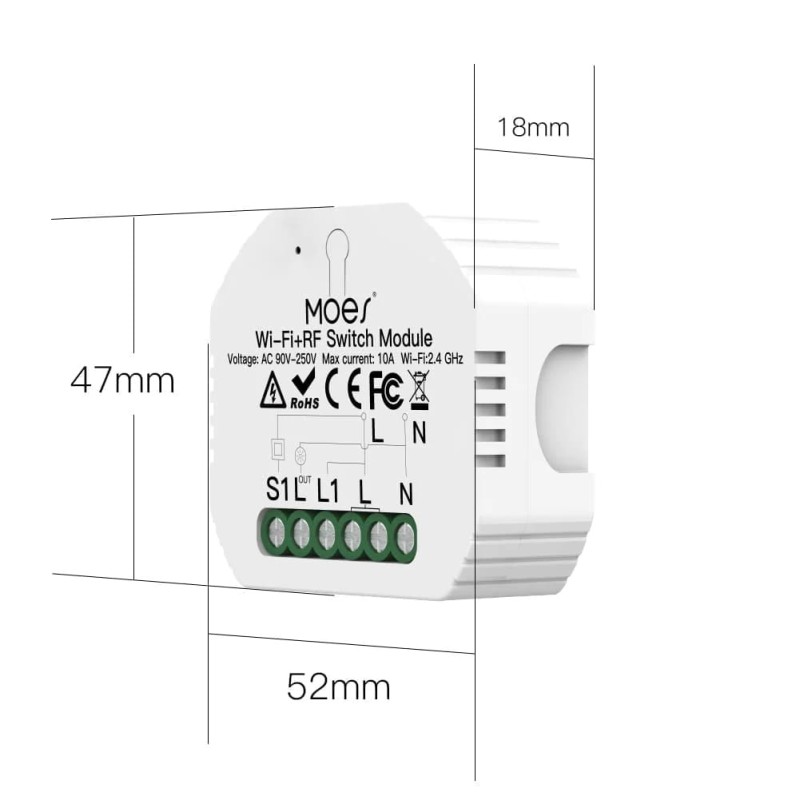

Dimensions of the Moes MS-104 relay
Thanks to the compact size of this relay, you can easily mount it in a deep box under the light switch. In addition, a bracket is included for DIN rail mounting in the control cabinet.
The kit includes:
- WiFi controlled relay
- Bracket for mounting the relay on a DIN rail
- Operating instructions
