Wifi module for DWIN wifi-10 displays

Introduction

AIoT (artificial intelligence in the Internet of Things) = AI (artificial intelligence) + IoT (Internet of Things). Following the 'integration' of AI and IoT, 'artificial intelligence' is gradually evolving towards 'applied intelligence'.

Meanwhile, the Cloud service provides a material basis for data to exploit its value.

In the era of intelligence, consumer demand for products is no longer limited to the realisation of functions, but has an urgent need in terms of intelligent application and the modernisation of human-machine interaction solutions.

DWIN Technology closely follows the market demand and continuously innovates. Based on DWIN Technology's independently developed and designed T5L ASIC for AIoT applications, and combining the company's experience in smart LCM and industrial chain integration capability, DWIN Technology continuously introduces solutions such as smart colour thermostats, WiFi-10, Cloud platform and others to help customers implement products with our innovative technologies as soon as possible.

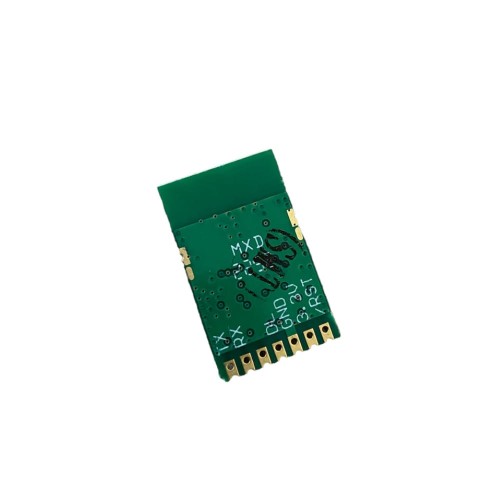

DWIN WiFi module

DWIN Technology designs a DGUS-dedicated WiFi module, the WiFi-10. DGUS II network interfaces are open, so the WiFi-10 can be directly equipped with LCM smart hardware. Users do not need to do any development of the WiFi module, simply enter the network name and password on the smart LCM and then surf the Internet. Once successfully connected to the network, the data on the smart LCM can be mapped to the cloud platform, creating a data interaction channel.

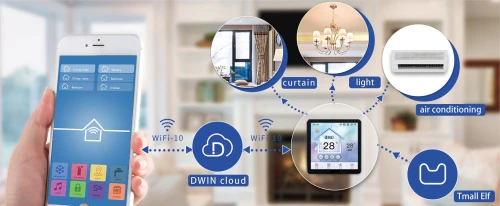

DWIN cloud platform

DWIN is committed to providing industrial customers with a more convenient and easy-to-use secondary development platform to help customers increase R&D efficiency. To help users better perform remote control and data management, DWIN officially launched the cloud development platform back in 2018. Based on its own mature human-computer interaction system, DWIN has designed an innovative and powerful intelligent IoT solution. Users can:

• Generate a management background based on DWIN's cloud platform
• Self-generate H5 pages using the DWIN Cloud APP architecture
• Focus on more efficient core cloud business development and near-zero cost

Features:

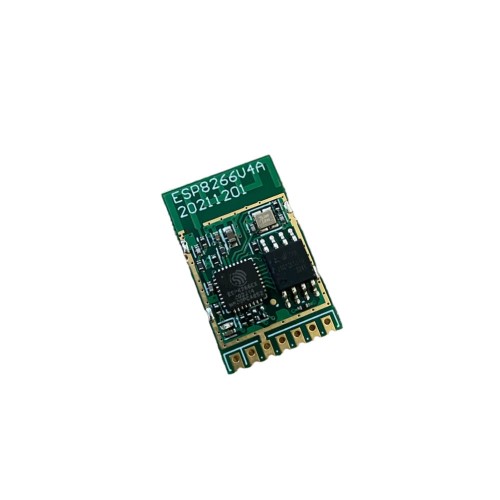

• ESP8266+4MB Flash main chip
• Support for 802.11 (2.4GHz), frequency range 2.4G ~ 2.5G (2400M ~ 2483.5M)
• Antenna type includes built-in PCB antenna
• Maximum transmit power 14dBm
• Serial baud rate 921600bps (device-side data rate)

DWIN wifi-10 datasheet note:

• wifi-10 PDF
