Wifi relay with temperature sensor and power measurement Remote temperature measurement Power measurement Tuya thermostat DS18B20 (1)
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable
Relay module with WiFi control and measurement of temperature and energy consumption of connected devices.
It can act as a thermostat, allowing the relay to be controlled according to the set temperature, thus maintaining the appropriate level of heat in the room. It is controlled via the free Tuya or Smart Life app, and it is also possible to use a radio remote control.
TYTE-D1 functions:
- Real-timetemperature measurement,
- Function as overheating protection
- Thermostat function, temperature control
- Manual relay control
- Possible control by radio remote control
- Measurement of power consumed by the load
- Historical graph of temperature and power
- Possibility to set default relay state after power-up
- High and low temperature alarms available, via push messages on phone
- 2.4GHz Wifi communication

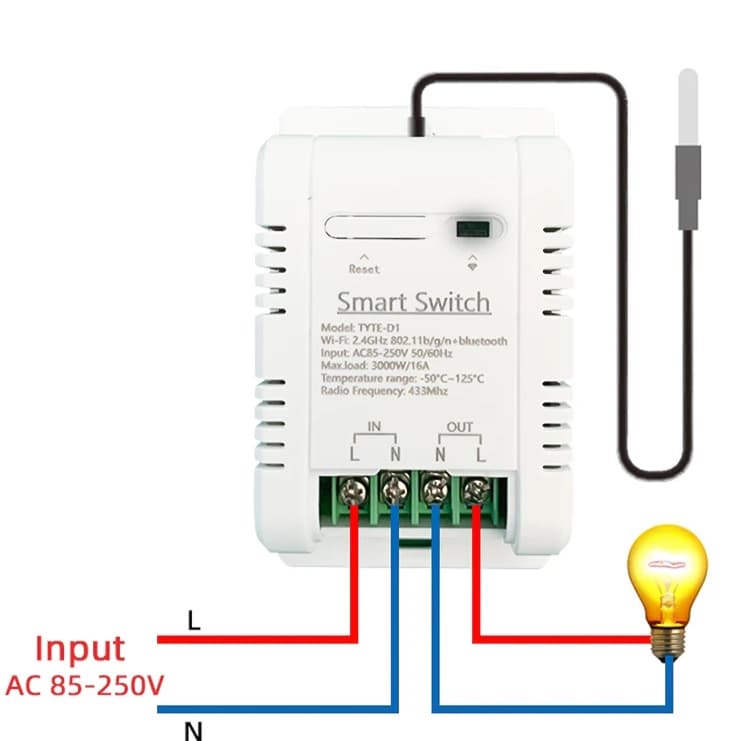

Connection method for the TYTE-D1 module

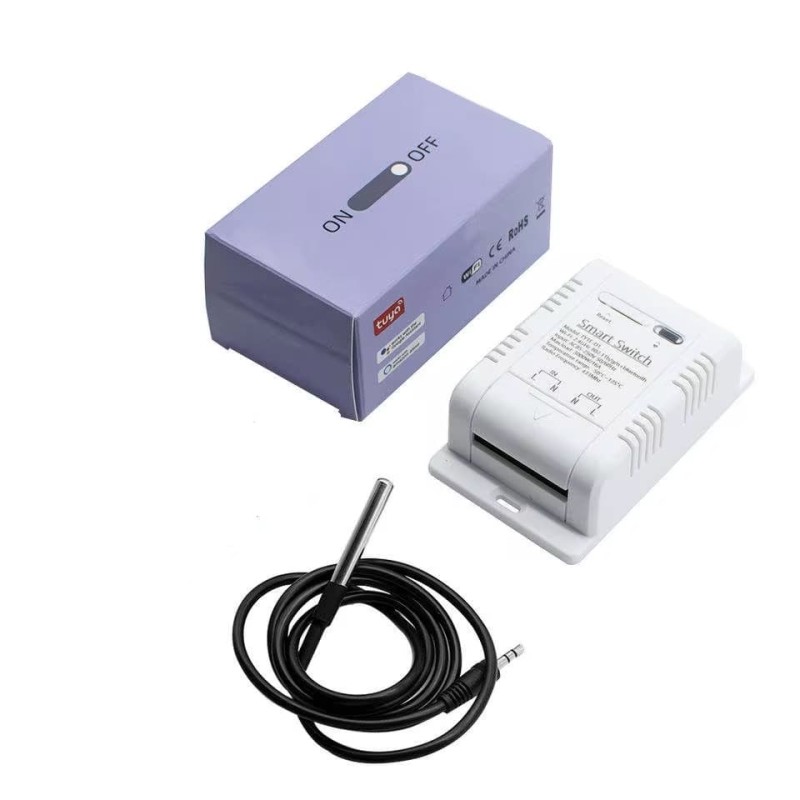

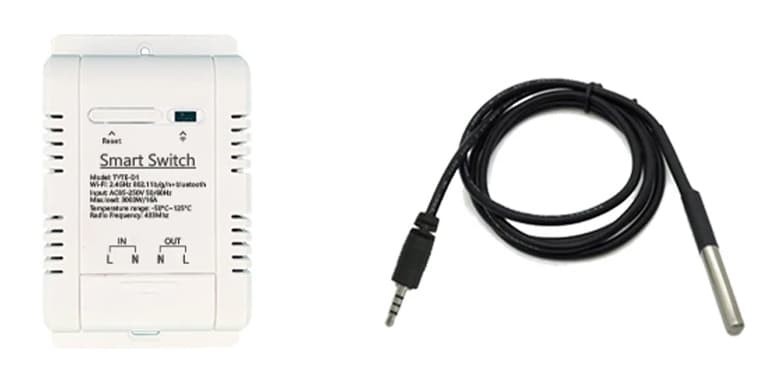

Device dimensions and kit contents:
- TYTE-D1 module
- Temperature sensor cable length approx. 1m
- User manual
Technical parameters:
- Supply voltage: : 90-250V AC, 50/60Hz
- Maximum load current: : 3000W 16A for resistive loads 1000W for inductive loads (LED light, motor)
- Temperature measurement range: -40~80 °C
- Wifi: Wi-Fi 2.4GHz 802.11 b/g/n
- RF: 433MHz fixed-code remote controls
- Temperature measurement accuracy: ±0.5℃
- Sensor cable length: ~1m
- Device dimensions: 94*57*32 (mm)

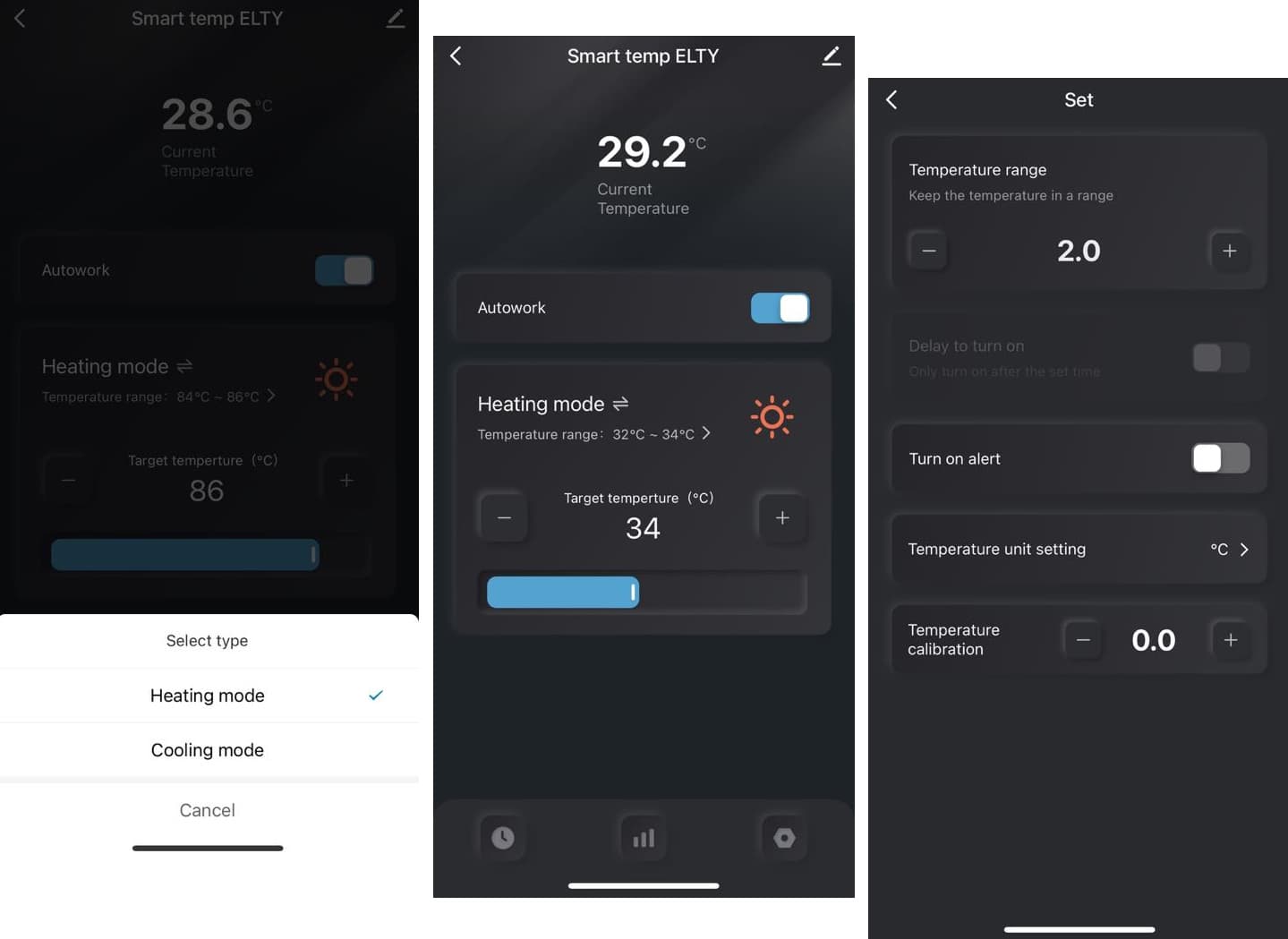

Application window and example configuration for operation in automatic mode
- Operation in heating or cooling mode
- Temperature calibration
- Hysteresis setting
- Alarm option to inform about relay activation
- Choice of temperature units

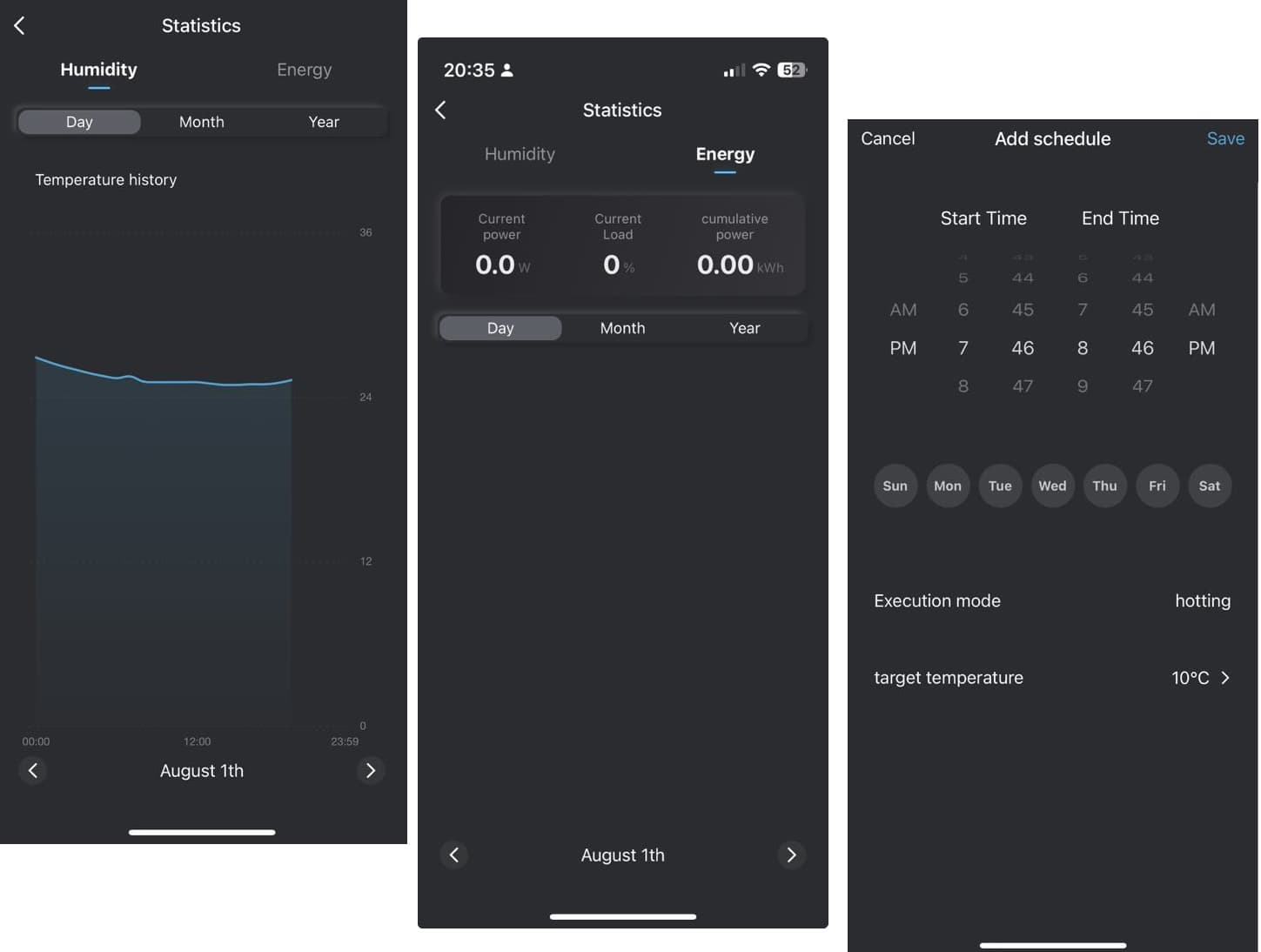

- Temperature graph
- Power consumption graph
- Automatic operation according to a schedule
