Wyświetlacz LCD 1602 dla Banana Pi
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable

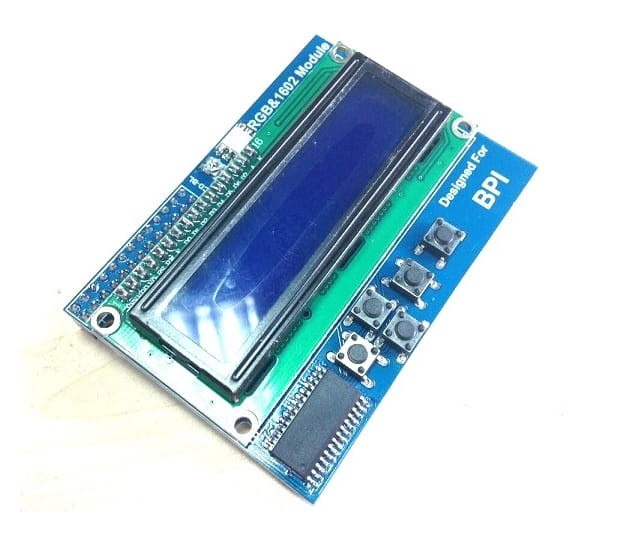

Moduł z wyświetlacze LCD1602, przeznaczony dla Banana Pi.
Na płytce modułu znajduje się również dioda LED RGB oraz 6 przycisków. Obsługa wyświetlacza realizowana jest za pomocą magistrali I2C.
Introduction:
The RGB1602 Display module is specifically designed for Banana Pi. The module with 1602 LCD screen and it communicated with Banana Pi with I2C. In addition there are six programmable key and RGB LED on the module. User can use Python or C(wiringPi) to drive the module with simple and less code.
1. Produce Features：
1602 LCD screen
RGB LED on board
6 programmable single key
Communicate with I2C
Can be controlled by the program backlit lights out
2. Port：
Banana Pi connection port
3. Product Parameters：
Working voltage: 5.0V
ASC II string can be sidplay
4 wire to drive the 1602 LCD screen
Use MCP23017 to expand IO
4. Typical Application：
Information monitoring
School educational
Human-computer interaction

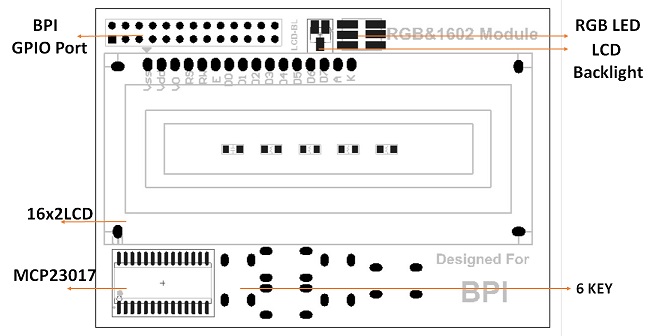

1. Product Specification：

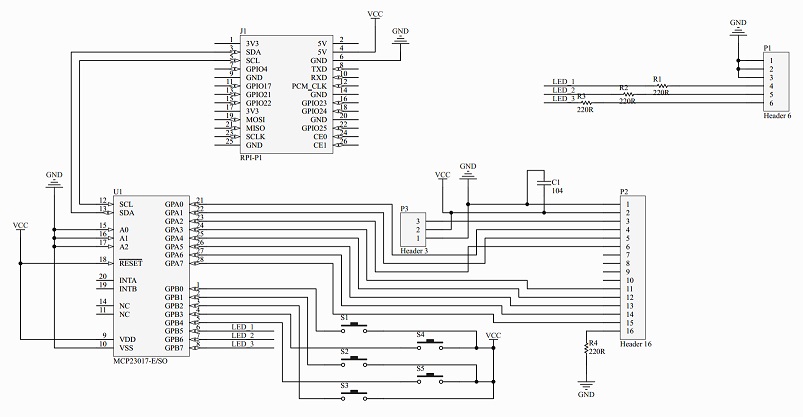

2 Schematic diagram：
