Wyświetlacz LCD 3.2" z panelem dotykowym dla ODROID-C1
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable
Wyświetlacz z panelem dotykowym przeznaczony dla Odroid-C1.
Specyfikacja:
- przekątna: 3,2"
- rozdzielczość: 320x240 pixeli
- panel dotykowy: rezystancyjny
- sterowanie: SPI
- na płytce modułu umieszczone zostały dodatkowe przyciski sterujące
Instrukcja instalacji:
http://odroid.com/dokuwiki/doku.php?id=en:c1_lcdshield
Wyświetlacz nie współpracuje z sytemem Android.

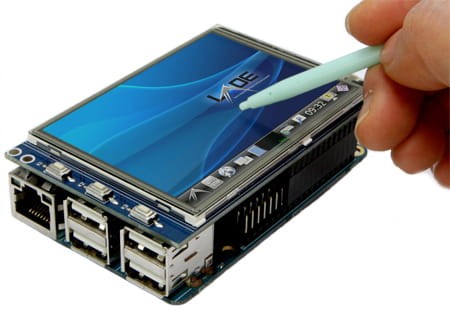

Fully assembled 3.2inch display with 320x240 pixels TFT LCD and a resistive touch overlay. Just plug it on top of ODROID-C1. 2x13 tall female header is already soldered on the PCB.
Fast 30Mhz SPI is used for the faster frame rate.
You will need an official Ubuntu image to configure it.
You can simply download the Kernel updates and configure your ODROID-C1 for this display shield.
Please follow the step by step guide from the WiKi. If not, the display doesn't work.
http://odroid.com/dokuwiki/doku.php?id=en:c1_lcdshield
Note: this display is NOT compatible with Android platform.
PACKAGE INCLUDES

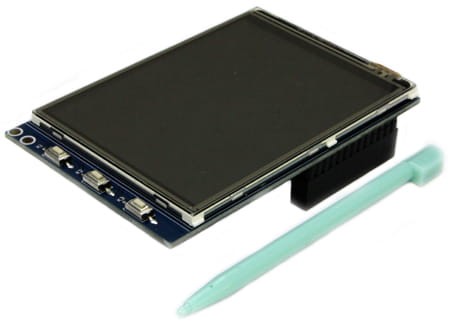

You will see a fully assembled C1 3.2inch Touchscreen Display Shield and a Stylus pen.
Specification
| LCD Type | TFT |
| LCD Interface | SPI |
| Touch Screen | Resistive |
| Touch Screen Controller | XPT2046 (SPI) |
| Colors | 65536 (16bit RGB-565) |
| Backlight | LED |
| Resolution | 320 x 240 pixels |
| Aspect Ratio | 4:3 |
| Weight | 44g |
* Limitation : GPU/VPU Hardware acceleration required OpenGL-ES and Video playback are not supported.
To playback a video on this screen, you need a trans-coded 320x240 video file with FFMPEG software decoding.
Interface Connector
| Pin # | Symbol | Description |
| 1, 17 | 3.3V | Power positive (3.3V power input) |
| 2, 4 | 5V | Power positive (5V Power input) |
| 3, 5, 7, 8, 10, 22 | NC | NC |
| 6,9,14,20,25 | GND | Ground |
| 11 | TP_IRQ | Touch Panel interrupt, low level while the Touch Panel detects touching |
| 12 | KEY1 | Key |
| 13 | RST | Reset |
| 15 | LCD_RS | LCD instruction control, Instruction/Data Register selection |
| 16 | KEY2 | Key |
| 18 | KEY3 | Key |
| 19 | LCD_SI / TP_SI | SPI data input of LCD/Touch Panel |
| 21 | TP_SO | SPI data output of Touch Panel |
| 23 | LCD_SCK / TP_SCK | Serial clock of LCD/Touch Panel |
| 24 | LCD_CS | LCD chip selection, low active |
| 26 | TP_CS | Touch Panel chip selection, low active |
