X200 EXPANSION BOARD

X200 EXPANSION BOARD

Price: €18.79

incl. 23% TAX, excl. shipping costs

Regular price:

18.79

The lowest price during 30 days prior to the reduction:

・Kup teraz i zapłać za 30 dni

quantity szt.

product unavailable

Availability: brak towaru

Vendor: Suptronics

Product code: 1575

ask about product

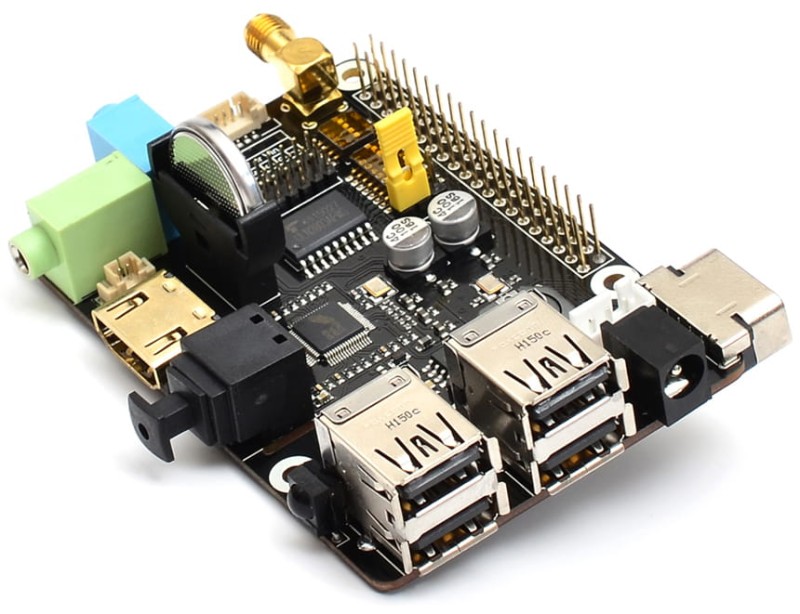

Moduł rozszerzający możliwości Raspberry Pi B+\ RPI2, na płycie moduły znajduje się:

Przetwornica DC\DC umożliwiająca zasilenie RPI ze źródła napięcie 6-21V DC
konwerter HDMI -> VGA
karta dźwiękowa z wyjściem i wejściem analogowym oraz SPDIF na układzie CM119
karta WiFi na RTL8188CUS
odbiornik podczerwieni
zegar RTC podtrzymywany baterią
układ ULN2803 umożliwiający sterowanie większymi obciążeniami
HUB USB

Więcej informacji dostępnych jest na stronie producenta: x200

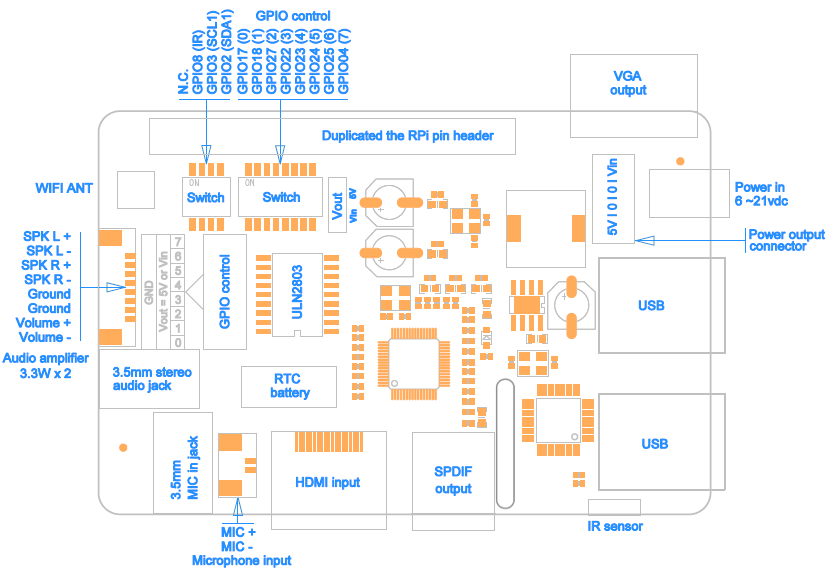

KEY FEATURES

Input Voltage	- 6V to 21Vdc converted to 5V, 3A via step-down DC/DC converter to power the Raspberry Pi
VGA output	- HDMI to VGA converter supporting up to UXGA (1600×1200) and 1080p with 10-bit DAC
Audio	- 3.5mm MIC in jack - 3.5mm stereo audio jack - SPDIF output - Audio IO connector (Microphone input and stereo audio amplifier 3.3Wx2)
Wireless	- WiFi (IEEE 802.11b/g/n) with external antenna - IR sensor (38KHz)
USB Storage	- Self-powered USB hub with 3 ports
Real-time clock (RTC)	- Based on DS3231SN with included CR2032 battery
GPIO Control	- 8-channel Darlington driver chip (ULN2803) allowing to control electronic circuits which require more current

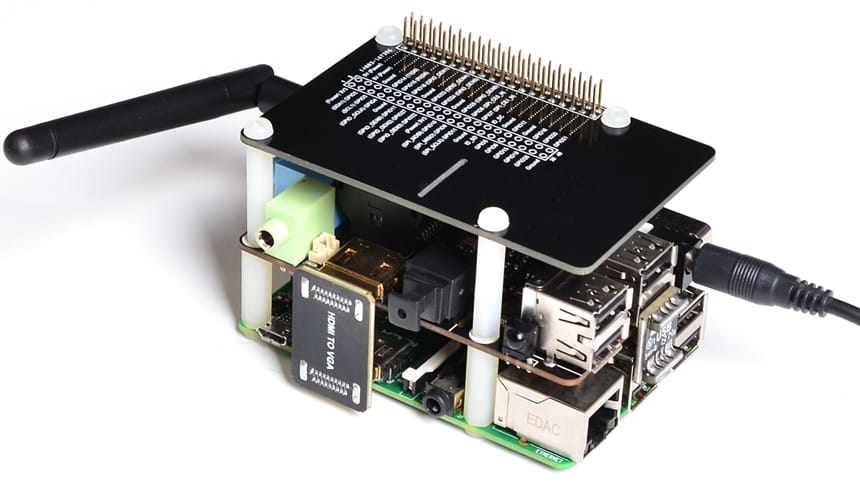

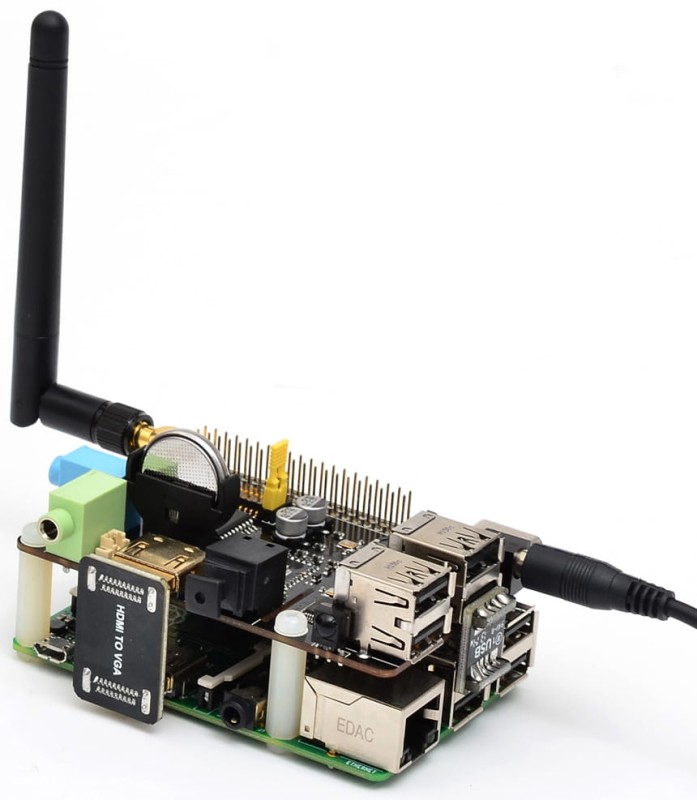

Misc	- Power output socket - Camera flex slot so camera can still be used with the expansion board attached - DIP switch to remove connection from RPi’s pin header - Directly connected on top of the Raspberry Pi using the board GPIO header pins - No wiring nor soldering is required - Duplicated the 40-pin header of the R-Pi in order to support existing expansion boards - Suitable for Raspberry Pi Model B+ and Raspberry Pi 2 Model B NEW!
Dimensions	- 85 x 56mm (Same size as Raspberry Pi)

PACKING LIST

1 x X200 expansion board

1 x HDMI adapter

1 x USB adapter

1 x 2.4GHz WIFI antenna

4 x nylon spacers (M3 x 20mm)

8 x nylon screws (M3 x 6mm)

QUICK START GUIDE
	A. Fitting the expansion board B. Download and install the pre-built image - Optional C. Power supply D. HDMI to VGA converter E. Microphone input and audio output F. Audio input and output interface G. Setting RTC time H. Setting up the IR remote I. ULN2803 8-channel RC servo port
