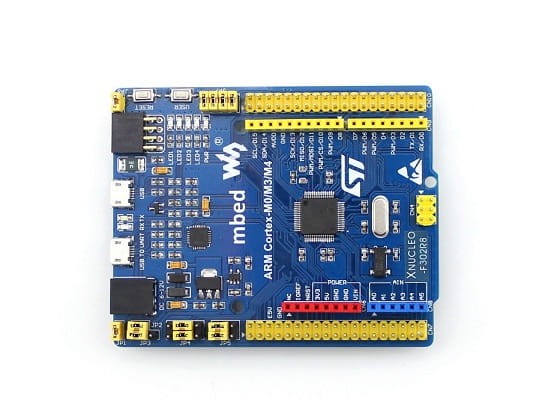

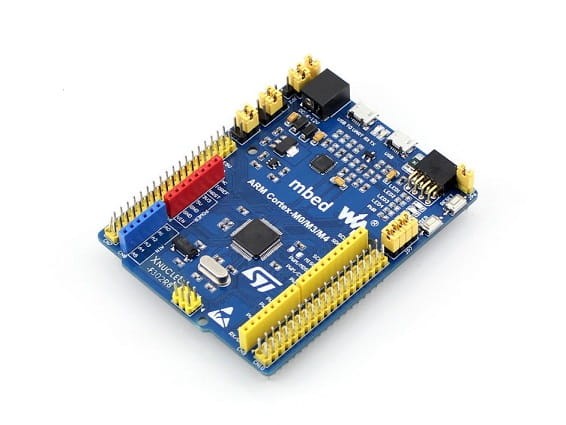

XNUCLEO-F302R8

XNUCLEO-F302R8 płytka zgodna z NUCLEO-F302R8, dzięki kilku modyfikacją momentami znacznie ją przewyższająca.

Dane podstawowe płytki:

• Zgodna z NUCLEO-F302R8, mikrokontroler Cortex-M4 STM32F302R8T6
• Posiada złącza umożliwiające montaż shieldów Arduino
• Złącza ST Morpho headers zapewniające dostęp do wszystkich pinów I/O STM32,
• Obsługa mbed, build prototype quickly by mbed SDK and online tools
• Comprehensive free software HAL library including a variety of software examples

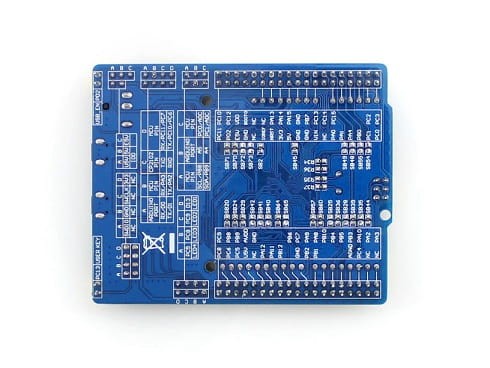

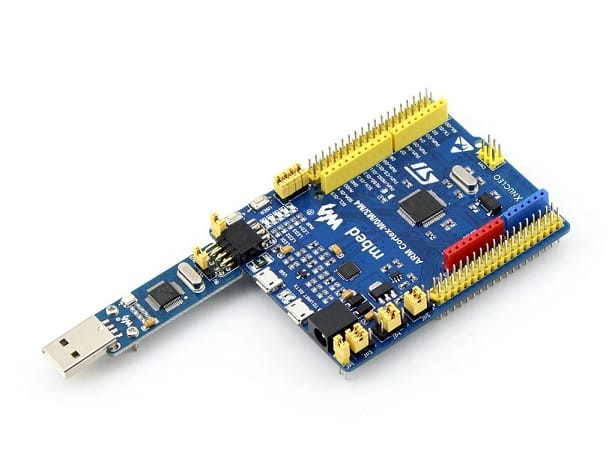

• W zestawie znajduje się osobny moduł programatora ST-LINK/V2, który może zostać wykorzystany z innych konstrukcjach

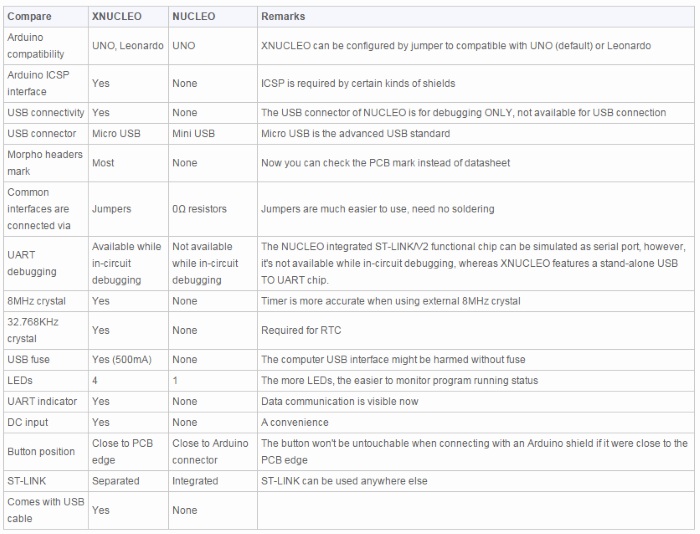

Porównanie płytki XNUCLEO z NUCLEO

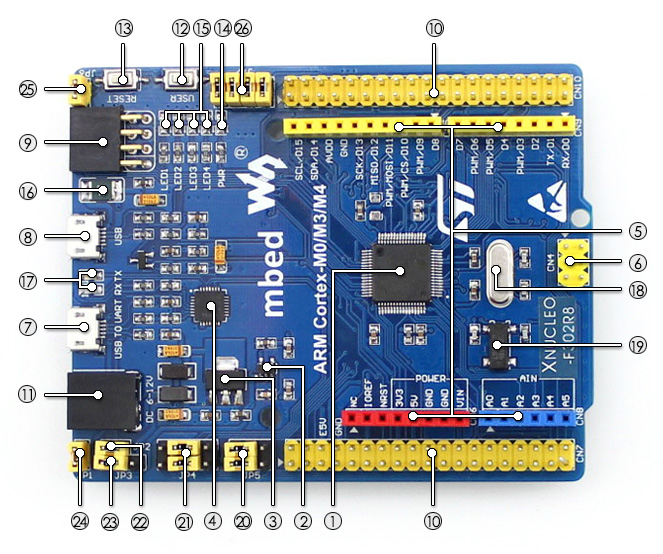

What's on the XNUCLEO-F302R8

1. STM32F302R8T6

   • Core : ARM® 32-bit Cortex™-M4
   • Operating frequency : 72MHz
   • Operating voltage : 2.0V-3.6V
   • Package : LQFP64
   • Memories : 64kB Flash, 16kB SRAM
   • Interfaces : 2 x SPI, 3 x USART, 3 x I2C, 1 x CAN, 1 x USB
   • AD/DA : 1 x AD (12 bit), 1 x DAC (12 bit)
2. SPX3819M5 : 3.3V voltage regulator
3. AMS1117-5.0 : 5.0V voltage regulator
4. CP2102 : USB to UART convertor
5. Arduino connector : for connecting Arduino shields
6. ICSP interface : Arduino ICSP
7. USB TO UART : for debugging
8. USB connector : USB communication interface
9. SWD interface : for programming and debugging
10. ST Morpho headers : access to VCC, GND and all the I/Os, easy for expansion
11. 6-12V DC input
12. User button
13. Reset button
14. Power indicator
15. User LED
16. 500mA fast self-recovery fuse
17. Serial port Rx/Tx indicator
18. 8MHz crystal
19. 32.768KHz crystal
20. ADC/I2C selection jumper

    • short A and B : Arduino A4, A5 is used as I2C
    • short B and C : Arduino A4, A5 is used as ADC
21. UART selection jumper
22. MCU current test jumper : for low power tests
23. Power selection jumper

    • short 5V and U5V : powered from USB connection
    • short 5V and E5V : powered from external power supply
24. USB enable jumper

    • short the jumper to enable
    • open the jumper to disable
25. User button jumper

    • short the jumper to connect to I/Os used in example code
    • open the jumper to connect to other custom pins via jumper wires
26. User LED jumper

    • short the jumper to connect to I/Os used in example code
    • open the jumper to connect to other custom pins via jumper wires

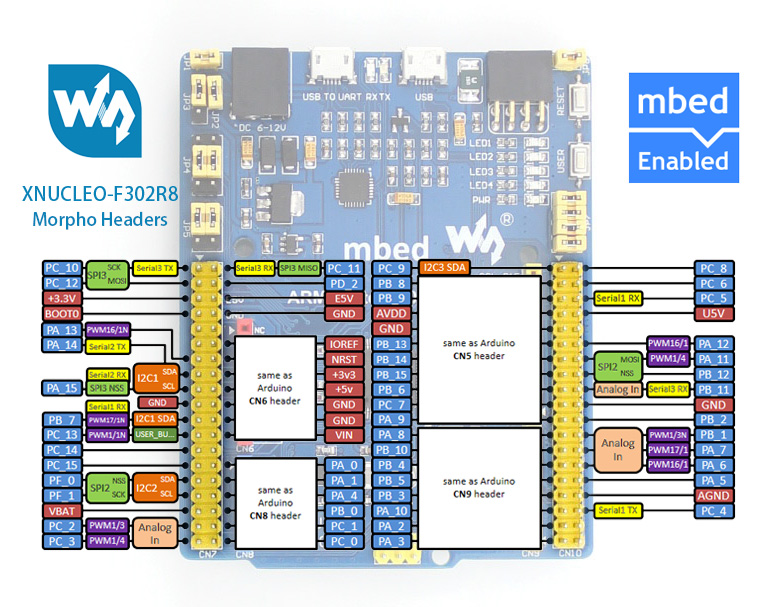

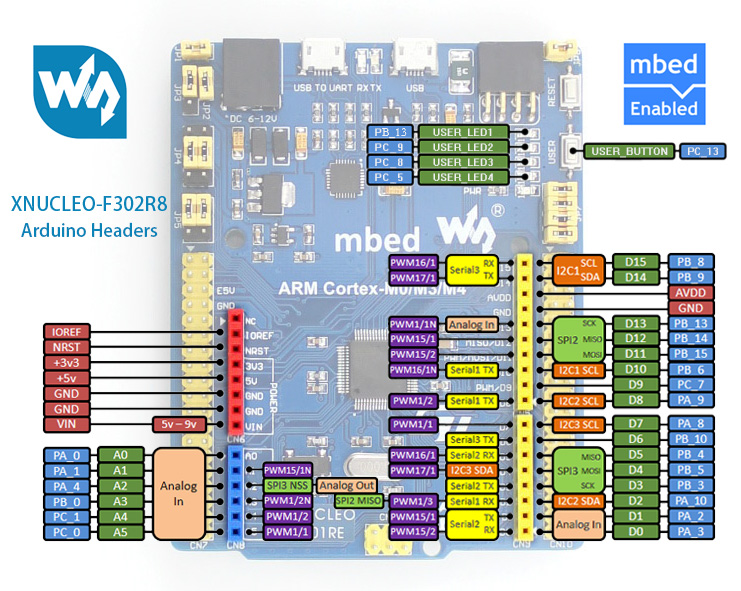

XNUCLEO-F302R8 Expansion Headers

XNUCLEO-F302R8 Dimension

Downloads

Development resources: demo codes, schematic, datasheets, etc.
Click here to download

Package Contains
