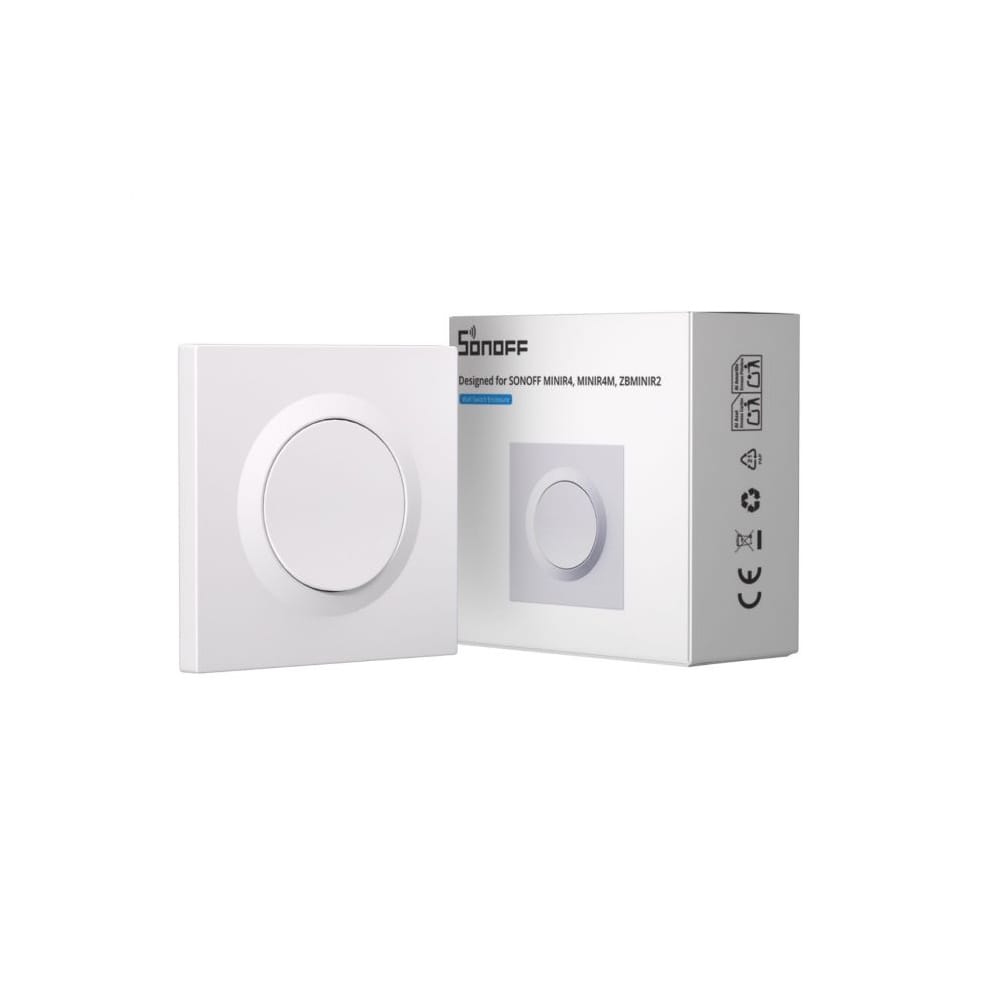

SONOFF E1GS wall switch case
The SONOFF E1GS wall switch case is an elegant and ultra-thin solution designed specifically for flush-mounted relay modules such as MINIR4, MINIR4M, and ZBMINIR2. It features an innovative snap-fit mounting and a thickness of less than 23 mm, which allows for seamless installation in standard round EU installation boxes.
Key features:
- Made of fire-resistant PC material: scratch resistance, high durability, and no deformation over time.
- Innovative snap-fit mounting: simplifies the wiring process, reduces installation time, and minimizes the risk of errors.
- Ultra-thin profile: maximum thickness of less than 23 mm, ideal for standard round EU boxes and 86 type.
- Micro-arc button design: provides precise, effortless, and extremely comfortable feedback.
- Wide compatibility: dedicated to SONOFF MINIR4, MINIR4M, and ZBMINIR2 modules (requires a neutral wire).

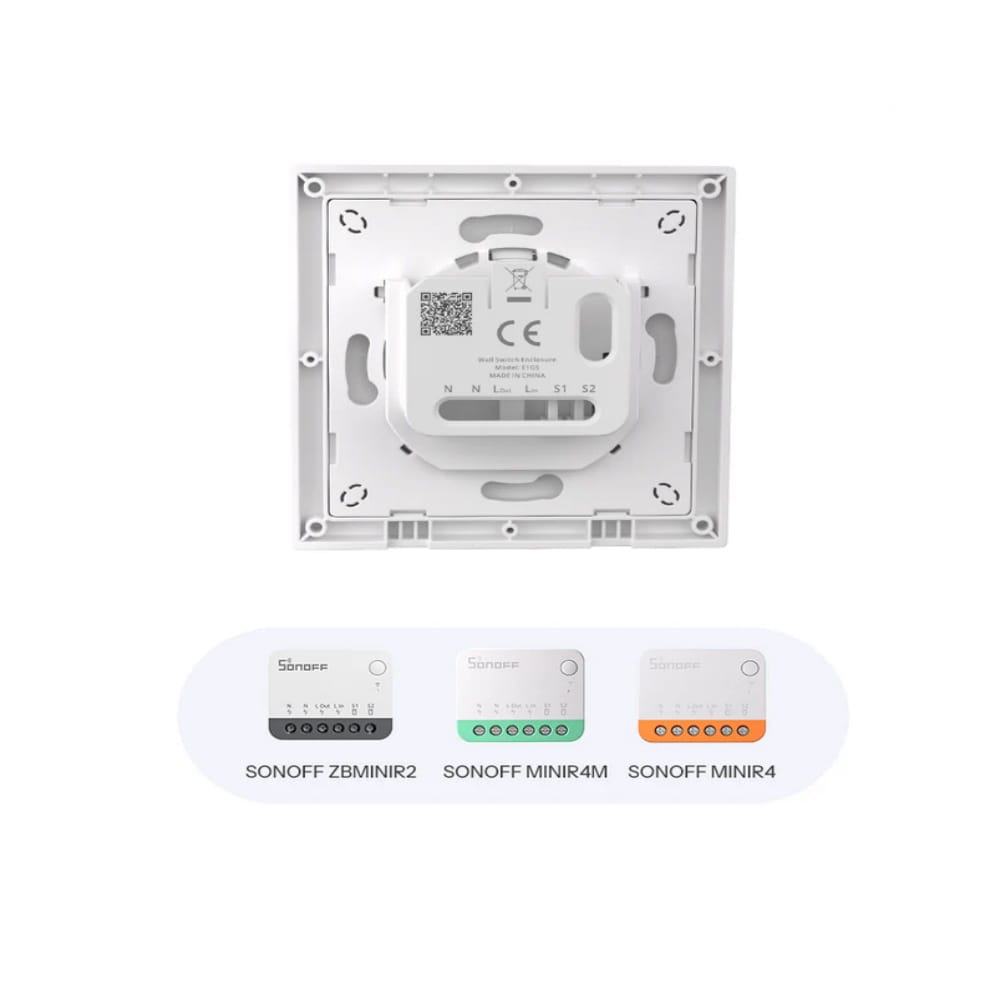

Compatible SONOFF flush-mounted modules
The case was created for seamless cooperation with popular SONOFF relay modules, allowing you to aesthetically hide smart home control electronics on the wall.
Pulse mode configuration
When using the case with modules such as MINIR4, MINIR4M, ZBMINIR2, or ZBMINIL2, ensure that "Pulse Mode" is enabled. This can be done in two simple steps:
- Via the eWeLink app: Go to device settings, find the "Switch mode" option, and change it to "Pulse mode".
- Manually (without the app): Quickly press the button on the module three times in a row. When the indicator light flashes quickly three times, it means the mode has been switched successfully. If you encounter problems, repeat this step.

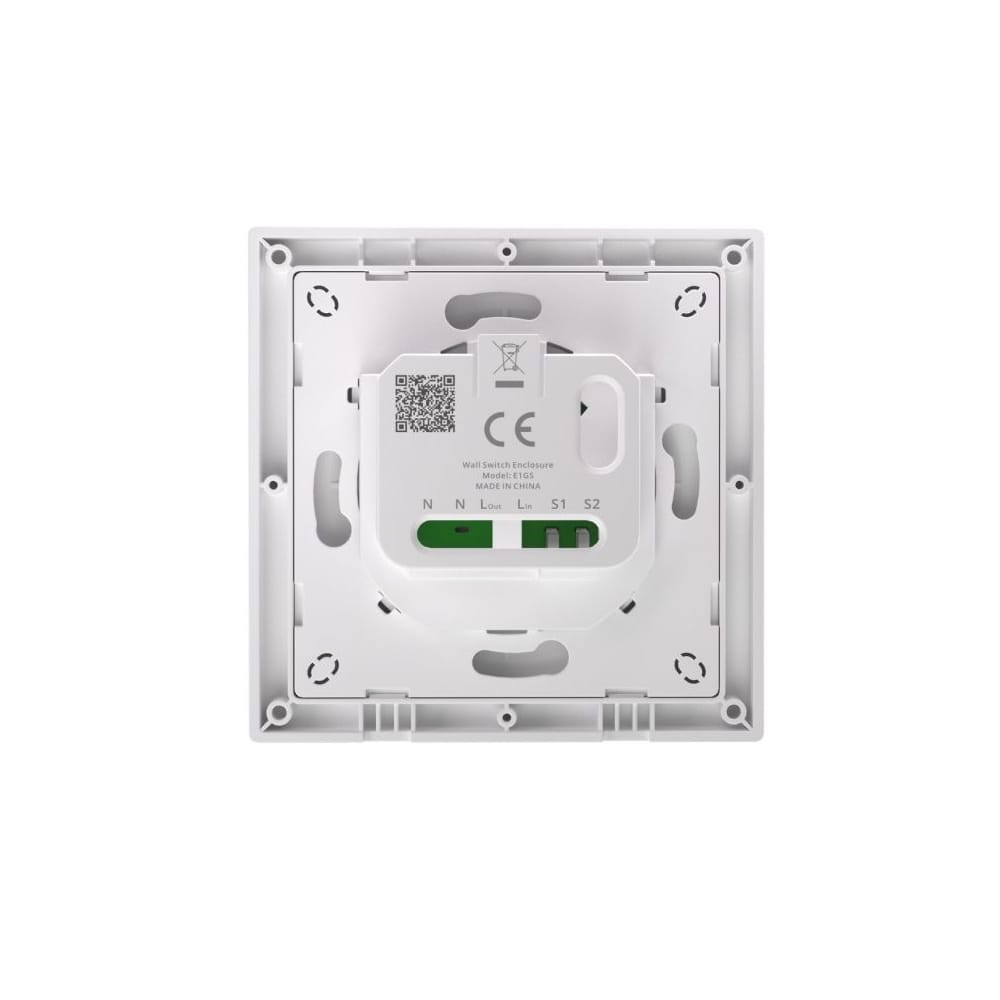

Wiring instructions
Before connecting the wires, loosen all screws on the terminals of the SONOFF flush-mounted module. After inserting the appropriate wires, tighten the screws firmly to ensure a stable power supply and avoid failures.
Case dimensions
Installation method
Installing the switch is intuitive, and the snap-fit system makes screwing the box to the wall and attaching the front panel take just a moment.
Kit contents
- SONOFF E1GS wall switch case
- Mounting accessories for the box
Safety
