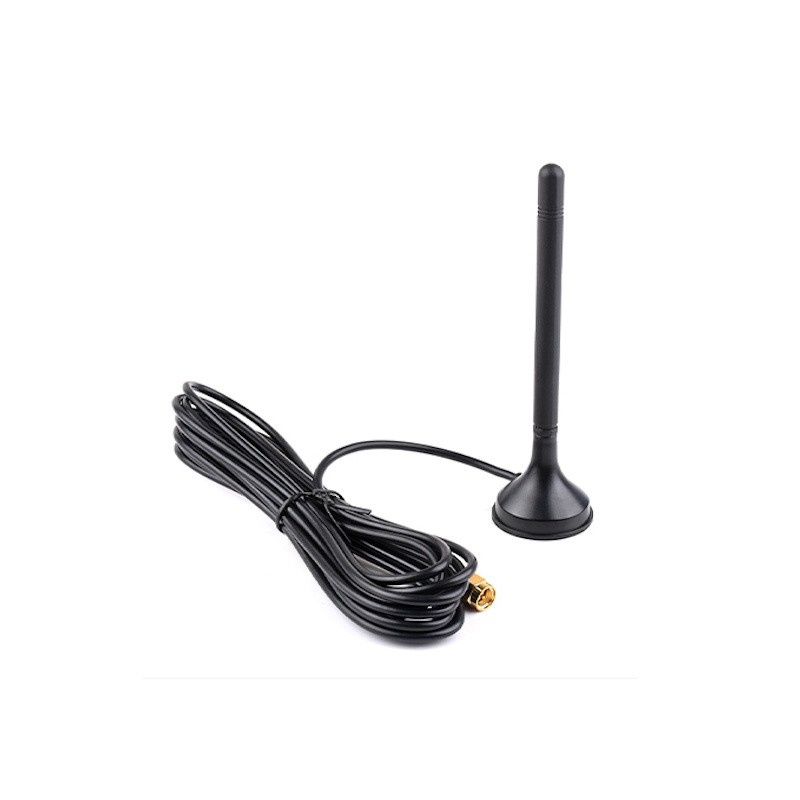

LoRa 868/915MHz Outdoor Waterproof LPWA Antenna with Magnetic Base – 5dBi Support for LoRa/4G/3G/2G/LPWA
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable

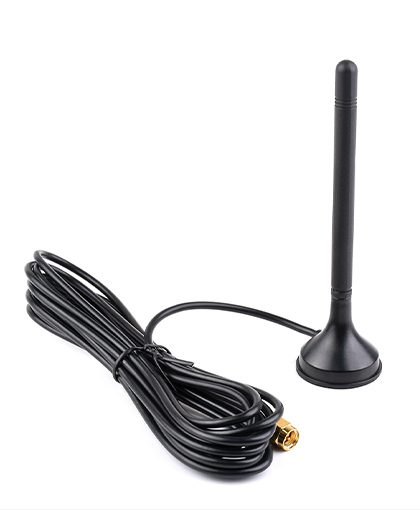

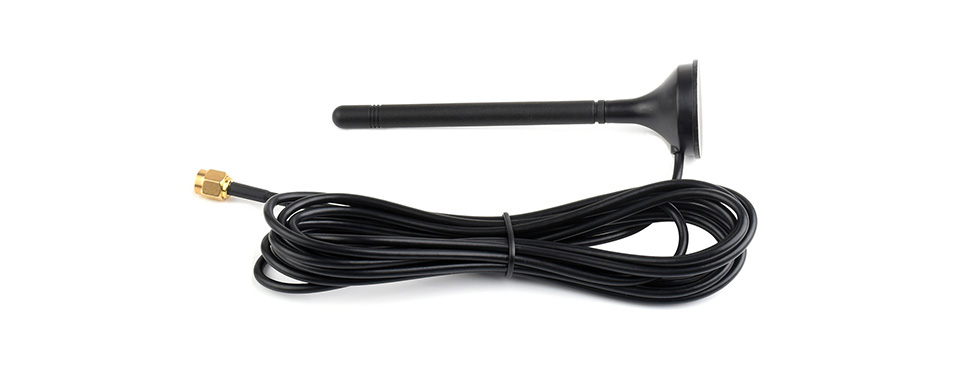

Outdoor Waterproof LPWA Antenna with Magnetic Base – 5dBi, Supports LoRa/4G/3G/2G/LPWA
This outdoor LPWA antenna offers a high gain of 5dBi, featuring a robust, waterproof enclosure (IP65) and a magnetic base for easy and stable mounting. The antenna is universal, supporting a wide frequency range (690~2700MHz), making it ideal for signal amplification in LPWA, LoRa, 4G, 3G, and 2G systems. With its interchangeable antenna design and 3-meter cable, it is perfectly suited for challenging outdoor conditions.
Key Features:
- Energy Gain: 5dBi (High gain)
- Network Support: 4G / 3G / 2G / LPWA / LoRa
- Wide Frequency Range: 690 ~ 2700MHz
- Connector: SMA male connector
- Base: magnetic, ensuring secure mounting
- Waterproof Rating: IP65
- Antenna Height (868/915M version): approximately 11 cm
- Cable Length: 3 meters
- Polarization: vertical
- Design: interchangeable antenna

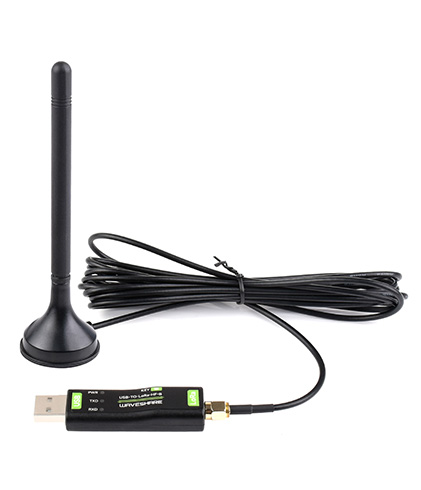

- LoRa Module Compatibility: The antenna is fully compatible with the USB-TO-LoRa-HF Waveshare 24515 and SX1262-LoRa-DTU-HF-Kit (EU) Waveshare 23799 modules, available in our store.

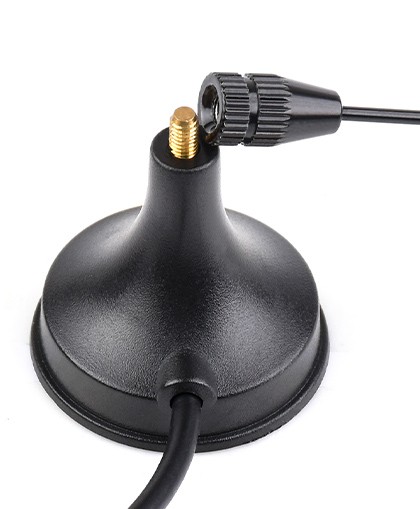

Design Details
The design allows for antenna exchange, and the stable magnetic base facilitates mounting on metal surfaces.

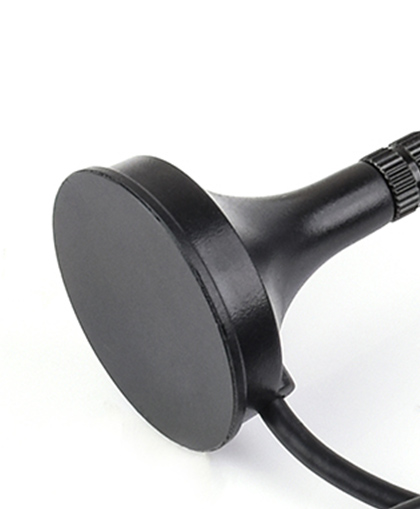

Magnetic Base
The strong magnetic base ensures quick and secure fastening, ideal for outdoor use, such as on a vehicle roof or metal cabinet.
Outline Dimensions (868/915M Version)
Technical Specifications:
- Supported Networks: 4G/3G/2G/LPWA
- Gain: 5dBi
- Frequency Range: 690 ~ 2700MHz
- Connector: SMA male
- Maximum Power Input: 10W
- Output Impedance: 50Ω
- SWR Ratio: ≤2.0
- Polarization: vertical
- Antenna Height (868/915M): ~11cm
- Cable Length: 3m
- Waterproof Rating: IP65
Package Content
- 868/915M Magnetic Mount Antenna x1
