Mini Dual Gigabit Ethernet Base Board / Mini-Computer Kit for Raspberry Pi Compute Module 5

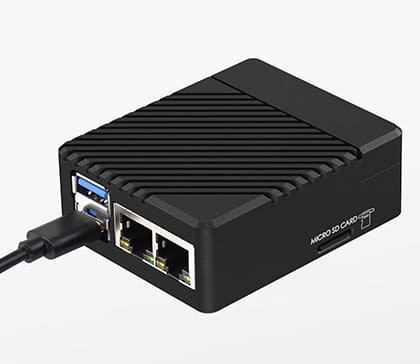

Miniature base board with dual Gigabit Ethernet ports, designed for the Raspberry Pi Compute Module 5 (CM5) – ideal for applications requiring compact size. Compatible with all CM5 variants (Lite and eMMC), it is suitable for both prototyping and integration into end products.
Key Features:
- Dedicated for Raspberry Pi Compute Module 5 (all variants: Lite / eMMC)

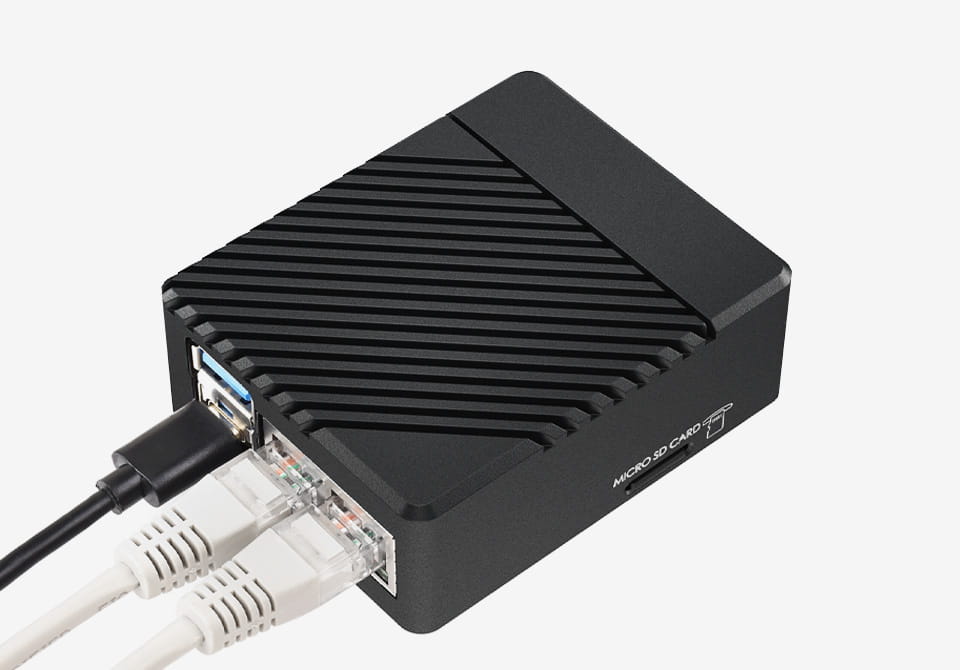

- Dual Gigabit Ethernet RJ45 ports – stable 10/100/1000M network
- USB 3.0 (Type A) connector – fast connection of peripherals
- Standard 40-pin GPIO header Raspberry Pi – compatibility with HAT modules
- TF card slot – for CM5 Lite variants (without built-in eMMC memory)
- SH1.0 (4-pin) fan connector – with speed control and RPM measurement (5V)
- Power supply: 5V via USB Type-C interface
- Compact dimensions: 61.0 × 75.0 × 27.5mm (case)
- Built-in RTL8111H network controller
- eMMC programming capability via Type-C port
Connection with Compute Module 5

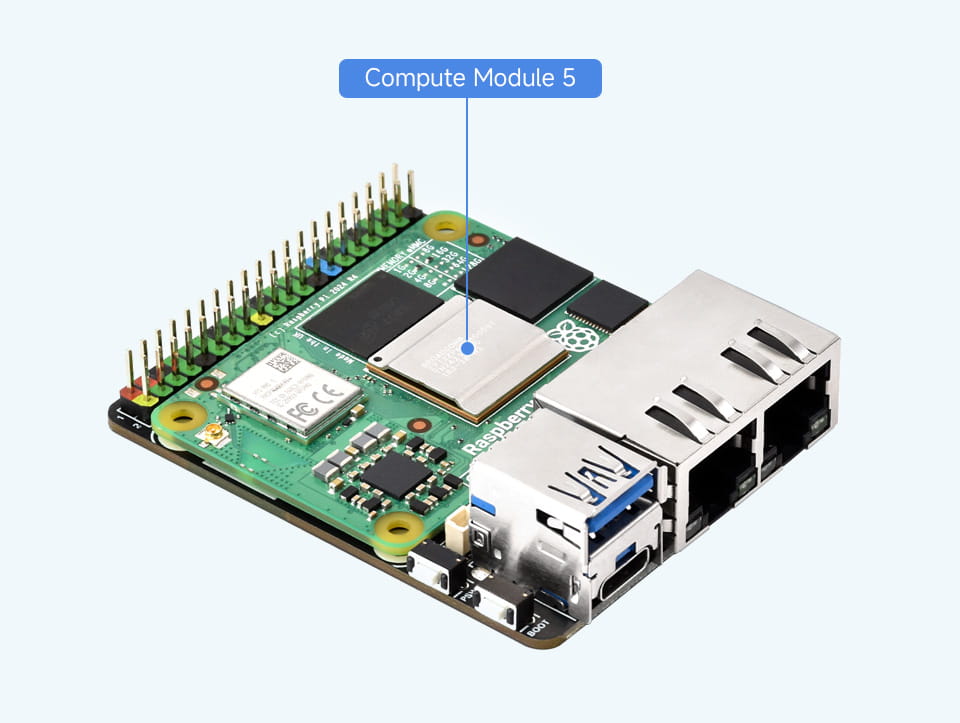

Standard CM5 socket and 40-pin GPIO connector – compatible with CM5 Lite/eMMC modules.

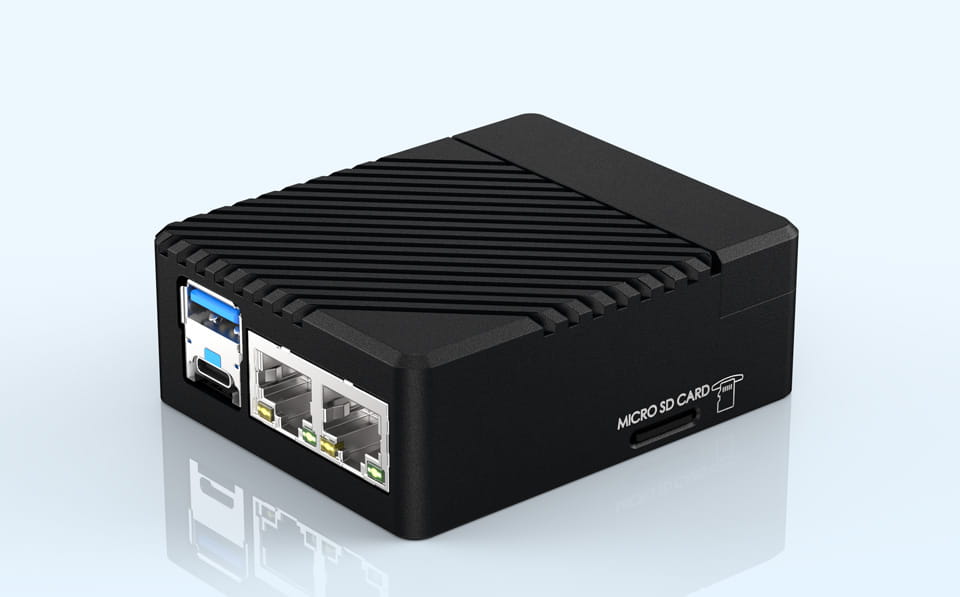

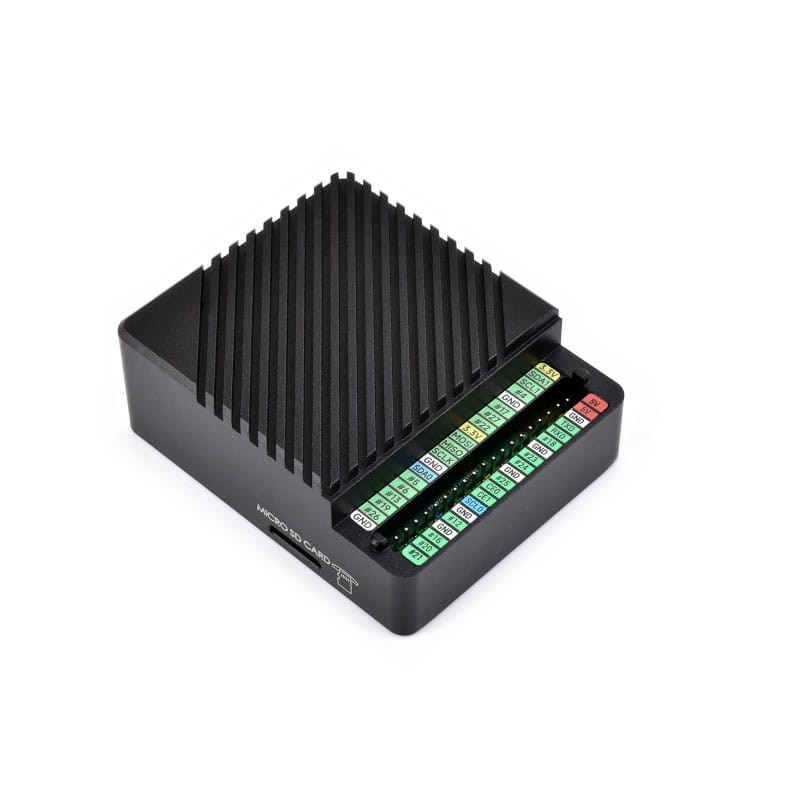

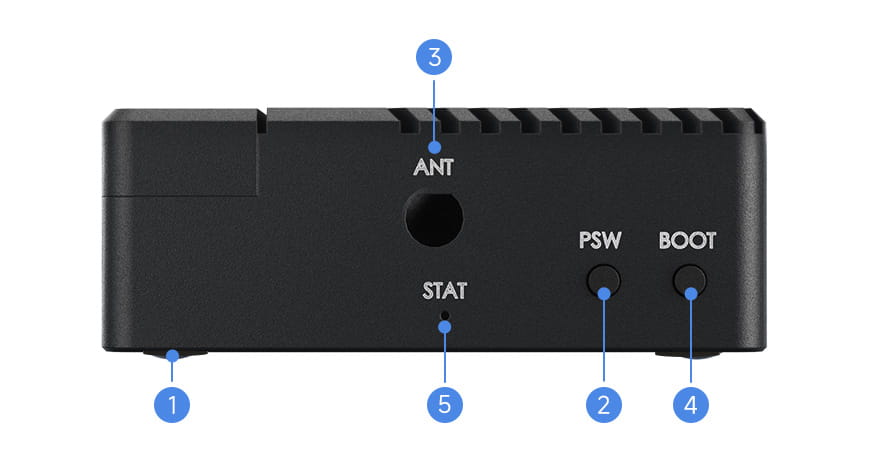

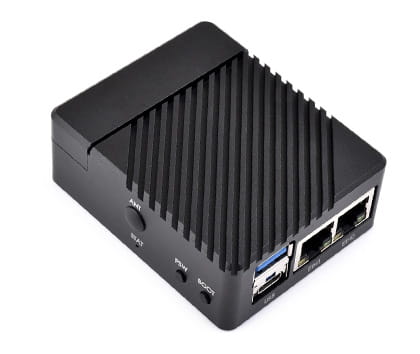

Precisely crafted cutouts with clear markings. Each cutout is perfectly matched to the respective connector.
- Anti-slip rubber feet

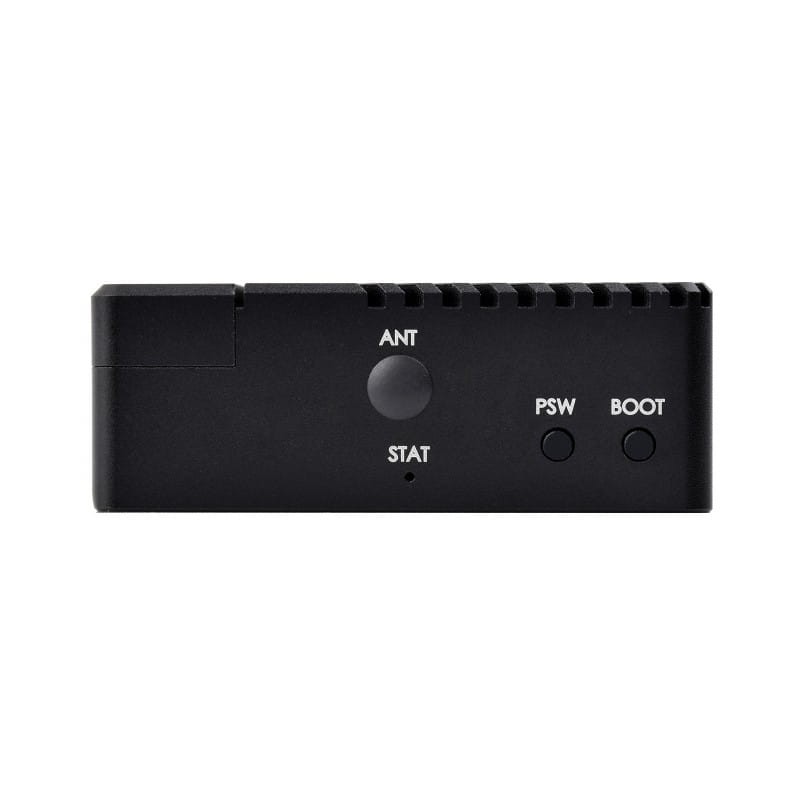

- PSW button for power on/off
- Antenna connector for connecting an antenna to create a wireless router
- BOOT button
- LED indicator

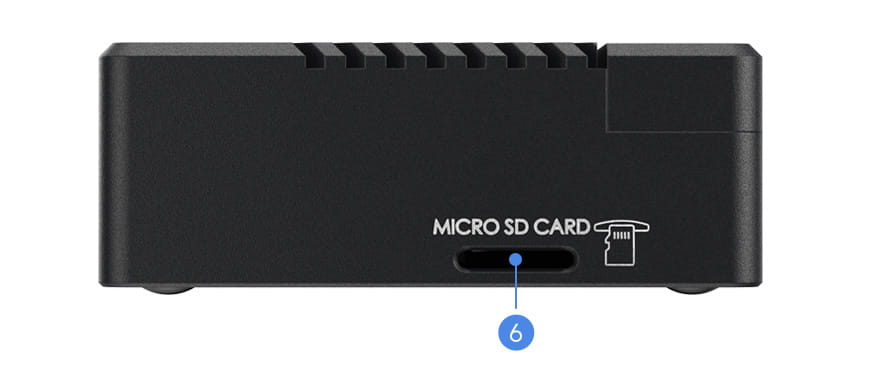

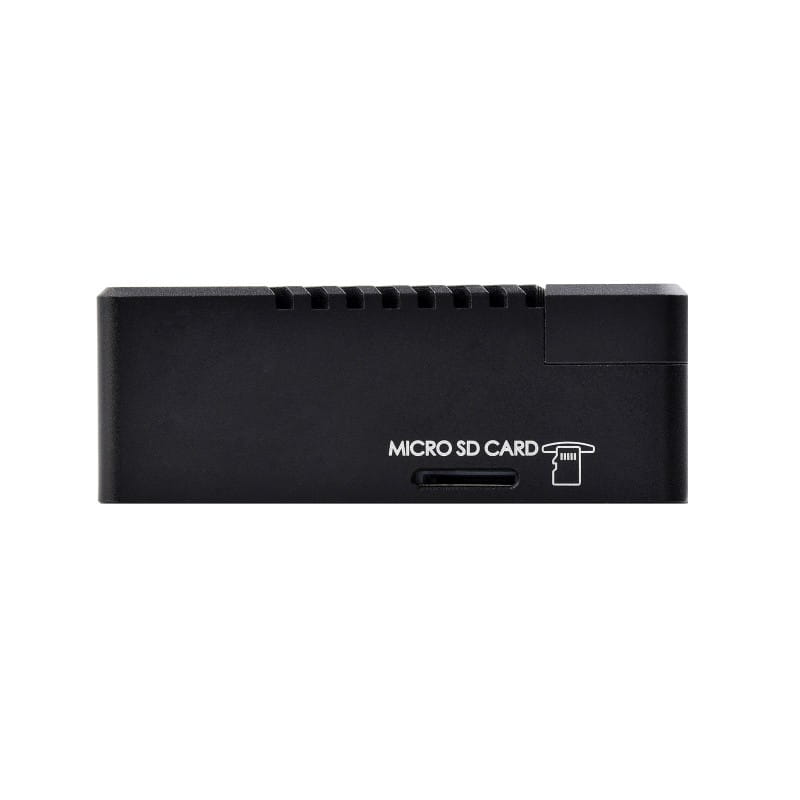

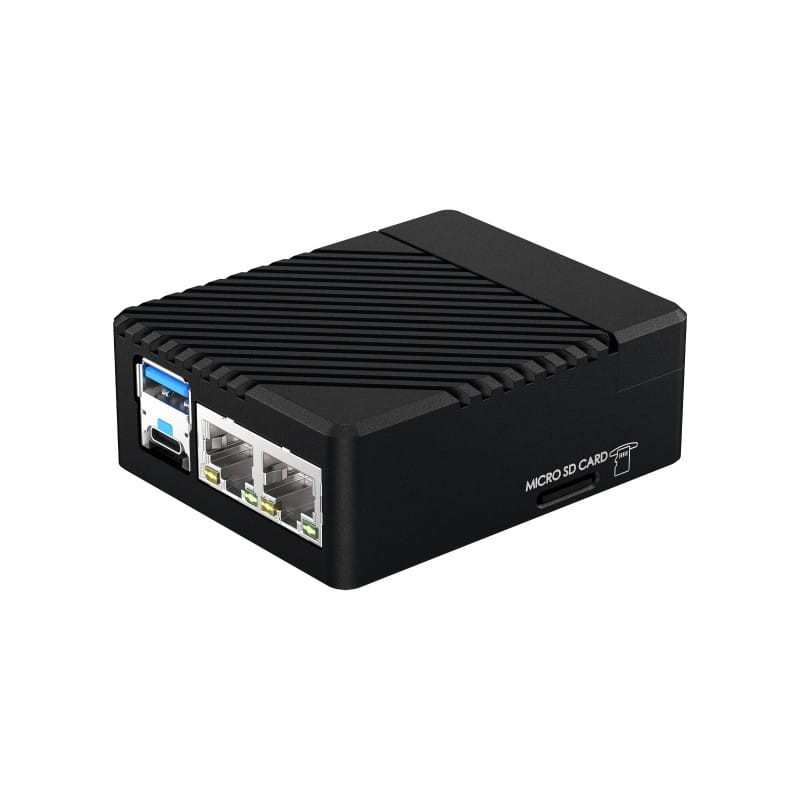

- TF card slot
Magnetic Design

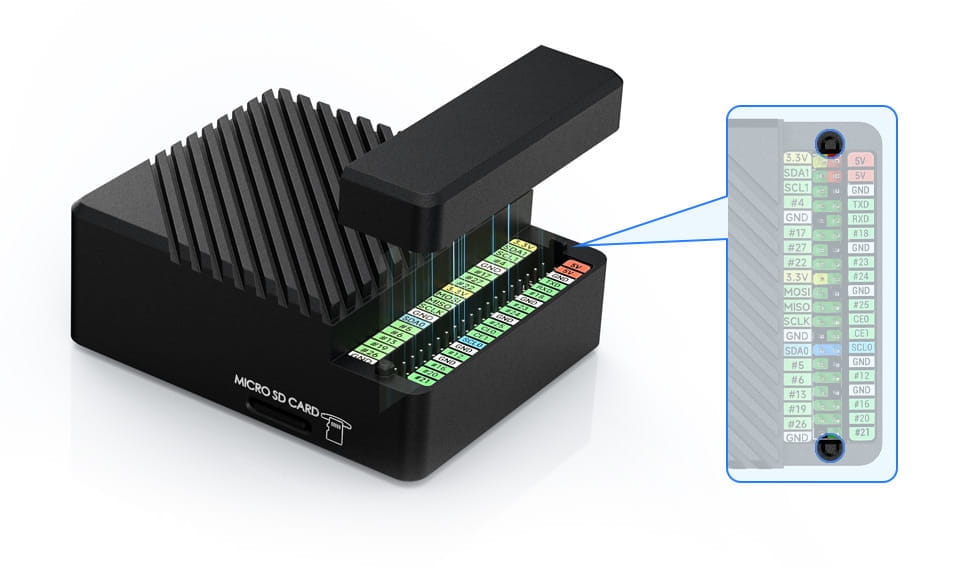

Utilizes a magnetic, removable top cover, making it easy to attach and providing better protection for GPIO pins.

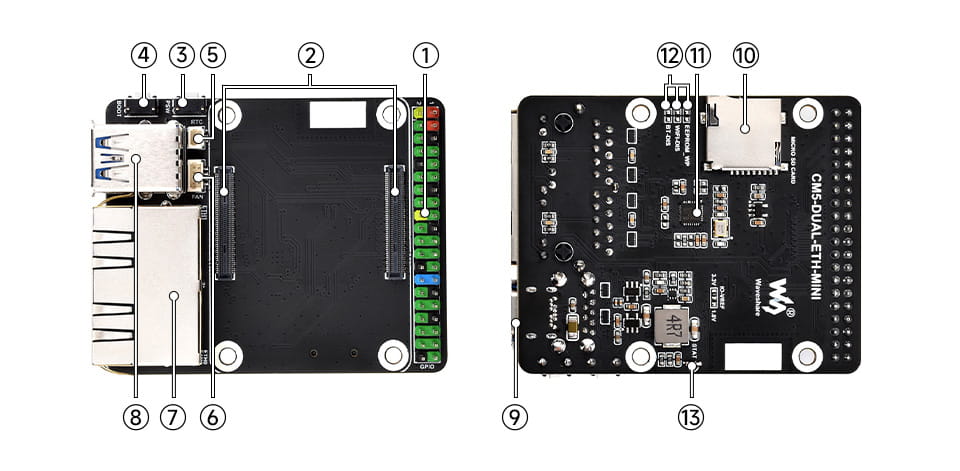

Board Components
- 40PIN GPIO header
For connecting various HAT modules - CM5 socket
Compatible with all Compute Module 5 variants - PSW button
- BOOT button
- RTC battery connector
For connecting a rechargeable RTC battery - FAN connector

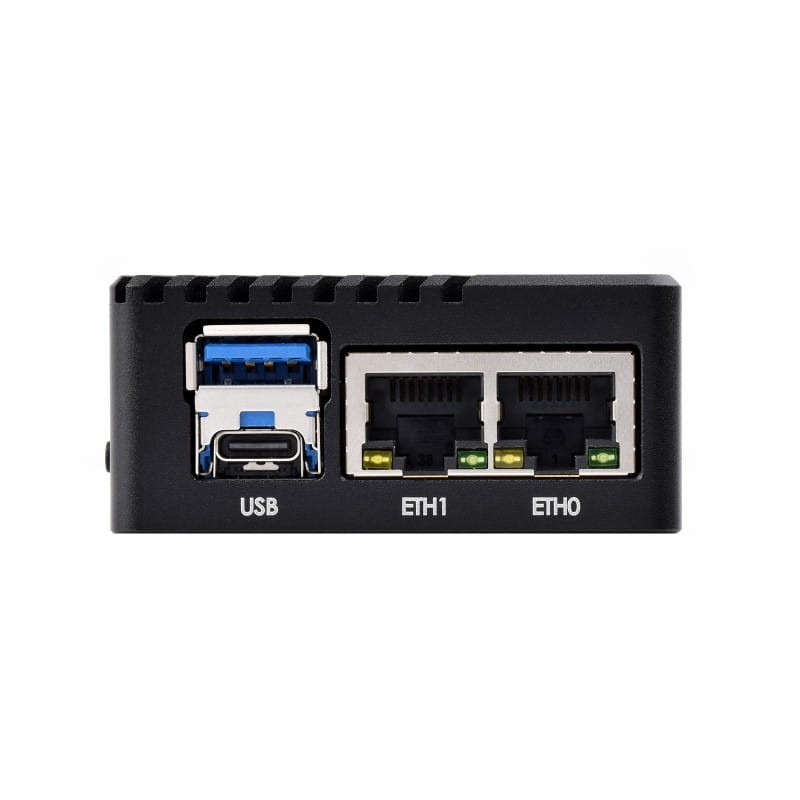

For connecting a cooling fan, enables speed control and measurement - RJ45 Gigabit Ethernet ports
Dual Gigabit Ethernet ports, compatible with 10/100/1000M
ETHERNET 0: original CM5 network port
ETHERNET 1: network port extended by PCIe
- USB 3.2 Gen1 Type-A port
For connecting various USB devices - Type-C port
5V power supply or for eMMC programming - TF card slot
For connecting a TF card with a flashed image (Lite variant only) - RTL8111H
Gigabit NIC chip (network controller) - SYSTEM switch
EEPROM_WP: prevents EEPROM overwriting
WiFi_DIS: disables WiFi (for CM5 versions with wireless module only)
BT_DIS: disables Bluetooth (for CM5 versions with wireless module only) - LED indicators
Red LED: indicates Raspberry Pi power status
Green LED: indicates Raspberry Pi operating status

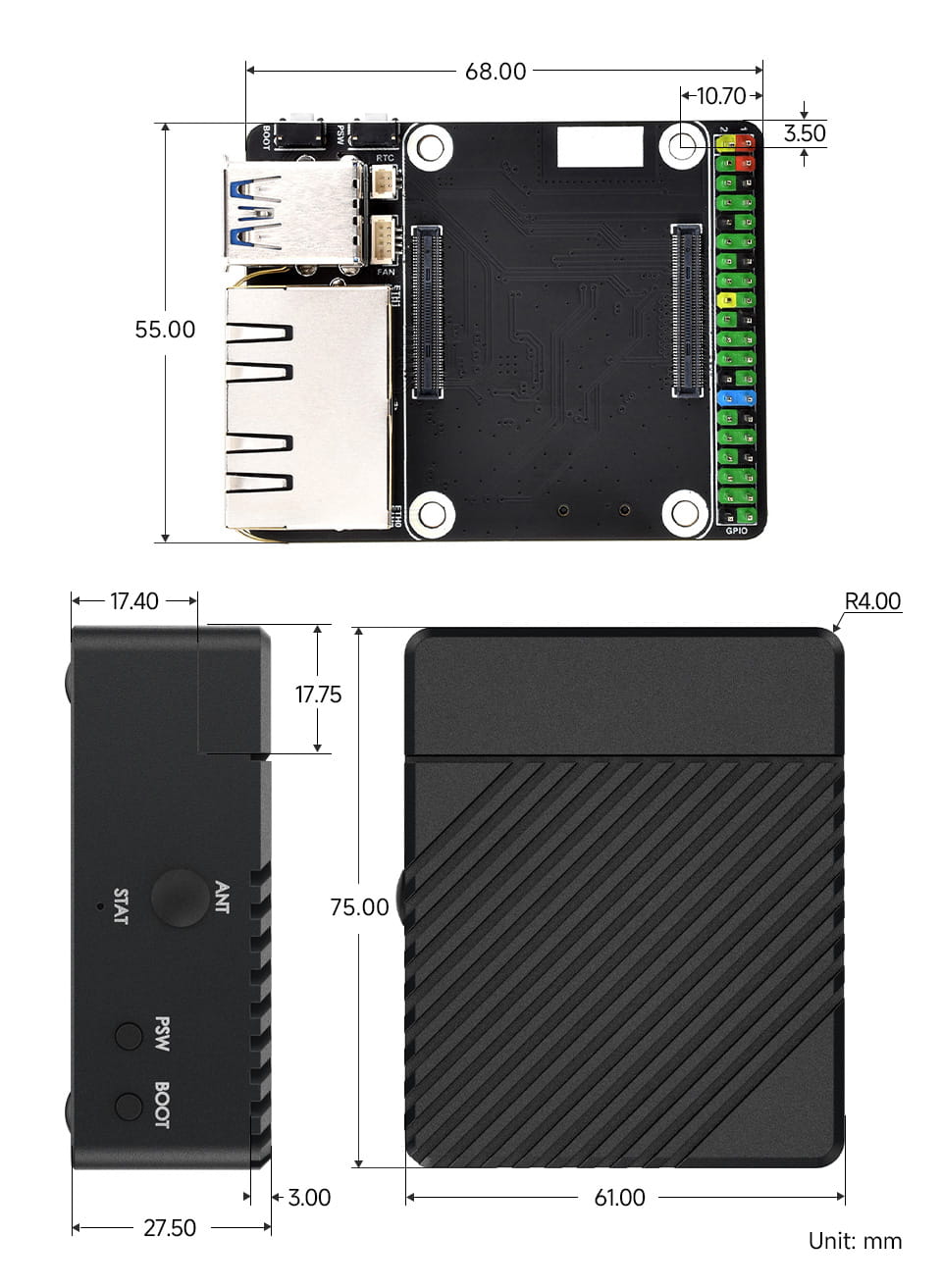

Dimensions
Technical Specifications:
- CM5 Socket: fits all Compute Module 5 variants
- Network: Dual Gigabit Ethernet RJ45 connectors
- USB: USB 3.0 (Type A) port
- GPIO: Standard 40-pin Raspberry Pi connector
- Storage: TF card slot (for CM5 Lite)
- Fan: 4-pin SH1.0 connector, speed control and measurement, 5V
- Power Supply: 5V, Type-C interface
- Board Dimensions: 55.0 × 68.0 mm
- Dimensions with Metal Case: 61.0 × 75.0 × 27.5 mm
- Weight: 0.036 kg

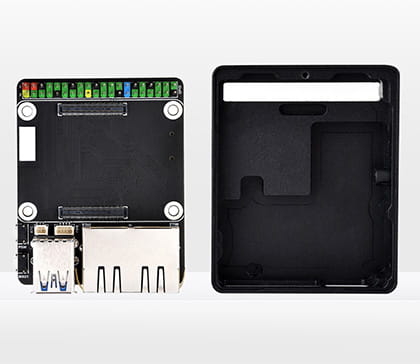

Assembly Instruction

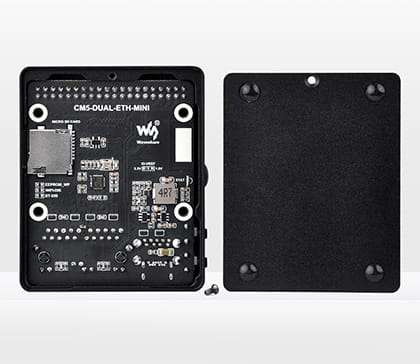

1. Unscrew the bottom screws, and then remove the bottom panel.
2. Gently push the Ethernet port and take out the CM5 mini baseboard.

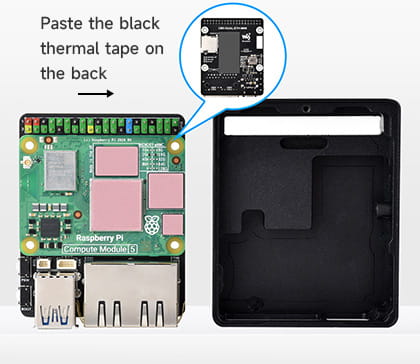

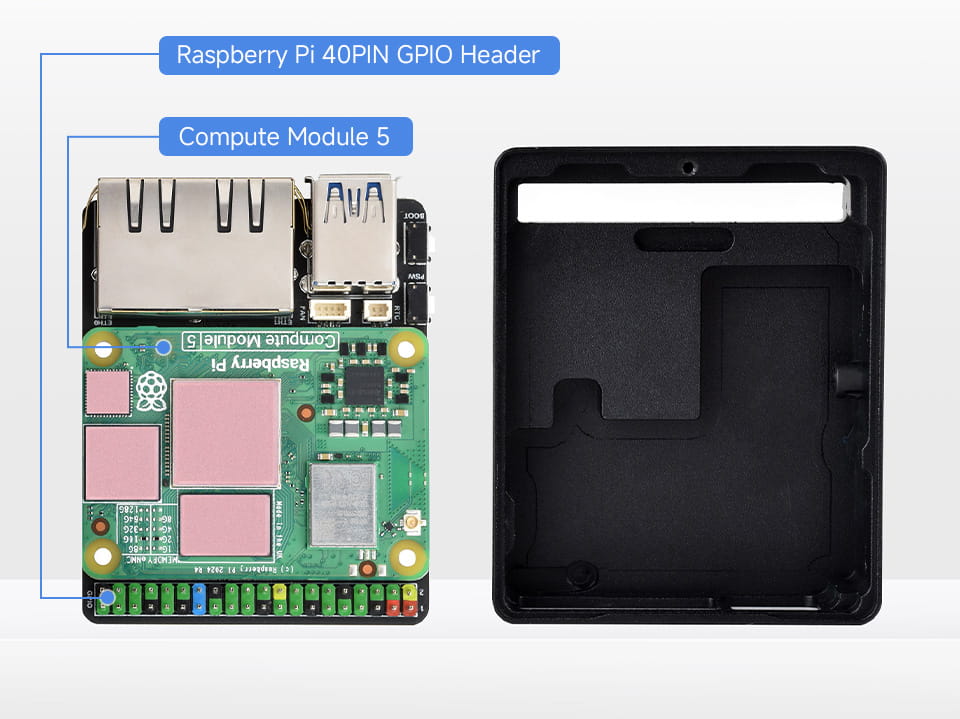

3. Stick thermal tapes on the front and back of CM5, and then install CM5 onto the baseboard.
4. Install the baseboard into the metal case, secure the bottom panel, and then insert the TF card and power on.

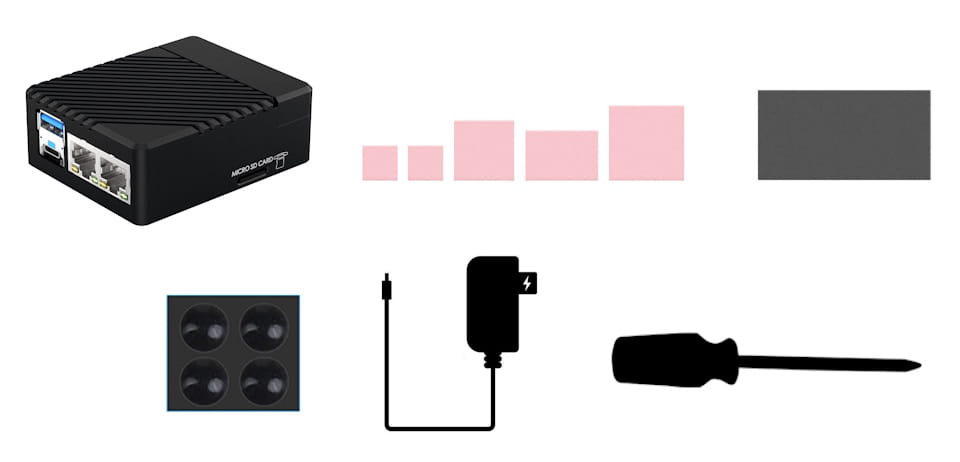

Package Contents
- CM5-DUAL-ETH-MINI + metal case (assembled) x1
- Thermal tape x5
- Thermal tape x1
- Anti-slip pads 4 PCS x1
- Power adapter 27W x1
- Screwdriver x1
Wiki: www.waveshare.com/wiki/CM5-DUAL-ETH-MINI
