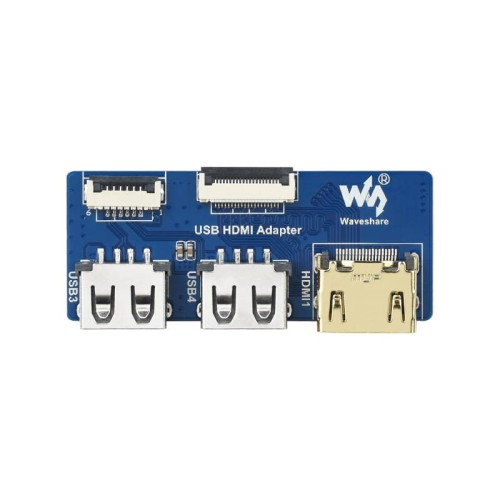

USB and HDMI FFC to Standard Connectors Adapter for CM4/CM5 IO Base
An essential adapter for users of Raspberry Pi Compute Module series development boards, such as CM4-IO-BASE or CM5-IO-BASE. The module easily converts internal FFC (Flexible Flat Cable) connectors to standard, easily accessible USB-A and HDMI ports. This allows for seamless connection of keyboards, mice, monitors, and other peripherals during prototyping and testing of CM4/CM5 based systems.

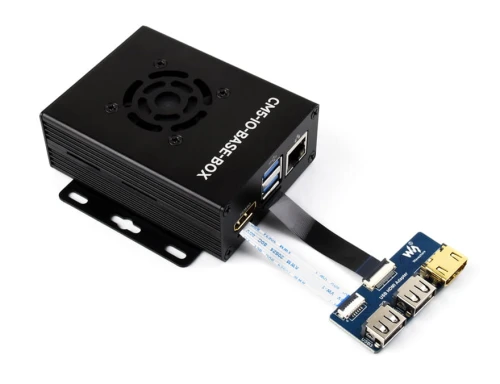

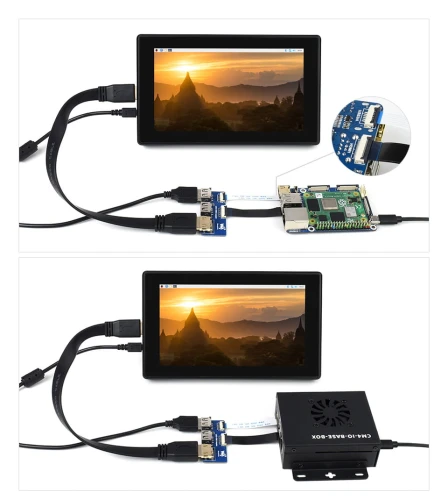

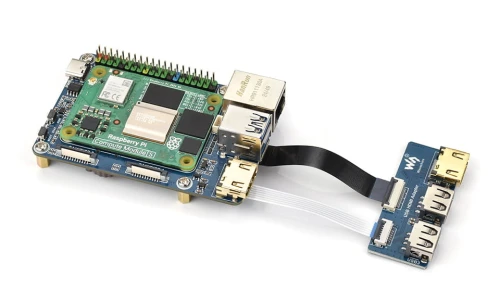

Application Example
Base Board Case Gigabit Ethernet for Raspberry Pi Compute Module 5 CM5
Base Board for Raspberry Pi CM5 M.2 HDMI Ethernet USB Eeprom Encryption Chip
Key Features:
- Converts FFC connectors to standard USB-A and HDMI-A ports
- Specially designed for Raspberry Pi Compute Module (CM4/CM5) series IO boards
- Makes it easy to connect standard peripherals (keyboards, mice, monitors)
- Equipped with a 6PIN FFC (USB) and a 20PIN FFC (HDMI) connector
- Compact design, ideal for development and testing applications
- The kit includes the appropriate FFC cables, ready to use

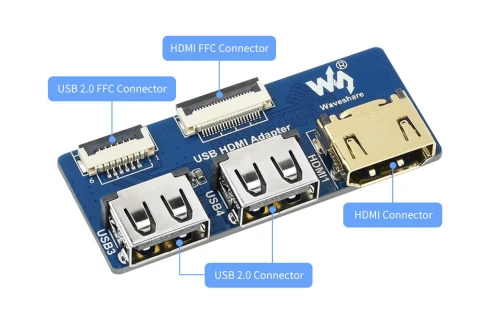

Connector Description
The adapter has clearly marked FFC connectors for USB and HDMI signals and standard output ports.

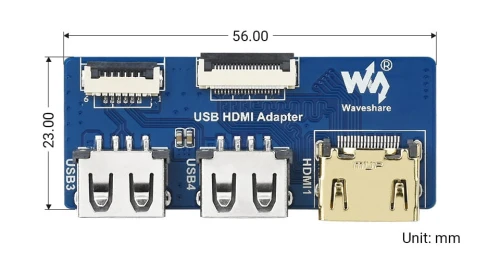

Dimensions
Technical Specification:
- Input Connectors:
- 1x FFC 6PIN (USB)
- 1x FFC 20PIN (HDMI)
- Output Connectors:
- 1x USB-A
- 1x HDMI-A
- FFC Pitch (USB): 1.0 mm
- FFC Pitch (HDMI): 0.5 mm
- Compatibility: e.g., CM4-IO-BASE, CM5-IO-BASE

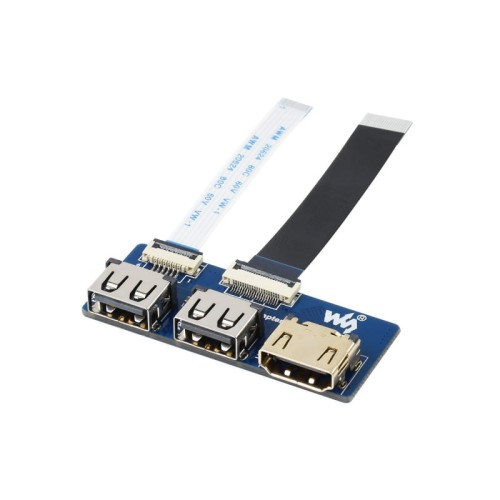

Package Contents
- USB HDMI Adapter × 1
- FFC Cable 6PIN (1.0mm pitch) ~60mm × 1
- FFC Cable 20PIN (0.5mm pitch) ~60mm × 1
