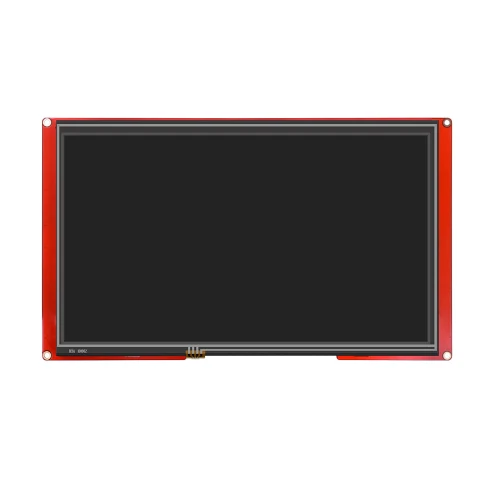

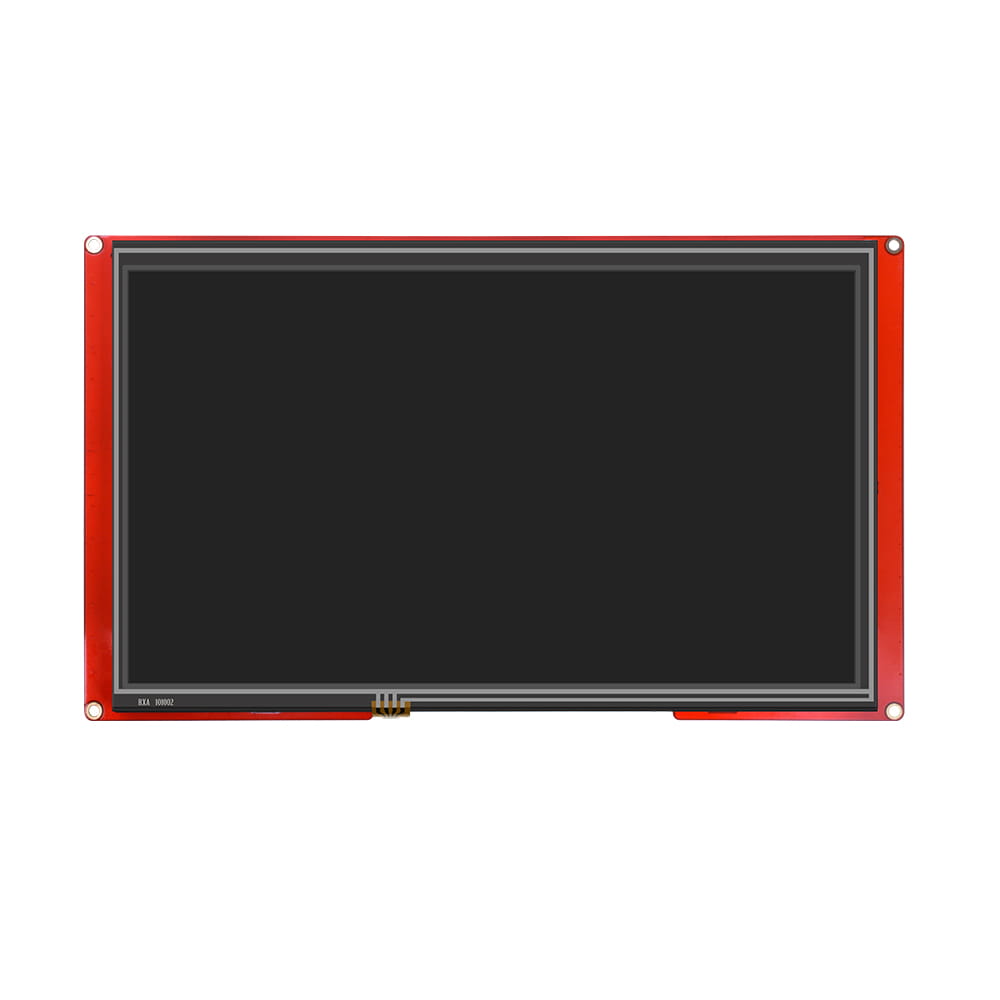

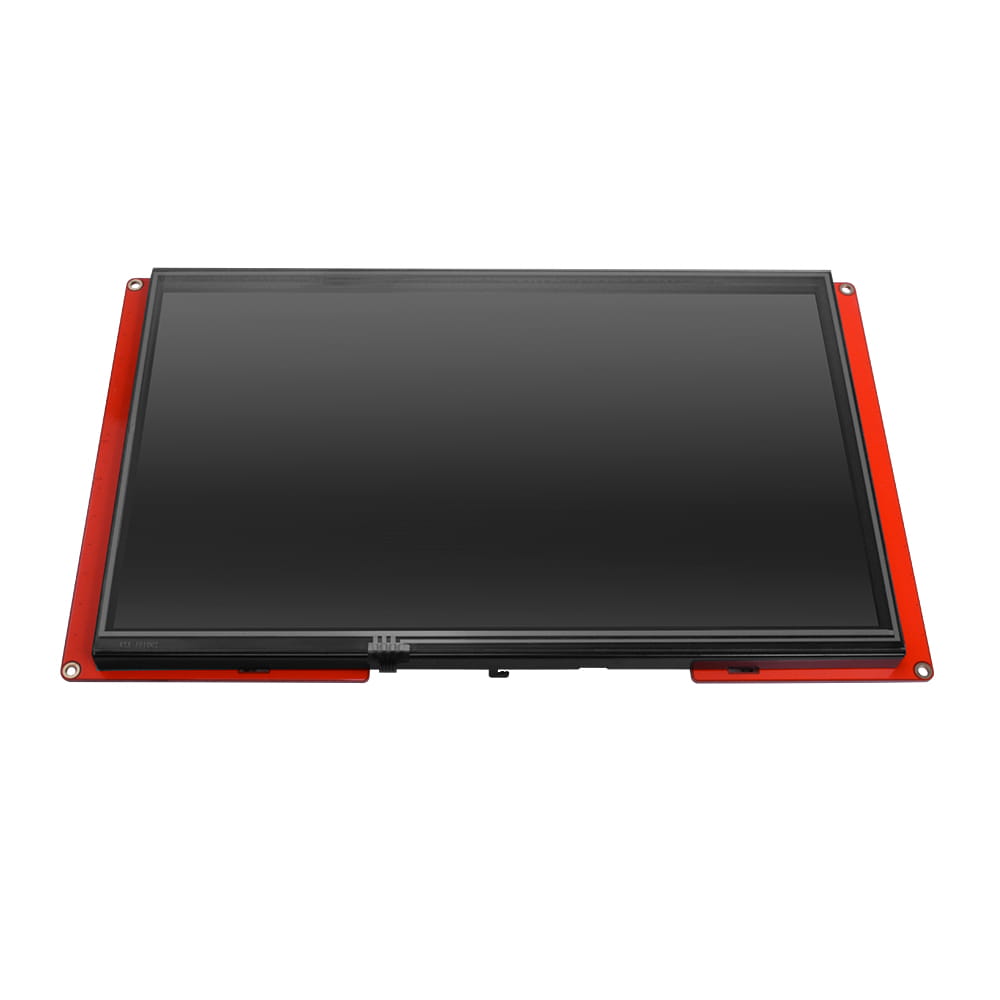

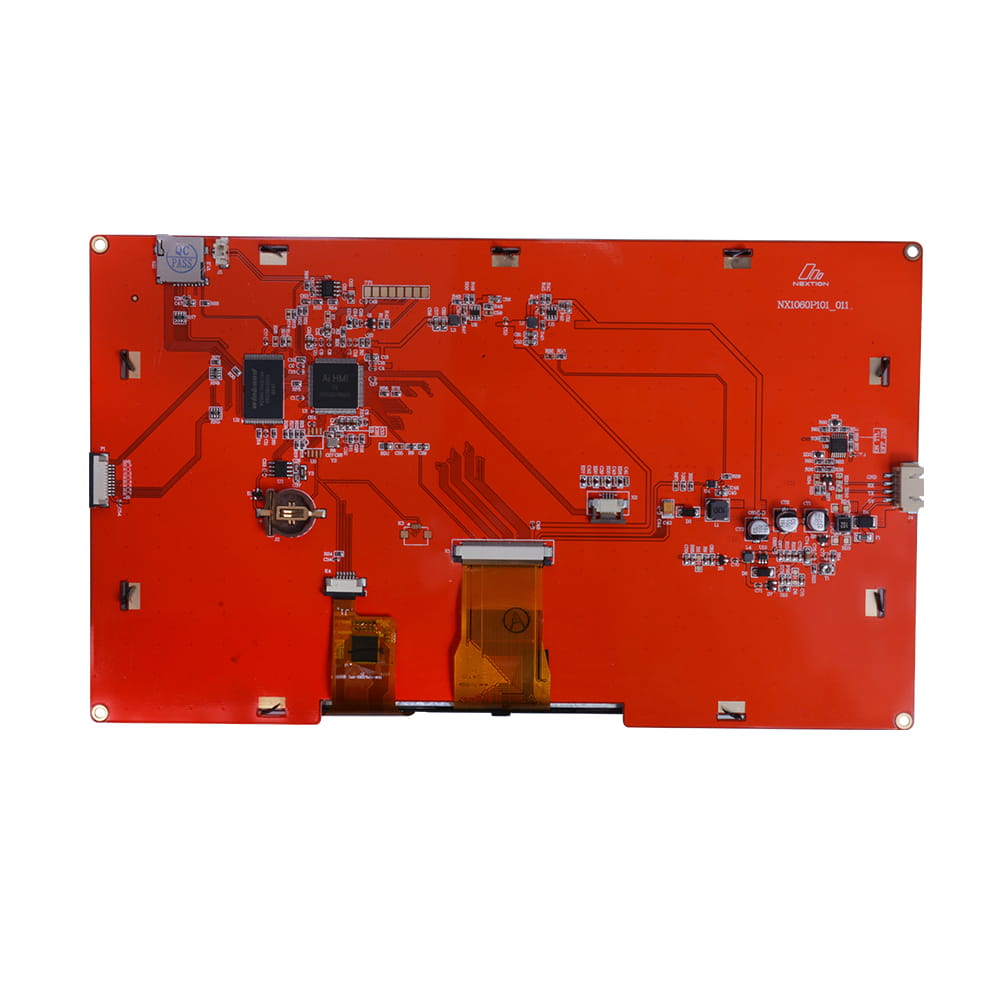

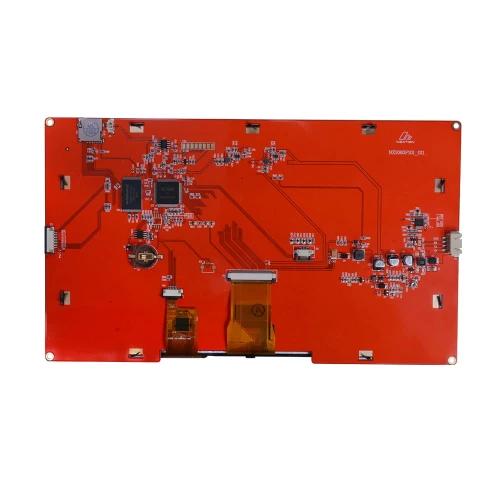

Nextion Intelligent display 10.1" 1024x600 NX1060P101-011R-I IPS with resistive touch panel
The Nextion NX1060P101-011R-I is a 10.1-inch intelligent HMI display with an IPS matrix, resistive touch panel, 1024x600 px resolution, and UART TTL communication. The module is designed for creating graphical user interfaces for Arduino, Raspberry Pi, STM32, ESP8266, ESP32, and other platforms equipped with a serial port.
Key features:
- Series: Nextion Intelligent.
- Diagonal: 10.1".
- Resolution: 1024x600 px, supports 600x1024 px orientation.
- Matrix: IPS.
- Touch panel: resistive.
- Colors: 65K / 65536 colors, 16-bit 565 format.
- Interface: UART TTL via 4-pin 2.54 mm connector.
- Memory: Flash 120 MB, RAM 512 KB, EEPROM 1024 B.
- GPIO: 8 digital IO0-IO7 lines, PWM on IO6-IO7.
- RTC: built-in real-time clock with CR1220 battery.
- microSD: supports FAT32 cards up to 32 GB.
- Audio: 1.25 mm speaker connector, power 0.5-1.5 W.
- Power supply: recommended 5 V / 2 A DC.
- Compatibility: Arduino, Raspberry Pi, STM32, ESP8266, ESP32, and other platforms with UART.
Interface design in Nextion Editor
The user interface is prepared in the Nextion Editor environment. The program allows for creating HMI screens with buttons, text fields, graphics, sliders, progress bars, gauges, and waveforms, and the finished project can be uploaded to the display memory via UART or a microSD card.
Functions and application
The Nextion Intelligent NX1060P101-011R-I display acts as a standalone HMI panel with built-in memory for the graphic project, fonts, and images. As a result, the microcontroller only sends commands and receives events via UART, without the need to generate the entire graphical interface.
- Control panels for automation, robotics, and IoT systems.
- User interfaces for measurement and control devices.
- Operator dashboards, settings menus, and information screens.
- Handling touch events sent to the microcontroller via UART.
- Possibility to use GPIO, RTC, and audio functions in advanced projects.
Communication and power supply
The module communicates with the control system via a UART TTL serial port. For a basic connection, four wires are required: +5 V, GND, display TX to microcontroller RX, and display RX to microcontroller TX.
- +5V: display power supply.
- GND: system ground.
- TX: data output from the display.
- RX: data input to the display.
Power supply information: we do not recommend powering the display directly from a computer USB port. For stable operation, use an external 5 V power supply with a minimum capacity of 2 A, the included USB adapter, and a high-quality USB cable.
Technical specification:
- Display: 10.1" IPS, 1024x600 px
- Number of colors: 65K / 65536 colors, 16-bit 565 format, 5R-6G-5B
- Brightness: 300 nits, adjustable 0–100% in steps of 1%
- Touch panel: resistive
- Active Area (A.A.): 222.72 x 125.28 mm
- Module dimensions: 258 x 152 x 11.5 mm
- Memory: Flash 120 MB, EEPROM 1024 B, RAM 512 KB
- Power supply: 4.75–6.5 V DC, recommended 5 V / 2 A
- Current consumption: typ. 800 mA at 5 V and 100% brightness
- Interface: UART TTL, RX 3.3 V / TX 5.0 V, 4-pin 2.54 mm connector
- Baudrate: 2400 – 921600 bps
- GPIO: 8 lines IO0–IO7, PWM on IO6–IO7
- RTC: built-in, CR1220 battery
- Audio: 0.5–1.5 W, 1.25T-2-2A 1.25 mm connector
- Operating conditions: -20°C ~ 70°C, 10–90% RH
Kit contents
- Nextion Intelligent NX1060P101-011R-I display.
- USB power adapter.
- Connecting wires with plugs.
