PoE Splitter 10/100 Mbps to USB-C 5V DC IEEE 802.3af at isolation 2.5 kV SMLIGHT

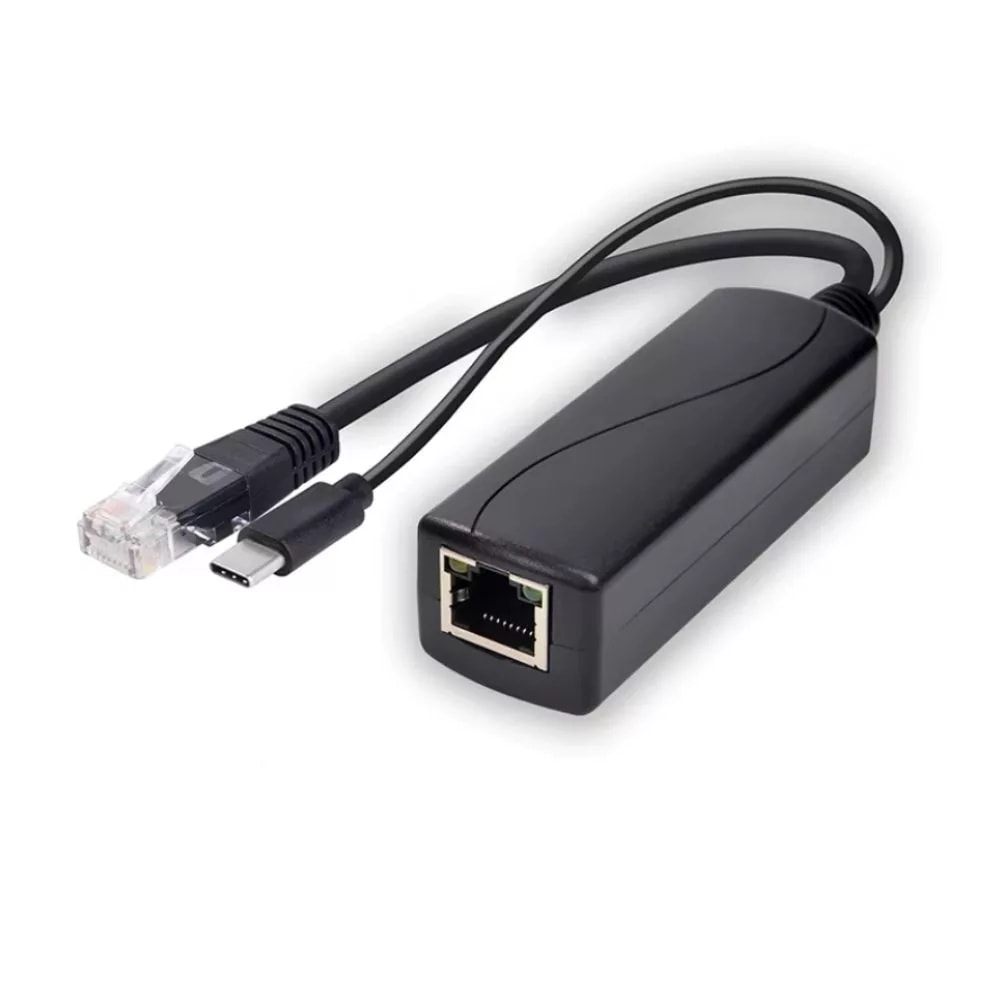

The SMLIGHT PoE Splitter 100Mb USB-C is a network accessory designed to simultaneously power devices and provide wired data transmission via a single Ethernet cable. The device converts PoE power in the IEEE 802.3af or IEEE 802.3at standard into a stable 5 V DC output voltage with a USB-C connector, while maintaining a parallel 10/100 Mbps network connection via the RJ45 port. For proper operation, an active power source in the form of a PoE switch or PoE injector with a voltage of 44–57 V DC is required.
Key features:
- Conversion of PoE power from IEEE 802.3af and IEEE 802.3at standards to a 5 V DC USB-C output.
- Simultaneous transmission of power and 10/100 Mbps Ethernet network data via a single network cable.
- Built-in 2,5 kV galvanic isolation to increase safety and reduce electrical interference.
- Automatic PoE detection ensuring safe operation with PoE switches and injectors.
- Support for PoE pinouts 1/2 (+) and 3/6 (-) as well as 4/5 (+) and 7/8 (-).
- Simple Plug & Play installation with no network configuration required.
- Compact dimensions for easy mounting in installation boxes, rack cabinets, and multimedia enclosures.
Powering IoT devices without an additional power outlet
The splitter is ideal for smart home and IoT environments where providing a dedicated 230 V power supply is difficult. It allows for the direct connection of devices powered via USB-C and communicating via Ethernet, such as Home Assistant servers, Raspberry Pi minicomputers, Zigbee coordinators, network gateways, or IP security cameras, using existing structured cabling infrastructure.
Installation safety and galvanic protection
The applied 2,5 kV galvanic isolation separates the PoE network circuits from the powered end device, protecting electronics against surges and interference in the wired network. The automatic PoE detection function only enables voltage delivery after identifying a compatible source, which prevents damage to connected devices.
Technical specification
- Device type: PoE Splitter
- Model: SMLIGHT PoE Splitter 100Mb USB-C
- PoE standards: IEEE 802.3af / IEEE 802.3at
- PoE input voltage: 44–57 V DC
- Supported PoE pins: 1/2 (+) and 3/6 (-) and 4/5 (+) and 7/8 (-)
- Network connector: RJ45 Ethernet
- Output voltage: 5 V DC 3.5A
- Power output connector: USB-C
- Ethernet transmission speed: 10/100 Mbps
- Galvanic isolation: 2,5 kV
- PoE detection: automatic
- Operation mode: Plug & Play
Package contents
- SMLIGHT PoE Splitter 100Mb USB-C – 1 pcs.
Frequently Asked Questions (FAQ)
- What power source is required for this splitter to work?
A PoE switch or PoE injector operating in the IEEE 802.3af or IEEE 802.3at standard is required, providing an input voltage in the range of 44–57 V DC. - What outputs does the device have?
The splitter splits the network cable into a USB-C connector providing 5 V DC power and an RJ45 plug/socket offering a 10/100 Mbps network connection. - Does the splitter require driver installation or configuration?
No, the device operates in Plug & Play mode and is ready for use immediately after connecting the cables. - What applications is the module dedicated to?
The splitter is primarily intended for powering USB-C devices that require a wired network, including Raspberry Pi boards, Home Assistant servers, Zigbee network coordinators, and cameras.
