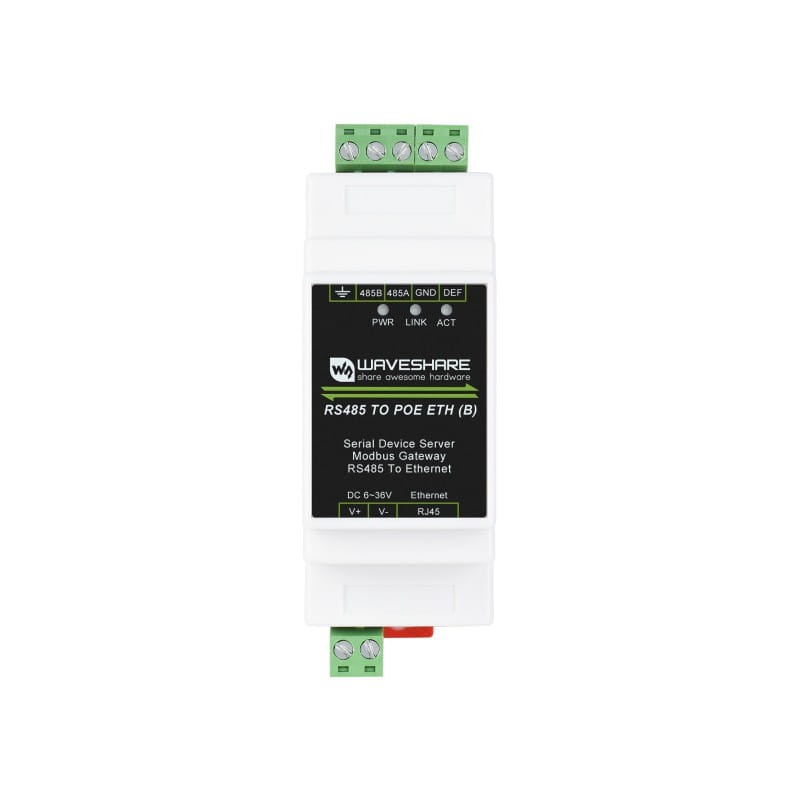

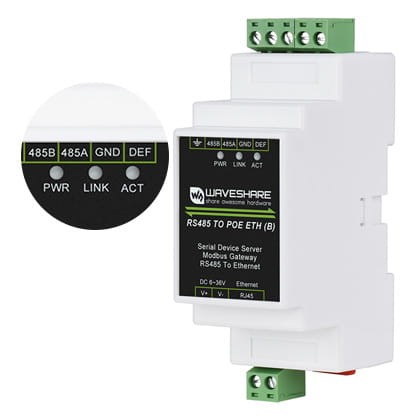

RS485 serial server on ETH with isolation and PoE power supply
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable

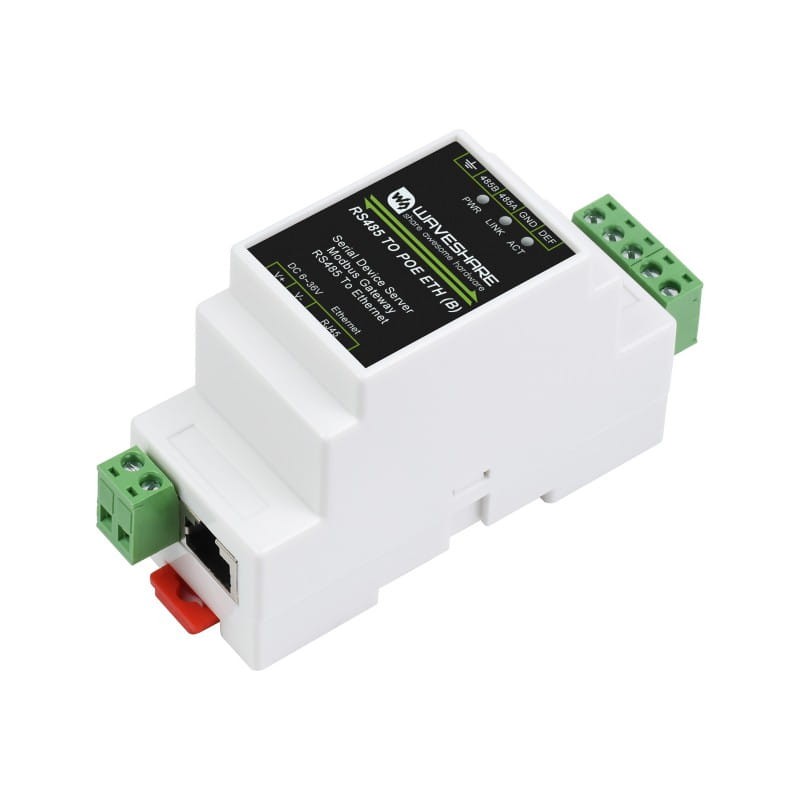

RS485 to ETH serial server with isolation and PoE power supply
RS485 TO POE ETH (B) is an advanced module suitable for industrial environments that combines the functions of a serial server, Modbus gateway, MQTT gateway and RS485 to JSON conversion. The device supports power over Ethernet (PoE) and features power and signal isolation for enhanced security in industrial applications. The compact rail-mount housing and ease of installation make the product ideal for collecting data from RS485 devices and for monitoring smart instruments.
The RS485 TO POE ETH (B) version is an enhanced hardware variant, providing support for power via the PoE port and a wide range of power via the screw connector. The module offers power and signal isolation for improved reliability and security, especially in IoT, security and monitoring applications. The device supports various operating modes and communication protocols, making it a versatile solution for industrial applications. The RS485 TO POE ETH (B) is a reliable and versatile solution for industrial applications that provides secure and efficient communication and integration in IoT and industrial automation systems.
Specifications:
- Product type: serial server, Modbus gateway, MQTT gateway.
- Main functions: bidirectional data transmission between RS485 and Ethernet
- Communication interface: 1x RS485, 1x Ethernet
- Power supply: 6 ~ 36V DC (screw connector) or PoE port
- Isolation protection: Power and signal isolation
- Ethernet port: PoE port, IEEE 802.3af compliant, with 2 KV surge protection
- Serial port: Isolated RS485
- Transmission speed: 300 ~ 115200 bps
- Parity bits: none, odd parity, even parity, character, space
- Data bits: 5 ~ 9 bits
- Flow control: none
Product features:
- Bi-directional data transmission between RS485 and Ethernet
- Power supply via PoE port and screw connector
- Power and signal isolation for increased security
- Supports TCP server, TCP client, UDP, UDP multicast operating modes
- Support for Ethernet, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS protocols
- Configuration via host, web browser, device management function library
- Support for Modbus RTU to Modbus TCP, MQTT, JSON to Modbus RTU and protocol 645
- Possibility to monitor and manage the device remotely
- Compact rail-mount housing for easy installation
- 2 KV surge protection for the Ethernet port

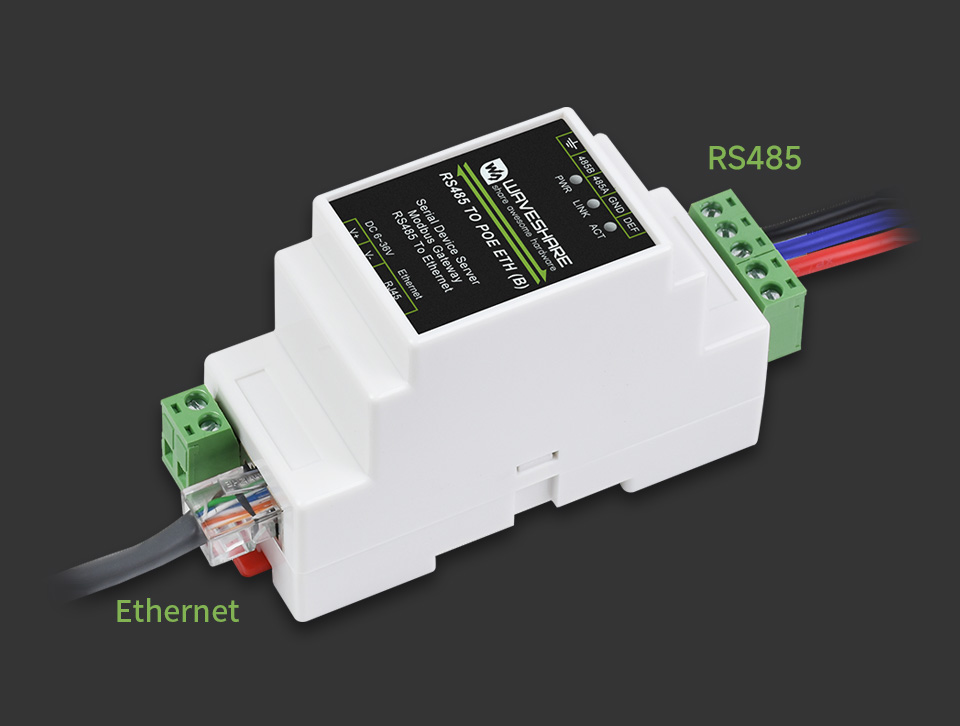

Two-way transparent communication:

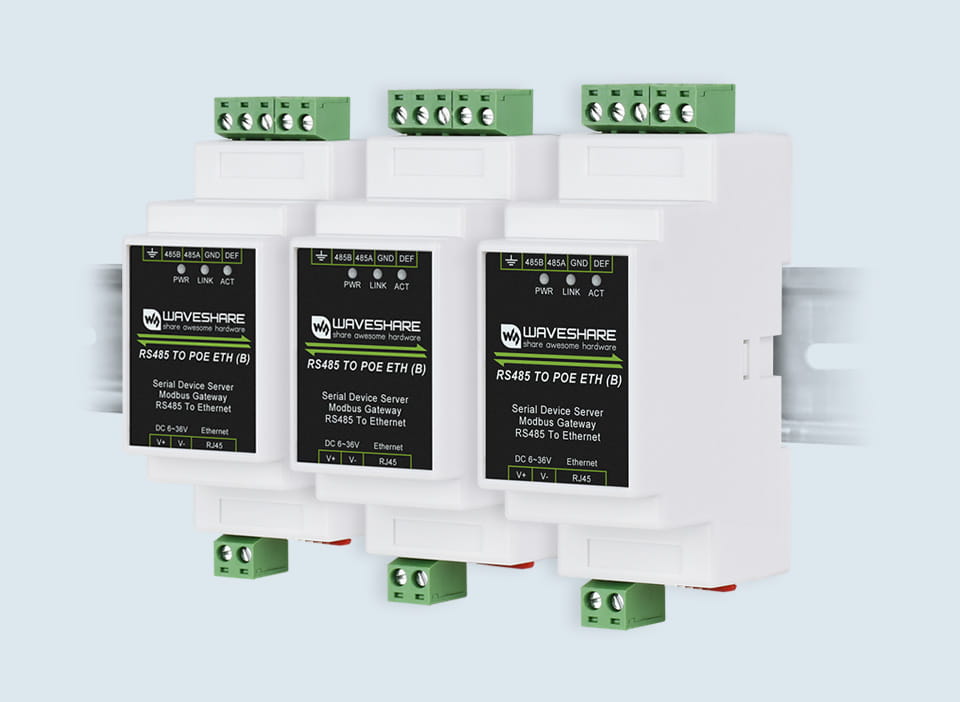

DIN rail mounting:

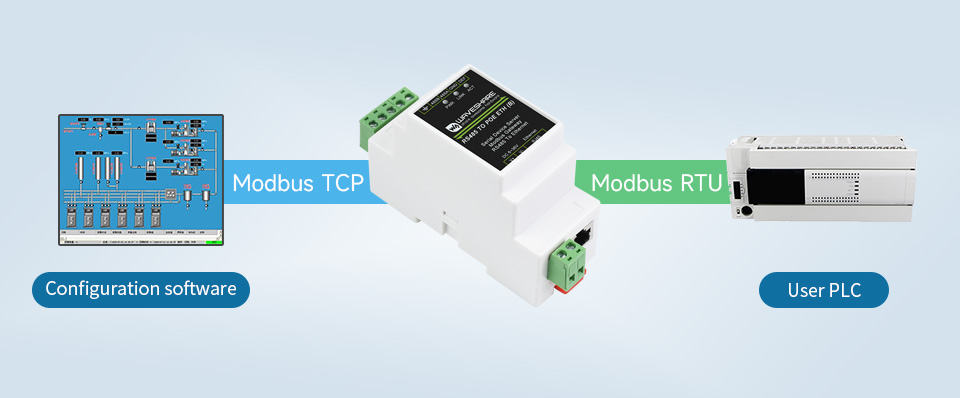

Modbus support:
NTP protocol support:

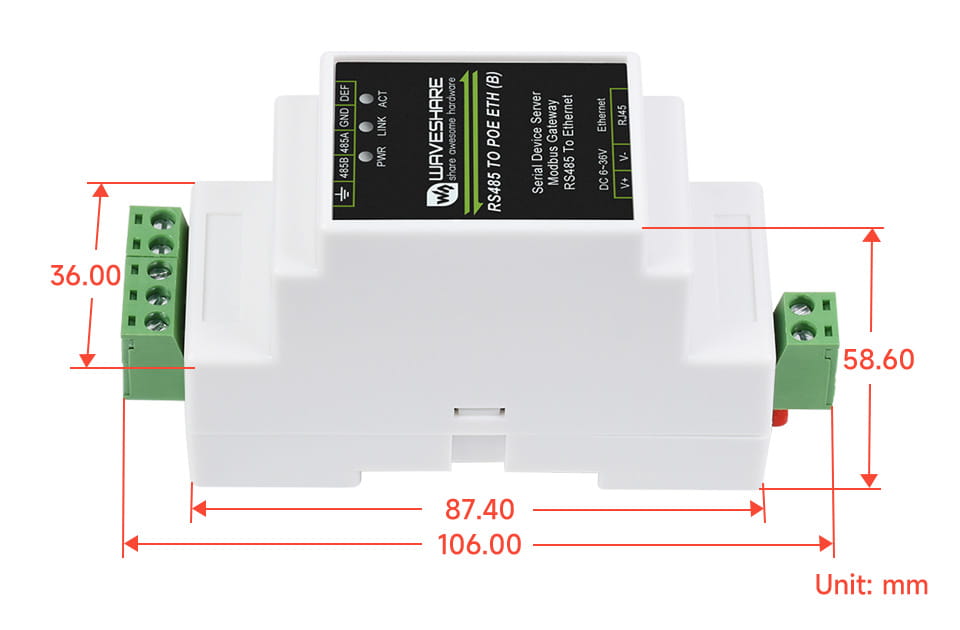

Dimensions:
Kit includes:
- RS485 serial server on ETH with isolation and PoE power supply x1
Wiki: RS485_TO_POE_ETH_(B)
