SONOFF Hydro ONE Lite Zigbee smart water valve 3/4" IP55 for garden irrigation
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable

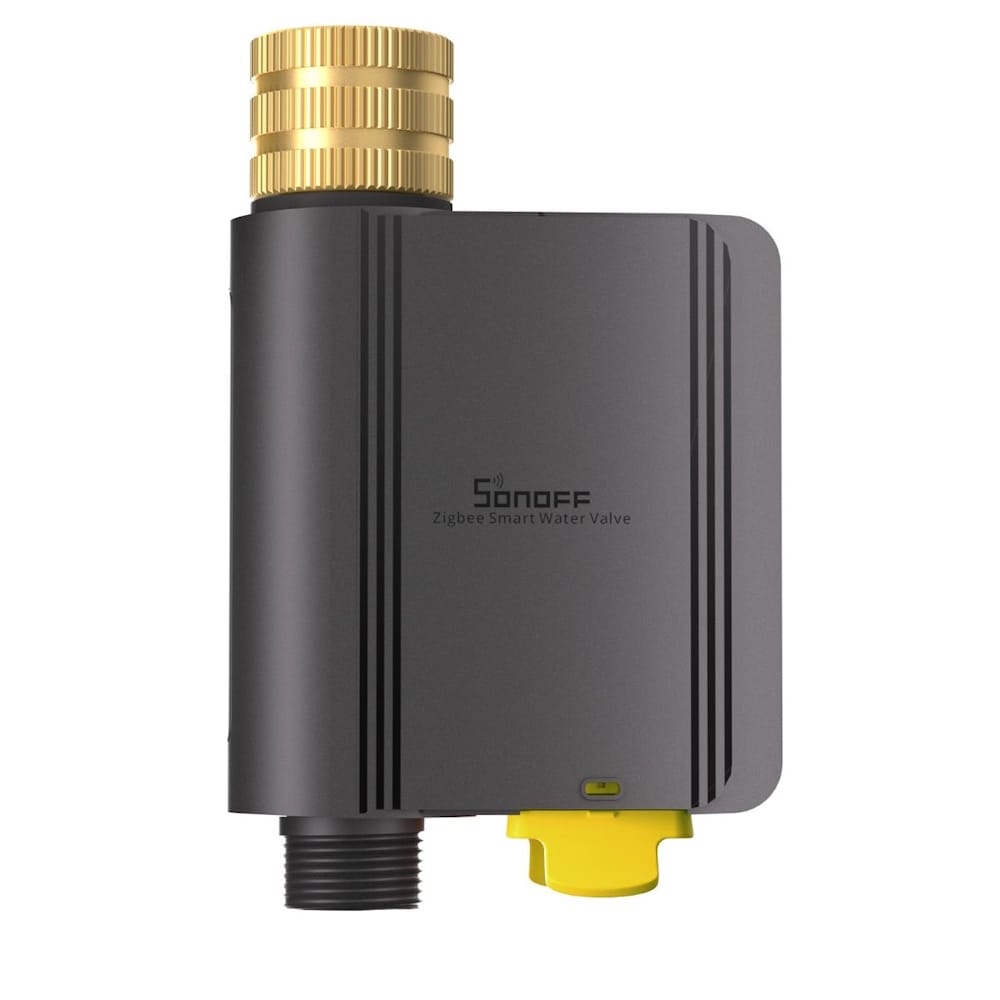

SONOFF Hydro ONE Lite SWV-ZNE Zigbee smart water valve without flow meter
SONOFF Hydro ONE Lite SWV-ZNE is a smart water valve designed for garden irrigation automation. It supports Zigbee 3.0 and local Bluetooth Low Energy connection, allows for creating watering schedules, and is adapted for outdoor use thanks to its IP55 enclosure.
Key features:
- Zigbee 3.0 communication: integration with compatible SONOFF gateways and Smart Home systems.
- Local Bluetooth connection: basic device operation without a Zigbee gateway.
- Up to 6 schedules: possibility to prepare independent irrigation plans.
- Flexible watering cycles: schedules for selected days of the week as well as even and odd days.
- Seasonal adjustment: quick correction of irrigation time depending on the season.
- Weather adjustment: possibility to adjust or skip watering depending on weather conditions.
- Rain Delay: temporary suspension of scheduled irrigation.
- Irrigation history: view of valve operating time by day, month, or half-year period.
- Child lock: possibility to disable local button control.
- Notifications: alert about low battery level and risk of freezing.
- Group control: possibility to manage several valves simultaneously.
- Device sharing: access for other eWeLink account users.
- Brass inlet connection: increased durability of the water installation connection.
- IP55 protection class: design adapted for outdoor applications.
Remote control via Zigbee
Hydro ONE Lite uses the Zigbee 3.0 standard. After connecting to a compatible Zigbee gateway, the device can be operated remotely in the eWeLink app and used in Smart Home scenes and automations.
Examples of compatible gateways: SONOFF ZBBridge-P, ZBBridge-U, NSPanel Pro, and iHost. The device can also work with selected Zigbee coordinators and third-party platforms, although the range of available functions depends on the system used.
Local control via Bluetooth
SONOFF Hydro ONE Lite also allows for a direct connection to a phone via Bluetooth. The local mode allows you to use basic functions, including setting schedules, without using a Zigbee gateway.
Connecting to a Zigbee gateway provides a wider range of functions, such as remote access, automation scenes, and app notifications.
Precise irrigation schedules
The valve allows you to create up to 6 irrigation schedules. You can specify the operating time and select days of the week, even or odd days, so that watering can be tailored to a specific garden and irrigation method.
The seasonal adjustment function allows you to change the intensity of scheduled watering without the need to manually edit each schedule. Watering delay functions and automations taking weather conditions into account are also available.
Irrigation history
Hydro ONE Lite saves the valve's operating history, allowing you to check irrigation time on a daily, monthly, or half-yearly basis. The data can facilitate schedule control and assessment of how the installation is used.
Alerts and security
The device monitors basic operating conditions and can inform the user about events requiring attention. Hydro ONE Lite also has a child lock, which, when activated, disables local button control and leaves the possibility of operation from the app level.
- Low battery notification.
- Warning about the risk of freezing at low temperatures.
- Local device button lock.
- Possibility of temporary delay of scheduled irrigation.
Compatibility with Smart Home automation
The Zigbee 3.0 standard allows for the integration of the valve with compatible automation systems. Hydro ONE Lite can work with eWeLink, Home Assistant, Alexa, and SmartThings, among others, although the availability of individual functions depends on the gateway or coordinator used.
Integration with Apple Home is possible via a compatible Matter bridge, for example, a solution based on SONOFF ZBBridge-U or eWeLink CUBE. In the case of Home Assistant, solutions using Zigbee2MQTT and ZHA are supported, however, the range of available functions may differ depending on the configuration.
European version of SWV-ZNE
The SWV-ZNE model is a version intended for the European market, among others. It uses BSP standard connections with G3/4-14 thread and a nominal size of 3/4".
Technical specification
- Manufacturer: SONOFF
- Series: Hydro Series
- Name: Hydro ONE Lite
- Model: SWV-ZNE
- Microcontroller: TLSR8656
- Power supply: 6 V DC
- Batteries: 4 × AA 1,5 V
- Batteries included: no
- Connectivity: Zigbee 3.0 / Bluetooth Low Energy
- Connection version: European SWV-ZNE
- Thread standard: BSP G3/4-14
- Nominal connection size: 3/4"
- Enclosure material: PC + ABS
- Inlet connection material: brass
- Protection class: IP55
- Water operating pressure: from 0,06 to 0,8 MPa
- Ambient temperature: from 5 to 60°C
- Water temperature: from 5 to 40°C
- Operating humidity: from 5 to 95% RH non-condensing
- Dimensions: 152 × 100 × 46 mm
Important operational information
- For full remote operation via the Internet, it is recommended to connect the device to a compatible Zigbee gateway.
- Without a gateway, the device can connect directly to a smartphone via Bluetooth and provide basic local functions.
- The valve should be installed according to the marked water flow direction.
- The device is primarily intended for garden irrigation systems using tap water.
- The manufacturer does not recommend using the valve in drinking water installations.
- During frost, the water supply should be closed and the valve should be thoroughly drained of remaining water.
- Freezing of water inside the device can lead to damage to the valve.
- Four AA 1,5 V batteries are required for power.
Set contents
- SONOFF Hydro ONE Lite SWV-ZNE smart water valve.
- Mounting accessories.
- User manual.
AA batteries and Zigbee gateway are not included in the set.
