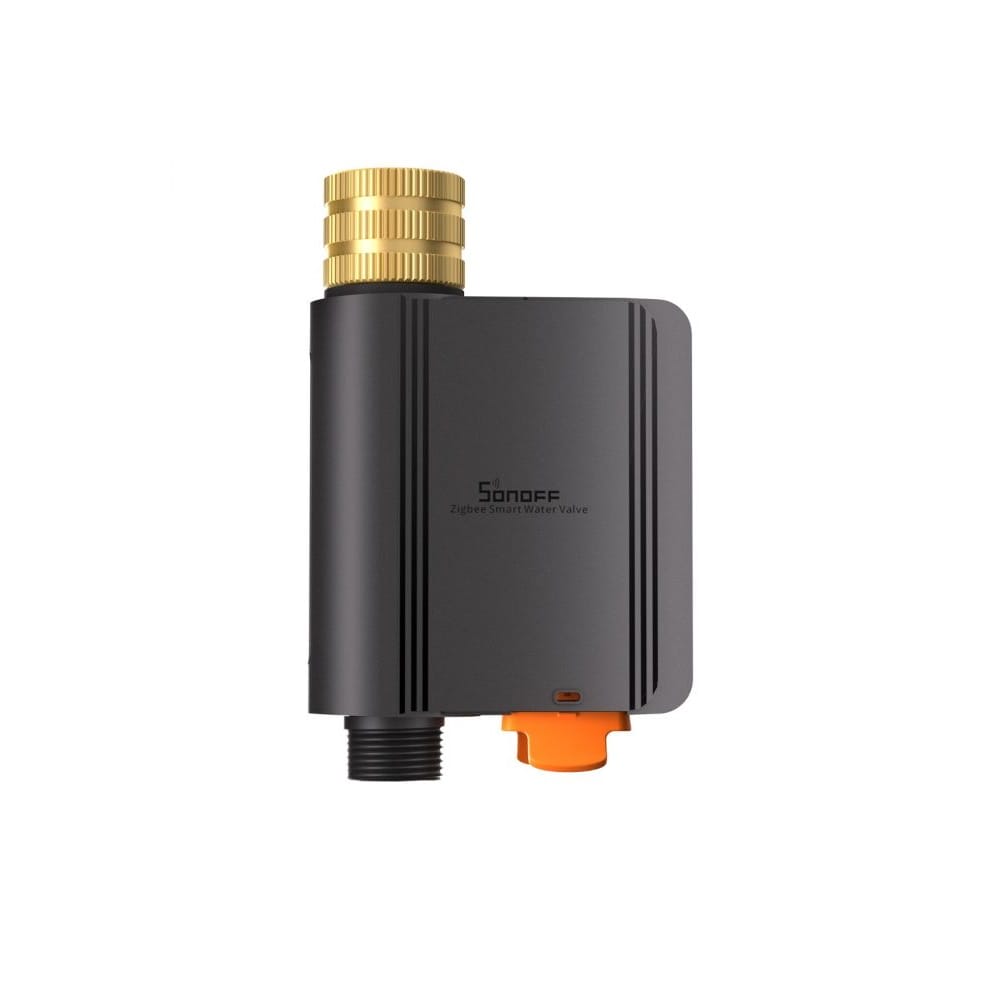

SONOFF Hydro ONE SWV-ZFE Zigbee smart water valve with flow meter
SONOFF Hydro ONE SWV-ZFE is a smart water valve with a flow meter, designed for garden irrigation automation. It supports Zigbee 3.0 and Bluetooth Low Energy, offers time and volume-based schedules, flow measurement from 2 to 45 l/min, and an IP55-rated enclosure.
Key features:
- Zigbee 3.0 communication: remote control via the Internet requires a compatible SONOFF Zigbee gateway.
- Local Bluetooth control: operation after a direct connection between the phone and the valve.
- Built-in flow meter: flow measurement in the range from 2 to 45 l/min.
- Irrigation schedules: control based on operating time or a set water volume.
- Interval mode: cyclic opening and closing of the valve according to set periods.
- Up to 6 schedules: possibility to prepare several independent watering plans.
- Consumption history: monitoring the amount of water used in the app.
- Notifications: alerts regarding leaks, lack of water, low temperature, and battery level.
- Weather adjustment: possibility to temporarily pause scheduled irrigation.
- Brass inlet thread: increased resistance to pressure, corrosion, and frequent connection.
- IP55 ingress protection rating: design adapted for outdoor use.
Remote control via Zigbee
To control the valve via the Internet, operate the device outside of Bluetooth range, and integrate with Smart Home automation, a compatible Zigbee gateway working with SONOFF devices is required. The gateway transmits communication between the valve, the app, and the home Internet network.
The range of available integrations and remote functions depends on the gateway used and the automation system it supports.
Local control via Bluetooth
SONOFF Hydro ONE can be operated locally using Bluetooth Low Energy. This control method requires a direct connection between the phone and the valve and being within its range.
Bluetooth does not replace the Zigbee gateway for Internet control. However, it is useful for configuration, maintenance, and local operation of the device in case of a lost connection to the gateway.
Precise irrigation schedules
The valve allows for the preparation of up to 6 operating schedules. Irrigation can be carried out for a specific time or until a set volume of water has passed, which makes it easier to match watering to the type of plants and the size of the irrigated area.
An interval mode is also available, in which the valve cyclically opens and closes the flow according to set operating and pause periods. Seasonal adjustment allows you to quickly change the time or amount of water without rebuilding all schedules.
Flow measurement and water consumption control
The built-in flow meter measures flow in the range from 2 to 45 l/min. Data on the amount of water used allows you to monitor the watering process, compare individual cycles, and more easily detect irregularities in the installation.
If the set volume of water is not passed within the expected time, for example due to low pressure, the valve can finish operation so as not to disrupt subsequent scheduled cycles.
Alerts and installation protection
The device allows for monitoring the installation's operating conditions and informing the user about detected irregularities. Available alerts include, among others, lack of water, abnormal flow, potential leaks, low temperature, and low battery level.
- Low battery notification.
- Alert regarding lack of or insufficient water flow.
- Warning related to the possibility of a leak.
- Information about low temperature and the risk of the installation freezing.
- Possibility to pause scheduled irrigation for 24 hours.
Compatibility with Smart Home automation
The Zigbee 3.0 protocol allows the valve to be connected to a compatible gateway and to create automations with other devices. Remote control, scenes, and integrations require a gateway that supports the SONOFF Hydro ONE SWV-ZFE.
The ability to work with Apple Home, Matter, Home Assistant, or other systems depends on the functions of the Zigbee gateway or bridge used and the currently supported integrations.
Technical specification
- Manufacturer: SONOFF
- Series: Hydro ONE
- Model: SWV-ZFE
- Microcontroller: TLSR8656
- Power supply: 6 V DC
- Batteries: 4 × AA 1,5 V
- Batteries included: no
- Connectivity: Zigbee 3.0 and Bluetooth Low Energy
- Remote control via the Internet: requires a compatible SONOFF Zigbee gateway
- Inlet connection: internal thread 3/4"
- Enclosure material: PC + ABS
- Inlet thread material: brass
- Ingress protection rating: IP55
- Operating pressure: from 0,06 to 0,8 MPa
- Ambient temperature: from 5 to 60°C
- Water temperature: from 5 to 40°C
- Flow measurement range: from 2 to 45 l/min
- Dimensions: 152 × 100 × 46 mm
Important operational information
- A compatible SONOFF Zigbee gateway is required for remote control via the Internet.
- Bluetooth only allows local control after a direct connection between the phone and the valve.
- During frost, you must shut off the water supply and thoroughly drain the valve and the installation.
- Water left in the device can freeze and cause damage to the thread or the enclosure.
- Flow below 5 l/min may be interpreted by the device as a lack of water.
- Four AA batteries are required for power, which are not included in the set.

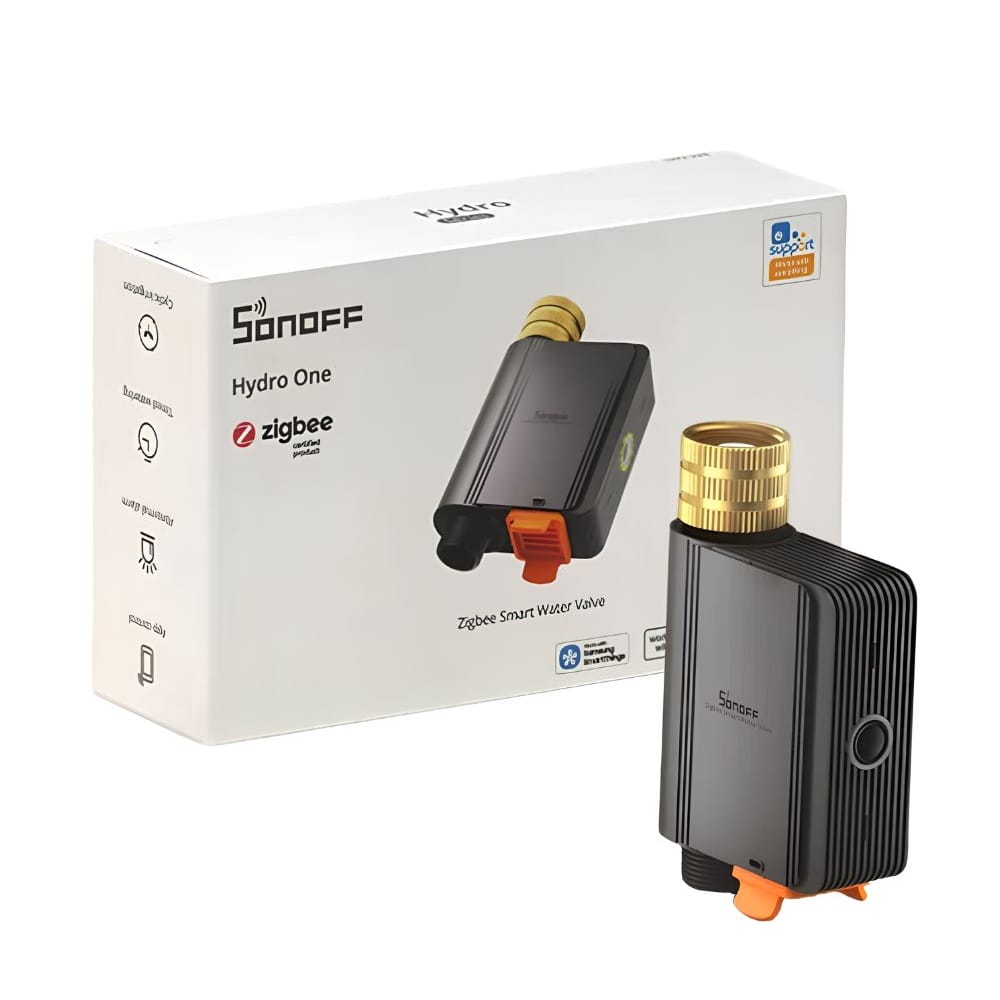

Set contents
- SONOFF Hydro ONE SWV-ZFE smart water valve.
- Mounting accessories.
- User manual.
AA batteries and a Zigbee gateway are not included in the set.
