Sonoff M5-2C-86W 2-gang Wi-Fi Matter smart wall switch
Regular price:
・Kup teraz i zapłać za 30 dni
product unavailable
Sonoff M5-2C-86W Matter smart wall switch (2-gang)
The Sonoff M5 Matter wall switch is a modern solution for convenient lighting management in a smart home. Thanks to support for the standardized Matter protocol and Wi-Fi connectivity, the device allows you to control the light via a physical button, the intuitive eWeLink app, as well as popular Smart Home platforms from anywhere in the world.
Key features:
- Support for the Matter standard: seamless integration with Apple Home, Google Home, and Amazon Alexa.
- Dual control method: the eWeLink mobile app and precise, physical wall buttons.
- Gateway function eWeLink-Remote: enables the creation of multi-way switching installations in cooperation with R5 or S-MATE2 controllers.
- High-performance chip: stable and fast communication based on the built-in ESP32.
microcontroller.
Extensive automation capabilities: The module allows you to create a functional multi-point system without the need for additional wiring in the walls. By pairing the M5 switch with the R5 wireless scene controller, you gain full control over lighting from several places at once. Additionally, full compatibility with the Matter standard allows for seamless communication between devices from different manufacturers within a single local ecosystem.
Connection diagram
Technical specification
- Manufacturer: Sonoff
- Model: M5-2C-86W
- Number of channels: 2
- Microcontroller: ESP32
- Supply voltage: 100-240 V AC ~ 50/60 Hz
- Maximum rated current: 10 A
- Maximum load: 2200 W
- Max. load for LED: 300 W (at 220 V) / 150 W (at 110 V)
- Wireless communication: Wi-Fi IEEE 802.11 b/g/n 2.4 GHz
- Operating environment temperature: -10°C ~ 40°C
- Permissible humidity: 5% ~ 95% RH (non-condensing)
- Housing material: PC V0 + cold-rolled steel (CRS)

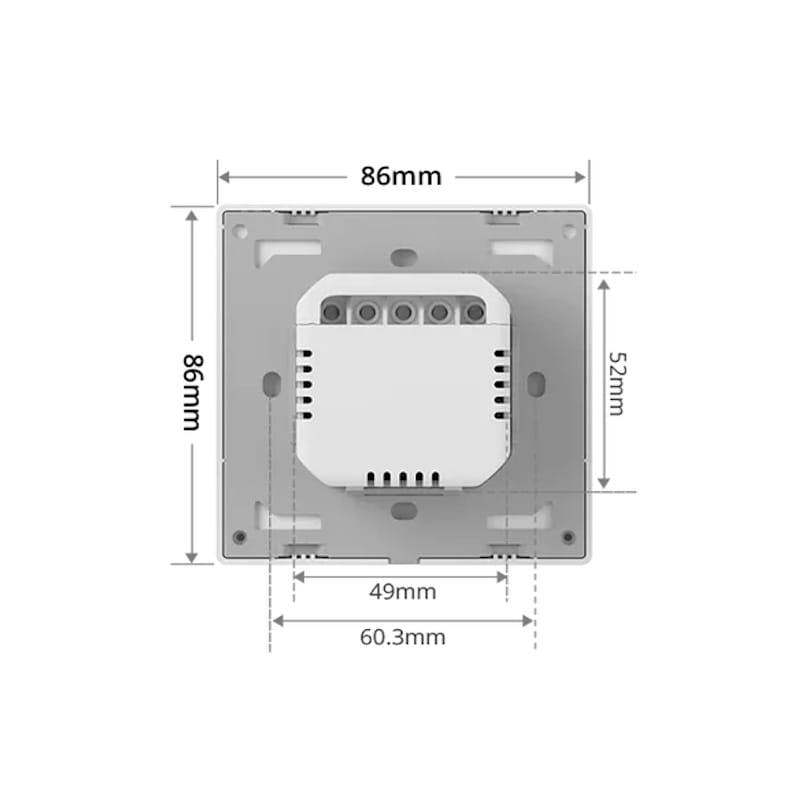

- Overall dimensions: 86 x 86 x 41,5 mm
- Net weight: 153,8 g
- Certificates: CE / RoHS
- Compliance with standard: EN 60669-2-1
Kit contents
- Sonoff M5-2C-86W Matter smart wall switch
- Mounting screws
- User manual
