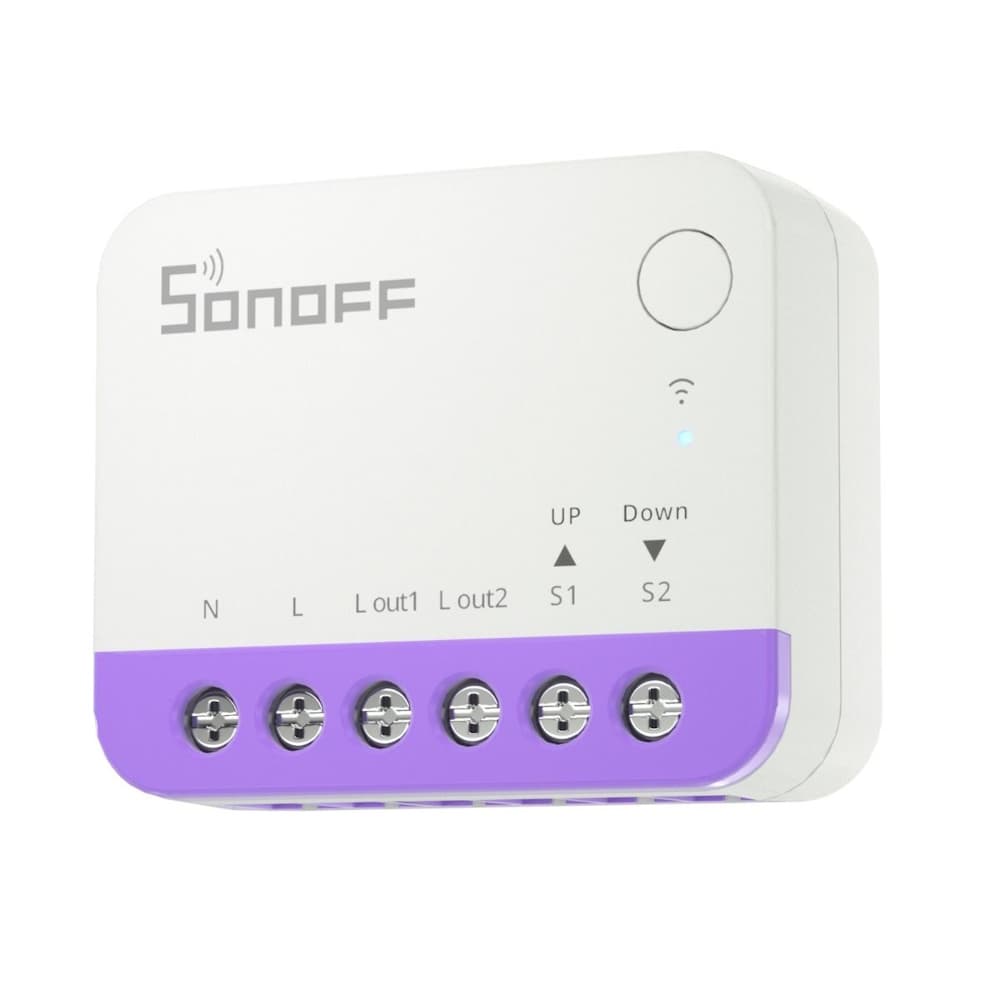

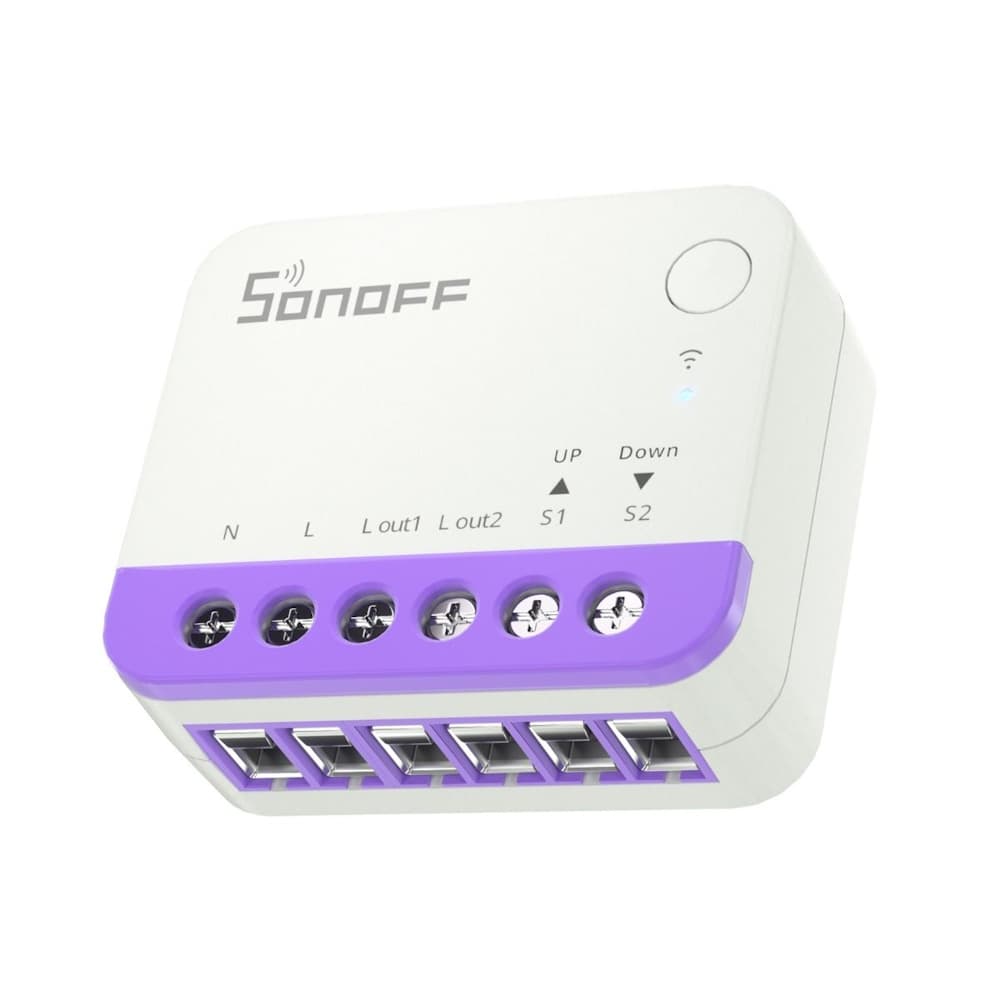

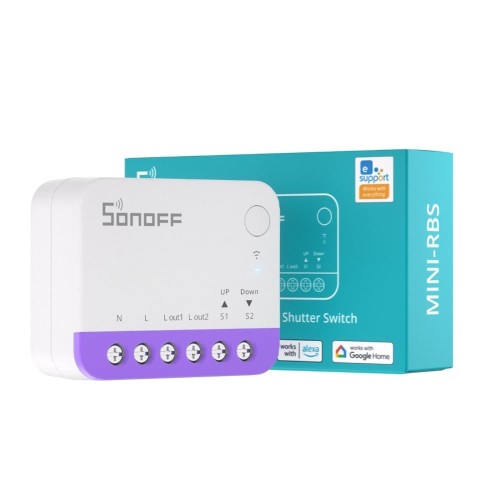

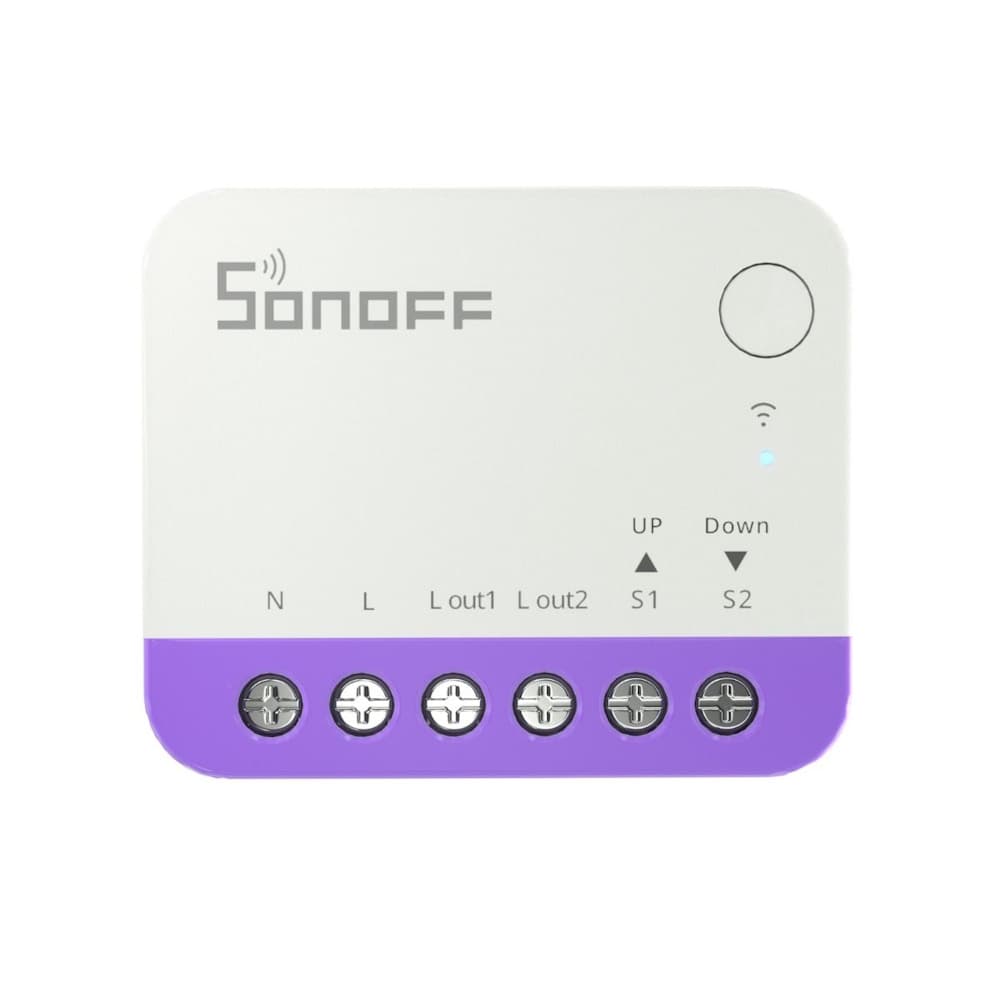

Sonoff MINI-RBS WiFi In-Wall Roller Shutter Controller

SONOFF MINI-RBS WiFi Roller Shutter Controller with Matter Support

Precise shutter control, compact size, wide compatibility – all in one smart module.

Key Features

• Precise Percentage Control: Set exactly how much light enters the room by adjusting the shutters by percentage.
• Compact Design: MINI-RBS fits into standard mounting boxes (e.g., European 60 mm box).
• Matter Standard Support: Integrate the controller with Apple Home, Google Home, Alexa, and other platforms (requires a Matter hub).
• Opening/Closing Schedules: Automatically raise and lower your shutters according to your daily routine.
• Shutter Operation Error Calibration: Ensures precise shutter positioning and longer lifespan of the entire system.
• Network and Local Control: Connect with a Sonoff scene controller for quick access without needing Wi-Fi.

Miniature, but Powerful

Thanks to its thoughtful, compact design, the SONOFF MINI-RBS controller fits into most installation boxes, making it an ideal solution for modernizing older installations as well.

Full Compatibility with Matter

Works with the most popular smart home platforms – Apple Home, Google Home, Alexa (requires a Matter hub). One device, many possibilities!

Precise Light Management

Control your shutters exactly as you need – set them to 30%, 70%, or fully open. Perfect for controlling daylight in the living room, office, or bedroom.

No Network? Everything's Under Control

The controller works with Sonoff scene switches (e.g., NSPanel or R5), allowing for local control without network access. Create a convenient remote for your shutter switch, offering both stable local control and setting integration in one switch.

Works with various types of wall switches

Supports momentary (bell), dual, and three-position switches – full flexibility to adapt to your installation.

Connection Method

Technical Specification

• Model: SONOFF MINI-RBS
• Input Voltage: 100–240V AC ~ 50/60Hz
• Motor Load: 100–240W / 1A
• Connectivity: Wi-Fi IEEE 802.11 b/g/n 2.4GHz
• Compatibility: Apple Home, Google Home, Amazon Alexa, Home Assistant (with Matter Hub)
• Casing Material: PC
• Required Box Depth: >30 mm (when used with ERBS)
